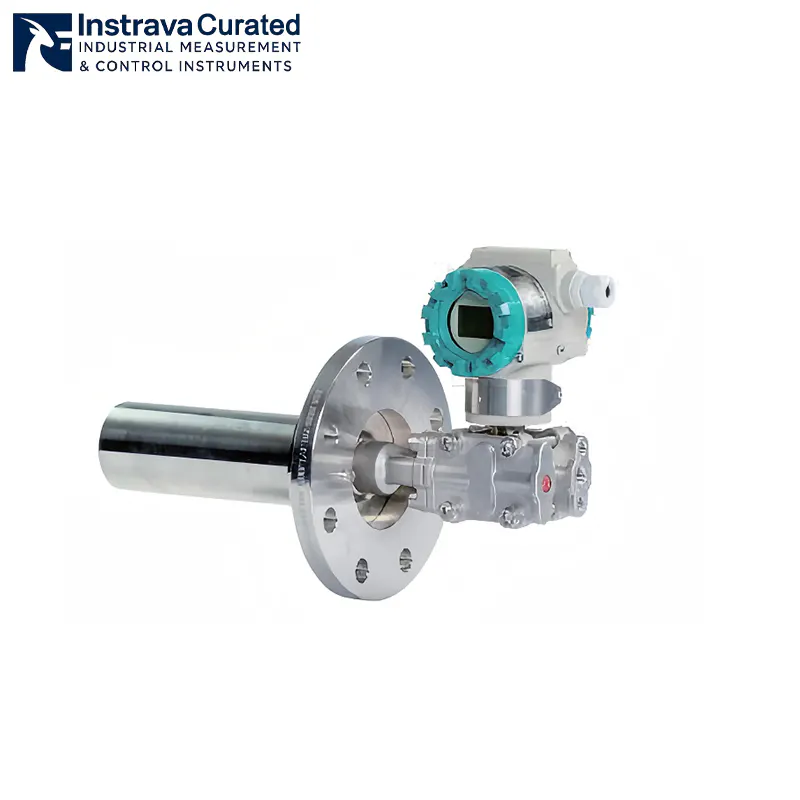

Ethernet-APL Level Transmitter for Smart Process Level Measurement
Instrava curated instruments combine advanced sensing technology, intelligent diagnostics, and Ethernet-APL communication to deliver reliable and future-ready level measurement solutions for modern industries. This high-performance Level Transmitter is designed to accurately measure liquid levels and convert process data into stable digital and analog output signals for remote monitoring and smart automation systems.
Supporting 4-20mA with HART, PROFIBUS-PA, FOUNDATION Fieldbus, Ethernet-APL, and AutBus communication protocols, the transmitter enables seamless integration into digital plants, industrial Ethernet architectures, and Industry 4.0 environments.
With excellent long-term stability, intelligent self-diagnostics, high-temperature process capability, and strong corrosion resistance, this smart level transmitter is ideal for chemical plants, oil & gas facilities, marine applications, power generation, pharmaceutical processing, and industrial storage systems.
وصف أجهزة الإرسال والاستشعار
Advanced Ethernet-APL Level Transmitter for Smart Industrial Networks
This Ethernet-APL level transmitter is engineered for next-generation process automation, enabling high-speed two-wire Ethernet communication directly at the field device level.
Compared with traditional analog transmitters, Ethernet-APL technology significantly improves device connectivity, remote accessibility, and real-time process visibility while supporting intrinsically safe long-distance communication in hazardous industrial environments.
Core communication advantages:
- Ethernet-APL enabled process instrumentation
- Remote parameter setting and diagnostics
- Real-time level monitoring and data transmission
- HART-IP and PROFINET compatibility
- Seamless integration with DCS and PLC systems
- Enhanced support for smart factory architecture
- Reduced wiring complexity and commissioning time
This makes the transmitter an ideal solution for intelligent tank level monitoring, digital process control, and industrial IoT applications.
High Stability Liquid Level Measurement with Reliable Process Performance
The transmitter incorporates advanced digital compensation technology and intelligent signal processing to maintain stable and accurate level measurement under demanding operating conditions.
Its wide turndown capability and low long-term drift help minimize recalibration requirements while improving operational consistency across varying process conditions.
أبرز مزايا الأداء:
- Wide 30:1 turndown ratio
- Long-term stability ≤0.1% FS over 10 years
- Excellent temperature compensation performance
- Stable operation from -52°C to +120°C
- High-temperature direct connection option up to 250°C
- Fast and stable signal response under fluctuating conditions
The advanced composite digital filtering algorithm dynamically suppresses transient micro-pressure fluctuations while maintaining rapid process response, ensuring reliable output signals in unstable or turbulent environments.
This makes the device highly suitable for demanding industrial level measurement applications involving temperature variation, vapor interference, pressure fluctuations, or corrosive media.
Intelligent Diagnostics and Predictive Maintenance Capabilities
More than a standard level sensor, this intelligent level transmitter supports advanced self-diagnostic and predictive maintenance functions to improve plant reliability and reduce unexpected downtime.
Built-in smart diagnostic features:
- Impulse line blockage detection
- Wetted-part temperature estimation
- Time-stamped event recording
- Process variable anomaly capture
- Predictive maintenance support
- Device health management
These intelligent capabilities help operators proactively detect abnormal operating conditions, optimize maintenance schedules, and improve overall process safety.
For critical industrial applications, the transmitter also complies with multiple international certifications:
- SIL certification
- CE certification
- V&V certification
- Russian SIL certification
- EAC020 electromagnetic compatibility certification
Designed for Harsh Industrial and Corrosive Environments
The transmitter is engineered for reliable long-term operation in severe industrial environments including offshore, coastal, and high-humidity processing areas.
Corrosion protection options:
- C4 protection for moderate industrial and coastal environments
- C5-M protection for marine and high-salt environments
- C5-I protection for heavy industrial corrosion areas

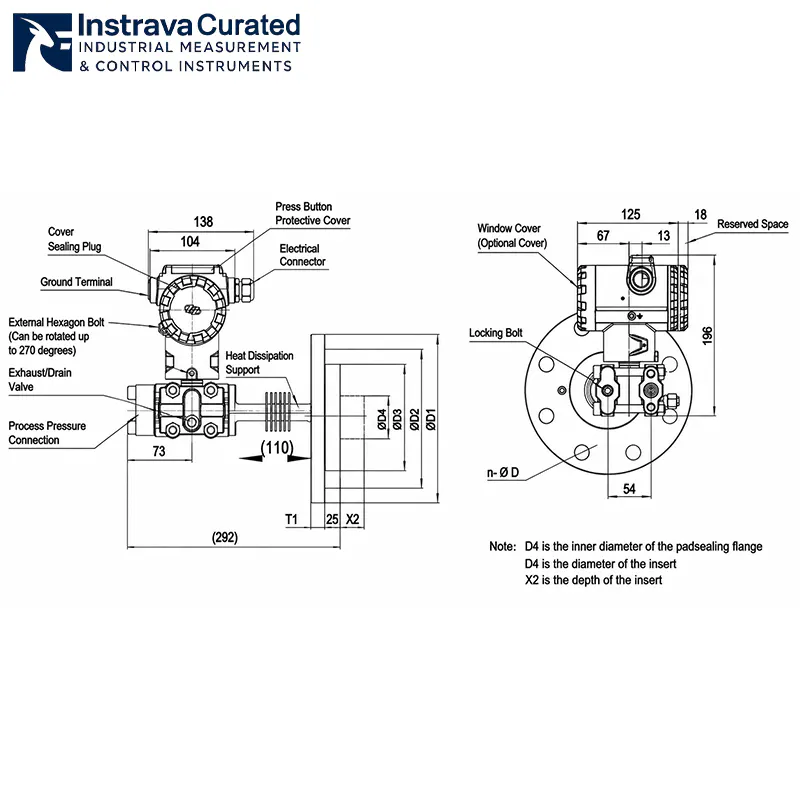

High-temperature structure option:
The high-temperature direct-mounted structure is suitable for demanding process temperatures from 205°C to 250°C, making it ideal for steam systems, chemical reactors, and high-temperature storage applications.
تشمل التطبيقات النموذجية ما يلي:
- صهاريج تخزين المواد الكيميائية
- Refinery process vessels
- Offshore platforms
- Pharmaceutical tanks
- LNG facilities
- Industrial water treatment systems
- High-temperature liquid process control
معلمة أجهزة الإرسال والاستشعار
| المعلمة | المواصفات |
|---|---|
| نوع المنتج | Smart Level Transmitter |
| Measurement Media | Liquid Level |
| Communication Output | 4-20mA + HART, PROFIBUS-PA, FF, Ethernet-APL, AutBus |
| Ethernet-APL Protocols | HART-IP, PROFINET |
| نسبة الدوران إلى الدوران | 30:1 |
| الاستقرار طويل الأجل | ≤0.1% FS / 10 years |
| Temperature Effect | ≤(0.06r + 0.2)% / 28°C |
| درجة حرارة التشغيل | -52°C to +120°C |
| High Temperature Structure | 205°C to 250°C |
| Diagnostic Functions | Blockage detection, event logging, predictive maintenance |
| معالجة الإشارات | Dynamic composite digital filtering |
| Corrosion Protection | C4 / C5-M / C5-I |
| الشهادات | SIL, CE, V&V, EAC020 |
| Communication Features | Remote configuration and monitoring |
| Applications | Chemical, Oil & Gas, Marine, Power, Water Treatment |
إنسترافا OEM/ODM
أدوات موثوقة. حلول تناسب تطبيقك.
تركز إنسترافا على تقديم حلول صناعية موثوقة من خلال المنتجات المنتقاة بعناية والتحسين القائم على التطبيقات والتخصيص المرن. نختار الأدوات التي أثبتت كفاءتها من الشركات المصنعة الموثوق بها لضمان جودة متسقة، ونعمل على تحسين الحلول بناءً على ظروف العمل الحقيقية لحل التحديات العملية، ونوفر تكوينات مصممة خصيصًا لتلبية احتياجات التطبيقات المحددة.
تساعد Instrava العملاء على تقليل المخاطر وتحسين الكفاءة وتحقيق نتائج يمكن الاعتماد عليها في البيئات الصناعية المعقدة من خلال الجمع بين الخبرة في الاختيار وفهم التطبيقات.
تقوم Instrava بتصميم المسار الصحيح لرقمنة عملياتك - من الأدوات القديمة إلى الأنظمة المتصلة القائمة على البيانات.
What is an Ethernet-APL level transmitter and why is it important for smart industrial systems?
An Ethernet-APL level transmitter is a next-generation intelligent level measurement device that combines precise liquid level sensing with high-speed Industrial Ethernet communication. Unlike conventional analog transmitters, Ethernet-APL technology enables simultaneous power supply and digital communication over a two-wire cable, making it ideal for modern process automation systems.
The transmitter supports multiple communication protocols including:
- إيثرنت-APL
- HART-IP
- PROFINET
- PROFIBUS-PA
- FOUNDATION Fieldbus (FF)
- 4-20mA + HART
This allows seamless integration with DCS, PLC, SCADA, edge gateways, and cloud-based monitoring platforms. Ethernet-APL is increasingly adopted in Industry 4.0 environments because it improves data transparency, predictive maintenance capability, and remote asset management.
What industries commonly use Ethernet-APL level transmitters?
Ethernet-APL level transmitters are widely used in industries that require high reliability, remote diagnostics, and stable operation under harsh process conditions.
تشمل التطبيقات النموذجية ما يلي:
| الصناعة | التطبيق النموذجي |
|---|---|
| النفط والغاز | Storage tank and separator level monitoring |
| المعالجة الكيميائية | Corrosive liquid level measurement |
| LNG & Hydrogen Energy | Cryogenic and process vessel monitoring |
| محطات توليد الطاقة | Boiler drum and condensate tank level control |
| المستحضرات الصيدلانية | Hygienic process tank monitoring |
| Marine & Offshore | High humidity and salt spray environments |
| معالجة المياه | Reservoir and process tank automation |
Because Ethernet-APL supports long cable distances and advanced diagnostics, it is especially suitable for large-scale industrial plants upgrading toward digital process automation.
How stable and accurate is the Ethernet-APL level transmitter during long-term operation?
The transmitter is engineered for high-precision continuous industrial operation with excellent long-term stability and minimal drift.
Key performance specifications include:
| المعلمة | المواصفات |
|---|---|
| Maximum Accuracy | High-precision industrial grade |
| الاستقرار طويل الأجل | ≤ ±0.1% FS over 10 years |
| Maximum Turndown Ratio | 30:1 |
| نطاق درجة الحرارة | -52°C to +120°C |
| High-Temperature Version | Up to 250°C |
| Dynamic Response Optimization | Intelligent digital filtering |
The advanced composite digital filtering algorithm automatically adjusts filtering coefficients according to process fluctuations. This ensures fast dynamic response while maintaining stable and noise-resistant output signals.
Such stability is critical in applications where inaccurate level measurement may lead to process interruptions, overflow risks, or production quality issues.
Can the Ethernet-APL level transmitter work in high-temperature or corrosive environments?
Yes. The transmitter is designed for severe industrial environments including high-temperature, high-humidity, offshore, and corrosive process applications.
Environmental capabilities include:
- Standard process temperature range: -52°C to +120°C
- High-temperature direct-mount structure: 205°C to 250°C
- Salt spray and corrosion resistance
- Heavy industrial atmosphere protection
Supported anti-corrosion protection grades:
| درجة الحماية | البيئة المناسبة |
|---|---|
| C4 | Coastal or moderate industrial areas |
| C5-M | Offshore and high-salt marine environments |
| C5-I | Severe industrial corrosion zones |
These protection capabilities make the device suitable for petrochemical plants, marine platforms, refinery storage tanks, and chemical processing systems requiring long-term reliability.
What intelligent diagnostic functions are available in this smart level transmitter?
The Ethernet-APL level transmitter includes advanced intelligent diagnostics that help reduce maintenance costs and improve process reliability.
Built-in diagnostic functions include:
- Impulse line blockage detection
- Wetted-part temperature estimation
- Timestamped event recording
- Abnormal process variable capture
- Predictive maintenance and health monitoring
- Transient micro-pressure fluctuation suppression
The transmitter continuously analyzes process conditions and device status in real time. Maintenance personnel can remotely identify abnormal operating trends before failures occur, reducing unexpected shutdowns and improving plant uptime.
This predictive diagnostic capability is increasingly important in modern digital factories and unmanned industrial facilities.
What are the advantages of Ethernet-APL communication for level measurement applications?
