Edge IoT Gateway – Industrial Edge Connectivity and Intelligent Data Integration
Instrava Curated Instruments presents a powerful and compact Edge IoT Gateway designed to connect industrial assets, simplify data acquisition, and accelerate digital transformation. Built on an industrial-grade architecture, this intelligent gateway combines reliable connectivity, robust edge processing, and seamless cloud integration in one flexible platform.
Powered by the proven TI AM3352 industrial processor, this industrial edge IoT gateway delivers stable performance for real-time data collection, protocol conversion, local processing, and secure cloud communication. With support for 4G, Wi-Fi, Gigabit Ethernet, and dual-SIM redundancy, it ensures uninterrupted connectivity across demanding industrial environments.
Pre-integrated with advanced edge software, including Python development support, Docker container deployment, DeviceSupervisor Agent, and DeviceLive cloud management, it enables rapid deployment of scalable IIoT applications. From machine monitoring and remote asset management to SCADA integration and cloud analytics, this gateway transforms field data into actionable intelligence.
Edge Gateway Description
Reliable Industrial Connectivity with Built-In Edge Intelligence
Designed for mission-critical industrial networking, this edge IoT gateway with 4G, Wi-Fi, and Ethernet ensures continuous communication even in challenging environments.
Always-On Industrial Communications
- 4G LTE, optional dual-band Wi-Fi, and dual Gigabit Ethernet connectivity
- Automatic failover between wired, cellular, and Wi-Fi networks
- Dual SIM redundancy for carrier backup and maximum uptime
- Multi-layer link detection with automatic self-healing recovery
Industrial-Grade Reliability
- Independent hardware and software watchdog protection
- Communication auto-recovery for uninterrupted operation
- EMC-certified for harsh industrial environments
- Fanless metal enclosure for long-term stability
This makes it ideal for remote monitoring, smart manufacturing, utility automation, and distributed industrial IoT deployments.
Open Edge Platform for Data Acquisition, Protocol Conversion, and Cloud Integration
Le présent programmable edge IoT gateway provides an open and scalable platform for industrial edge applications.
Powerful Edge Computing Resources
- TI AM3352 ARM Cortex-A8 processor at 1GHz
- 1GB DDR3 RAM and 8GB eMMC storage
- Supports local data processing, filtering, and real-time analytics
- Optimized for edge intelligence and rapid response applications
Flexible Development and Deployment
- Supports Python and Docker-based secondary development
- Open SDK for rapid custom application development
- Easy integration with enterprise systems and industrial workflows
- Enables deployment of customized edge applications at scale
Built-In Industrial Data Platform
- DeviceSupervisor Agent pre-integrated
- Supports 80+ industrial and IoT protocols
- Zero-code / low-code data acquisition and processing
- Seamless integration with public cloud, private cloud, and local SCADA systems
Supported protocols include:
- Modbus RTU / TCP
- OPC UA Client / Server
- EtherNet/IP
- Mitsubishi, Siemens, Omron PLC protocols
- BACnet, DNP3.0, IEC 101/104, DLT645, CNC
- MQTT and major cloud platforms including AWS, Azure, and Alibaba Cloud
Edge Gateway Parameter
| Paramètres | Spécifications |
|---|---|
| CPU | TI AM3352 ARM Cortex-A8, 1GHz |
| Mémoire | 1GB DDR3 |
| Storage | 8GB eMMC |
| Expansion Storage | Micro SD up to 32GB |
| Ethernet | 2 × 10/100/1000 Mbps Gigabit Ethernet |
| Serial Ports | 1 × RS232, 1 × RS485 |
| E/S numériques | 4 × DI, 4 × DO (optional) |
| USB | 1 × USB 2.0 |
| Wireless | Optional Wi-Fi 2.4G/5G, Bluetooth |
| Cellular | 4G LTE, Dual SIM Failover |
| GNSS | Optional GPS / BeiDou |
| Système d'exploitation | Embedded Linux |
| Development Support | Python, Docker, Open SDK |
| Industrial Protocols | Modbus, OPC UA, EtherNet/IP, BACnet, IEC 104, DNP3.0 |
| Intégration dans le nuage | AWS, Azure, Alibaba Cloud, Private Cloud, SCADA |
| Power Input | DC 12–48V |
| Protection de l'environnement | Reverse Polarity Protection |
| Température de fonctionnement | de -25 °C à +70 °C |
| Température de stockage | -40°C to +85°C |
| Humidité | 5–95% RH (non-condensing) |
| Indice de protection | IP30 |
| Mounting | DIN Rail / Wall Mount |
| Cooling | Fanless |
| Logement | Metal Enclosure |
| Dimensions | 141 × 113 × 45 mm |
| Poids | 626 g |
| Certifications | CE, FCC, PTCRB, RCM, IC, IMDA, AT&T, UKCA, EAC, ANATEL |
Instrava OEM/ODM
Des instruments fiables. Des solutions adaptées à votre application.
Instrava se concentre sur la fourniture de solutions industrielles fiables grâce à des produits soigneusement sélectionnés, à une optimisation axée sur les applications et à une personnalisation flexible. Nous sélectionnons des instruments éprouvés auprès de fabricants de confiance afin de garantir une qualité constante, nous optimisons les solutions en fonction des conditions de travail réelles afin de résoudre les problèmes pratiques, et nous fournissons des configurations sur mesure pour répondre aux besoins d'applications spécifiques.
En combinant l'expertise en matière de sélection et la compréhension des applications, Instrava aide ses clients à réduire les risques, à améliorer l'efficacité et à obtenir des résultats fiables dans des environnements industriels complexes.
Instrava conçoit la bonne voie pour numériser vos opérations - des instruments hérités aux systèmes connectés et axés sur les données.
What is an Edge Gateway IoT device?
An Edge Gateway IoT device is an industrial computer that connects field devices (PLCs, sensors, meters) to cloud platforms while processing data locally. It supports multiple industrial protocols such as Modbus and OPC UA, enabling real-time data acquisition, protocol conversion, and secure cloud communication without replacing existing equipment.
What are the key features of this Edge Gateway IoT hardware?
This Edge Gateway IoT device is designed for industrial environments with the following core specifications:
- CPU: TI AM3352 ARM Cortex-A8, 1GHz
- Memory: 1GB DDR3 + 8GB eMMC
- Connectivity: Dual Gigabit Ethernet + 4G LTE (Dual SIM failover)
- Interfaces: RS232, RS485, DI/DO, USB
- Wireless: Optional Wi-Fi and Bluetooth
- Design: Fanless, metal enclosure, DIN rail mounting
These features ensure stable performance in industrial IoT deployments.
Which protocols does the Edge Gateway IoT support?
The gateway supports a wide range of industrial and cloud protocols:
| Type | Protocoles |
|---|---|
| Industrie | Modbus, OPC UA, EtherNet/IP, BACnet |
| Power Systems | IEC 104, DNP3.0 |
| Cloud | MQTT, AWS, Azure, private cloud, SCADA |
This allows seamless integration between legacy devices and modern IoT platforms.
How does an Edge Gateway IoT connect to the cloud?

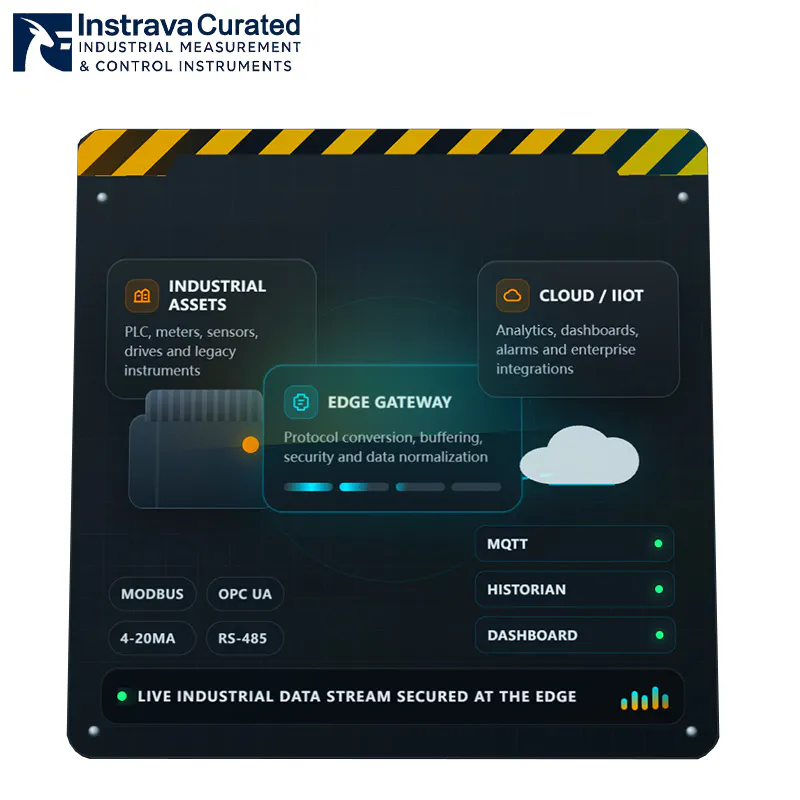

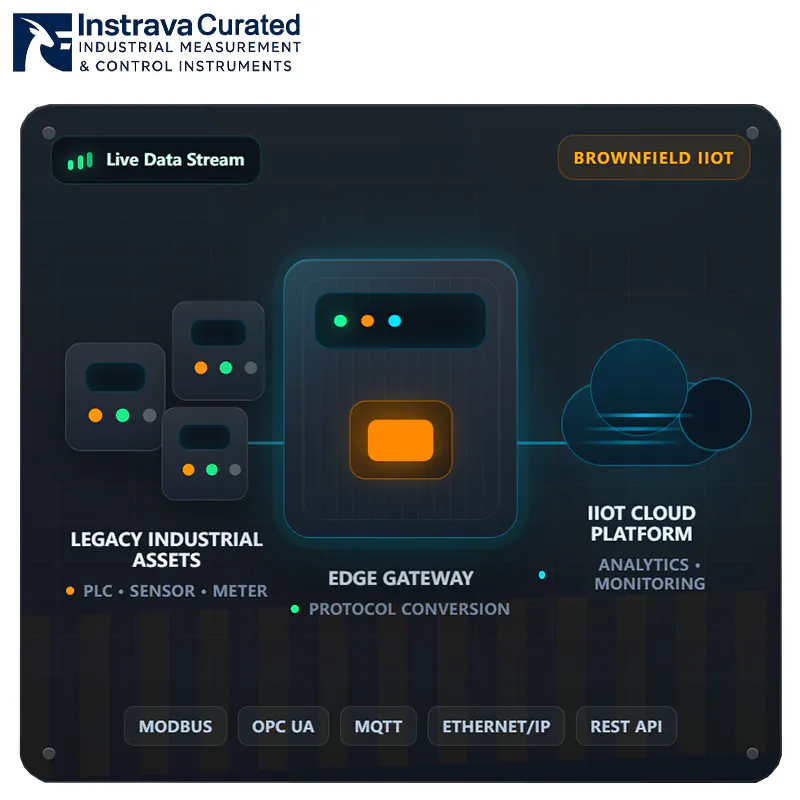

The device collects data from field equipment via RS232/RS485 or Ethernet, converts it into standard protocols (such as MQTT or OPC UA), and transmits it to cloud platforms via Ethernet or 4G LTE. Dual SIM failover ensures continuous connectivity, making it suitable for remote monitoring and industrial automation.
Is this Edge Gateway IoT suitable for harsh industrial environments?
Yes. It is built with industrial-grade reliability:
- Operating temperature: -25°C to +70°C
- Fanless cooling for dust resistance
- Metal enclosure with IP30 protection
- Wide power input: DC 12–48V with reverse protection
These features ensure stable operation in factories, energy systems, and outdoor installations.
What are typical use cases for an Edge Gateway IoT?
Common applications include:
- Industrial automation and PLC data acquisition
- Energy monitoring and smart grid integration
- Remote equipment monitoring via 4G
- Building management systems (BACnet integration)
- SCADA and cloud-based industrial IoT platforms
This makes it a flexible solution for Industry 4.0 and digital transformation projects.
