Ethernet-APL Technology in Industrial 4.0

مقدمة

Ethernet-APL (Advanced Physical Layer) is one of the most important communication technologies driving the digital transformation of process automation systems.

Traditional industrial fieldbus technologies such as:

• هارت
• PROFIBUS PA
• Foundation Fieldbus

were originally designed for low-bandwidth industrial communication environments. Although these technologies provided reliable process communication for many years, they increasingly struggle to meet the data requirements of modern Industry 4.0 architectures.

The true value of Ethernet-APL technology lies in how high-speed industrial Ethernet communication enables:

• Real-time industrial data access
• High-bandwidth field communication
• Intelligent device integration
• Advanced diagnostics
• حوسبة الحافة
• Cloud connectivity
• Secure sensor-to-controller communication

Modern industrial instrumentation is no longer limited to transmitting simple process variables. Ethernet-APL transforms field devices into intelligent industrial data nodes capable of supporting advanced digital automation systems.

Ethernet-APL is one piece of the puzzle for such a converged network, supporting various real time protocols like PROFINET, EtherNet/IP, HART-IP as well as the middleware protocol OPC UA.

1. History and Development of Ethernet-APL Technology

The development of Ethernet-APL technology was driven by the increasing need to bring industrial Ethernet directly into hazardous process automation environments.

Traditional Ethernet technologies faced several limitations in process industries because standard Ethernet infrastructure was not designed for:

• Long cable distances
• Intrinsically safe environments
• Two-wire field instrumentation
• Harsh industrial conditions

As Industry 4.0 architectures evolved, industrial automation systems required significantly more data from field devices than traditional fieldbus systems could provide.

To address these limitations, “The APL Project” was established in 2018.

The agreement to develop the Ethernet-APL technology under “The APL Project” was established in 2018 and is backed by the leading industry standard development organizations (SDOs):

• FieldComm Group
• ODVA
• OPC Foundation
• PROFIBUS & PROFINET International

The project was also supported by major industrial automation companies including:

• ABB
• Emerson
• إندريس+هاوزر
• Krohne
• Pepperl+Fuchs
• Phoenix Contact
• R. Stahl
• Rockwell Automation
• Samson
• سيمنز
• VEGA
• Yokogawa

Ethernet-APL was specifically designed to bring Ethernet capability into process field instrumentation while maintaining:

• السلامة الجوهرية
• Long-distance communication
• Two-wire operation
• Power and communication integration

Today, Ethernet-APL is becoming one of the key enabling technologies behind digital process automation.

2. Core Technical Principle of Ethernet-APL

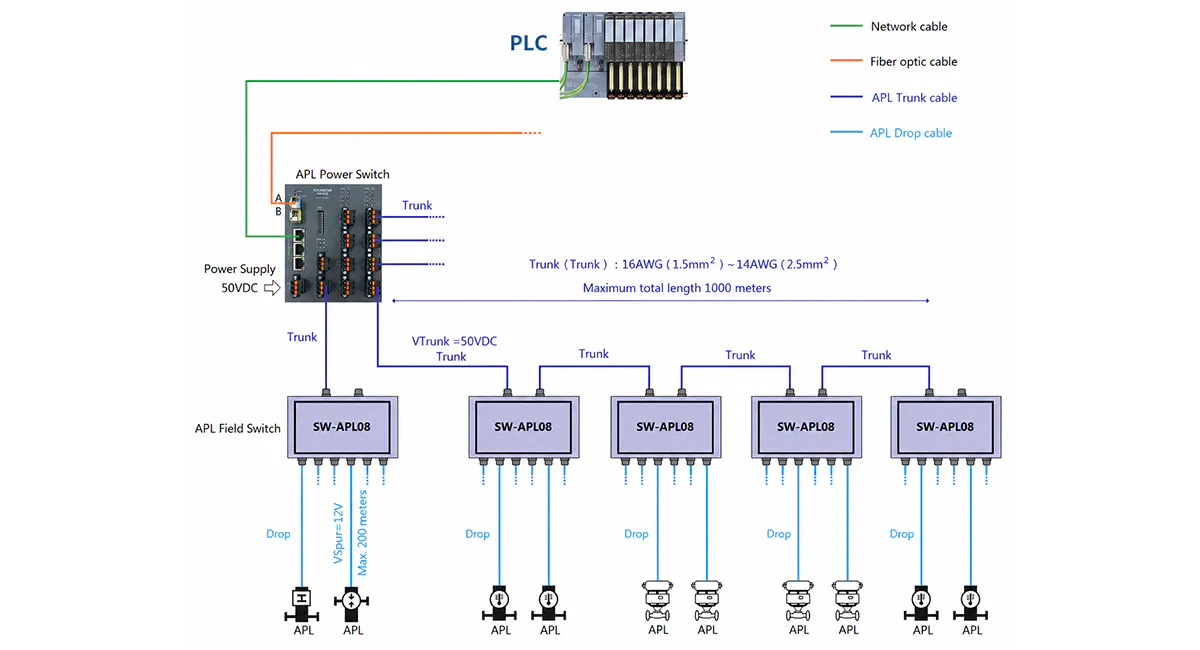

Ethernet-APL is based on Single Pair Ethernet (SPE) technology optimized for process automation environments.

The technology enables:

• Power delivery
• Ethernet communication
• Long-distance transmission

through a single two-wire cable.

Unlike traditional Ethernet architectures that require multiple wire pairs and relatively short cable distances, Ethernet-APL is optimized for:

• Long industrial cable runs
• Hazardous areas
• Intrinsically safe installations
• Field-level instrumentation

The communication speed of Ethernet-APL is:

$10Mbit/s$

This data rate represents a major technological leap compared with traditional process fieldbus technologies.

3. Why Ethernet-APL Is a Major Technological Upgrade

Traditional process fieldbus systems were primarily designed for transmitting basic process variables such as:

• الضغط
• درجة الحرارة
• المستوى
• Flow

However, modern Industry 4.0 systems increasingly require:

• High-resolution diagnostics
• Device health monitoring
• Predictive maintenance data
• Advanced analytics
• Remote configuration
• Real-time asset monitoring

Traditional low-speed fieldbus technologies struggle to support these advanced requirements.

4. Ethernet-APL vs PROFIBUS PA and HART

According to Toni Mertala in:

ETHERNET APL -TEKNIIKAN KÄYTTÖÖNOTTO 800XA-JÄRJESTELMÄSSÄ JA PA-LAITTEIDEN INTEGROIMINEN-THESEUS

Ethernet APL:n tiedonsiirtonopeuden ollessa 10 mbit/s on se yli 300 kertaa nopeampi kuin Profibus PA:n ja HART:n tiedonsiirto.

From a process automation perspective, this is a major technological breakthrough.

Traditional HART and PROFIBUS PA systems were never designed for transmitting large amounts of diagnostic and operational data continuously.

Ethernet-APL’s significantly higher bandwidth enables field devices to transmit:

• Advanced diagnostics
• Device status information
• Process analytics
• Waveform data
• Predictive maintenance information
• High-frequency measurement updates

in real time.

The thesis further states:

“Ethernet APL:n nopean tiedonsiirron ansiosta kenttälaitteilta saadaan entistä enemmän tietoa, jota voidaan hyödyntää.”

This reflects one of the core advantages of Ethernet-APL technology:

Field instrumentation is no longer limited to simple measurement transmission. Devices become intelligent industrial information sources.

The article also states:

“Prosessiteollisuudessa tällä hetkellä käytettävät Profibus PA -kenttälaitteet eivät mahdollista tämän lisätiedon hyödyntämistä.”

This highlights a major limitation of traditional fieldbus systems in Industry 4.0 environments.

Finally, the thesis concludes:

“Tämän takia Ethernet APL -teknologia tuleekin varmasti korvaamaan Profibus PA -kenttäväylän ja muut vanhemmat väylätekniikat tulevaisuudessa.”

From a technology evolution perspective, Ethernet-APL represents the transition from:

• Traditional field communication
• Low-bandwidth instrumentation
• Isolated process networks

toward:

• Unified Ethernet architectures
• Intelligent digital plants
• Real-time industrial data ecosystems

5. Real-Time Industrial Protocol Support

One of the most important strengths of Ethernet-APL is protocol convergence capability.

Ethernet-APL supports multiple industrial communication protocols simultaneously, including:

• PROFINET
• EtherNet/IP
• HART-IP
• OPC UA

This enables process plants to build unified industrial Ethernet infrastructures capable of integrating:

• الأجهزة الميدانية
• Controllers
• أنظمة SCADA
• المنصات السحابية
• Edge devices
• Asset management systems

OPC UA support is particularly important because it enables:

• Standardized industrial interoperability
• Secure data exchange
• Scalable IIoT integration
• Cross-platform communication

6. Cybersecurity Challenges in Ethernet-APL Networks

As Ethernet-APL directly connects field devices to Ethernet-based plant networks, cybersecurity becomes increasingly important.

According to:

Niemann, Karl-Heinz, and Simon Merklin. 2022.
“OT security requirements for EthernetAPL field devices : Technological change can yield improved protection.”
atp Magazin 63 (5).

the paper showed that Ethernet-APL field devices are subject to potential attacks.

The paper states:

“The flat network structure offers attackers relatively easy access to the devices, as they are directly connected to the plant network.”

Unlike isolated traditional fieldbus systems, Ethernet-APL devices operate inside highly connected industrial Ethernet infrastructures.

This greatly increases the importance of:

• Network segmentation
• Authentication
• Encryption
• Device integrity protection
• Secure communication protocols

Secure Communication Requirements

The paper further explains:

“Therefore secure communications will be needed for Ethernet-APL devices.”

and:

“The security requirements for automation components, as described in the IEC 62443-4-2 also apply for APL devices.”

This means Ethernet-APL field devices must be treated similarly to:

• Controllers
• Remote I/O systems
• Industrial network infrastructure

rather than simple passive field instruments.

Sensor-to-Controller Data Integrity

One of the most important technological advantages of Ethernet-APL is secure end-to-end communication capability.

The paper states:

“By using a secure communication protocol, it is possible for the first time to protect the integrity and authenticity of sensor values from the sensor to the controller, which is currently not possible with HART or PROFIBUS PA.”

This represents a major Industry 4.0 advancement because process measurement values can now be securely verified across the entire automation architecture.

This is increasingly important for:

• Safety-critical processes
• Pharmaceutical manufacturing
• إنتاج المواد الكيميائية
• أنظمة الطاقة
• بيئات التوأم الرقمي

Defense-in-Depth Architecture

The paper also recommends:

“a defense in depth concept should be used to protect the plant area against attacks from the outside.”

Modern Ethernet-APL architectures increasingly require:

• Firewalls
• Secure gateways
• VLAN segmentation
• Intrusion detection
• الاتصالات المشفرة
• Secure device authentication

to protect industrial automation infrastructure.

Hardware Security Integration

The paper further recommends that manufacturers should:

“reserve sufficient resources in their devices (memory, computing power, possibly a secure element like a Trusted Platform Module or similar).”

This reflects a major technological evolution in industrial instrumentation.

Future field devices are expected to increasingly integrate:

• Hardware security modules
• Trusted Platform Modules (TPM)
• Secure boot architectures
• Embedded cryptographic processors

directly inside industrial instruments.

7. How Ethernet-APL Enhances Instrument Functions

إيثرنت-APL technology fundamentally changes the capabilities of industrial field devices.

High-Speed Communication Enables Advanced Diagnostics

The increased bandwidth allows field devices to provide:

• Real-time diagnostics
• Device health monitoring
• Advanced waveform analysis
• Predictive maintenance data
• Detailed operational analytics

This significantly improves plant visibility and operational intelligence.

Unified Ethernet Architecture Simplifies Integration

Ethernet-APL allows field devices to integrate directly into Ethernet-based industrial systems.

This simplifies:

• Plant network architecture
• تكامل البيانات
• Remote access
• Cloud connectivity
• SCADA communication

Real-Time Data Improves Automation Capability

High-speed field communication improves:

• Process responsiveness
• Automation precision
• Real-time optimization
• Advanced process control

This enables more intelligent industrial automation systems.

8. Industry 4.0 Evolution of Ethernet-APL

Ethernet-APL is one of the foundational technologies enabling Industry 4.0 process automation architectures.

Modern Ethernet-APL systems increasingly support:

• Cloud connectivity
• حوسبة الحافة
• AI-based analytics
• الصيانة التنبؤية
• التوائم الرقمية
• Remote plant monitoring
• Intelligent asset management

Field instrumentation is evolving from isolated measurement devices into intelligent industrial network nodes.

Edge and Cloud Integration

Ethernet-APL enables direct integration between:

• Field devices
• Edge computing platforms
• Cloud analytics systems
• Industrial AI applications

This significantly improves industrial data accessibility.

Digital Twin Integration

Modern digital twin systems increasingly require:

• Real-time device data
• Continuous diagnostics
• High-frequency process updates

Ethernet-APL provides the bandwidth and interoperability necessary to support these advanced architectures.

9. Future Development Trends of Ethernet-APL

Future Ethernet-APL technologies are expected to evolve toward:

• Higher cybersecurity integration
• AI-assisted network diagnostics
• Autonomous device management
• Edge-native industrial communication
• Fully converged Ethernet plants
• Software-defined industrial networks

Future industrial field devices may increasingly integrate:

• Embedded AI processors
• Secure hardware elements
• Self-diagnostic architectures
• Autonomous optimization algorithms

Ethernet-APL is expected to become one of the dominant communication infrastructures for next-generation process automation systems.

الخاتمة

Ethernet-APL technology represents one of the most important communication advancements in modern process automation.

The true value of Ethernet-APL lies in how high-speed industrial Ethernet communication transforms field instrumentation into intelligent digital automation devices capable of supporting:

• Real-time industrial communication
• Advanced diagnostics
• Secure sensor-to-controller data transfer
• Industry 4.0 integration
• Cloud connectivity
• AI-driven analytics

Compared with traditional fieldbus systems such as HART and PROFIBUS PA, Ethernet-APL provides dramatically higher communication bandwidth while enabling secure, scalable, and unified industrial Ethernet architectures.

As Industry 4.0 technologies continue evolving, Ethernet-APL is expected to become one of the core communication technologies behind intelligent process automation systems.
