Interruptores de nivel

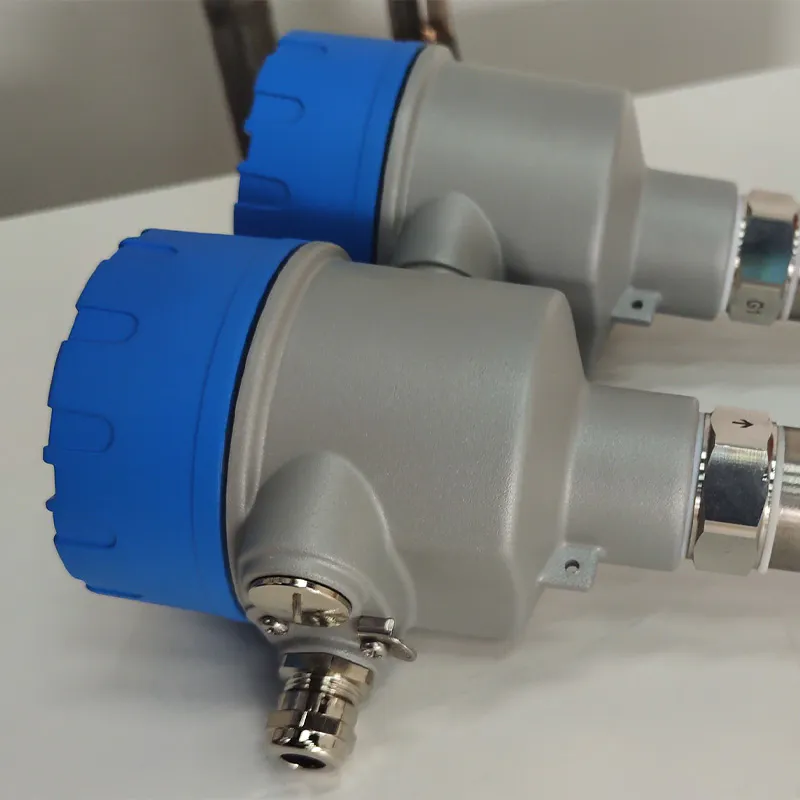

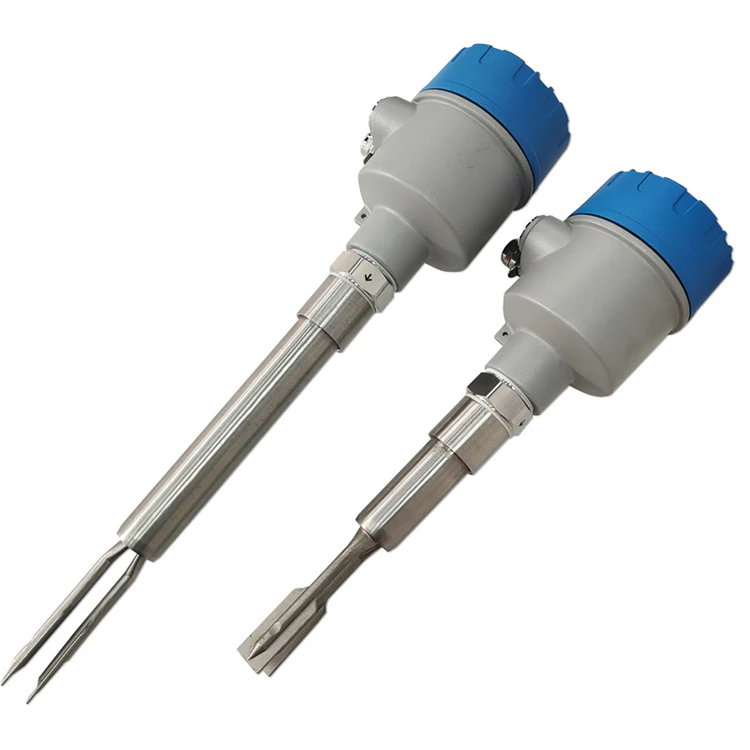

Interruptor de nivel de diapasón
Reliable point level detection for liquids, powders, and solid materials in industrial processes
Stable level switching independent of flow, bubbles, or material properties
Diseño industrial para un funcionamiento continuo
Apto para líquidos, polvos y sólidos granulados
OEM / ODM and configuration options available
Diseñado para funcionar a largo plazo y con poco mantenimiento
A practical and proven solution for tank, silo, and process level control.
En entornos industriales, los interruptores de nivel suelen fallar debido a disparos falsos, variaciones de material o frecuentes requisitos de mantenimiento. El interruptor de nivel de horquilla vibratoria de Instrava está diseñado para hacer frente a estos retos habituales.
Designed for continuous operation in harsh industrial environments
Reduced maintenance frequency compared with mechanical or optical switches
Stable and repeatable output signals for PLC and control systems
Independent of conductivity, dielectric constant, or flow conditions
Proven performance across multiple industrial applications
By focusing on lifecycle stability rather than short-term cost, this solution helps reduce operational risk and total cost of ownership.
Liquid Level Switch Description
Tuning Fork Level Switch Engineering & Technical Selection
Measurement Principle
The tuning fork level switch uses a piezoelectric resonant system. Under free vibration, the fork oscillates at a fixed frequency. When material contacts the fork, vibration amplitude and frequency change due to damping, triggering a stable switching signal.
Accuracy & Reliability
Resonance-based detection ensures consistent switching behavior
Adjustable delay time prevents false alarms during filling or discharge
Suitable for variable process conditions without recalibration
Output & Integration
Relay output compatible with standard industrial control systems

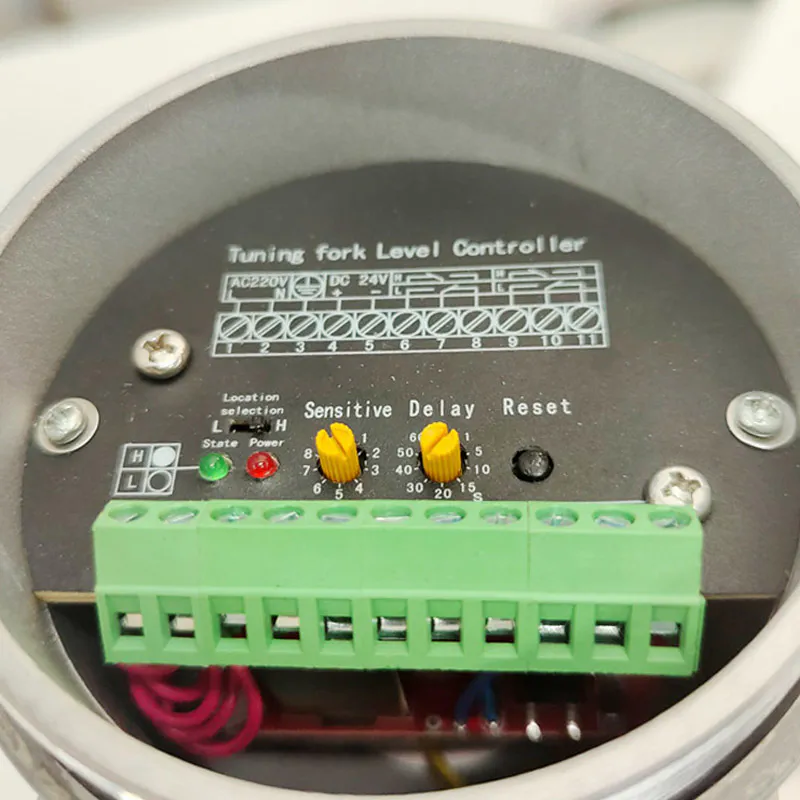

LED indicators display fork vibration and output status, simplifying commissioning
Installation Considerations
Threaded or flanged mounting options
Rod length selectable to match tank, silo, or pipeline geometry
Tuning Fork Level Switch Applications & Industry Solutions
Tratamiento de agua y aguas residuales
Used for high and low level protection in tanks, channels, and treatment units where flow and turbulence are present.
Procesado químico
Reliable point level detection in aggressive or variable media, independent of electrical properties.
Food & Bulk Material Handling
Suitable for powders and granular solids in silos and hoppers, supporting automated material control.
Oil & Gas & Energy
Applied in auxiliary systems and process vessels where stable switching and safety are critical.
OEM Equipment Integration
Commonly integrated into packaged skids, tanks, and process equipment for standardized level control.
Liquid Level Switch Parameter
Tuning Fork Level Switch Technical Specifications
| Parámetro | Especificación |
|---|---|
| Applicable Media | Liquid, Powder, Particle |
| Rod Length | Standard 250 mm; optional 100–3000 mm |
| Rod Material | SS304, SS316L |
| Temperatura media | –40 ℃ to +130 ℃ |
| Temperatura ambiente | –20 ℃ to +70 ℃ |
| Presión de trabajo | ≤ 2.5 MPa |
| Densidad media | Particle ≥ 0.1 g/cm³; Liquid ≥ 0.7 g/cm³ |
| Particle Diameter | ≤ 10 mm |
| Salida de señal | Relay output, 3A / 220 VAC |
| Delay Time | 1–60 s adjustable |
| Conexión a proceso | G1″, G3/4″ thread or flange (customizable) |
| Enclosure Rating | IP65 |
Instrava OEM/ODM
Instrava Engineering & Customization Support
At Instrava, our instruments are developed with a strong focus on real industrial applications. Each product is designed to operate as a reliable component within measurement, control, and automation systems, rather than as a standalone device.
Our engineering team supports customers during product selection by evaluating process conditions, operating environments, and system requirements, ensuring stable and long-term performance in actual use.
In addition to standard configurations, Instrava offers flexible customization options, including measurement range, materials, output signals, communication interfaces, and installation methods. All custom solutions are engineered to meet industrial standards and application-specific demands.
We also support OEM projects and system integration, providing consistent product design, technical documentation, and long-term supply to ensure smooth integration and reliable operation throughout the project lifecycle.
Recomendaciones de productos relacionados
Tuning fork level switches are commonly used for point level detection in tanks, silos, and pipelines handling liquids, powders, and granular solids. They are suitable for industrial processes where stable switching is required regardless of flow or material properties.
The switch operates based on vibration resonance. When material contacts the tuning fork, vibration amplitude and frequency change due to damping, which is detected by internal electronics and converted into a reliable switching signal.
Yes. This tuning fork level switch is designed for use with liquids, powders, and particulate solids, provided the minimum density requirements are met, making it suitable for multi-process industrial environments.
No. The resonance-based measurement principle ensures stable operation independent of flow conditions, bubbles, turbulence, conductivity, or dielectric constant of the medium.
Customization options include rod length, wetted material selection, process connection type, output configuration, and delay time settings to match specific installation and application requirements.
Yes. Instrava provides engineering support, OEM/ODM services, and long-term supply stability, making this tuning fork level switch suitable for standardized equipment and multi-site industrial projects.
