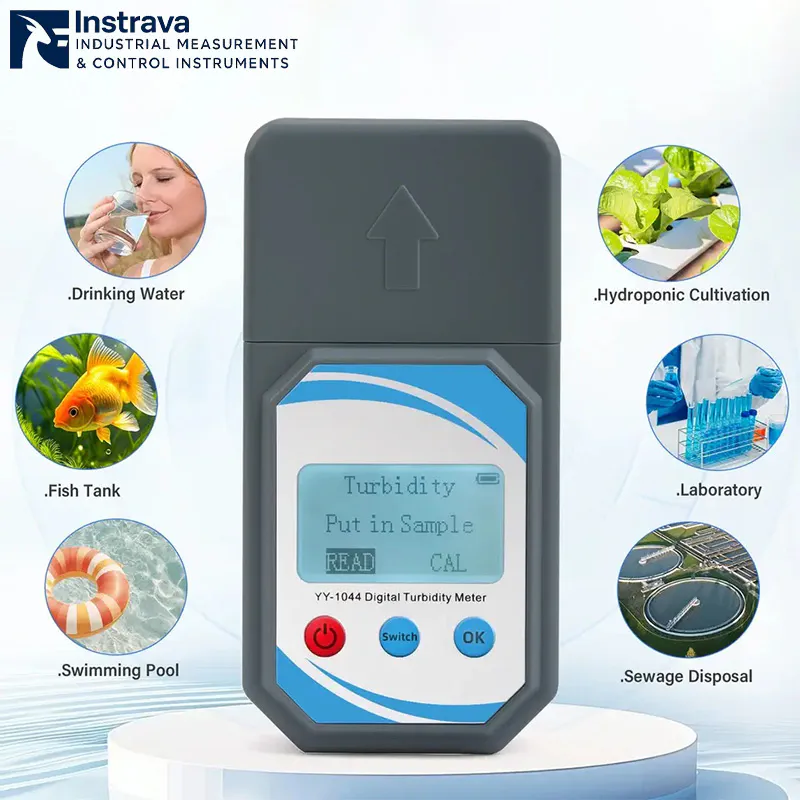

Pengukur Kekeruhan - Solusi Pengujian Kualitas Air Presisi Tinggi Portabel
Instrava Pengukur Kekeruhan are engineered for accurate and stable turbidity measurement across drinking water, wastewater, aquaculture, and industrial water systems. Utilizing a 90° scattered light measurement principle, the instrument delivers reliable readings across 0-1000 NTU with ±8% accuracy and ≤0.8% repeatability.
Designed for field deployment and rapid inspection, this compact 186g portable meter combines multi-point calibration, intelligent optical filtering, and simple one-touch operation to ensure consistent results in varying water conditions.
Delivered as a complete professional kit, including standard calibration solutions and carrying case, Instrava turbidity meters provide a ready-to-deploy solution for water clarity verification and compliance control.
Deskripsi Analisis Cairan
Turbidity Meters Applications
Instrava turbidity meters support routine inspection, compliance monitoring, and process control across multiple industries:
Drinking Water Plants
Pre-distribution turbidity verification
Filter performance monitoring
On-site compliance checks
Fasilitas Pengolahan Air Limbah
Effluent clarity control
Sedimentation process monitoring
Regulatory discharge inspections
Aquaculture & Irrigation
Pond water quality management
Fish tank turbidity control
Hydroponic system monitoring
Swimming Pools & Spas
Routine clarity inspection
Safety and hygiene assurance
Produksi Makanan & Minuman
Process water quality validation
Production environment control
Laboratories & Field Inspection Teams
Mobile water sampling programs
Rapid site evaluation
Environmental field testing
Nilai Operasional: One compact instrument supports both professional plant inspections and decentralized field testing, reducing reliance on laboratory-only analysis.
Turbidity Meters Engineering Advantages
90° Scattered Light Optical System
Professional turbidity detection principle
Intelligent filtering reduces stray light interference
Fast stabilization for rapid field readings
Triple-Point Precision Calibration
Standard calibration at 20 NTU / 100 NTU / 1000 NTU
Optional zero-point verification
Full-range accuracy across low and high turbidity samples
Ensures stable performance in variable water matrices.
High Repeatability Performance
Measurement repetition ≤0.8%
Indication error ±8% (±2.5% F.S)
Provides dependable consistency for routine inspections and reporting.
Field-Ready Portable Design
Lightweight: 186g
Compact dimensions: 155 × 80 × 45 mm
Powered by 3 × AAA batteries
Shockproof, waterproof carrying case
Designed for on-site inspections in treatment plants, pools, farms, and remote locations.
Fast & Stable Measurement Response
Advanced optical sensing and signal processing minimize particle movement interference, delivering stable readings within seconds.
Maintenance-Friendly Construction
Detachable sample bottles
Easy-clean optical chamber
Reduced downtime
Extended service life
Optimized for frequent field use with simplified maintenance routines.
Complete Professional Kit
Each unit includes:
6 sample bottles
20 NTU, 100 NTU, 1000 NTU standard solutions
Cleaning duster
Instruction manual
Durable carry case
Enabling immediate deployment without additional procurement.
Parameter Analisis Cairan
Turbidity Meters Technical Specifications
Kinerja Pengukuran
| Parameter | Spesifikasi |
|---|---|
| Prinsip Pengukuran | 90° Scattered Light |
| Rentang Pengukuran | 0-1000 NTU |
| Akurasi | ±8% NTU |
| Kesalahan Indikasi | ±8% (±2.5% F.S) |
| Pengulangan | ≤0.8% |
| Titik Kalibrasi | 0 / 20 / 100 / 1000 NTU |
Electrical & Physical Specifications
| Parameter | Spesifikasi |
|---|---|
| Catu Daya | 1.5V AAA × 3 (excluded) |
| Berat Instrumen | 186 g |
| Dimensi | 155 × 80 × 45 mm |
| Outer Box Size | 280 × 225 × 110 mm |
| Weight with Carry Box | 1430 g |
Komitmen Rekayasa Instrava
Instrava turbidity meters are designed to balance measurement reliability, portability, and operational simplicity. By combining professional optical principles with user-friendly field deployment, we support water quality verification across municipal, industrial, and agricultural sectors.
Our focus is not only on delivering instruments — but on enabling confident, traceable, and repeatable water quality decisions in real operating environments.
Instrava OEM / ODM
Instrumen yang Dapat Diandalkan. Solusi yang Sesuai dengan Aplikasi Anda.
Instrava berfokus untuk memberikan solusi industri yang andal melalui produk yang dipilih dengan cermat, pengoptimalan berbasis aplikasi, dan penyesuaian yang fleksibel. Kami memilih instrumen yang telah terbukti dari produsen tepercaya untuk memastikan kualitas yang konsisten, mengoptimalkan solusi berdasarkan kondisi kerja nyata untuk memecahkan tantangan praktis, dan menyediakan konfigurasi yang disesuaikan untuk memenuhi kebutuhan aplikasi tertentu.
Dengan menggabungkan keahlian pemilihan dengan pemahaman aplikasi, Instrava membantu pelanggan mengurangi risiko, meningkatkan efisiensi, dan mencapai hasil yang dapat diandalkan dalam lingkungan industri yang kompleks.
How does the Instrava portable turbidity meter ensure measurement accuracy across different water types?
The meter uses a 90° scattered light optical system with intelligent filtering to minimize interference from particles and stray light. Multi-point calibration (0/20/100/1000 NTU) ensures precise readings across low and high turbidity ranges, providing confidence in water clarity verification for industrial, municipal, or aquaculture applications.
Can this turbidity meter be reliably used in field and remote locations?
Ya. Dengan lightweight 186g design, compact dimensions, AAA battery operation, and IP65 carrying case, the meter is built for portable, field-ready deployment. On-site inspections in water plants, ponds, swimming pools, or industrial sites can be conducted without compromising measurement reliability.
How does the instrument support regulatory compliance and operational reporting?
The meter offers high repeatability (≤0.8%) and ±8% accuracy, stores data on-site, and allows fast, stable readings. This ensures all measurements are traceable and auditable for compliance with water quality regulations in drinking water, wastewater, and industrial discharge monitoring.
What maintenance or calibration procedures are required for long-term use?
Instrava turbidity meters are designed for low-maintenance operation. Detachable sample bottles and an easy-clean optical chamber simplify cleaning. Triple-point calibration ensures accuracy, and the instrument’s optical system remains stable, minimizing the need for frequent adjustments, saving operational downtime.
How does the turbidity meter handle different sample matrices and process conditions?
The advanced optical detection automatically compensates for particle interference and water color variations. The instrument is suitable for drinking water, wastewater, aquaculture, hydroponics, and swimming pool water, ensuring consistent readings across diverse operational conditions without complex preparation.
What makes this turbidity meter a cost-effective solution for engineering teams?
Beyond its high measurement precision, portability, and rapid readings, the meter comes as a complete field-ready kit, including calibration solutions, sample bottles, and carrying case. This reduces additional procurement costs, streamlines field operations, and supports multiple water quality monitoring applications, providing a high ROI for engineering and procurement teams.
