Мониторинг и управление питанием
Многофункциональный измеритель энергии переменного тока трехфазного тока CLASS 0,2 точности
Modern power systems require more than simple metering. Industrial facilities, smart buildings, substations, and energy-intensive AI infrastructure need one device capable of measuring, recording, diagnosing, and communicating in real time.
Instrava Curated Instruments Multifunction Energy Meter is an advanced AC Three Phase intelligent meter designed for precise energy measurement, power quality monitoring, demand management, and remote data communication.
С CLASS 0.2 accuracy, harmonic analysis up to the 63rd order, multi-tariff billing, built-in web server, and extensive data logging, this meter provides everything needed for reliable energy management and power system visibility.
Ключевые преимущества
- AC Three Phase multifunction energy measurement
- High precision with 0.2S / 0.5S metering accuracy
- Harmonic analysis up to the 63rd harmonic
- Built-in web server and remote monitoring
- Multi-tariff billing and demand management
- Supports LV and MV voltage systems
Applications
Smart Buildings | Industrial Plants | Utilities | Substations | Data Centers | Renewable Energy Systems
Power Monitoring & Control Description
Multifunction Energy Meter Core Advantages

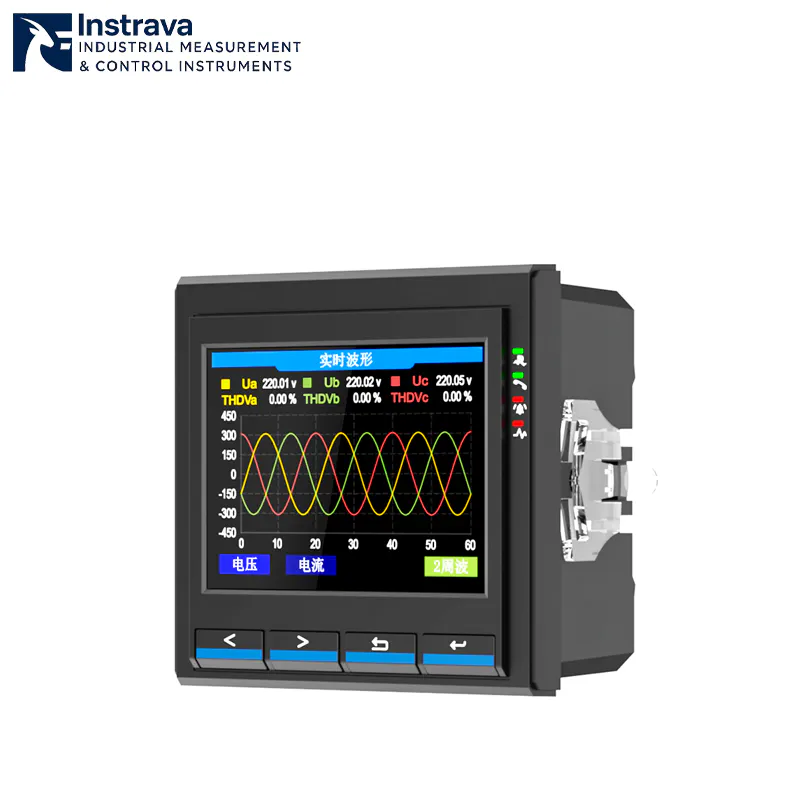

High-Accuracy AC Three Phase Multifunction Energy Meter
Это Multifunction Energy Meter delivers highly accurate energy measurement for both low-voltage and medium-voltage systems.
- Active Energy Accuracy: Class 0.2S / 0.5S
- Reactive Energy: Class 2
- Suitable for LV and MV systems
- Supports direct connection up to 600VAC
For medium-voltage systems, the meter supports PT connection with programmable PT ratio, making it adaptable to a wide range of grid configurations.
Advanced Power Quality Monitoring with Harmonic Analysis

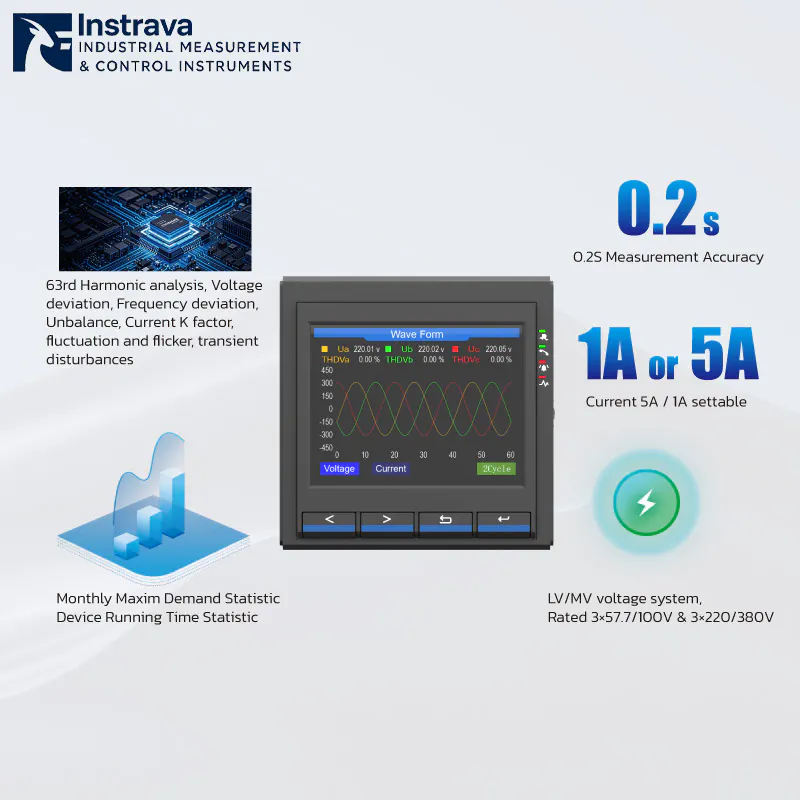

Unlike ordinary energy meters, this AC Three Phase Multifunction Energy Meter includes advanced power quality functions:
- 31st / 63rd harmonic analysis
- Voltage deviation and frequency deviation
- Voltage and current unbalance
- Current K factor and crest factor
- Flicker and fluctuation monitoring
- Voltage sag, swell, interruption, and transient recording
These functions make it ideal for identifying hidden electrical issues before they lead to equipment failure or energy waste.
Intelligent Demand Management and Multi-Tariff Billing
The meter supports programmable demand calculation and sophisticated tariff management:
- Fixed block and rolling block demand modes
- Programmable demand cycles: 5 / 10 / 15 / 30 / 60 min
- Monthly maximum demand statistics
- 31-day and 12-month historical data storage
- Up to 4 tariff rates and 8 daily time periods
This allows users to optimize electricity consumption and reduce utility costs.
Multifunction Energy Meter Technical Highlights
Embedded Web Server and Remote Monitoring
Это Multifunction Energy Meter features a built-in HTTP web server for remote access and system management.
Основные возможности включают:
- Real-time data view
- Cloud service logs
- Remote configuration and debugging
- Remote firmware and configuration updates
- NTP time synchronization
The integrated web platform reduces the need for additional software and simplifies energy monitoring across multiple locations.
Powerful Data Collection and Communication
The meter supports large-scale data acquisition and transmission:
- Supports both Modbus RTU and Modbus TCP devices
- Up to 40,000 data points
- Up to 4 RS485 ports
- Each RS485 port supports up to 60 slave devices
- Dual Ethernet ports and optional GPRS communication
- HTTP(s), XML, and JSON forwarding formats
This makes the meter highly suitable for integration into SCADA, EMS, BMS, and cloud-based monitoring platforms.
Built-In Alarm and Fault Recording
Сайт Multifunction Energy Meter includes a powerful alarm system:
- Over/under limit alarm
- Real-time alarm transmission
- Relay output for fault conditions
- Event recording and waveform storage
- SMS alarm notification
The device can automatically detect abnormal conditions such as:
- High THD
- Low power factor
- Voltage imbalance
- Frequency deviations
This helps users quickly respond to faults and improve system reliability.
Compact Design for Panel Installation
The meter is designed for convenient panel mounting with minimal space requirements:
- Panel size: 96 × 96 mm
- Cut-out: 90 × 90 mm
- Ultra-thin design
- Expandable modular structure
Its pluggable option modules support future upgrades without replacing the entire device.
Power Monitoring & Control Parameter
Технические характеристики | Описание | ||||
| Rated Working Parameters | Rated Power Supply | AC85-265V~50/60Hz or DC100-300V | |||
| Потребляемая мощность | <10VA | ||||
| Rated Input Current | 5A(Compatible 1A) | ||||
| Rated Input Voltage | 3×57.7/100V、3×220/380V 40Hz~70Hz | ||||
| DI Input [External Power Supply] | External provide power supply 220Vac±35%,220Vdc±35% | ||||
| DI Input [Internal Power Supply] | PMAC770H internal power supply,30VDC | ||||
| Релейный выход | Capacity:250Vac/5A,30Vdc/5A | ||||
Технические характеристики | Диапазон | Точность | |||
| Параметр Точность | Direct input Voltage | Phase-Phase 10V~400V/Phase-N 10V~690V | 0.1%/0.2% | ||
| Primary Voltage | Max.650kV | — | |||
| Direct input Current | 5mA~6.5A | 0.1%/0.2% | |||
| Primary Current | Max.50000A | — | |||
| Частота | 35Hz-65Hz | 0.1% | |||
| EMC | Working Environment | Temperature:-25℃ -+70℃,Humidity:5%～95%,no condensation | |||
| Insulation properties | Power Frequency withstand Voltage 4000VAC,Insulation Resistance≥100MQ | ||||
| IP Level | Front Case:IP54 | ||||
ltem | Reference Standard | Level | |||
Electromagnetic compatibility | Electrostatic discharge immunity | GB/T176262-2006(IEC61000-4-2:2001) | Level 4 | ||
| Radio frequency electromagnetic radiation immunity | GB/T17626.3-2006(IEC61000-4-3:2002) | Level 4 | |||
| Fast transient burst immunity | GB/T17626.4-2008(IEC61000-4-4:2006) | Level 4 | |||
| Surge immunity | GB/T17626.5-2008(IEC61000-4-5:2005 | Level 4 | |||
| Immunity to Conducted Disturbances Induced by RF Fields | GB/T17626.6-2008(IEC61000-4-6:2006) | Level 3 | |||
| Electromagnetic Emission Limits | GB 9254-2008(CISPR22:2006) | Class B | |||
