How to Solve Propane Level Gauge Challenges in Pressurized Storage Systems

Why Propane Level Measurement Requires a Different Engineering Approach

Propane is widely used in LPG storage, industrial fuel systems, and energy distribution networks. Unlike atmospheric liquid storage, propane is stored in a pressurized liquefied state, where liquid and vapor phases coexist dynamically inside a closed vessel.

This means level measurement is not only about detecting liquid height, but also about handling:

• Pressure-varying density
• Vapor-liquid equilibrium
• Rapid thermodynamic changes
• Explosion risk environments

Because of this, propane storage is classified as a high-risk, hazardous-area application, requiring robust instrumentation with explosion-proof design and stable measurement under pressure and temperature fluctuations.

Engineering Characteristics of Liquid Propane

Typical Storage Pressure Range of Propane

Propane is stored as a liquefied gas under pressure. The pressure is directly related to temperature:

• At -10°C: approximately 2.5–3 bar
• At 0°C: approximately 4 bar
• At 20°C (ambient storage condition): approximately 8–10 bar
• At 40°C: approximately 13–15 bar
• At 50°C (high ambient / hot climate condition): up to 17–18 bar

👉 Therefore, typical industrial propane storage tanks operate in the range of:

~3 bar to 18 bar (0.3 MPa to 1.8 MPa)

This pressure range defines the mechanical and sealing requirements for any level measurement instrument installed on the tank.

Dielectric Constant of Liquid Propane

Liquid propane has a low dielectric constant, which directly affects radar signal reflection quality.

• Dielectric constant (εr) of liquid propane:

approximately 1.5 – 1.7

For comparison:

• Water: ~80
• Diesel: ~2.1–2.5
• Gasoline: ~1.8–2.2

👉 This low dielectric property means:

• Weak reflection signals
• Higher sensitivity to measurement technique
• Requirement for high-frequency radar or guided wave systems

Temperature Range and Phase Behavior of Propane

Propane’s thermodynamic behavior strongly affects pressure and density stability.

Key temperature points:

• Boiling point at atmospheric pressure: -42°C
• Typical storage operating range: -40°C to +50°C
• Critical temperature: 96.7°C

However, in real storage systems:

• Below -20°C → reduced vapor pressure, more stable density
• -10°C to 40°C → normal industrial storage range
• Above 40–50°C → rapid pressure increase and safety risk escalation

Pressure and Temperature Sensitivity Zone

Propane becomes particularly sensitive in the following region:

High Sensitivity Operating Zone

• Temperature: 10°C – 50°C
• Pressure: 5 bar – 18 bar

In this region:

• Small temperature changes cause large pressure changes
• Vapor-liquid equilibrium shifts rapidly
• Density changes significantly
• Measurement drift risk increases

👉 This is the most critical zone for level measurement accuracy.

Key Engineering Challenges in Propane Level Measurement

Vapor-Liquid Phase Instability

Inside propane tanks:

• Liquid and vapor phases continuously balance
• Tank pressure changes immediately affect liquid density
• Measurement reference conditions are unstable

This makes simple hydrostatic or mechanical measurement unreliable.

Pressure Vessel Constraints

Because propane tanks operate as pressure vessels (typically up to ~18 bar), level instruments must:

• Maintain long-term sealing integrity
• Resist cyclic pressure loading
• Avoid leakage at process connections
• Comply with pressure vessel regulations (e.g., ASME / EN standards)

Explosion and Safety Risk

Propane is classified as:

• Highly flammable gas (LPG category)
• Low ignition energy fuel
• High explosion expansion potential

Risk scenarios include:

• Vapor cloud explosion
• Flash fire
• BLEVE (Boiling Liquid Expanding Vapor Explosion)

Therefore, instrumentation must be:

• Explosion-proof (Ex d / Ex ia)
• Intrinsically safe
• Certified for hazardous zones (Zone 1 / Zone 2)

Suitable Level Measurement Technologies for Propane Tanks

1. Guided Wave Radar (GWR) – Most Stable Solution

Why GWR Works Well

Guided wave radar is one of the most reliable technologies for propane because the microwave signal travels along a probe, not through vapor space.

This avoids:

• Vapor interference
• Pressure-related signal distortion
• Foam and turbulence effects

Required Technical Characteristics

A propane GWR system must support:

• Pressure resistance: ≥ 18 bar
• Temperature range: -40°C to +150°C (typical industrial design margin)
• Low dielectric operation: εr ≥ 1.4 capability
• Explosion-proof certification (Ex d / Ex ia)
• Corrosion-resistant probe materials (316L, Hastelloy optional)

Advantages

• Very stable under pressure fluctuation
• High accuracy in low dielectric liquids
• Minimal vapor influence
• Suitable for horizontal LPG bullets and vertical tanks

2. 80GHz FMCW Radar Level Gauges – Non-Contact Solution

Why High-Frequency Radar Is Increasingly Used

80GHz radar provides:

• Narrow beam angle (~3–4°)
• High signal concentration
• Strong echo resolution
• Reduced interference from internal tank structures

Performance Requirements for Propane

To be suitable for propane tanks, radar must handle:

• Pressure: up to ~18 bar (via process isolation design)
• Temperature: -40°C to +50°C typical operating range
• Dielectric constant: ≥ 1.5 detection capability

Advantages

• No contact with liquid
• No internal wear
• Minimal maintenance
• Suitable for large LPG storage tanks
• Easy integration into digital monitoring systems

3. Differential Pressure (DP) Measurement

Working Principle

Level is calculated from hydrostatic pressure:

P = ρgh

Limitations in Propane Systems

DP systems are affected by:

• Density variation due to temperature (ρ changes with T)
• Calibration drift under pressure cycling
• Condensation in impulse lines
• Maintenance complexity

Therefore, DP is increasingly used as a backup rather than primary solution.

4. Magnetic Level Indicators (Local Display)

These are commonly used for:

• Visual inspection
• Redundant safety indication
• Operator-side verification

Limitations:

• No digital integration capability
• Mechanical wear under pressure cycling
• Not suitable as sole measurement system

System-Level Architecture for Propane Storage

Modern propane storage systems typically use a layered architecture:

• Primary: 80GHz radar or GWR level transmitter
• Secondary: magnetic level indicator
• Safety layer: high-level switch (independent SIL device)
• Control layer: PLC / DCS system
• Monitoring layer: SCADA / IIoT platform

This architecture supports:

• Overfill prevention
• Leak detection response
• Remote monitoring
• Predictive maintenance

Conclusion: Engineering Logic of Propane Level Measurement

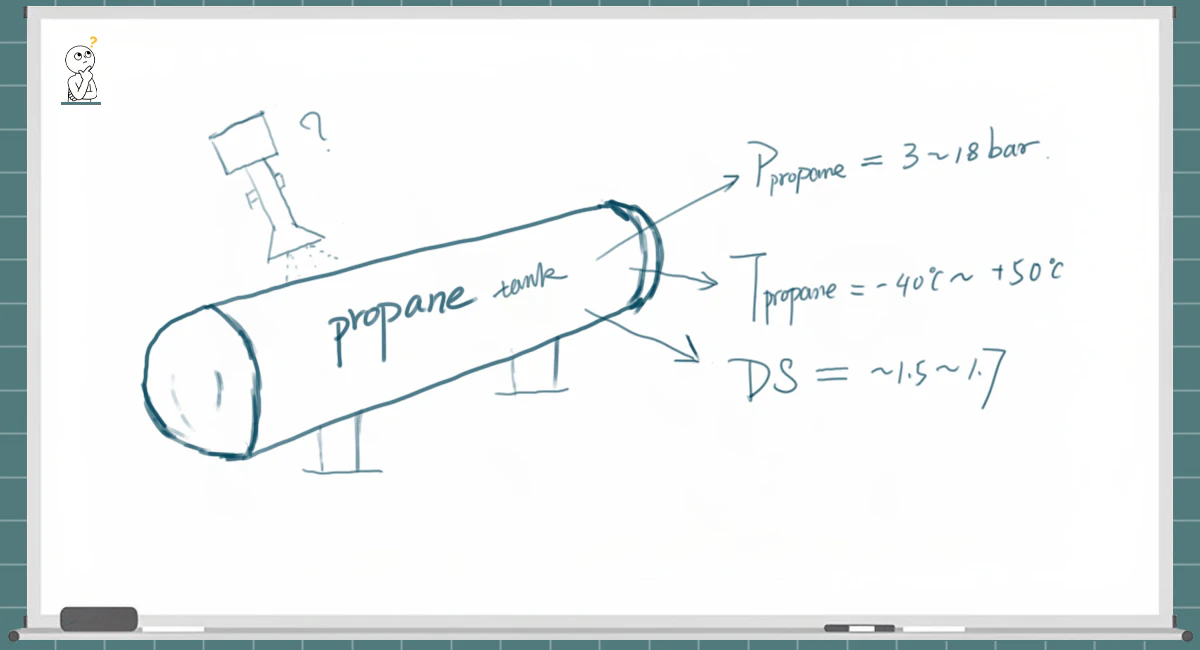

Propane storage is a high-pressure, low-dielectric, thermodynamically unstable system, typically operating in:

• Pressure: 3–18 bar
• Temperature: -40°C to +50°C
• Dielectric constant: ~1.5–1.7

These characteristics determine that traditional level measurement technologies struggle with accuracy and reliability.

Therefore, modern propane storage systems increasingly rely on:

• Guided Wave Radar (most stable for pressurized tanks)
• 80GHz FMCW Radar (best non-contact solution)

Together, these technologies form the backbone of safe, automated, and digitally integrated LPG storage systems in Industry 4.0 environments.
