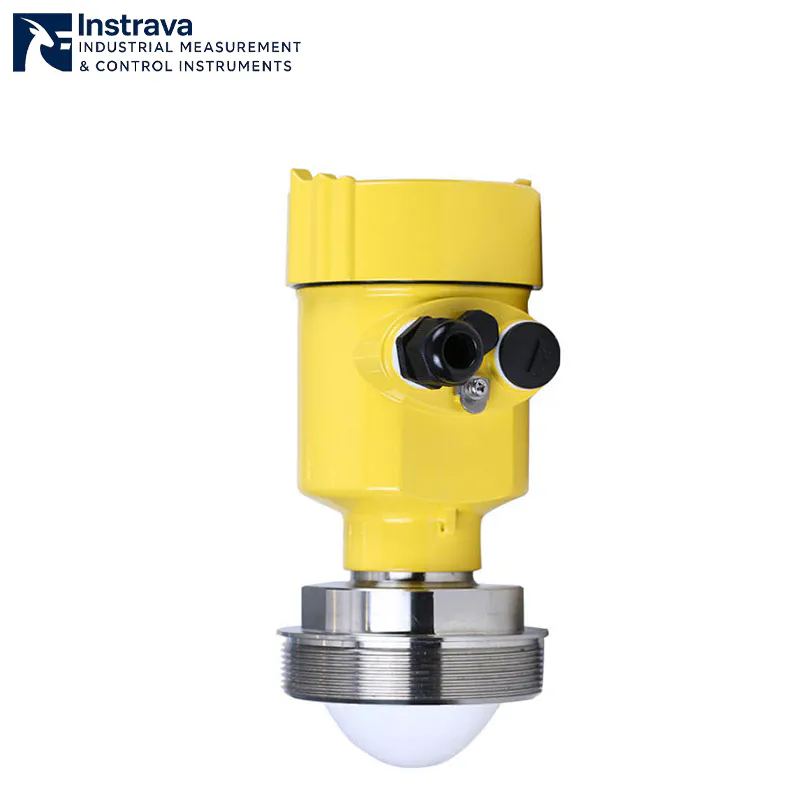

Radar Level Gauge / 80GHz FMCW High Precision Level Measurement
Instrava Curated Instruments presents a next-generation radar level gauge, powered by 80GHz FMCW (Frequency Modulated Continuous Wave) technology, delivering ultra-high precision level measurement across extreme industrial environments.
Through our Curated Instruments approach, this solution is optimized for:
- high accuracy tank level measurement systems
- high temperature and high pressure process vessels
- corrosive, volatile, and crystallizing media
- complex industrial environments requiring stable non-contact measurement
With millimeter-level accuracy and intelligent signal processing, this radar level gauge ensures unmatched performance where traditional level sensors fail.
Level Measuring Instruments Description
Ultra-High Precision with FMCW Technology
This 80GHz radar level gauge delivers:
- Ultra-high accuracy up to ±1 mm
- Wide measuring range up to 120m
- Minimum dielectric constant ≥ 2
- Non-contact measurement → no wear, no contamination
Narrow Beam & Strong Anti-Interference Performance
- Beam angle as low as 3° → highly focused signal
- Strong resistance to false echo interference
- Stable measurement in complex tank structures
- Effective in foam, vapor, and dust environments
Performance highlights:
- Higher signal concentration → better echo detection
- Reliable measurement in low reflectivity materials
- Excellent performance in small or obstructed tanks
Designed for Extreme Industrial Conditions
- Process temperature up to 1000°C (custom models)
- Pressure range: -0.1 ~ 2MPa
- Explosion-proof: Ex d ia IIC T6
- IP67 protection for harsh environments
Material & structure:
- Aluminum alloy / stainless steel housing
- PTFE / quartz-isolated antenna options
- High-density sealing for long-term durability
Smart Measurement & Flexible Integration
- FMCW continuous wave measurement → higher resolution
- Bluetooth + PC software configuration
- 128×64 dot matrix display with 4-button operation
- Multiple communication options: HART / Modbus / RS485
Signal features:
- Fault output: 3.8mA / 4mA / 20mA / 21mA
- 2-wire / 4-wire system support
- Flexible installation: thread or flange
Radar level gauge typical applications
It is widely used in:
- Chemical and petrochemical industries
- High-temperature reactors and boilers
- Oil & gas storage systems
- Powder and bulk material silos
- Food and pharmaceutical processing
Level Measuring Instruments Parameter
| Parameter | Specification |
|---|---|
| Frequency | 76–81 GHz (FMCW) |
| Measuring Range | 0.08m ~ 120m |
| Accuracy | ±1 mm |
| Beam Angle | 3° / 6° |
| Dielectric Constant | ≥2 |
| Process Temperature | -40°C ~ 1000°C (customizable) |
| Process Pressure | -0.1 ~ 2 MPa |
| Output Signal | 4–20mA / RS485 |
| Communication | HART / Modbus / Bluetooth |
| Power Supply | 15–28 VDC |
| Display | 128×64 LCD |
| Protection Level | IP67 |
| Explosion Proof | Ex d ia IIC T6 |
| Material | Aluminum / Stainless Steel |
| Installation | Thread / Flange |
Instrava OEM/ODM
Reliable Instruments. Solutions That Fit Your Application.
Instrava is focused on delivering reliable industrial solutions through carefully curated products, application-driven optimization, and flexible customization. We select proven instruments from trusted manufacturers to ensure consistent quality, optimize solutions based on real working conditions to solve practical challenges, and provide tailored configurations to meet specific application needs.
By combining selection expertise with application understanding, Instrava helps customers reduce risk, improve efficiency, and achieve dependable results in complex industrial environments.
What is an FMCW radar level gauge and how does it work?
An FMCW radar level gauge continuously emits frequency-modulated microwave signals and measures the frequency difference between transmitted and received signals. This allows extremely precise distance measurement with high resolution and stability.
What are the advantages of 80GHz radar level gauges?
80GHz radar level gauges offer:
- Ultra-high accuracy (±1 mm)
- Narrow beam angle for precise targeting
- Strong anti-interference capability
- Better performance in small or complex tanks
- Reliable measurement for low dielectric materials
They are ideal for high-end industrial measurement applications.
Can radar level gauges work in high temperature environments?
Yes, advanced radar level gauges can operate in extreme temperatures, with customized models supporting up to 1000°C, making them suitable for furnaces, reactors, and high-temperature processes.
What is the difference between FMCW radar and pulse radar?
- FMCW radar → higher accuracy and continuous measurement
- Pulse radar → simpler but lower resolution
FMCW radar is preferred for high precision and demanding applications.
Are radar level gauges suitable for corrosive or volatile media?
Yes, with appropriate antenna materials (such as PTFE or quartz isolation), radar level gauges can reliably measure corrosive, volatile, or crystallizing media without direct contact.
How do I choose the right radar level gauge?
Key factors include:
- measuring range and tank size
- medium properties (dielectric constant, corrosion)
- temperature and pressure conditions
- required accuracy
- communication and integration needs
Selecting the correct model ensures optimal performance and long-term reliability.
