Customized Supplier for Vortex Flowmeters in China
Your trusted sourcing partner for vortex flowmeters in china—quality instruments at competitive prices.
Are you overwhelmed by too many conflicting quotes?
Are you worried about factory capabilities because tight project deadlines and heavy procurement tasks leave you no time to audit suppliers?
Are you wasting time researching because every factory claims their product is the best, thereby delaying your procurement schedule?
Instrava is here to help you solve your procurement challenges in China.
When sourcing for applications in thermal power & district heating, petrochemicals, food & pharma, municipal water & compressed air, or customized OEM orders for distributors, you know your product’s technical requirements best, while we know Chinese factories and pricing best.
Let’s collaborate for mutual success. With our customer-centric service, Instrava is your trusted procurement partner in China.
(View Analysis of the Vortex Flowmeter Market in China)
Bring us your technical specifications—we deliver the exact product to match.

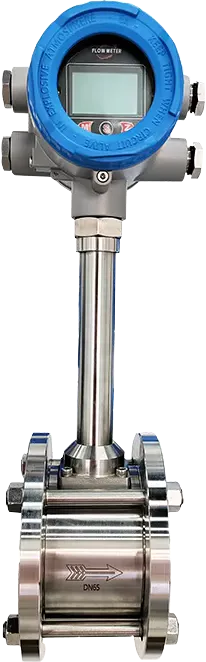

The vortex flow meter represents an advanced and optimal solution for measuring fluid flow in industrial pipelines. However, it is also highly sensitive to medium properties, flow velocity, and ambient operating conditions. Consequently, selecting a vortex flowmeter requires a well-informed decision based on precise technical parameters.
Key Selection Factors:
Physical and Chemical Properties of the Medium: Density, viscosity, and chemical compatibility.
Flow Velocity Thresholds: Minimum velocity required for signal generation (typically $\ge 0.5\text{ m/s}$ for liquids, and $\ge 4\text{–}5\text{ m/s}$ for gases/steam).
Pipeline Reynolds Number ($Re$): Linear measurement typically requires $Re > 2 \times 10^4$, with an absolute minimum shedding threshold of $Re \ge 10^4$. (Note: For large pipelines with low normal flow velocity, avoid selecting line-size flowmeters directly. Reduced-bore/reducer installation is highly recommended to maintain required velocities.)
Environmental Interference: Mechanical vibration and electromagnetic noise.
On-Site Installation Conditions: Straight pipe run requirements and upstream/downstream flow disturbances.
Explosion-Proof & Safety Compliance: Area classification and safety certifications.
You provide the technical specifications; we supply the perfectly matched instruments.
Note: Specifications may vary depending on manufacturer configuration and customization requirements. Please contact us for detailed technical confirmation.
| Parameter Category | Standard Baseline Specifications | Customization Options | Custom Flag |
| Measuring Medium | Liquid, Gas, Saturated Steam, Superheated Steam | High-sensitivity sensor matching based on media density and viscosity | Standard / Adjustable |
| Medium Flow Rate | • Liquid: $0.5 \sim 7\text{ m/s}$
• Gas: $4 \sim 40\text{ m/s}$
• Steam: $7 \sim 70\text{ m/s}$ | Reduced-bore (reducer) meter body design for low-velocity gas/steam applications | 🔧 Customizable |
| Accuracy Class | • Inline Liquid: Class 1.0
• Inline Gas/Steam: Class 1.5
• Insertion Type: Class 2.5 | Factory wet calibration available up to Class 0.75; Third-party calibration reports (NIST/SGS) on request | 🔧 Customizable |
| Reynolds Number Range | • Measurable Limit: $5 \times 10^3 \sim 7 \times 10^8$
• Linear Range: $2 \times 10^4 \sim 7 \times 10^6$ | Sizing software calculation to ensure minimum flow exceeds shedding threshold | Standard |
| Nominal Diameter (Size) | • Inline / Wafer: DN15 ~ DN300 ($1/2″ \sim 12″$)
• Insertion Type: DN150 ~ DN2000 ($6″ \sim 80″$) | • Inline expandable up to DN400 / DN500
• Non-standard pipeline sizes (ANSI, DIN, JIS) available | 🔧 Customizable |
| Medium Temperature | • Standard Temp: $-40 \sim 80^\circ\text{C}$
• Medium Temp: $-40 \sim 250^\circ\text{C}$
• High Temp: $-40 \sim 350^\circ\text{C}$ | Integrated cooling fins or remote electronics for extreme temperatures up to $400 \sim 450^\circ\text{C}$ | 🔧 Customizable |
| Nominal Pressure | Standard Ratings: $1.0\text{ MPa}, 1.6\text{ MPa}, 2.5\text{ MPa}, 4.0\text{ MPa}, 6.3\text{ MPa}$ | High-pressure customization from $> 6.3\text{ MPa}$ up to $25\text{ MPa}$ (e.g., high-pressure water injection / HP gas) | 🔧 Customizable |
| Process Connection | Wafer (Clamping), Flanged, Insertion | Sanitary Tri-Clamp connections, Hot-Tap insertion with isolation ball valve | 🔧 Customizable |
| Output Signal | • Voltage Pulse: Low $\le 1\text{V}$, High $\ge 6\text{V}$
• 2-Wire $4\sim 20\text{mA}$ Analog
• Pulse Frequency: $0.1 \sim 3000\text{Hz}$ | • Fieldbus / Digital: HART, RS485 (Modbus RTU), Profibus-PA
• Integrated Temperature & Pressure Compensation board | 🔧 Customizable |
| Power Supply | • 3-Wire Pulse: $12\text{VDC} / 24\text{VDC}$
• 2-Wire System: $24\text{VDC}$
• Local Display: 3.6V $7.5\text{Ah}$ Lithium Battery (Life $>2$ years) | Dual Power Switchable Mode ($24\text{VDC} + 3.6\text{V}$ Lithium Battery backup) | 🔧 Customizable |
| Load Resistance | $500\,\Omega$ (when powered by $24\text{VDC}$) | Standard matching | Standard |
| Electrical Entry | M20*1.5, 1/2″ NPT | 3/4″ NPT or heavy-duty explosion-proof cable glands | 🔧 Customizable |
| Wetted Body Material | Stainless Steel 304 (SS304), Stainless Steel 316L (SS316L) | Corrosive media options: Hastelloy C-276, Titanium, PTFE Lining | 🔧 Customizable |
| Enclosure / Head Material | Cast Aluminum Alloy Housing | Full SS304 / SS316L Stainless Steel Housing for harsh marine/saline environments | 🔧 Customizable |
| Environmental & Protection | • Ambient Temp: $-20 \sim +60^\circ\text{C}$, Relative Humidity: $5\% \sim 90\%$
• Protection Rating: IP65 | Upgradable to IP67 or IP68 (Submersible / Underground pit installation) | 🔧 Customizable |
| Explosion-Proof Rating | Flameproof: Ex d IIB T4 Gb
Intrinsically Safe: Ex ia IIB T4 Ga | Upgradable to Ex d IIC T6 Gb, ATEX / IECEx certifications available | 🔧 Customizable |
Our Service Background
Long before you share your specific technical requirements, our supplier vetting process is already underway—continuously gathering data to serve you better and faster.
We rigorously evaluate and screen manufacturers across 9 core dimensions: Production Capacity, Customization Capability, Quality Control, Industry Certifications, Project Experience, Technical Documentation, Track Record of Delivery, Export Expertise, and After-Sales Support.
Currently, Chinese electromagnetic flowmeter manufacturers fall into three distinct tiers (detailed in the attached PDF above). We source quotes across these tiers to strictly meet your technical specifications while maximizing cost efficiency.
Most of our partner factories boast 10 to 30+ years of manufacturing experience, capable of handling complex operating conditions. Furthermore, their products hold key international certifications, including ATEX, IECEx, CE, SIL2/3, ISO 9001, and CPA.
Against this backdrop, whether you are an end-user requiring small-volume orders or a distributor, EPC procurement lead, or industry purchasing manager needing bulk customization, we are dedicated to helping you complete your procurement smoothly and efficiently.
Your successful procurement is our driving force and the core of our service.

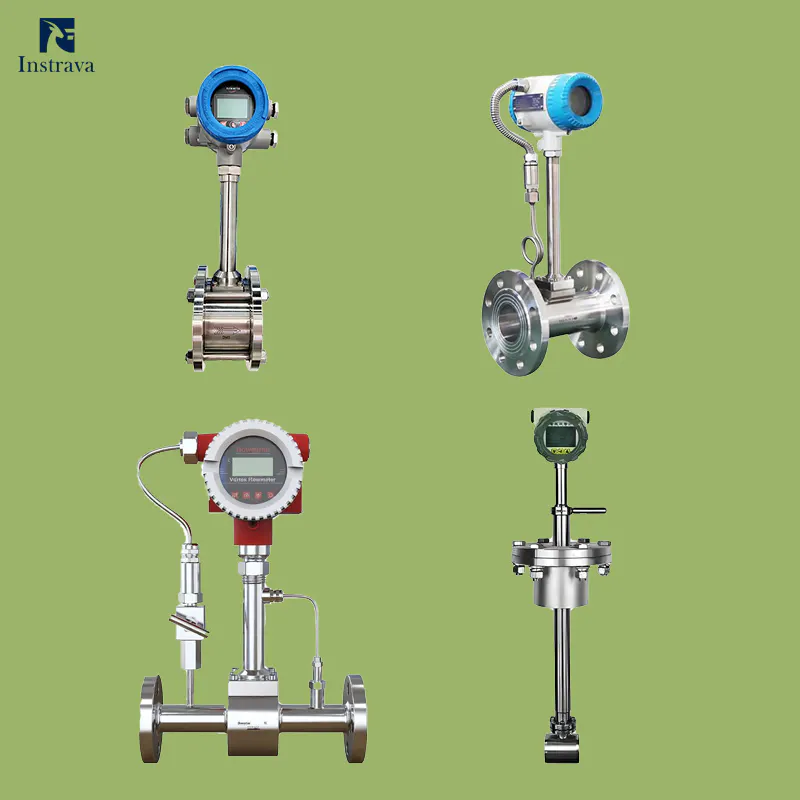

Vortex Flow Meter Product Types for Industry Selection

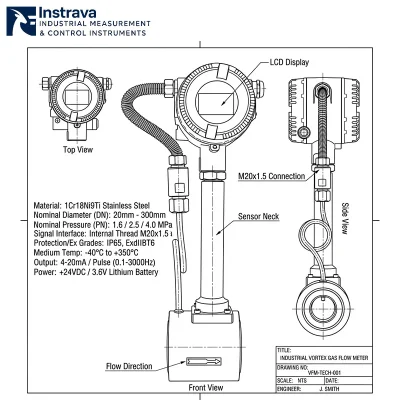

The vortex flowmeter is a velocity-based flow measurement instrument that operates on the Von Kármán vortex street principle to measure the volumetric or mass flow rate of gases, liquids, or steam.
Core Construction:
Its primary structure consists of a flow tube, a vortex shedder bar, a sensing element (such as a piezoelectric sensor), and a signal converter. Advanced models may also feature integrated temperature and pressure sensors, as well as an onboard flow totalizer.
Key Advantages:
Low Pressure Loss: Minimizes energy consumption across the line.
Wide Turndown Ratio: Covers a broad range of flow rates.
High Accuracy: Delivers precise and repeatable measurements.
Low Maintenance: No moving parts to wear out or replace.
Operational Limitations:
Vibration Sensitivity: Vulnerable to severe pipeline mechanical vibration.
Strict Straight-Run Requirements: Demands $10\text{–}20D$ upstream and $5D$ downstream straight pipe runs during installation.
Media Constraints: Not suitable for high-viscosity fluids, low-velocity conditions, or dirty media containing heavy solid particles.
To address the specialized operating conditions in industries such as thermal power, petrochemicals, food & pharmaceuticals, and district heating, vortex flowmeters have evolved into a variety of specialized product designs.
| Product Structure Type | Key Technical Features | Target Media | Key Industries | Pros & Cons |
| Integrated Temp & Pressure Compensated | Integrates an internal temperature sensor (Pt100/Pt1000), pressure transmitter module, and flow totalizer to automatically calculate real-time mass density. | Saturated steam, superheated steam, temperature-variable gases | Thermal power, district heating, textiles & dyeing, paper manufacturing | Pros: Eliminates external temperature/pressure sensors and totalizers, reducing installation costs and wiring failures.
Cons: Slightly higher overall maintenance cost if a sensor fails. |
| Remote / Split Type | The sensor probe and electronics enclosure (head) are installed separately via a dedicated shielded cable (up to $10 \sim 20\text{ m}$). | High-temperature steam, high-vibration pipeline fluids, hot gases | High-temp pipelines, boiler rooms, compressor stations, high-vibration pump rooms | Pros: Protects head electronics from high heat radiation and mechanical vibration; convenient for eye-level meter reading.
Cons: Requires additional signal cable routing. |
| Wafer / Clamping Type | The meter body has no built-in flanges and is clamped directly between existing pipeline flanges using long studs; highly compact design. | Clean liquids, low-to-medium pressure gases, dry compressed air | Water treatment, general chemicals, plant utilities (compressed air/nitrogen) | Pros: Compact, lightweight, highly cost-effective, and easy to install.
Cons: High alignment precision required during clamping; eccentricity disrupts the flow field. |
| Flanged Connection Type | Features built-in process flanges on both ends of the meter body (conforming to ANSI, DIN, or GB standards) for direct bolt connection. | Industrial liquids, high-pressure gases, various industrial steams | Petrochemicals, fine chemicals, metallurgy, coal chemical processing | Pros: Secure installation, excellent sealing, high pressure resistance, and superior repeatability.
Cons: Heavier and higher raw material cost compared to wafer types. |
| Sanitary / Tri-Clamp Type | Uses ISO/DIN standard hygienic Tri-Clamp connections with polished wetted surfaces ($Ra \le 0.4\ \mu\text{m}$) and zero dead-leg design. | CIP/SIP sterilization steam, purified water, Water for Injection (WFI), food-grade gases | Biopharmaceuticals, food & beverage, personal care & fine chemicals | Pros: Fully compliant with FDA/GMP hygienic standards; quick to dismantle for cleaning; prevents bacterial growth.
Cons: Limited to low-to-medium pressure applications. |
| Insertion / Hot-Tap Type | The sensor probe inserts directly into the center of large-diameter pipes to measure point velocity. Optional ball valve allows hot-tapping under pressure. | Large-diameter water lines, low-pressure gases, high-volume compressed air | Municipal water supply, circulating water networks, district heating mains, large exhaust lines | Pros: Extremely cost-effective for large pipes; enables online maintenance without process shutdown.
Cons: Lower accuracy than inline types (typically Class 2.5); requires long straight pipe runs. |
| Dual-Sensor / Anti-Vibration Type | Equipped with dual piezoelectric crystals or differential pressure probes combined with DSP digital filtering to cancel out pipeline vibration noise. | Gases or liquids in pipelines subject to severe mechanical vibration | Machine tools, diesel engine test benches, compressor outlets, marine vessels | Pros: Exceptional vibration resistance; eliminates “false signals” at low flow rates.
Cons: Higher manufacturing cost than standard single-sensor models. |
| Explosion-Proof & Fieldbus Type | Exd IICT6 / Exia certified, supporting HART, RS485 Modbus, or Profibus-PA digital communication protocols. | Flammable/explosive gases, chemical solvents, Liquefied Petroleum Gas (LPG) | Petrochemical plants, natural gas distribution, tank farms, oil refineries | Pros: High explosion-proof safety rating; enables two-way digital communication and remote diagnostics with DCS/PLC systems.
Cons: Requires strict compliance with explosion-proof wiring and safety barriers. |
Industries Suitable For Vortex Flow Meters
Power & Steam Generation
In thermal power plants, industrial boiler rooms, and steam turbine systems, the Vortex Flowmeter serves as the benchmark for measuring superheated and high-pressure saturated steam. Featuring integrated PT100 temperature sensors and pressure transmitters, it delivers real-time multivariable density compensation to convert K-factor frequency into precise mass flow rates, eliminating energy custody transfer errors caused by pressure fluctuations.
District Heating & Energy Networks
Essential for custody transfer and thermal energy metering in municipal district heating networks. Vortex flowmeters offer exceptional long-term stability and wide turndown ratios (1:15 to 1:25), seamlessly handling extreme flow rate variations between low summer baseloads and peak winter heating demands when paired with BTU calculators.
Petrochemical & Refining
Refineries and petrochemical plants process vast volumes of flammable gases, hydrocarbon streams, and thermal fluids. Outfitted with fully welded piezoelectric sensors, vortex meters directly measure hydrocarbon gases, flare gas, ethylene, propylene, and hot thermal oil under strict explosion-proof hazardous area certifications.
Chemical Processing
When measuring corrosive gases, aggressive solvents, and non-conductive chemicals, traditional electromagnetic meters fail due to zero fluid conductivity. Vortex flowmeters operate independently of fluid conductivity, utilizing Hastelloy C-276, Titanium, or PTFE shedder bars to ensure reliable flow monitoring for non-conductive chemical media.
Food & Beverage
Primarily utilized for utility steam accounting on sterilization lines (CIP/SIP), demineralized process water, and CO₂ gas injection during carbonation. Sanitary vortex flowmeters feature crevice-free Tri-Clamp fittings capable of enduring repeated high-temperature steam sterilization and caustic washdowns without bacterial buildup.
Pharmaceutical & Biotechnology
Engineered for metering pure steam, solvent recovery loops, and gaseous nitrogen or oxygen blanket dosing. With no internal liners subject to flaking or degradation, vortex meters preserve high steam purity across distribution lines, satisfying stringent cGMP compliance and audit trail protocols.
Industrial Gases & Compressed Air
Designed for plant-wide compressed air leak auditing and sub-metering of high-value industrial gases including Nitrogen (N₂), Oxygen (O₂), Carbon Dioxide (CO₂), and Argon (Ar). By detecting vortex shedding frequencies at elevated velocities, the meter delivers standard volume flow (Nm³/h) with minimal pressure drop.
Metallurgy & Steel Mills
In blast furnace oxygen injection, converter gas recovery, Coke Oven Gas (COG), and Blast Furnace Gas (BFG) monitoring, heavy plant vibration and electromagnetic fields are constant challenges. Vortex meters with dual-sensor differential pickup actively cancel mechanical noise for rock-solid signal reliability.
Pulp & Paper Industry
Paper mills rely heavily on thermal energy, with paper machine drying sections consuming massive quantities of low-pressure saturated steam. Installing vortex flowmeters across branch steam lines provides mill managers with real-time energy intensity tracking per ton of paper produced, optimizing utility allocation.
Textile & Dyeing Mills
Applied in stenter drying machines, dyeing autoclaves, and waste heat recovery systems. Because steam pressure in textile plants fluctuates rapidly as multiple batch vessels cycle on and off, dynamic density compensation keeps mass flow measurements highly accurate for cost accounting.
HVAC & Building Automation
Widely deployed across commercial complexes, data centers, and airport terminals for chilled water, condenser water, and district steam cooling loops. Integrated temperature sensors enable real-time thermal BTU calculations, feeding direct performance data into Building Management Systems (BMS).
Water Treatment & Demineralized Water
In reverse osmosis (RO) units, boiler feedwater lines, and ultra-pure water (UPW) loops, conductivity drops below the threshold required by magmeters. Vortex flowmeters fill this gap, offering reliable, non-intrusive volumetric metering for zero-conductivity and demineralized water.
Vortex Flow Meter Specification Matrix
Configure your technical requirements below to generate a real-time ordering model code and receive an official B2B quotation.
FAQ For Purchasing Vortex Flow Meter
What is the process for purchasing vortex flowmeter from Instrava supplier ?
1. Inquiry (We will respond to your inquiry within 24 hours to confirm specifications and initiate the process.)
2. Quotation (Quotation timelines vary based on the project type and your specific requirements. Standard stock items are quoted within one day, while special orders require three days or a mutually agreed-upon timeframe.)
3. Product Selection (We will present 3–5 product options and pricing for your approval. During this stage, we verify the manufacturer’s production capabilities and relevant national certifications.)
4. Contract, Prepayment, and Production (A 40% prepayment is required to initiate production at a qualified facility. For stock items, we promptly arrange for product testing and packaging.)
5. Interim Payment (Upon successful completion of production and quality inspection, the next 50% of the total amount is due. For stock items, this payment is made after packaging is complete.If the transaction amount does not exceed $50,000, the remaining 60% is paid.)
6. Shipment (You may designate a freight forwarder, or we can arrange shipping for you.)
7. Receipt of Goods (Our Quality Guarantee: When your cumulative order value reaches $50,000, you pay the remaining 10% only after receiving and verifying the product quality. We let our quality do the talking.)
8. After-Sales Service (We actively address and resolve issues through both online and offline channels. We place great importance on after-sales support, as it reflects our responsibility and reputation—the foundation of Instrava’s long-term growth.)
What are the advantages of buying products from Instrava ?
Buying from Instrava gives you the best of both worlds—the direct-from-source pricing of a factory, combined with the professional service, product range, and risk mitigation of an elite sourcing partner. Here is how we deliver value to your business:
Unbiased Market Curation (More Choices & Better Prices): Unlike single factories that only praise their own capacity, or traditional trading companies restricted by personal connection networks, we evaluate the entire Chinese manufacturing landscape. We benchmark and source from multiple verified factories to secure the most competitive pricing and the exact product specifications you need.
100% Transparency (Your “Brain” in China): We never hide behind the veil of being a “fake manufacturer.” We act as your transparent, in-country purchasing department. You always know exactly who is producing your goods, how much they cost, and what the real lead times are.
Uncompromised Quality & Risk Mitigation: Our business is built on long-term partnerships, not one-off high-profit transactions. We perform strict, independent quality control from your perspective before shipment, protecting you from post-purchase defects and communication breakdowns.
Streamlined Communication & Service: No more dealing with slow, production-centric factory service. We provide a single, highly responsive point of contact that manages the entire supply chain—from negotiation and quality checks to shipping logistics—saving you time and reducing headaches.
What types of industrial automation instruments products can you purchase from Instrava?
Level gauge, flowmeter, transmitter, level switch, Gas Alarm Controllers etc.
How to ensure the reliability of the purchased products?
Our customer-centric philosophy prioritizes their procurement needs.
1. Initially confirm the manufacturer based on product pricing and the strength and qualifications of the production factory.
2. Verify the manufacturer’s production environment through video and on-site inspections to check the compliance of the entire product manufacturing process.
3. Ensure post-production product testing and retain data and video evidence from the verification process(testing and verification methods vary depending on the product).
How does Instrava ensure product protection and physical safety during cross-border shipping?
Firstly, we confirm the packaged products with the factory (different products require different packaging and shipping methods. Heavy equipment and bulk shipments are securely secured within sea freight containers using custom-designed engineering steel frames, heavy-duty multi-layer wooden crates, and industrial-grade vacuum rust-proof bags. Precision instruments are protected against impacts and maintained in a stable position; the factory has extensive experience in this area. Custom labels are affixed to the outer packaging).
Secondly, we maintain communication with the freight company to confirm the condition of the goods and advise them to handle the loading and unloading processes with care.
What warranty policies and after-sales technical support does Instrava offer to international customers?
1. Instrava offers a comprehensive 12 to 24-month warranty (specific warranty period depends on the product line), covering all manufacturing and component defects.
2. When online technical support is needed, customers can connect with factory engineers online. Real-time guidance is provided for installation, on-site calibration (for instruments), and commissioning. When on-site engineer support is needed, we will arrange for an engineer to visit the site.
3. In the event of component issues, we will ship replacement parts via international express delivery (DHL/FedEx) to minimize your project downtime.
4. Whether a product requires replacement or repair will be clearly stated in the purchase contract.
Why Trust Instrava?
We select manufacturers from a neutral, impartial standpoint, always with your best interests in mind.
Our very existence depends on helping you source the products that are the perfect fit for your needs.
Based in China, we are able to conduct on-site inspections of production environments and product quality firsthand.
We help you avoid intermediaries posing as factories.
We facilitate smoother after-sales support, eliminating time zone issues and the delays often associated with dealing directly with factories.
Our multilingual team ensures effective communication.
For a trading startup, every interaction with a client is a precious opportunity—a sign that you are willing to place your trust in us and give us the chance to prove ourselves.
In the digital age, while information is easily accessible, misconceptions often cloud the trust between people.
Instrava relies entirely on trust; it is our core philosophy and the foundation of our existence in society. It is the fundamental basis for our long-term growth and our commitment to serving the community.
Please place your trust in us.
