Ultrasonic Flow Meters-Your Procurement Service Partner In China
Your trusted sourcing partner for ultrasonic flowmeters in china—quality instruments at competitive prices.
Are you overwhelmed by too many conflicting quotes?
Are you worried about factory capabilities because tight project deadlines and heavy procurement tasks leave you no time to audit suppliers?
Are you wasting time researching because every factory claims their product is the best, thereby delaying your procurement schedule?
Instrava is here to help you solve your procurement challenges in China.
When sourcing ultrasonic flow meters for applications involving chemical processing (corrosive acids, alkalis, and solvents), food & beverage hygiene (ultrapure water and beverages), oil & gas custody transfer (crude oil, refined oil, natural gas, and industrial gases), water & wastewater management (raw water, seawater, and sewage), HVAC energy metering, or customized OEM solutions for distributors, you know your product’s technical requirements best, while we know Chinese factories and pricing best.
Let’s collaborate for mutual success. With our customer-centric service, Instrava is your trusted procurement partner in China.
(view analysis of the ultrasonic flowmeter market in china)
Ultrasonic Flow Meters: Overview & Technical Specifications
An ultrasonic flow meter operates on signal detection principles utilizing a bidirectional ultrasonic signal transmission mechanism. By calculating the transit-time difference between downstream and upstream signals, it achieves high-precision measurement of fluid velocity and volumetric flow rate.
The primary structure consists of an ultrasonic transducer, a converter (transmitter), and a flow display and totalization system.
Key Advantages

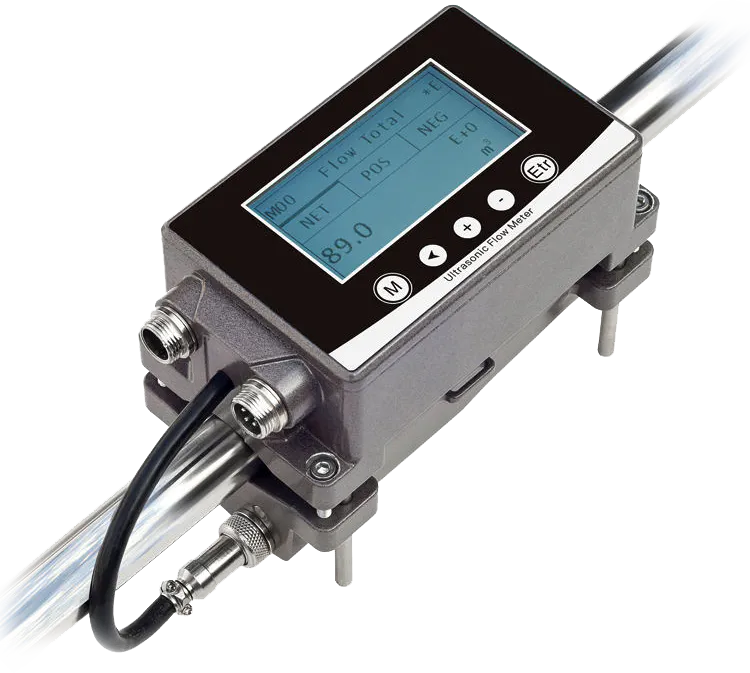

Non-intrusive Measurement: Clamp-on designs require no pipe cutting, cause zero disturbance to fluid dynamics, and introduce zero pressure loss.
Broad Application Range: Capable of measuring highly corrosive, high-viscosity, and non-conductive liquids. Offers significant cost advantages on large-diameter pipelines.
Wide Turndown Ratio: Supports an extensive measuring range—some models feature turndown ratios exceeding 4000:1, enabling accurate measurement from normal flow velocities down to trace leakages.
Easy Maintenance: No moving parts, transducers can be replaced under line pressure (hot-tapped), and delivers a long operational service life.
Common Limitations & Operating Challenges
Fluid Constraints: Transit-time methods require relatively clean fluids, whereas Doppler methods require suspended particles or entrained gas bubbles to reflect the acoustic signals properly.
Strict Installation Requirements: Demands adequate upstream and downstream straight pipe runs to ensure a stable flow profile, free from turbulence caused by valves or elbows.
Temperature Limits: Measurable fluid temperatures are constrained by the thermal limits of the transducer materials and coupling compounds; standard models are typically rated for fluids below 200°C.
Reduced Accuracy at Low Flow Rates: Extremely low flow velocities produce minimal transit-time differences, making the signal vulnerable to noise interference and reducing measurement accuracy.
Therefore, when sourcing ultrasonic flow meters, once the required accuracy class is determined, accurately mastering the technical parameters of the measured fluid and the actual conditions of the process pipeline is the key to selecting the correct meter.
Note: Specifications may vary depending on manufacturer configuration and customization requirements. Please contact us for detailed technical confirmation.
| Parameter | Clamp-On Type | Insertion Type | Inline / Wetted Type | Portable Type | Customizable Options |
| Mounting Method | External clamp-on mounting (non-intrusive, no pipe cutting required) | Hot-tapped / Wet-drilled insertion (installed under pressure without shutting down flow) | Flanged, threaded, or tri-clamp connection (integrated pipe segment) | Magnetic / Strap-on portable mounting (quick setup for temporary metering) | Custom flange standards (ANSI, DIN, JIS, GB) or sanitary tri-clamp fittings |
| Measurement Principle | Transit-Time / Doppler | Transit-Time / Doppler | Transit-Time (Single-path / Multi-path) | Transit-Time / Doppler | Single, dual, or multi-channel (4/8 paths) signal processing algorithms |
| Shell Material | PP glass fiber mix | PP glass fiber mix / Aluminum alloy | PP glass fiber mix / Aluminum alloy / Stainless steel | PP glass fiber mix / Aluminum alloy | Die-cast aluminum, full stainless steel (304/316L), or custom RAL housing colors |
| Mounting Screw | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Corrosion-resistant screws (Titanium alloy, Hastelloy, etc.) |
| Levels of Protection | IP54 (Main Unit) / IP68 (Transducer) | IP54 (Main Unit) / IP68 (Transducer) | IP54 / IP67 / IP68 | IP54 / IP63 | Upgrade to full IP67 / IP68 submersible protection |
| Vibration Resistance | 10–55 Hz, double amplitude 1.5mm, 2 hours each of the XYZ axis | 10–55 Hz, double amplitude 1.5mm, 2 hours each of the XYZ axis | 10–55 Hz, double amplitude 1.5mm, 2 hours each of the XYZ axis | 10–55 Hz, double amplitude 1.5mm, 2 hours each of the XYZ axis | Reinforcement design for high-vibration environments |
| Shock Resistance | 100 m/s², 16ms pulses, 1000 times for each of the XYZ axis | 100 m/s², 16ms pulses, 1000 times for each of the XYZ axis | 100 m/s², 16ms pulses, 1000 times for each of the XYZ axis | 100 m/s², 16ms pulses, 1000 times for each of the XYZ axis | Enhanced impact-resistant protective bumper design |
| Specifications of the Products | DN15 – DN6000 | DN80 – DN3000 | DN10, DN15, DN20, DN25, DN32, DN40 | DN15 – DN6000 | Custom non-standard pipe dimensions (large or small diameters) |
| Flow Range | DN10: 2 – 30 LPM
DN15: 5 – 60 LPM
DN20: 10 – 100 LPM | DN25: 10 – 150 LPM
DN32: 20 – 260 LPM
DN40: 20 – 400 LPM | DN10: 2 – 30 LPM
DN15: 5 – 60 LPM
DN20: 10 – 100 LPM
DN25: 10 – 150 LPM
DN32: 20 – 260 LPM
DN40: 20 – 400 LPM | DN10: 2 – 30 LPM
DN15: 5 – 60 LPM
DN20: 10 – 100 LPM | Custom turndown ratios based on specific flow velocity requirements |
| Pipeline Material | Stainless steel, carbon steel, copper, PVC, PP, and PVDF are dense pipes | Carbon steel, stainless steel, cast iron (including scaled older pipes) | Integrated pipe segment suitable for various pipe connection types | Stainless steel, carbon steel, copper, PVC, PP, and PVDF are dense pipes | Custom lining materials (PTFE, PFA, rubber) and lining thickness |
| Measurement Medium | Water, alcohol, gasoline, chemical solvents, and other fixed compositions (no solid particles and impurities) | Water, wastewater, industrial circulating water, etc. | Water, alcohol, gasoline, chemical solvents, and other fixed compositions (no solid particles and impurities) | Water, alcohol, gasoline, chemical solvents, and other fixed compositions (no solid particles and impurities) | Specialized algorithms and transducers for high-viscosity liquids, special chemicals, or gases |
| Medium Temperature | Standard sensor: -10℃ to 65℃ (not frozen)
Medium temp sensor: -10℃ to 105℃ | Standard sensor: -10℃ to 65℃ (not frozen)
Medium temp sensor: -10℃ to 105℃ | Standard sensor: -10℃ to 65℃ (not frozen)
Medium temp sensor: -10℃ to 105℃ | Standard sensor: -10℃ to 65℃ (not frozen)
Medium temp sensor: -10℃ to 105℃ | High-temperature customization up to 160℃ / 250℃+ (with waveguide / high-temp sealant) |
| Certainty of Measurement | < 3% FS. (Standard Clamp-on) | < 1.0% – 1.5% FS. | < 0.5% – 1.0% FS. | < 1.0% – 2.0% FS. | Factory multi-point calibration report available upon request |
| Response Time | 0.5s – 3s | 0.5s – 3s | 0.5s – 3s | 0.5s – 3s | Firmware-adjustable (fast response or smoothing filter algorithms) |
| Supply Electricity | 20–28VDC | 20–28VDC | 20–28VDC | 20–28VDC / Lithium Battery | 12VDC, 85–264VAC, or 3.6V long-life lithium battery power supply |
| Consumption | 1W | 1W | 1W | 1W | Ultra-low power consumption for battery-operated systems |
| Power Supply / Connector | M12-Type A-5 core, 1 core | M12-Type A-5 core, 1 core | M12-Type A-5 core, 1 core | M12-Type A-5 core, 1 core | Custom cable lengths (5m/10m/20m/50m), aviation plugs, or terminal blocks |
| Output | 4-20mA | 4-20mA | 4-20mA | 4-20mA / OCT Pulse | 0-5V / 0-10V / OCT Pulse / Relay output options |
| Communication | RS485 Modbus | RS485 Modbus | RS485 Modbus | RS485 Modbus | HART, Profibus, NB-IoT, LoRaWAN, 4G wireless communication modules |
| Display Screen | 1.5′ OLED (black and blue) | 1.5′ OLED (black and blue) | 1.5′ OLED (black and blue) | 1.5′ OLED (black and blue) | Custom boot logo and multi-language firmware interface |
| Press Key | Touch-type mechanical keys, 2 | Touch-type mechanical keys, 2 | Touch-type mechanical keys, 2 | Touch-type mechanical keys, 2 | Blind/blind-box enclosure (no buttons) or multi-button layout |
| Operating Ambient Temp | -10℃ to 60℃ (not frozen) | -10℃ to 60℃ (not frozen) | -10℃ to 60℃ (not frozen) | -10℃ to 60℃ (not frozen) | Wide-temperature industrial-grade electronic components |
| Storage Temperature | -10℃ to 60℃ | -10℃ to 60℃ | -10℃ to 60℃ | -10℃ to 60℃ | — |
| OEM / Branding Services | Neutral / Custom Logo available | Neutral / Custom Logo available | Neutral / Custom Logo available | Neutral / Custom Logo available | Custom nameplates, labels, enclosure colors, and laser engraving |
Our Service
Long before you share your specific technical requirements, our supplier vetting process is already underway—continuously gathering data to serve you better and faster.
We rigorously evaluate and screen manufacturers across 9 core dimensions: Production Capacity, Customization Capability, Quality Control, Industry Certifications, Project Experience, Technical Documentation, Track Record of Delivery, Export Expertise, and After-Sales Support.
Currently, Chinese electromagnetic flowmeter manufacturers fall into three distinct tiers (detailed in the attached PDF above). We source quotes across these tiers to strictly meet your technical specifications while maximizing cost efficiency.
Most of our partner factories boast 10 to 30+ years of manufacturing experience, capable of handling complex operating conditions. Furthermore, their products hold key international certifications, including ATEX, IECEx, CE, SIL2/3, ISO 9001, and CPA.
Against this backdrop, whether you are an end-user requiring small-volume orders or a distributor, EPC procurement lead, or industry purchasing manager needing bulk customization, we are dedicated to helping you complete your procurement smoothly and efficiently.
Your successful procurement is our driving force and the core of our service.
Industries Suitable For Ultrasonic Flowmeter
Municipal Water Supply & Pipe Network Auditing
In urban water supply grids, raw water intake, and district metering areas (DMA), Ultrasonic Flowmeters are widely specified for large-diameter pipelines (DN300 to DN3000+). Featuring non-intrusive clamp-on or insertion acoustic transducers, they eliminate the need to halt main water supplies, offering ultra-wide turndown ratios (>4000:1) to accurately capture both peak daytime demand and minimal night-time leakage.
Wastewater Management & Sludge Monitoring
Municipal wastewater treatment plants handle aerated liquids, raw sewage, and activated sludge containing suspended solids and entrained gas bubbles. Utilizing specialized Doppler Effect ultrasonic technology, the sensors utilize reflective particles within the fluid to achieve continuous flow monitoring without clogging, scaling, or mechanical wear.

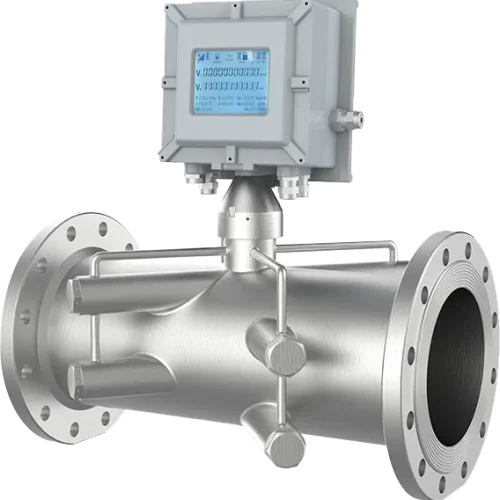

Oil & Gas Midstream Pipeline Custody Transfer
High-precision multi-path in-line ultrasonic flowmeters represent the gold standard for custody transfer of crude oil, refined products, natural gas, and liquefied gases. Equipped with multi-beam acoustic chord paths, they map dynamic flow profiles in real-time to deliver fiscal-grade accuracy (±0.15% to ±0.5%) across extreme line pressures.
Corrosive Media & Non-Conductive Solvents
In chemical synthesis, handling concentrated acids (e.g., Hydrochloric, Sulfuric), strong alkalis, organic solvents, and non-conductive hydrocarbons quickly degrades wetted sensors. External clamp-on ultrasonic meters measure through plastic, metal, or lined pipes completely isolated from aggressive media, guaranteeing zero chemical leakage.
Power Generation & High-Temperature Circulation
In thermal, nuclear, and combined-cycle power generation plants, monitoring high-pressure boiler feedwater, condensed water loops, and cooling tower circulation lines is vital. Ultrasonic flowmeters overcome traditional head-loss penalties, handling thermal fluid variations while delivering long-term zero-drift stability under severe thermal stress.
HVAC Chilled Water & Energy BTU Metering
Deploying energy meters across commercial complexes, data centers, and district cooling loops requires continuous mass and energy flow balance. Ultrasonic flowmeters, when bundled with dual PT100/PT1000 temperature sensors, calculate real-time BTU thermal energy consumption for accurate sub-billing and BMS integration.
Hygienic Process, Spirits & Ultrapure Water (WFI)
In bio-pharmaceutical and food processing lines, maintaining zero contamination in Water for Injection (WFI), purified water, and liquid ingredients is non-negotiable. External clamp-on ultrasonic sensors avoid any internal fluid contact, eliminating crevices, dead legs, and bio-burden risks entirely.
High-Viscosity Hydraulic Oil & Lubrication Lines
Steel rolling mills and heavy metallurgical processing equipment rely on high-pressure hydraulic actuators and circulating lubrication loops. Ultrasonic transit-time meters adapt dynamically to high-viscosity mineral oils, delivering high-speed dynamic response times without line restrictions.
Marine Fuel Efficiency & Ballast Water Auditing
Commercial ships, LNG carriers, and offshore platforms deploy ultrasonic flowmeters for fuel consumption monitoring (MGO/HFO), bilge water management, and ballast water treatment lines. Compact clamp-on units allow easy retrofit in tight engine room spaces without dry-docking.
Agricultural Canal & Open Channel Flow Measurement
Managing water allocation across open channels, irrigation canals, and culverts requires specialized transit-time area-velocity ultrasonic systems. By combining submerged acoustic velocity sensors with radar or ultrasonic level sensors, systems accurately compute totalized volume in non-full pipes and open channels.
Semiconductor Micro-Flow & Chemical Dosing
Semiconductor wafer fabrication tools require hyper-precise dosing of ultra-pure chemicals, slurry CMP polishing agents, and DI water. Ultra-compact high-frequency plastic ultrasonic sensors with PFA/PTFE flow paths deliver fast response times to control micro-dosing streams down to milliliters per minute.
Mining Tailings & Mineral Processing Slurries
Ore dressing plants, coal washeries, and tailings processing lines involve highly abrasive slurries that quickly destroy mechanical impellers and wear out inner liners. Externally mounted Doppler ultrasonic flowmeters measure flow velocity directly through thick-walled steel pipes without any risk of abrasive wear.
Vortex Flow Meter Specification Matrix
Configure your technical requirements below to generate a real-time ordering model code and receive an official B2B/B2C quotation.
FAQ For Purchasing Ultrasonic Flow Meters
What is the process for purchasing ultrasonic flow meters from Instrava supplier ?
1. Inquiry (We will respond to your inquiry within 24 hours to confirm specifications and initiate the process.)
2. Quotation (Quotation timelines vary based on the project type and your specific requirements. Standard stock items are quoted within one day, while special orders require three days or a mutually agreed-upon timeframe.)
3. Product Selection (We will present 3–5 product options and pricing for your approval. During this stage, we verify the manufacturer’s production capabilities and relevant national certifications.)
4. Contract, Prepayment, and Production (A 40% prepayment is required to initiate production at a qualified facility. For stock items, we promptly arrange for product testing and packaging.)
5. Interim Payment (Upon successful completion of production and quality inspection, the next 50% of the total amount is due. For stock items, this payment is made after packaging is complete.If the transaction amount does not exceed $50,000, the remaining 60% is paid.)
6. Shipment (You may designate a freight forwarder, or we can arrange shipping for you.)
7. Receipt of Goods (Our Quality Guarantee: When your cumulative order value reaches $50,000, you pay the remaining 10% only after receiving and verifying the product quality. We let our quality do the talking.)
8. After-Sales Service (We actively address and resolve issues through both online and offline channels. We place great importance on after-sales support, as it reflects our responsibility and reputation—the foundation of Instrava’s long-term growth.)
What are the advantages of buying products from Instrava ?
Buying from Instrava gives you the best of both worlds—the direct-from-source pricing of a factory, combined with the professional service, product range, and risk mitigation of an elite sourcing partner. Here is how we deliver value to your business:
Unbiased Market Curation (More Choices & Better Prices): Unlike single factories that only praise their own capacity, or traditional trading companies restricted by personal connection networks, we evaluate the entire Chinese manufacturing landscape. We benchmark and source from multiple verified factories to secure the most competitive pricing and the exact product specifications you need.
100% Transparency (Your “Brain” in China): We never hide behind the veil of being a “fake manufacturer.” We act as your transparent, in-country purchasing department. You always know exactly who is producing your goods, how much they cost, and what the real lead times are.
Uncompromised Quality & Risk Mitigation: Our business is built on long-term partnerships, not one-off high-profit transactions. We perform strict, independent quality control from your perspective before shipment, protecting you from post-purchase defects and communication breakdowns.
Streamlined Communication & Service: No more dealing with slow, production-centric factory service. We provide a single, highly responsive point of contact that manages the entire supply chain—from negotiation and quality checks to shipping logistics—saving you time and reducing headaches.
What types of industrial automation instruments products can you purchase from Instrava?
Level gauge, flowmeter, transmitter, level switch, Gas Alarm Controllers etc.
How to ensure the reliability of the purchased products?
Our customer-centric philosophy prioritizes their procurement needs.
1. Initially confirm the manufacturer based on product pricing and the strength and qualifications of the production factory.
2. Verify the manufacturer’s production environment through video and on-site inspections to check the compliance of the entire product manufacturing process.
3. Ensure post-production product testing and retain data and video evidence from the verification process(testing and verification methods vary depending on the product).
How does Instrava ensure product protection and physical safety during cross-border shipping?
Firstly, we confirm the packaged products with the factory (different products require different packaging and shipping methods. Heavy equipment and bulk shipments are securely secured within sea freight containers using custom-designed engineering steel frames, heavy-duty multi-layer wooden crates, and industrial-grade vacuum rust-proof bags. Precision instruments are protected against impacts and maintained in a stable position; the factory has extensive experience in this area. Custom labels are affixed to the outer packaging).
Secondly, we maintain communication with the freight company to confirm the condition of the goods and advise them to handle the loading and unloading processes with care.
What warranty policies and after-sales technical support does Instrava offer to international customers?
1. Instrava offers a comprehensive 12 to 24-month warranty (specific warranty period depends on the product line), covering all manufacturing and component defects.
2. When online technical support is needed, customers can connect with factory engineers online. Real-time guidance is provided for installation, on-site calibration (for instruments), and commissioning. When on-site engineer support is needed, we will arrange for an engineer to visit the site.
3. In the event of component issues, we will ship replacement parts via international express delivery (DHL/FedEx) to minimize your project downtime.
4. Whether a product requires replacement or repair will be clearly stated in the purchase contract.
Why Trust Instrava?
We select manufacturers from a neutral, impartial standpoint, always with your best interests in mind.
Our very existence depends on helping you source the products that are the perfect fit for your needs.
Based in China, we are able to conduct on-site inspections of production environments and product quality firsthand.
We help you avoid intermediaries posing as factories.
We facilitate smoother after-sales support, eliminating time zone issues and the delays often associated with dealing directly with factories.
Our multilingual team ensures effective communication.
For a trading startup, every interaction with a client is a precious opportunity—a sign that you are willing to place your trust in us and give us the chance to prove ourselves.
In the digital age, while information is easily accessible, misconceptions often cloud the trust between people.
Instrava relies entirely on trust; it is our core philosophy and the foundation of our existence in society. It is the fundamental basis for our long-term growth and our commitment to serving the community.
Please place your trust in us.
