Electromagnetic Flowmeter (EMF) Supplier
We don’t manufacture electromagnetic flowmeters—we provide tailored procurement services for you.
Are you overwhelmed by too many conflicting quotes?
Are you worried about factory capabilities because tight project deadlines and heavy procurement tasks leave you no time to audit suppliers?
Are you wasting time researching because every factory claims their product is the best, thereby delaying your procurement schedule?
Instrava is here to help you solve your procurement challenges in China.
When sourcing for applications in water & wastewater treatment, chemical processing, food & beverage, or customized OEM orders for distributors, you know your product’s technical requirements best, while we know Chinese factories and pricing best.
Let’s collaborate for mutual success. With our customer-centric service, Instrava is your trusted procurement partner in China.
(View Analysis of the Mage Meters Market in China)
Custom Procurement & Specification Services for Magnetic Flowmeters
Electromagnetic flowmeters (EMFs) play a vital role as critical measurement instruments in process control, energy management, and environmental monitoring. Consequently, selecting and deploying the right flowmeter can be a complex and challenging task.
Key selection factors include: media conductivity ($\ge 5\ \mu\text{S/cm}$, or as low as $2\ \mu\text{S/cm}$ for advanced low-conductivity models), liner materials, pipe diameter and flow velocity, straight pipe run requirements, compact vs. remote structures, IP protection ratings, explosion-proof certifications, operating conditions, power supply options, and communication protocols.
To simplify your selection process, we have outlined key technical parameters below for your reference.
Note: Specifications may vary depending on manufacturer configuration and customization requirements. Please contact us for detailed technical confirmation.
| Dimension | Technical Parameter | Standard Options & Materials | Typical Applications & Industrial Scenarios | Parameter Type & Customization Level |
| Media & Corrosion | Liner Material | Neoprene / Rubber | Potable water, municipal wastewater, agricultural irrigation, seawater (non-corrosive, non-abrasive). | Configurable |
| Polyurethane (PU) | Mining slurry, cement slurry, sand-water mixture, paper pulp (extreme wear/abrasion resistance). | Configurable | ||
| PTFE | Strong acids/alkalis, fine chemicals, high-temp wastewater (high corrosion resistance, up to 120°C). | Configurable | ||
| PFA | High-temp/high-pressure chemicals, vacuum evaporation, hygienic pharma (vacuum resistant, up to 160°C). | Configurable | ||
| Industrial Ceramic | Highly abrasive slurry, severe corrosion + high-flush media (extreme hardness, up to 180°C). | Configurable | ||
| Signal & Corrosion | Electrode Material | 316L Stainless Steel | Tap water, urban sewage, weak acid/alkali solutions (most cost-effective). | Configurable |
| Hastelloy-C | Mixed acids, sodium hypochlorite, seawater, oxidizing salts (chemical & desalination plants). | Configurable | ||
| Titanium (Ti) | Seawater, chlorides, organic acids, hypochlorites. | Configurable | ||
| Tantalum (Ta) | Concentrated HCl, $HNO_3$, fuming $H_2SO_4$, and other strong reducing acids. | Configurable | ||
| Platinum / Iridium (Pt/Ir) | Ultra-pure chemicals, high-purity pharmaceuticals, extreme corrosive fluids (highest cost). | Configurable | ||
| Tungsten Carbide (TC) | Slurry/mud with hard particles (paired with PU liner to resist severe erosion). | Configurable | ||
| Grounding & Protection | Grounding Method | Built-in Grounding Electrode | Most plastic or lined pipes (built inside the sensor, easy installation). | Standard / Configurable |
| Grounding Ring | High-abrasion sites (protects liner edges) or non-metallic pipes requiring maximum grounding area. | Configurable (Matches Electrode) | ||
| Structure & Flow Condition | Structure & Protection Class | Compact (IP65 / IP67) | Standard indoor plants, well-conditioned pipe networks, compact OEM equipment skids. | Standard Spec |
| Remote Type (IP67) | High-temperature lines (>65°C), high-altitude/underground pits, high vibration/hazardous zones. | Configurable | ||
| Submersible (IP68) | Underground chambers, storm/sewage networks, flood-prone or permanently submerged areas. | Configurable | ||
| Insertion Type | Large pipelines (DN300–DN3000) retrofits, municipal water distribution trunks. | Configurable | ||
| Partially Filled / Open Channel | Fluctuating fluid levels (10%–90%), non-full pipes, storm drainage channels, effluent monitoring. | Configurable (Built-in Level Sensor) | ||
| Physical & Mechanical | Nominal Diameter | DN10 – DN3000 (3/8″ – 120″) | Full industrial pipe size coverage. (Note: Pipe reduction recommended if velocity $< 0.5\text{ m/s}$). | Standard Spec Selection |
| Pressure Rating & Flange Specs | PN10/16/25/40, Class 150/300/600 Flange Standards: DIN / ANSI / JIS / BS | Standard pressures are off-the-shelf. Ultra-high pressure (up to 42 MPa / 6000 psi) is custom engineered. | Fully Customizable | |
| Body / Flange Material | Carbon Steel / 304 SS / 316 SS | Carbon steel with epoxy coating as standard; full SS housing for sanitary or off-shore environments. | Fully Customizable | |
| Process Connection | Flanged, Wafer, Tri-clamp (Sanitary), Threaded | Matched to local piping standards and hygienic requirements. | Fully Customizable | |
| Electrical & IoT Communication | Power Supply | 110V / 220V AC, 24V DC, 3.6V Lithium Battery | 110V AC (North America), 220V AC (EU/Asia/ME), 24V DC (PLC automation), Battery (remote sites). | Configurable |
| Output & Wireless Protocols | 4-20mA, Pulse, RS485 (Modbus), HART, Profibus-DP, LTE-M / NB-IoT / LoRaWAN | PLC automation via 4-20mA/HART/RS485; Smart Water & remote telemetry via LTE-M/LoRaWAN/NB-IoT. | Configurable | |
| Commercial & OEM | Certifications & Labeling | Explosion-proof (Ex d / Ex ia, ATEX/IECEx), SIL2/3, CPA; Custom Nameplate & Color | Chemical/Oil & Gas EPCs require high safety certs; Traders/OEMs benefit from neutral/private labeling. | Fully Customizable (MOQ ≤ 1) |
Our Service Background
Long before you share your specific technical requirements, our supplier vetting process is already underway—continuously gathering data to serve you better and faster.
We rigorously evaluate and screen manufacturers across 9 core dimensions: Production Capacity, Customization Capability, Quality Control, Industry Certifications, Project Experience, Technical Documentation, Track Record of Delivery, Export Expertise, and After-Sales Support.
Currently, Chinese electromagnetic flowmeter manufacturers fall into three distinct tiers (detailed in the attached PDF above). We source quotes across these tiers to strictly meet your technical specifications while maximizing cost efficiency.
Most of our partner factories boast 10 to 30+ years of manufacturing experience, capable of handling complex operating conditions. Furthermore, their products hold key international certifications, including ATEX, IECEx, CE, SIL2/3, ISO 9001, and CPA.
Against this backdrop, whether you are an end-user requiring small-volume orders or a distributor, EPC procurement lead, or industry purchasing manager needing bulk customization, we are dedicated to helping you complete your procurement smoothly and efficiently.
Your successful procurement is our driving force and the core of our service.

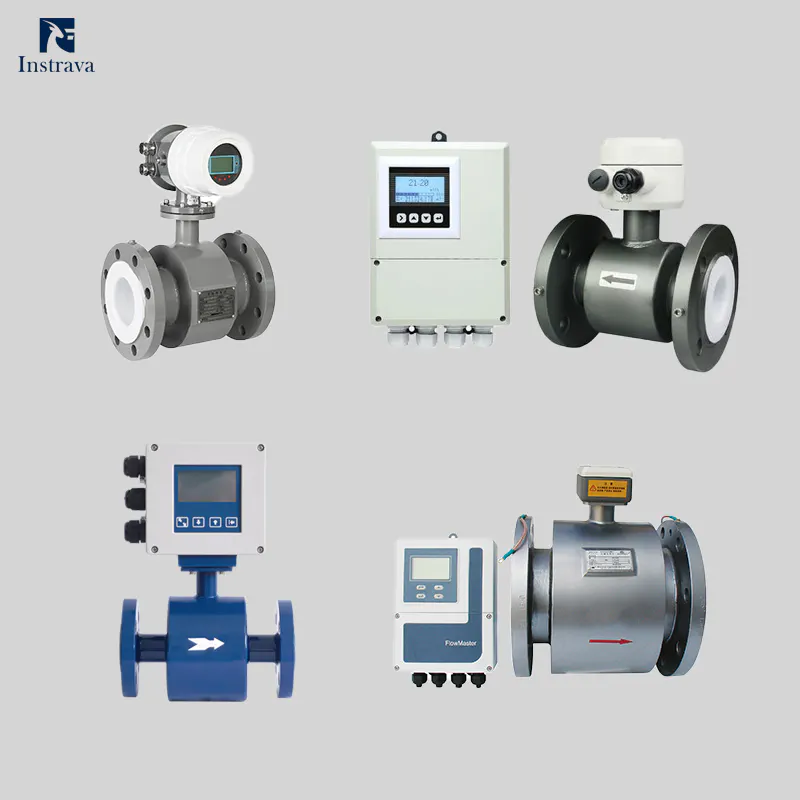

Classification of Electromagnetic Flowmeters
An electromagnetic flowmeter is a flow instrument based on Faraday’s law of electromagnetic induction to measure the volume of conductive fluids.
Since its main structure consists of two parts—a sensor and a converter—with no moving parts and no pressure loss, it is unaffected by fluid density, viscosity, temperature, and pressure. Featuring a wide measurement range and a large turndown ratio, it can measure highly corrosive media as well as dirty slurry media containing solid particles or fibers. Therefore, it has a wide range of application fields, such as water treatment, chemical, pharmaceutical, metallurgy, and energy & power industries.
To meet the requirements of different operating conditions, many classifications have been developed.
Below is a breakdown categorizing electromagnetic flowmeters by operating conditions, product types, structural characteristics, and typical applications.
| Operating Condition / Environment | Product Type | Key Structural & Design Features | Typical Applications & Industries |
| Standard Industrial Facilities / Ample Space | Compact / Integrated Type (Compact Electromagnetic Flowmeter) | Sensor and transmitter (display) are integrated into a single unit. Easy installation, compact footprint, and highest cost-efficiency. | Ambient-temperature indoor plants, water treatment workshops, standard accessible pipelines. |
| High Temperature / Vibration / Overhead / Pits | Remote / Split Type (Remote Electromagnetic Flowmeter) | Sensor and transmitter are separated and connected via double-shielded cable (up to $100\text{m}$). Transmitter can be mounted in an easily accessible, safe location. | High-temp chemical lines ($>65^\circ\text{C}$), elevated pipe racks, underground meter pits, high-vibration pump rooms. |
| Underground Pits / Flooding Risks / Submerged | Submersible Type (IP68 Waterproof Flowmeter) | Fully sealed sensor housing with potting compounds in the terminal box achieving an IP68 ingress protection rating. Suitable for continuous underwater operation. | Urban drainage networks, underground valve chambers, wastewater treatment plants, flood-prone areas. |
| Large Diameter Pipes / Legacy Network Retrofits | Insertion Type (Insertion Electromagnetic Flowmeter) | Instead of a full-bore spool piece, a measuring probe is inserted to the pipe center via a tapped hole. Procurement and freight costs stay constant regardless of pipe size. Supports hot-tapping (installation under pressure). | Large-diameter water mains (DN300–DN3000), municipal water network retrofits, large industrial cooling systems. |
| Hazardous & Explosive Environments | Explosion-Proof Type (Ex d Flameproof / Ex ia Intrinsic Safety) | Transmitter and sensor feature flameproof (Ex d) or intrinsically safe (Ex ia) enclosures. Certified with ATEX/IECEx to eliminate electrical spark hazards. | Oil & gas facilities, fine chemicals, mining, tank farms/fuel depots, toxic gas processing environments. |
| Partially Filled Pipes / Open Channels / Fluctuating Levels | Partially Filled / Open Channel Type | Integrates high-precision level sensors (ultrasonic/capacitive) with distributed electrode arrays. Maintains accurate flow measurement at 10%–90% liquid fill levels. | Industrial effluent outfalls, partially filled drainage pipes, stormwater discharge channels, gravity-flow canals. |
| Off-Grid Locations / Mobile Pipe Networks | Battery-Powered Type | Powered by an internal 3.6V high-capacity lithium battery (3–8 years battery life). Micro-power design, typically integrated with NB-IoT / 4G / LoRaWAN wireless modules. | Remote agricultural irrigation, district metering areas (DMA) without grid power, smart water leakage monitoring. |
| Hygienic Processes / Frequent CIP/SIP Cleaning | Sanitary / Hygienic Type | Stainless steel housing with hygienic quick-connect fittings (Tri-clamp). Uses FDA-compliant PFA/PTFE liners with zero dead space, resistant to high-temp steam sterilization. | Food & beverage processing, biopharmaceuticals, dairy production lines, high-purity water systems. |
| Extreme Pressure Conditions (Up to 42 MPa) | High-Pressure Type | Engineered with extra-thick forged steel or high-grade alloy flanges. Structure validated via Finite Element Analysis (FEA) for high-pressure resistance. | Oilfield water injection, high-pressure subsea mud drilling/recovery, high-pressure waterjet cutting systems. |
Industries Suitable For Electromagnetic Flowmeters
Water Industry
In raw water intake, municipal water supply networks, District Metering Areas (DMA), and large-scale water diversion projects, Electromagnetic Flowmeters provide long-term measurement stability and bi-directional flow capability. The full-bore, obstructionless design ensures zero pressure loss and reduces energy consumption in pumping stations.
Wastewater Treatment
Engineered for raw sewage, industrial effluent, concentrated sludge, and return activated sludge. Electromagnetic flowmeters feature obstructionless flow passages that prevent clogging, wrapping, or solids accumulation, paired with abrasion-resistant hard rubber or polyurethane liners.
Chemical Processing
Ideal for precise batching and transfer of concentrated acids (HCl, H₂SO₄, HNO₃), alkalis, and organic solvents. PTFE / PFA liners combined with Tantalum, Hastelloy, or Platinum-Iridium electrodes withstand aggressive chemical corrosion.
Petrochemical Industry
Designed for acid/alkali wastewater treatment, oily water monitoring, and high-pressure water injection systems in oil refineries and petrochemical complexes, ensuring absolute operational safety in hazardous, explosive environments.
Pharmaceutical Industry
Applied in active pharmaceutical ingredient (API) synthesis, solvent dosing, and chemical reagent delivery lines. Crevice-free internal construction complies with GMP manufacturing standards, preventing cross-contamination risks.
Food Processing
Used for volumetric flow measurement of sauces, syrups, liquid condiments, and dairy ingredients. Constructed with FDA-compliant non-toxic materials to maintain smooth, deposit-free inner surfaces.
Beverage Production
For high-speed filling lines involving fruit juices, carbonated drinks, beer brewing, and mineral water. Sanitary magmeters easily withstand repeated Sterilization-In-Place (SIP) steam cycles up to 140°C.
Medical & High-Purity Water Systems
Engineered for Water for Injection (WFI), Purified Water (PW), and biopharmaceutical buffer lines. Smooth, crevice-free internal surfaces ensure reliable measurement even in low-conductivity, high-purity fluid applications.
Mining & Mineral Slurry
Tailored for ore tailings, mineral slurries, and lime milk in severe abrasive environments. Polyurethane or ceramic liners with bullet-head electrodes eliminate high-frequency slurry noise and abrasive wear.
Metallurgy & Steel Mills
Used in blast furnace cooling water loops, high-pressure descaling lines, and acid regeneration plants in steel mills. Built to withstand high ambient heat radiation and heavy industrial electromagnetic interference.
Pulp & Paper Industry
Monitors wood pulp stock, bleaching liquor, and black liquor recovery. Specialized high-frequency excitation algorithms filter out pulp fiber noise, providing smooth and accurate flow readings without signal jumps.
Energy Management
Deployed in district heating networks, district cooling systems (chilled water / condenser water), and geothermal applications. Features high turndown ratios and bi-directional measurement for accurate energy accounting.
Power Generation
In thermal power plants, nuclear facilities, and hydroelectric stations, magmeters are the preferred choice for measuring circulating cooling water, desalinated feedwater, boiler blowdown, and ash slurry lines.
Utilities & General Industry
Widely used for industrial plant water balancing, fire protection water monitoring, sub-metering, and general conductive fluid transport, delivering a cost-effective, high-reliability flow measurement solution.
Electromagnetic Flowmeter Selection Matrix
Configure your technical specifications step-by-step to generate a customized product code and request a B2B quotation.
Enter pipe nominal size in mm (e.g., DN15, DN50, DN100, DN300, DN600...)
Specify desired upper range limit for factory calibration setup (m³/h or L/min)
Request Official B2B Engineering Quotation
Selecting items in the spec matrix above will auto-generate your detailed engineering payload below.
FAQ For Purchasing Electromagnetic Flow Meter
What is the process for purchasing electromagnetic flowmeter from Instrava supplier ?
1. Inquiry (We will respond to your inquiry within 24 hours to confirm specifications and initiate the process.)
2. Quotation (Quotation timelines vary based on the project type and your specific requirements. Standard stock items are quoted within one day, while special orders require three days or a mutually agreed-upon timeframe.)
3. Product Selection (We will present 3–5 product options and pricing for your approval. During this stage, we verify the manufacturer’s production capabilities and relevant national certifications.)
4. Contract, Prepayment, and Production (A 40% prepayment is required to initiate production at a qualified facility. For stock items, we promptly arrange for product testing and packaging.)
5. Interim Payment (Upon successful completion of production and quality inspection, the next 50% of the total amount is due. For stock items, this payment is made after packaging is complete.If the transaction amount does not exceed $50,000, the remaining 60% is paid.)
6. Shipment (You may designate a freight forwarder, or we can arrange shipping for you.)
7. Receipt of Goods (Our Quality Guarantee: When your cumulative order value reaches $50,000, you pay the remaining 10% only after receiving and verifying the product quality. We let our quality do the talking.)
8. After-Sales Service (We actively address and resolve issues through both online and offline channels. We place great importance on after-sales support, as it reflects our responsibility and reputation—the foundation of Instrava’s long-term growth.)
What are the advantages of buying products from Instrava ?
Buying from Instrava gives you the best of both worlds—the direct-from-source pricing of a factory, combined with the professional service, product range, and risk mitigation of an elite sourcing partner. Here is how we deliver value to your business:
Unbiased Market Curation (More Choices & Better Prices): Unlike single factories that only praise their own capacity, or traditional trading companies restricted by personal connection networks, we evaluate the entire Chinese manufacturing landscape. We benchmark and source from multiple verified factories to secure the most competitive pricing and the exact product specifications you need.
100% Transparency (Your “Brain” in China): We never hide behind the veil of being a “fake manufacturer.” We act as your transparent, in-country purchasing department. You always know exactly who is producing your goods, how much they cost, and what the real lead times are.
Uncompromised Quality & Risk Mitigation: Our business is built on long-term partnerships, not one-off high-profit transactions. We perform strict, independent quality control from your perspective before shipment, protecting you from post-purchase defects and communication breakdowns.
Streamlined Communication & Service: No more dealing with slow, production-centric factory service. We provide a single, highly responsive point of contact that manages the entire supply chain—from negotiation and quality checks to shipping logistics—saving you time and reducing headaches.
What types of industrial automation instruments products can you purchase from Instrava?
Level gauge, flowmeter, transmitter, level switch, Gas Alarm Controllers etc.
How to ensure the reliability of the purchased products?
Our customer-centric philosophy prioritizes their procurement needs.
1. Initially confirm the manufacturer based on product pricing and the strength and qualifications of the production factory.
2. Verify the manufacturer’s production environment through video and on-site inspections to check the compliance of the entire product manufacturing process.
3. Ensure post-production product testing and retain data and video evidence from the verification process(testing and verification methods vary depending on the product).
How does Instrava ensure product protection and physical safety during cross-border shipping?
Firstly, we confirm the packaged products with the factory (different products require different packaging and shipping methods. Heavy equipment and bulk shipments are securely secured within sea freight containers using custom-designed engineering steel frames, heavy-duty multi-layer wooden crates, and industrial-grade vacuum rust-proof bags. Precision instruments are protected against impacts and maintained in a stable position; the factory has extensive experience in this area. Custom labels are affixed to the outer packaging).
Secondly, we maintain communication with the freight company to confirm the condition of the goods and advise them to handle the loading and unloading processes with care.
What warranty policies and after-sales technical support does Instrava offer to international customers?
1. Instrava offers a comprehensive 12 to 24-month warranty (specific warranty period depends on the product line), covering all manufacturing and component defects.
2. When online technical support is needed, customers can connect with factory engineers online. Real-time guidance is provided for installation, on-site calibration (for instruments), and commissioning. When on-site engineer support is needed, we will arrange for an engineer to visit the site.
3. In the event of component issues, we will ship replacement parts via international express delivery (DHL/FedEx) to minimize your project downtime.
4. Whether a product requires replacement or repair will be clearly stated in the purchase contract.
Why Trust Instrava?
We select manufacturers from a neutral, impartial standpoint, always with your best interests in mind.
Our very existence depends on helping you source the products that are the perfect fit for your needs.
Based in China, we are able to conduct on-site inspections of production environments and product quality firsthand.
We help you avoid intermediaries posing as factories.
We facilitate smoother after-sales support, eliminating time zone issues and the delays often associated with dealing directly with factories.
Our multilingual team ensures effective communication.
For a trading startup, every interaction with a client is a precious opportunity—a sign that you are willing to place your trust in us and give us the chance to prove ourselves.
In the digital age, while information is easily accessible, misconceptions often cloud the trust between people.
Instrava relies entirely on trust; it is our core philosophy and the foundation of our existence in society. It is the fundamental basis for our long-term growth and our commitment to serving the community.
Please place your trust in us.
