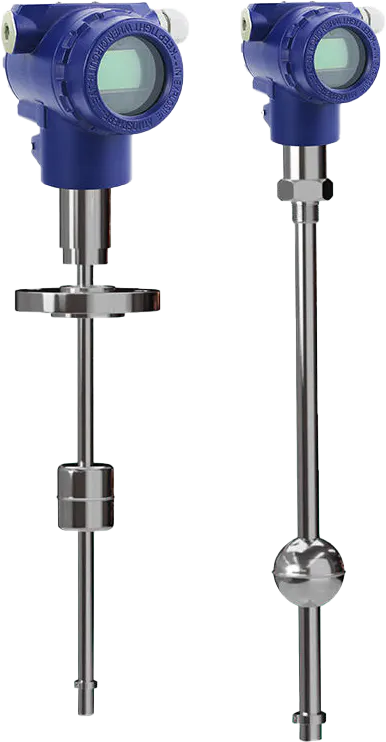

Magnetostrictive Level Transmitter Manufacturer & Supplier
Your trusted sourcing partner for magnetostrictive level transmitter in china—quality instruments at competitive prices.
Are you overwhelmed by too many conflicting quotes?
Are you worried about factory capabilities because tight project deadlines and heavy procurement tasks leave you no time to audit suppliers?
Are you wasting time researching because every factory claims their product is the best, thereby delaying your procurement schedule?
Instrava is here to help you solve your procurement challenges in China.
We serves a global clientele, including EPC contractors, OEM equipment manufacturers, procurement managers, distributors, traders, and engineering consultants. We provide curated product quotations from 3 pre-vetted factories

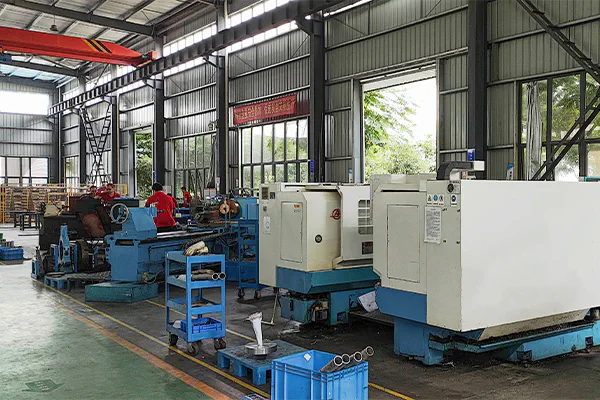

Standardized Supplier Qualification ProcessEvery manufacturing partner is evaluated through our standardized supplier qualification process before being included in the Instrava sourcing network. The assessment focuses on manufacturing capability, engineering expertise, quality control, delivery reliability, and long-term service support., helping our clients drastically save time on sourcing, screening, and supplier comparison.
Whether you are building new industrial production lines, upgrading and replacing legacy instruments, sourcing for wholesale trade, or requiring custom OEM production, we empower you to secure the most perfectly matched products.
Let’s collaborate for mutual success. With our customer-centric service, Instrava is your trusted procurement partner in China.
What to Consider When Purchasing Magnetostrictive Level Transmitters
When sourcing magnetostrictive level transmitters across industries such as petrochemicals, power generation, food & pharmaceuticals, and water treatment, several critical factors must be evaluated:
Medium Properties: Density & buoyancy, viscosity, and corrosiveness
Operating Conditions: Working pressure, process temperature, measurement range, and structural design (rigid rod vs. flexible cable)
Measurement Type: Single level or dual-float interface measurement
System Integration: Output signals & communication protocols, explosion-proof ratings, and process connections
Facing complex or demanding operating conditions? We offer tailored, custom-engineered solutions to solve your specific application challenges.
Note: Specifications may vary depending on manufacturer configuration and customization requirements. Please contact us for detailed technical confirmation.
Magnetostrictive Level Transmitter Technical Specification Datasheet
| Parameter | Standard Specification | Customization Options & Application Notes |
| Measurement Range | • Rigid Rod Structure: $50 \sim 6000\text{ mm}$
• Flexible Cable Structure: $4000 \sim 25000\text{ mm}$ | [Customizable]
• Fully customizable in $1\text{ mm}$ increments according to tank dimensions.
• Application: Rigid rod for standard tanks/reactors; flexible cable for deep underground tanks or tall silos (coiled to save air/sea freight costs). |
| Accuracy & Repeatability | • Repeatability Error: $\le \pm 0.01\%\text{ F.S.}$
• Non-linearity Error: $\le \pm 0.05\%\text{ F.S.}$ ($\le 150\ \mu\text{m}$ when $<300\text{ mm}$)
• Resolution: $1\text{ mm}$ (Standard) / $5\ \mu\text{m}$ (High-precision type)
• Hysteresis / Delay: $<\pm 0.01\%\text{ F.S.}$ | [Optional]
• High-precision calibration certificates available upon request.
• Application: High-precision models are suitable for petrol station ATG systems, pharmaceutical batching, and commercial inventory custody transfer. |
| Temperature Stability | • Temperature Effect: $<\pm 0.007\%\text{ F.S.}/\text{℃}$
• Zero / Span Adjustment: $100\%\text{ F.S.}$ (Full scale adjustable) | [Standard]
• Integrated digital temperature compensation ensures stable measurement under severe outdoor ambient temperature fluctuations. |
| Wetted Material | • Standard: SS304, SS316L
• Corrosion-Resistant: SS304 + PTFE Coating / Hastelloy C-276 / Titanium | [Customizable]
• Application: Full PTFE lining for strong acids/alkalis ($\text{HCl}$, $\text{H}_2\text{SO}_4$); Hastelloy or Titanium for offshore platforms and high-chloride environments. |
| Enclosure / Electronics Housing | • Cast Aluminum Alloy (Epoxy Coated)
• SS304 / SS316 Stainless Steel Enclosure
• Display: Optional Backlit Local LCD Display with optical buttons | [Customizable]
• Full stainless steel enclosure recommended for marine, food & beverage, or highly corrosive atmospheric conditions.
• Local LCD display allows on-site monitoring and field configuration. |
| Process Connection | • Threaded: $1/2″ \sim 2″\text{ NPT / BSPT / G}$ threads
• Flanged: DN25 $\sim$ DN150 (ANSI / DIN / JIS standards)
• Sanitary: Tri-Clamp quick-connect fittings | [Customizable]
• Flange size, pressure rating, and facing (RF/FF/RTJ) can be customized according to piping class specifications.
• Tri-clamp connection for hygienic food/pharmaceutical processes. |
| Operating Pressure | • Nominal Pressure: $\text{PN2.5} \sim \text{PN160}$ ($0.25 \sim 16\text{ MPa}$)
• High-Pressure Customization: Up to $\text{PN250}$ ($25\text{ MPa}$) | [Customizable]
• Heavy-wall probe tube and high-pressure forged flanges customized for LPG/LNG and high-pressure chemical reactors. |
| Operating Temperature | • Process Temperature: $-40\text{℃} \sim +85\text{℃}$ (Standard)
• High-Temperature Option: Up to $+150\text{℃} / +250\text{℃}$
• Ambient / Storage Temp: $-40\text{℃} \sim +85\text{℃}$ / $-40\text{℃} \sim +100\text{℃}$ | [Customizable]
• High-temperature models feature a cooling extension neck (radiator) or remote-mounted electronics to protect transmitter circuitry. |
| Output Signal & Protocol | • Analog Output: $4\sim20\text{ mA DC}$ (2-wire / 4-wire), $0\sim5\text{VDC}$, $0\sim10\text{VDC}$
• Digital Protocol: HART, Modbus RTU (RS485), Profibus-PA | [Customizable]
• Standard $4\sim20\text{ mA} + \text{HART}$ for DCS/PLC integration.
• Low-power Modbus RS485 or voltage outputs tailored for solar-powered remote telemetry units (RTU). |
| Power Supply & Load | • Operating Voltage: $24\text{ VDC}$ ($12\sim36\text{ VDC}$ wide voltage range)
• Load Resistance: $\le 500\ \Omega$ ($@ 24\text{ VDC}$) | [Customizable]
• Low power consumption design available for wireless or battery-powered remote installations. |
| Electrical Entry | • Thread Entry: $\text{M20}\times1.5$, $1/2″\text{ NPT}$, $3/4″\text{ NPT}$
• Connection Options: Direct cable gland, Aviation plug, Internal screw terminals | [Customizable]
• $1/2″\text{ NPT}$ preferred for North American markets; Aviation plug recommended for quick-disconnect OEM machinery. |
| Float Ball & Medium Density | • Float Outer Diameter: $\phi 24 \sim \phi 120\text{ mm}$
• Medium Density: Standard $\ge 0.5\text{ g/cm}^3$ (Special low-density float down to $0.35\text{ g/cm}^3$)
• Configuration: Single Float (Level) or Dual Floats (Level + Interface) | [Customizable]
• Float size and weight are engineer-calculated based on operating pressure and medium density.
• Application: Dual floats configured for oil-water separation tanks to measure total level and interface simultaneously. |
| Protection & Safety Approvals | • Ingress Protection: IP65 / IP67 / IP68 (Fully Submersible)
• Explosion-Proof Grade:
– Intrinsic Safety:
– Flameproof: | [Optional]
• ATEX, IECEx, and SIL2 certification documents supplied upon order requirement for hazardous chemical and oil & gas zones. |
Instrava helps you source instrumentation from China.
Buying industrial instruments from China for the first time?
Are you worried that the products won’t meet your exact specifications or that the quality might fall short?
Rest assured, you’re in safe hands. Whether you need a single sample or a full custom production run, we deliver products that strictly meet your requirements. Every item is sourced from trusted manufacturers with 10 to 30+ years of proven production experience.
Even if you’re dealing with complex or harsh application conditions, our engineering team is here to help you solve them. Furthermore, our products carry globally recognized certifications, including ATEX, IECEx, CE, ISO, RoHS, and SIL (contact us for specific requirements).
As a customer-centric supplier, Instrava puts your product needs first. Regardless of your order size, we are dedicated to helping you find the perfect match for your application.
Magnetostrictive Level Transmitter Product Matrix
A magnetostrictive level transmitter (or gauge) is an industrial instrument that utilizes the magnetostrictive effect to measure liquid levels with high precision.
Its core components include an electronics housing, a waveguide, and a float containing a built-in permanent magnet.
During operation, the electronics unit transmits a current pulse along the waveguide; this pulse interacts with the float’s magnetic field to generate a torsional stress wave. By precisely measuring the time interval between the pulse transmission and its return, the system calculates the float’s position, thereby determining the liquid level.
This instrument offers advantages such as high measurement accuracy and resolution, excellent reliability, non-contact measurement, and low maintenance requirements, while also being capable of simultaneously measuring liquid levels and interfaces (such as the oil-water interface).
| Product Category | Key Technical Features | Typical Applications | Target Client Profile | Key Competitive Advantages |
| 1. Standard Industrial Type | • Rigid metal probe (SS316L)
• Cast aluminum / SS explosion-proof housing
• Range: $0.5 \sim 6\text{ m}$
• Output: $4\sim20\text{mA} + \text{HART}$ | • Standard chemical & water treatment tanks
• Acid/alkali dosing tanks
• Ambient pressure horizontal/vertical vessels | • Distributors & Agents (Stocking)
• General Plant End-Users | High cost-performance, strong versatility, short lead time, and easy for standardized bulk inventory. |
| 2. Flexible Cable Type | • SS armored flexible cable (coilable)
• Bottom counterweight / fixing hook
• Range: $4 \sim 25\text{ m}$
• Signal: Modbus RS485 / HART | • Ultra-deep underground storage tanks
• Large oil storage tanks / tall silos
• Petrol station underground tanks (ATG) | • Oil & Gas Transport Companies
• Petrol Station System Integrators
• Municipal & Waterworks EPCs | Solves the high freight cost issue of shipping long rigid probes via air/sea freight while enabling high-precision deep level measurement. |
| 3. Corrosion-Proof & Sanitary Type | • Anti-Corrosion: Full PTFE/PFA lining, Hastelloy C-276, Titanium
• Sanitary: Polished finish (Ra $<0.4\ \mu\text{m}$), Tri-Clamp quick connection | • Concentrated $\text{H}_2\text{SO}_4$, $\text{HCl}$, and $\text{HF}$ storage tanks
• Fermentation tanks, dairy/pharma mixing vessels | • Fine Chemical & Fluorochemical Plants
• Food & Pharma Skid / Equipment OEMs | Handles aggressive acidic/alkaline media or complies with strict FDA / 3-A / EHEDG sanitary standards. |
| 4. Dual-Float Interface Type | • Dual floats with different densities on a single rod
• Simultaneous output of total level & interface
• Requires density difference $\ge 0.05\text{ g/cm}^3$ | • Oil-water separators / settling tanks
• Extraction towers
• Oily wastewater / crude oil tanks | • Upstream Oil & Gas / Refineries
• Oilfield Processing Skid OEMs | Replaces two instruments with a single transmitter, saving tank nozzle openings and installation costs. |
| 5. Bypass Level Gauge Mount Type | • Non-contact, non-intrusive design
• External strap-on probe with brackets
• Driven by the magnetic float of a bypass gauge | • High-pressure reactors
• Highly toxic / hazardous chemical tanks
• High-temperature boiler steam drums | • Bypass Magnetic Level Gauge OEMs
• Hazardous Process Chemical EPCs | Completely isolated from process media with zero risk of leakage, enabling continuous signal transmission for high-pressure/toxic tanks. |
Industry Applications of Magnetostrictive Level Transmitters
High-precision (±1mm), continuous liquid level and dual-float interface measurement engineered for demanding industrial environments and safety-critical process control.
Oil & Gas Upstream, Refining & Petrochemicals
In crude oil extraction platforms, refineries, and tank farms, Magnetostrictive Level Transmitters deliver high-accuracy (±1mm) measurement where custody transfer, inventory management, and process safety are critical.
By deploying dual-float configurations, a single transmitter simultaneously measures total oil level and oil-water interface in separators, flash drums, and settling tanks. Flexible cable options allow seamless measurement in deep vertical oil tanks up to 25 meters.
Chemical Processing & Corrosive Media
Chemical processing units frequently handle highly reactive and hazardous media such as concentrated sulfuric acid (H₂SO₄), hydrochloric acid (HCl), caustic soda, and volatile solvents.
Magnetostrictive transmitters engineered with full PTFE/PFA linings, Hastelloy C-276, or Titanium probes isolate internal electronics completely from corrosive fumes. The non-contact wave-guide technology eliminates drift, providing maintenance-free continuous output.
Power Generation & High-Pressure Steam Drums
Thermal power plants, combined-cycle power units, and utility boilers require robust level control across high-pressure steam boilers, feed-water heaters, deaerators, and turbine lube oil reservoirs.
Equipped with high-temperature piezo-ceramic sensors and high Curie-point magnetic alloys, magnetostrictive transmitters operate continuously at temperatures up to 420°C and pressures exceeding 16 MPa, unaffected by dense steam phase dielectric fluctuations.
LPG, LNG & Cryogenic Gas Terminals
Pressurized, liquefied gases such as LPG, LNG, liquid ammonia, and underground fuel storage demand hermetically sealed sensors that can handle rapid thermal expansion and sub-zero temperatures.
Equipped with low-density floats customized down to 0.45 g/cm³ and thermal vacuum jackets, magnetostrictive transmitters deliver reliable, high-precision inventory tracking for spherical tanks and ATG (Automatic Tank Gauge) petrol station networks.
Water & Wastewater Treatment
In municipal water plants, industrial effluent systems, and seawater reverse osmosis (SWRO) desalination facilities, magnetostrictive transmitters measure chemical dosing tanks, sludge pits, and neutralizers.
Offering superior stability over ultrasonic or radar meters when surface turbulence, heavy foam, or vapor steam is present, they provide absolute level tracking without requiring periodic field recalibration.
Pharmaceuticals & Food Processing
Hygienic manufacturing environments require strict adherence to sanitary standards for purified water (PW), water for injection (WFI), fermentation vessels, and food syrup storage tanks.
Sanitary magnetostrictive transmitters feature electro-polished 316L probes (Ra < 0.4μm), dead-leg-free internal construction, and Tri-Clamp sanitary connections, fully supporting Clean-In-Place (CIP) and Sterilization-In-Place (SIP) routines.
Metallurgy & Heavy Industrial Automation
Steel mills, aluminum smelting plants, and heavy machinery workshops rely on magnetostrictive sensors not only for liquid level tracking in hydraulic power stations and lube oil reservoirs, but also for linear position feedback.
Built with extreme vibration resistance and heavy-duty armor, these transmitters endure mechanical shocks, high ambient heat, and electromagnetic interference (EMI) typical of heavy metallurgical operations.
Skid-Mounted Equipment & OEM Integration
OEM manufacturers of chemical dosing skids, oil-gas separator packages, boiler feed skids, and magnetic level gauge (MLG) bypass chambers require compact, highly reliable transmitters with non-intrusive mounting capability.
Magnetostrictive transmitters can be strapped directly onto the outside of bypass magnetic gauges. This provides zero-contact, 100% leak-proof continuous 4-20mA HART remote signal transmission without creating additional process nozzles.
Magnetostrictive Level Transmitter Interactive Ordering Matrix
High-precision (±1mm) continuous level & interface measurement for Oil & Gas, Refineries, Chemical Storage, Pharmaceutical, and Food & Beverage applications.
Metric standard thread
Metric process thread
Heavy-duty thread
Standard NPT/BSPP thread
Large NPT process thread
1.5" / 2" Food & Pharma Clamp
DN25-DN150 / ASME 150#-600#
Special thread or flange adaptors
2.5 bar
6 bar
10 bar
16 bar
25 bar
40 bar (Flange ≥DN125)
63 bar (Flange ≥DN125)
100 bar (Flange ≥DN125)
160 bar (Flange ≥DN125)
Standard stainless steel
Low-carbon acid resistant
Severe chemical anti-corrosion
High chloride / Strong acid
Seawater / Chlorine process
Special alloy coating
Standard oil/water applications
Corrosive & hygienic media
Acid & alkali chemical storage
Ultra-light low density / High pressure
Custom dimension / High temp float
Standard stainless steel rigid tube
Anti-corrosive rigid design
Deep underground tanks / High vessels
• Interface Level Measurement: Fill in both densities separated by slash (e.g., 0.75/1.05, Min Δρ ≥ 0.05 g/cm³)
Low temperature liquid storage
Normal ambient process temp
Medium temperature hot oil/water
With electronics cooling extension
High heat reactor & boiler feed
Standard 2-wire loop output
Digital HART overlay protocol
Voltage signal output
Direct multi-drop SCADA bus
Fieldbus digital automation
4mA / Zero near rod end (Bottom up)
4mA / Zero near electronic head (Top down)
Measures total liquid level
Simultaneous level & interface measurement
Safe area non-hazardous zone
Intrinsically safe hazardous approval
Flameproof / Explosion-proof enclosure
Standard epoxy-coated housing
Separate terminal & electronics room
Offshore marine & heavy corrosive environment
Request Official B2B Engineering Quotation
Selecting items in the spec matrix above will auto-generate your detailed engineering payload below.
FAQ For Purchasing Magnetostrictive Level Transmitter
What is the process for purchasing magnetostrictive level transmitter from Instrava supplier ?
1. Inquiry (We will respond to your inquiry within 24 hours to confirm specifications and initiate the process.)
2. Quotation (Quotation timelines vary based on the project type and your specific requirements. Standard stock items are quoted within one day, while special orders require three days or a mutually agreed-upon timeframe.)
3. Product Selection (We will present 3–5 product options and pricing for your approval. During this stage, we verify the manufacturer’s production capabilities and relevant national certifications.)
4. Contract, Prepayment, and Production (A 40% prepayment is required to initiate production at a qualified facility. For stock items, we promptly arrange for product testing and packaging.)
5. Interim Payment (Upon successful completion of production and quality inspection, the next 50% of the total amount is due. For stock items, this payment is made after packaging is complete.If the transaction amount does not exceed $50,000, the remaining 60% is paid.)
6. Shipment (You may designate a freight forwarder, or we can arrange shipping for you.)
7. Receipt of Goods (Our Quality Guarantee: When your cumulative order value reaches $50,000, you pay the remaining 10% only after receiving and verifying the product quality. We let our quality do the talking.)
8. After-Sales Service (We actively address and resolve issues through both online and offline channels. We place great importance on after-sales support, as it reflects our responsibility and reputation—the foundation of Instrava’s long-term growth.)
What are the advantages of buying products from Instrava ?
Buying from Instrava gives you the best of both worlds—the direct-from-source pricing of a factory, combined with the professional service, product range, and risk mitigation of an elite sourcing partner. Here is how we deliver value to your business:
Unbiased Market Curation (More Choices & Better Prices): Unlike single factories that only praise their own capacity, or traditional trading companies restricted by personal connection networks, we evaluate the entire Chinese manufacturing landscape. We benchmark and source from multiple verified factories to secure the most competitive pricing and the exact product specifications you need.
100% Transparency (Your “Brain” in China): We never hide behind the veil of being a “fake manufacturer.” We act as your transparent, in-country purchasing department. You always know exactly who is producing your goods, how much they cost, and what the real lead times are.
Uncompromised Quality & Risk Mitigation: Our business is built on long-term partnerships, not one-off high-profit transactions. We perform strict, independent quality control from your perspective before shipment, protecting you from post-purchase defects and communication breakdowns.
Streamlined Communication & Service: No more dealing with slow, production-centric factory service. We provide a single, highly responsive point of contact that manages the entire supply chain—from negotiation and quality checks to shipping logistics—saving you time and reducing headaches.
What types of industrial automation instruments products can you purchase from Instrava?
Level gauge, flowmeter, transmitter, level switch, Gas Alarm Controllers etc.
How to ensure the reliability of the purchased products?
Our customer-centric philosophy prioritizes their procurement needs.
1. Initially confirm the manufacturer based on product pricing and the strength and qualifications of the production factory.
2. Verify the manufacturer’s production environment through video and on-site inspections to check the compliance of the entire product manufacturing process.
3. Ensure post-production product testing and retain data and video evidence from the verification process(testing and verification methods vary depending on the product).
How does Instrava ensure product protection and physical safety during cross-border shipping?
Firstly, we confirm the packaged products with the factory (different products require different packaging and shipping methods. Heavy equipment and bulk shipments are securely secured within sea freight containers using custom-designed engineering steel frames, heavy-duty multi-layer wooden crates, and industrial-grade vacuum rust-proof bags. Precision instruments are protected against impacts and maintained in a stable position; the factory has extensive experience in this area. Custom labels are affixed to the outer packaging).
Secondly, we maintain communication with the freight company to confirm the condition of the goods and advise them to handle the loading and unloading processes with care.
What warranty policies and after-sales technical support does Instrava offer to international customers?
1. Instrava offers a comprehensive 12 to 24-month warranty (specific warranty period depends on the product line), covering all manufacturing and component defects.
2. When online technical support is needed, customers can connect with factory engineers online. Real-time guidance is provided for installation, on-site calibration (for instruments), and commissioning. When on-site engineer support is needed, we will arrange for an engineer to visit the site.
3. In the event of component issues, we will ship replacement parts via international express delivery (DHL/FedEx) to minimize your project downtime.
4. Whether a product requires replacement or repair will be clearly stated in the purchase contract.
Why Trust Instrava?
We select manufacturers from a neutral, impartial standpoint, always with your best interests in mind.
Our very existence depends on helping you source the products that are the perfect fit for your needs.
Based in China, we are able to conduct on-site inspections of production environments and product quality firsthand.
We help you avoid intermediaries posing as factories.
We facilitate smoother after-sales support, eliminating time zone issues and the delays often associated with dealing directly with factories.
Our multilingual team ensures effective communication.
For a trading startup, every interaction with a client is a precious opportunity—a sign that you are willing to place your trust in us and give us the chance to prove ourselves.
In the digital age, while information is easily accessible, misconceptions often cloud the trust between people.
Instrava relies entirely on trust; it is our core philosophy and the foundation of our existence in society. It is the fundamental basis for our long-term growth and our commitment to serving the community.
Please place your trust in us.
