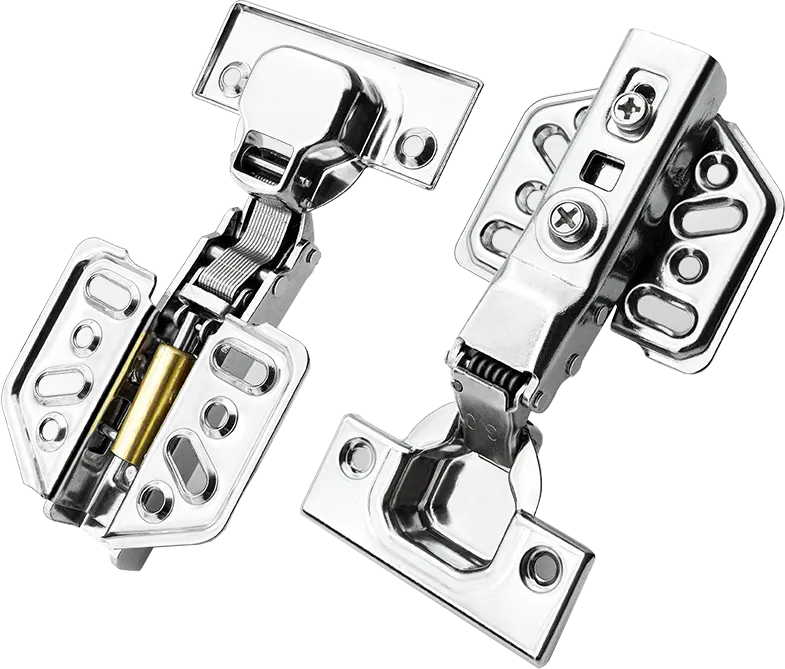

Wholesale Cabinet Hinges
Custom OEM/ODM Solutions & Bulk Wholesale Supply for Global Brands.

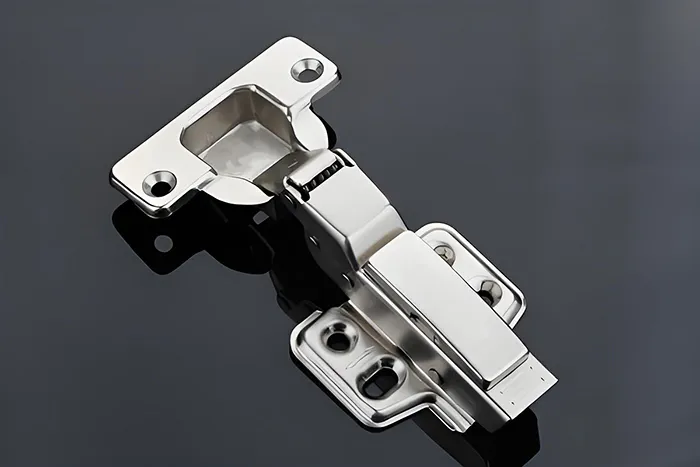

Engineered for 100,000+ open-close cycles
What is the relationship between cabinet hinges 100,000-cycle opening and closing test and furniture use?As indispensable hardware connectors for cabinet doors, hinges directly determine product longevity and operational smoothness. Testing for opening and closing durability is not only critical for verifying product life and user experience, but it also provides manufacturers with a reliable path to identify design flaws, test material rigidity, and optimize hydraulic mechanisms—ultimately building a stronger competitive edge.. We supply soft-close, 3D adjustable, and specialized frame/frameless cabinet hinges with competitive factory-direct pricing.
- Are you overwhelmed by too many conflicting quotes for cabinet hinges?
- Are you worried about suppliers’ real production quality because tight project deadlines leave you no time to audit factory lines, test plating salt-spray resistance, or verify cycle life?
- Are you wasting time sorting through endless vendor claims where every factory promises “premium quality,” only to stall your sourcing timeline?
Instrava is here to simplify your cabinet hardware hinges sourcing from China.
Whether you are procuring concealed soft-close hinges for high-end kitchen cabinetry, heavy-duty hardware for commercial installations, or seeking custom OEM/ODM solutions for your distribution network—you know your project’s application, finish, and structural specs best; we know Chinese hinge manufacturing, quality control, and cost structures best.
Let’s collaborate for mutual success. Powered by our curated supplier network and customer-centric service, Instrava is your trusted procurement partner in China.

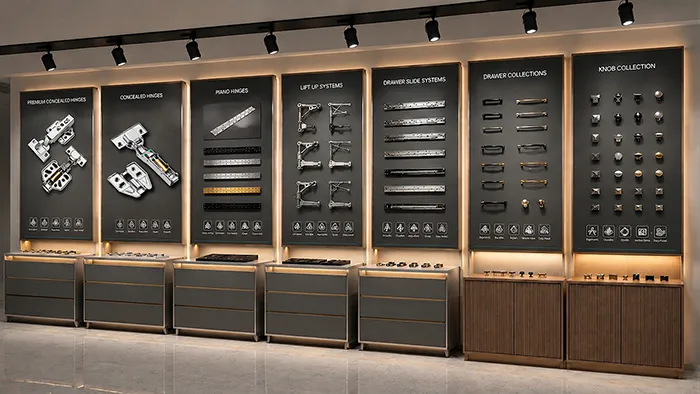

(view analysis of the furniture hardware-cabinet hinges market in china)

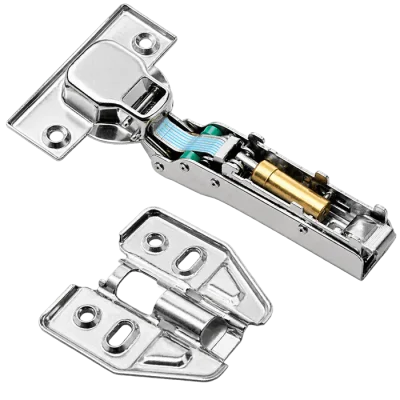

Material Of The Hinge Is Crucial

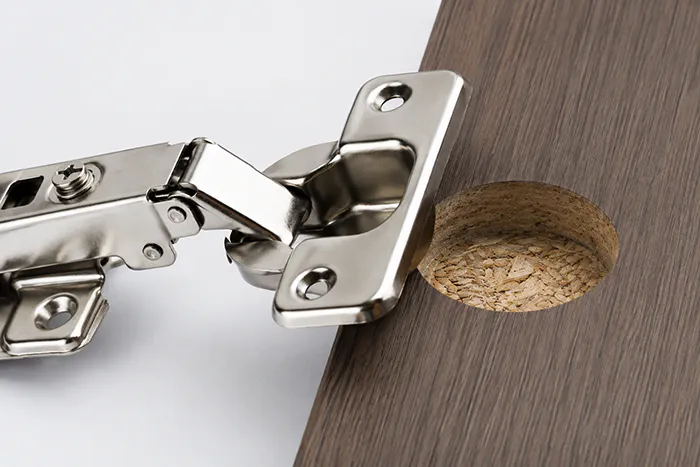

Main function of hinge cupPhysical Anchoring and Load Bearing: By embedding a circular cup groove deep into the door panel, the weight and tensile force on the door panel are distributed internally to the wood, preventing the hinge from being directly pulled off.Concealment and Flatness: The hinge’s spring and linkage mechanism are recessed into the door panel, making the hinge invisible when the cabinet door is closed (concealed installation).
Transmission and Rotation Axis: The hinge cup connects to the hinge arm, which is the fulcrum for the door panel’s rotation.
Standard Door Panels (18mm – 20mm): Select a standard 35mm cup diameter + 11.5mm cup depth.
Thin Door Panels (14mm – 16mm): Select a 35mm shallow cup (8.5mm deep) or a 26mm mini cup to prevent drilling through the decorative panel.
Thick door panels (≥25mm): Select 40mm large cup or special 3D thick door hinges to ensure that the opening and closing angle does not get stuck on the edge., Hinge Arm

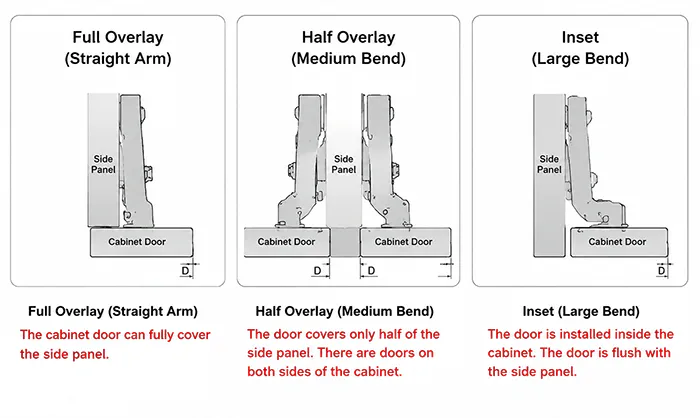

How to Choose Between Full Overlay, Half Overlay, and Inset Hinges for Cabinet Doors?Hinges are categorized into Full Overlay (Straight Arm), Half Overlay (Crank/Bend Arm), and Inset (Large Bend Arm) to match different coverage relationships between the door panel and the side panel (Full Overlay / Half Overlay / Inset), ensuring accurate door closing positions and preventing operational interference., Mounting Plate (Base)

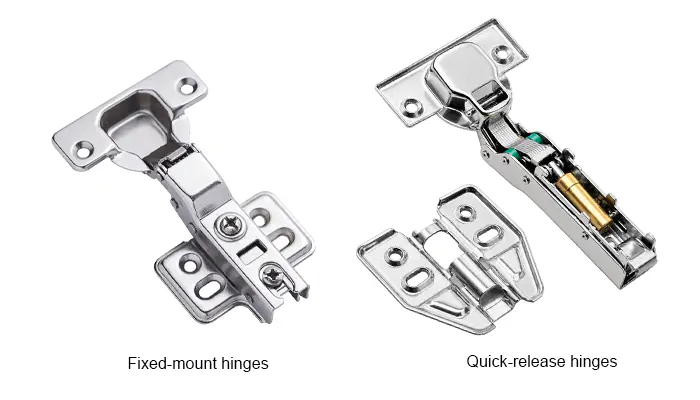

Difference between the two hinge basesFixed-mount hinges:These secure the cabinet door directly to the cabinet body using screws; removing the door requires unscrewing them. They are generally used for installations where the door does not need to be frequently removed—such as in standard kitchen cabinetry—and offer a cost-effective solution.
Quick-release hinges:
These use a spring-loaded mechanism to secure the door to the cabinet body. The door can be detached with a simple press, making removal convenient and simplifying daily cleaning., Hydraulic Damping System
Hydraulic Damping System of Cabinet HingesThe Hydraulic Damping System of a hinge is primarily responsible for achieving the self-closing (Soft-Closing) effect, delivering “silent deceleration, impact prevention, and anti-pinch safety.” (Hydraulic Cylinder, Spring Leaf, Connecting Links), and Adjustment Screws
Three-Dimensional Fine-Tuning Operation Method Of HingeVertical adjustment (up/down): Corrects uneven door heights or sagging, ensuring the tops and bottoms of multiple doors align.Horizontal adjustment (left/right): Adjusts the lateral gap between the door and the frame or adjacent doors, ensuring uniform spacing.
Depth adjustment (in/out): Controls the distance between the door and the cabinet body, preventing the door from protruding or being recessed too deeply, and ensuring it closes flush..
What deceptive practices regarding materials are found in cabinet door hinges?Numerous covert practices involving material substitution and cost-cutting have emerged in the production of cabinet hinges, all aimed at boosting profits. For suppliers, this is self-destructive behavior; for factories, it damages their reputation—the losses far outweigh the gains., pairing a stainless steel cup with a nickel-plated cold-rolled steel arm while claiming the product is fully stainless steel. We strictly eliminate these practices.
Instrava GoalThe goal is to evolve from a Chinese supplier to an international supplier.The first step is to establish a Chinese product supplier system, perfecting the entire supplier process (factory selection, high-quality product delivery, and gaining customer trust).
The second step is to establish an international supplier system, expanding product supply to factories in more countries.
The third step is to establish our own factories in multiple countries to ensure product quality and target the global market.. Your trust in our quality is the foundation of our long-term partnership.
| Structural Component | Function | Material Options & Characteristics |
| Hinge Cup | Embedded into the door cutout (typically $35\text{mm}$), securing the door panel and transferring weight and movement forces to the hinge body. | Cold-Rolled Steel: High strength, cost-effective, with good anti-rust performance after electroplating. 304 Stainless Steel: Superior corrosion resistance, ideal for humid or high salt-spray environments. Zinc Alloy: Die-cast construction, refined finish, rust-proof, but higher cost. |
| Hinge Arm | Connects the cup to the base plate, determines door coverage (full overlay/half overlay/inset) via its bend angle, and houses adjustment screws. | Thickened Cold-Rolled Steel: Most popular choice, high load capacity, stamped construction. 304 Stainless Steel: Best for high anti-corrosion requirements. Zinc Alloy: Used in high-end joints/housings for enhanced stability and premium feel. |
| Mounting Plate (Base) | Fixed to the cabinet side wall, bears the door’s total weight, and supports quick-release mechanisms and vertical adjustments. | Cold-Rolled Steel: Simple structure, budget-friendly, common in standard fixed bases. Zinc Alloy: Preferred for 3D adjustable or clip-on bases, high thread precision, resistant to stripping. 304 Stainless Steel: Matches stainless steel main bodies for full system rust resistance. |
| Damper (Hydraulic Cylinder) | Provides hydraulic cushioning during closure to achieve quiet, gentle soft-closing (Soft-Close). | Brass / Stainless Steel / Nylon Casing + High-Temp Hydraulic Oil: Brass and stainless steel ensure tight sealing and corrosion resistance; high-quality oil prevents leaks. |
| Spring Leaf | Supplies self-closing tension, ensuring the door pulls firmly shut when nearing closure and preventing it from staying partially open. | High-Strength Spring Steel: High elasticity and fatigue resistance, built to withstand tens of thousands of tension cycles. |
| Connecting Links | Forms the multi-linkage system (e.g., 4-bar or 6-bar linkage) that dictates the swing trajectory and opening angle. | High-Tensile Carbon Steel / Stainless Steel: High hardness and tensile strength, combined with sturdy rivets to prevent door sagging or loosening over time. |
| Adjustment Screws | Used to fine-tune the door panel depth, side-to-side alignment, and height to correct cabinet installation errors and align gaps. | Hardened Carbon Steel / Stainless Steel: Heat-treated for superior hardness, preventing screw heads or threads from stripping during repeated screwdriver adjustment. |
Functions
Hinges are essential furniture hardware that enable smooth, quiet, and effortless operation for furniture and cabinet doors.

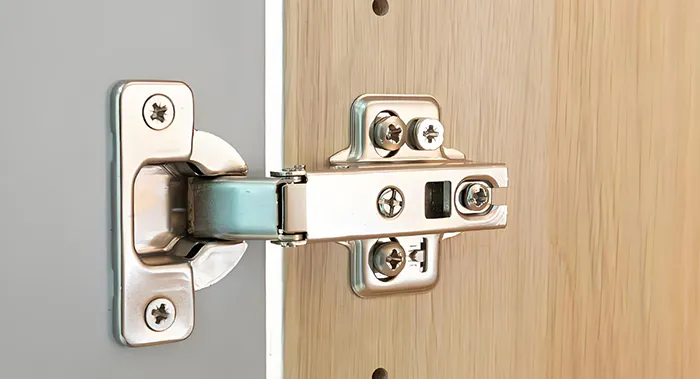

To ensure convenient access to cabinets and wardrobes while preventing doors from bumping into adjacent walls or neighboring cabinets, common opening angles include $95^\circ$, $100^\circ$, $105^\circ$, and $110^\circ$.
When complete, unobstructed access is required, wide-angle opening hinges are used, with typical angles including $155^\circ$, $165^\circ$, $170^\circ$, and $175^\circ$.
For applications with custom angle restrictions, please contact us for tailored solutions.
Beyond functionality, hinges must also deliver sleek aesthetics and hassle-free installation and maintenance. To support diverse furniture designs, we offer concealed architectures and quick-release (clip-on) base plates.
We supply hardware hinges suited for every application scenario.
Cabinet Hinge Technical Specification Matrix
Configure your hinge technical parameters below to generate a real-time ordering model code and request a custom wholesale quotation.
You can select the parameter button or enter information directly into the text boxes in the table at the bottom.
FAQ For Purchasing Cabinet Floor Hinges
What is the process for purchasing furniture hardware hinges from Instrava supplier ?
1. Inquiry (We will respond to your inquiry within 24 hours to confirm specifications and initiate the process.)
2. Quotation (Quotation timelines vary based on the project type and your specific requirements. Standard stock items are quoted within one day, while special orders require three days or a mutually agreed-upon timeframe.)
3. Product Selection (We will present 3–5 product options and pricing for your approval. During this stage, we verify the manufacturer’s production capabilities and relevant national certifications.)
4. Contract, Prepayment, and Production (A 40% prepayment is required to initiate production at a qualified facility. For stock items, we promptly arrange for product testing and packaging.)
5. Interim Payment (Upon successful completion of production and quality inspection, the next 50% of the total amount is due. For stock items, this payment is made after packaging is complete.If the transaction amount does not exceed $50,000, the remaining 60% is paid.)
6. Shipment (You may designate a freight forwarder, or we can arrange shipping for you.)
7. Receipt of Goods (Our Quality Guarantee: When your cumulative order value reaches $50,000, you pay the remaining 10% only after receiving and verifying the product quality. We let our quality do the talking.)
8. After-Sales Service (We actively address and resolve issues through both online and offline channels. We place great importance on after-sales support, as it reflects our responsibility and reputation—the foundation of Instrava’s long-term growth.)
What are the advantages of buying products from Instrava ?
Buying from Instrava gives you the best of both worlds—the direct-from-source pricing of a factory, combined with the professional service, product range, and risk mitigation of an elite sourcing partner. Here is how we deliver value to your business:
Unbiased Market Curation (More Choices & Better Prices): Unlike single factories that only praise their own capacity, or traditional trading companies restricted by personal connection networks, we evaluate the entire Chinese manufacturing landscape. We benchmark and source from multiple verified factories to secure the most competitive pricing and the exact product specifications you need.
100% Transparency (Your “Brain” in China): We never hide behind the veil of being a “fake manufacturer.” We act as your transparent, in-country purchasing department. You always know exactly who is producing your goods, how much they cost, and what the real lead times are.
Uncompromised Quality & Risk Mitigation: Our business is built on long-term partnerships, not one-off high-profit transactions. We perform strict, independent quality control from your perspective before shipment, protecting you from post-purchase defects and communication breakdowns.
Streamlined Communication & Service: No more dealing with slow, production-centric factory service. We provide a single, highly responsive point of contact that manages the entire supply chain—from negotiation and quality checks to shipping logistics—saving you time and reducing headaches.
What types of industrial automation instruments products can you purchase from Instrava?
Level Gauges, Flowmeters, Transmitters, Level Switches, Edge Gateways, APL Switches, Liquid Analytical Instruments, Optical Analytical Instruments, Gas Detectors, Energy Monitoring & Control Systems, Power Transformers, Cold Heading Machine, New Energy-Energy Storage, Hybrid Inverters, Inverter Generator, Industrial Machinery, furniture hardware(cabinet hinges) etc.
How to ensure the reliability of the purchased products?
Our customer-centric philosophy prioritizes their procurement needs.
1. Initially confirm the manufacturer based on product pricing and the strength and qualifications of the production factory.
2. Verify the manufacturer’s production environment through video and on-site inspections to check the compliance of the entire product manufacturing process.
3. Ensure post-production product testing and retain data and video evidence from the verification process(testing and verification methods vary depending on the product).
How does Instrava ensure product protection and physical safety during cross-border shipping?
Firstly, we confirm the packaged products with the factory (different products require different packaging and shipping methods. Heavy equipment and bulk shipments are securely secured within sea freight containers using custom-designed engineering steel frames, heavy-duty multi-layer wooden crates, and industrial-grade vacuum rust-proof bags. Precision instruments are protected against impacts and maintained in a stable position; the factory has extensive experience in this area. Custom labels are affixed to the outer packaging).
Secondly, we maintain communication with the freight company to confirm the condition of the goods and advise them to handle the loading and unloading processes with care.
What warranty policies and after-sales technical support does Instrava offer to international customers?
1. Instrava offers a comprehensive 12 to 24-month warranty (specific warranty period depends on the product line), covering all manufacturing and component defects.
2. When online technical support is needed, customers can connect with factory engineers online. Real-time guidance is provided for installation, on-site calibration (for instruments), and commissioning. When on-site engineer support is needed, we will arrange for an engineer to visit the site.
3. In the event of component issues, we will ship replacement parts via international express delivery (DHL/FedEx) to minimize your project downtime.
4. Whether a product requires replacement or repair will be clearly stated in the purchase contract.
Why Trust Instrava?
We select manufacturers from a neutral, impartial standpoint, always with your best interests in mind.
Our very existence depends on helping you source the products that are the perfect fit for your needs.
Based in China, we are able to conduct on-site inspections of production environments and product quality firsthand.
We help you avoid intermediaries posing as factories.
We facilitate smoother after-sales support, eliminating time zone issues and the delays often associated with dealing directly with factories.
Our multilingual team ensures effective communication.
For a trading startup, every interaction with a client is a precious opportunity—a sign that you are willing to place your trust in us and give us the chance to prove ourselves.
In the digital age, while information is easily accessible, misconceptions often cloud the trust between people.
Instrava relies entirely on trust; it is our core philosophy and the foundation of our existence in society. It is the fundamental basis for our long-term growth and our commitment to serving the community.
Please place your trust in us.
