Analisis Optik

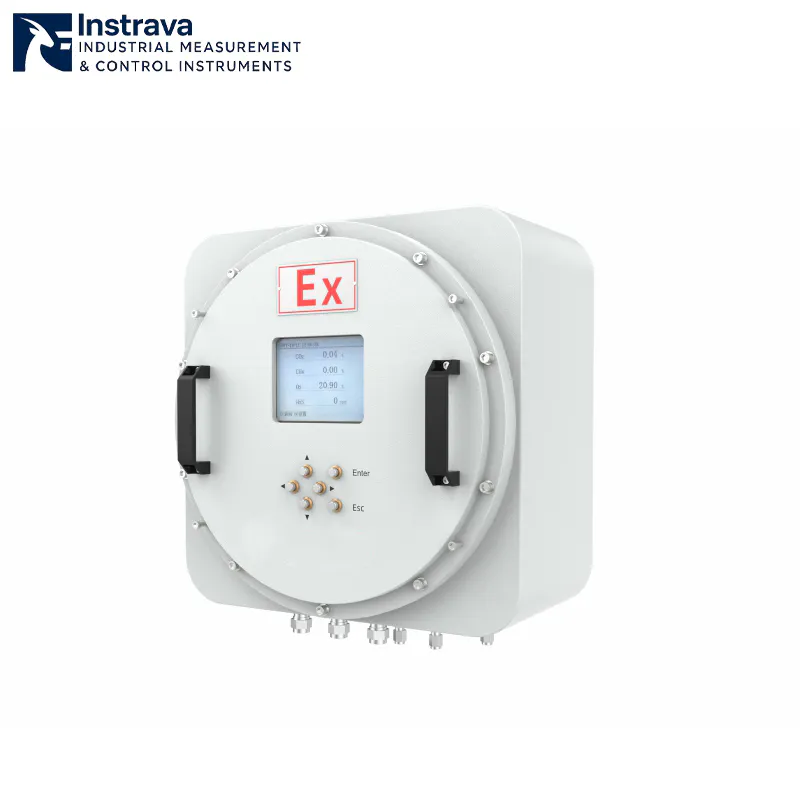

TDLAS Gas Analyzer - Deteksi Gas Laser Presisi Tinggi untuk Proses Industri Kritis
Next-Generation Gas Measurement — Zero Cross-Interference, Maximum Reliability
In complex industrial environments, accuracy and reliability are non-negotiable.
The Instrava Curated TDLAS Gas Analyzer leverages advanced Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology to deliver ultra-selective, high-sensitivity gas measurement—even in harsh process conditions.
Unlike traditional technologies, this analyzer provides:
- True cross-interference-free measurement
- Fast response with high stability
- Minimal calibration requirements
👉 Ideal for safety-critical, process control, and trace gas monitoring applications.
Deskripsi Analisis Optik
Multi-Gas Monitoring with Flexible Range — From ppm to 100%
Designed for industrial versatility, this analyzer supports wide-range gas measurement across multiple critical gases:
Measured Gases:
- O₂ (oxygen control & safety)
- CO / CO₂ (combustion & emissions)
- H₂S (toxic gas & corrosion monitoring)
- CH₄ (methane detection & energy processes)
- H₂O (moisture analysis in gas streams)
Keuntungan Utama:
- Measurement range from ppm level to 100% concentration
- High resolution down to 0.1 ppm
- Suitable for both trace gas detection and bulk gas analysis
💡 For B2B users:
- One analyzer replaces multiple instruments
- Dukungan process optimization + safety compliance simultaneously
Industrial-Grade Design — Built for Harsh & Hazardous Environments
Engineered specifically for demanding industries, this analyzer ensures long-term stable operation with minimal maintenance.
Rugged & Reliable:
- Explosion-proof design (Ex d IIC T6)
- No moving parts → low maintenance & long lifespan
- Built-in self-diagnosis system for real-time sensor monitoring
Smart Integration:
- Outputs: RS-485 / RS-232 / 4–20mA
- Kompatibel dengan DCS / PLC systems
- Built-in auto zeroing air pump for improved accuracy
Typical Applications:
- Petrochemical & refining processes
- Natural gas & LNG treatment
- Power plants & combustion optimization
- Biogas & landfill gas monitoring
- Industrial safety systems
👉 Designed to perform where traditional analyzers fail.
Parameter Analisis Optik
| Parameter | Spesifikasi |
|---|---|
| Teknologi Pengukuran | TDLAS (Spektroskopi Penyerapan Laser Dioda yang Dapat Ditala) |
| Gas Terukur | O₂, CO, CO₂, H₂S, CH₄, H₂O |
| Rentang Pengukuran | ppm hingga 100% (dapat disesuaikan) |
| Akurasi | ±0.5% ~ ±2% F.S. (depending on gas & range) |
| Resolusi | Up to 0.1 ppm / 0.01% |
| Pengulangan | ≤ ±1% |
| Waktu Tanggapan | T90 < 40 s |
| Laju Aliran | 0,7 - 1,2 L/menit |
| Tekanan Masuk | 2 - 50 kPa |
| Suhu Sekitar | 0 – 50°C |
| Kelembaban | 5 – 85% RH (non-condensing) |
| Sinyal Keluaran | RS485 / RS232 / 4–20mA |
| Catu Daya | AC 220V, 50Hz |
| Peringkat Tahan Ledakan | Ex d IIC T6 |
| Dimensi | 400 × 400 × 250 mm |
| Berat | 9 kg |
| Diagnostik | Built-in self-diagnosis + auto zeroing |
| Measured Gas | Rentang pengukuran | Akurasi | Resolusi |
| O2 | 0-500ppm | ±2%FS | 1ppm |
| 0-1000ppm | ±2%FS | ||
| 0-5000ppm | ±2%FS | ||
| 0-5% | ±2%FS | 0.01% | |
| 0-25% | ±1%FS | ||
| 0-100% | ±0.5%FS | ||
| CO | 0-500ppm | ±2%FS | 0.1ppm |
| 0-1000ppm | ±1%FS | ||
| 0-5% | ±2%FS | 0.01% | |
| 0-25% | ±1%FS | ||
| 0-100% | ±1%FS | ||
| CO2 | 0-1000ppm | ±2%FS | 0.1ppm |
| 0-5% | ±2%FS | 0.01% | |
| 0-25% | ±1%FS | ||
| 0-100% | ±1%FS | ||
| H2S | 0-1000ppm | ±2%FS | 0.1ppm |
| 0-1% | ±2%FS | 0.01% | |
| CH4 | 0-100ppm | ±2%FS | 0.1ppm |
| 0-1000ppm | ±1%FS | ||
| 0-5% | ±2%FS | 0.01% | |
| 0-25% | ±1%FS | ||
| 0-100% | ±1%FS | ||
| H2O | 0-50ppm | ±2%FS | 0.1ppm |
| 0-6000ppm |
Instrava OEM / ODM
Instrumen yang Dapat Diandalkan. Solusi yang Sesuai dengan Aplikasi Anda.
Instrava berfokus untuk memberikan solusi industri yang andal melalui produk yang dipilih dengan cermat, pengoptimalan berbasis aplikasi, dan penyesuaian yang fleksibel. Kami memilih instrumen yang telah terbukti dari produsen tepercaya untuk memastikan kualitas yang konsisten, mengoptimalkan solusi berdasarkan kondisi kerja nyata untuk memecahkan tantangan praktis, dan menyediakan konfigurasi yang disesuaikan untuk memenuhi kebutuhan aplikasi tertentu.
Dengan menggabungkan keahlian pemilihan dengan pemahaman aplikasi, Instrava membantu pelanggan mengurangi risiko, meningkatkan efisiensi, dan mencapai hasil yang dapat diandalkan dalam lingkungan industri yang kompleks.
Rekomendasi Produk Terkait
What is a TDLAS gas analyzer and how does it work?
A TDLAS gas analyzer uses spektroskopi penyerapan laser to measure gas concentration by detecting how specific wavelengths are absorbed by target gases. This provides high selectivity, fast response, and no cross-interference, making it ideal for industrial applications.
Why is TDLAS better than NDIR or electrochemical gas analyzers?
Compared to traditional technologies:
- No cross-interference from other gases
- Higher accuracy for trace gas detection (ppm level)
- No moving parts → lower maintenance
- Faster response and better long-term stability
This makes TDLAS ideal for critical process and safety monitoring.
What industries use TDLAS gas analyzers?
TDLAS analyzers are widely used in:
- Oil & gas processing
- Petrochemical plants
- Power generation
- LNG and natural gas pipelines
- Biogas and landfill monitoring
These industries require continuous, high-precision gas analysis in harsh environments.
Can a TDLAS analyzer measure both trace and high concentration gases?
Yes. Modern TDLAS analyzers support wide dynamic ranges, from ppm-level trace detection to 100% concentration, making them suitable for both emission monitoring and process control.
Does a TDLAS gas analyzer require frequent calibration?
No. Due to its optical measurement principle, TDLAS analyzers have:
- Minimal drift
- Kinerja jangka panjang yang stabil
- Frekuensi kalibrasi berkurang
This significantly lowers maintenance cost and downtime.
What gases can be measured with a TDLAS analyzer?
Typical measurable gases include:
- Oksigen (O₂)
- Karbon monoksida (CO)
- Carbon dioxide (CO₂)
- Hidrogen sulfida (H₂S)
- Metana (CH₄)
- Moisture (H₂O)
This makes it suitable for combustion control, gas purification, and safety monitoring.
