Do Wall Panels Need “Sunscreen” Too?

1. Core Chemical Modification: Addition of Light Stabilizer Combinations (Chemical Interception)

UV Absorbers (UVA):

• Representative compounds: Benzotriazoles and Benzophenones.
• Mechanism: UV-resistant additives incorporated into the raw materials absorb UV energy and convert it into harmless thermal energy. This prevents the breakdown of molecular chains, thereby delaying the aging process.

Hindered Amine Light Stabilizers (HALS):

• Mechanism: If a small amount of UV radiation bypasses UVA protection—causing polymer molecular chains to break and generate free radicals—HALS act as “free radical scavengers.” They rapidly capture these radicals, terminating the chain reaction of degradation. The synergistic use of UVAs and HALS is crucial for extending the weather resistance and lifespan of wall panels.

Get an instant quote for outdoor wall panels

2. Formulation Fillers and Pigment Masking (Physical Barriers)

• Titanium Dioxide ($\text{TiO}_2$): High-quality rutile-grade titanium dioxide serves not only as a premium white pigment but also as a potent UV scatterer and reflector, significantly reducing the depth of UV penetration.
• Carbon Black: For dark-colored or outdoor Wood-Plastic Composite (WPC) wall panels, carbon black is the most efficient and cost-effective UV absorber, capable of converting UV energy into heat.
• High-proportion Calcium Carbonate ($\text{CaCO}_3$) and inorganic stone powder: In products like PVC-based stone-plastic composite (SPC) panels or high-calcium bamboo-wood fiber boards, the inorganic mineral powder does not participate in photo-oxidation reactions; the high filler content effectively dilutes the proportion of organic resin that is susceptible to UV degradation.
• Use of weather-resistant resin binders: Selecting weather-resistant resins (such as acrylic or fluorocarbon resins) as the base material ensures inherent resistance to ultraviolet radiation.

3. Surface Protective Layer: Physical UV Isolation (Surface Barrier)

• Co-extruded protective layer: A dual-layer co-extrusion process is used to form a dense, modified polymer surface layer over the core in a single step; this layer is specifically formulated with UV-resistant additives to block UV radiation.
• UV coating/finish: The surface undergoes specialized treatments—such as the application of UV-curable fluorocarbon paint or UV-cured lacquer, or the lamination of specially treated PVC films or impregnated paper—to create a dense, scratch-resistant, water-resistant, and UV-resistant protective film.
• Functional top film: Some panels (such as FRP daylighting panels) feature a high-performance laminated top film designed specifically to provide UV and antistatic protection, preventing the underlying material from yellowing or aging.

Latest prices for outdoor wall panels

4. Treatment of Wood Fibers Against Lignin Degradation

• Fiber coupling and encapsulation: During production, silane coupling agents or compatibilizers are used to ensure the resin completely encapsulates the wood flour particles (achieving 100% encapsulation), thereby isolating the wood flour from direct contact with UV radiation and moisture.
• High-temperature heat-treated wood flour: Reduces the inherent photosensitivity of wood fibers through pre-treatment processes such as degreasing and delignification.

5. Practical Engineering Inspection Standards (Evaluating UV Resistance)

• QUV Accelerated UV Aging Test (ASTM G154 / ISO 4892-3): Uses fluorescent UV lamps (e.g., UVA-340nm) to conduct cyclic testing involving “UV exposure + condensation.” Typically, after 1,000–3,000 hours of testing, measurements are taken regarding surface color difference ($\Delta E \le 3$ or $\le 5$) and flexural strength retention.
• Xenon Arc Weathering Test (ISO 4892-2 / ASTM G155): Simulates full-spectrum sunlight (including ultraviolet, visible, and infrared light); this is currently the aging test method that most closely replicates real-world outdoor sunlight exposure.

Wholesale outdoor wall panels

6. Types of Outdoor UV-Resistant Wall Panels

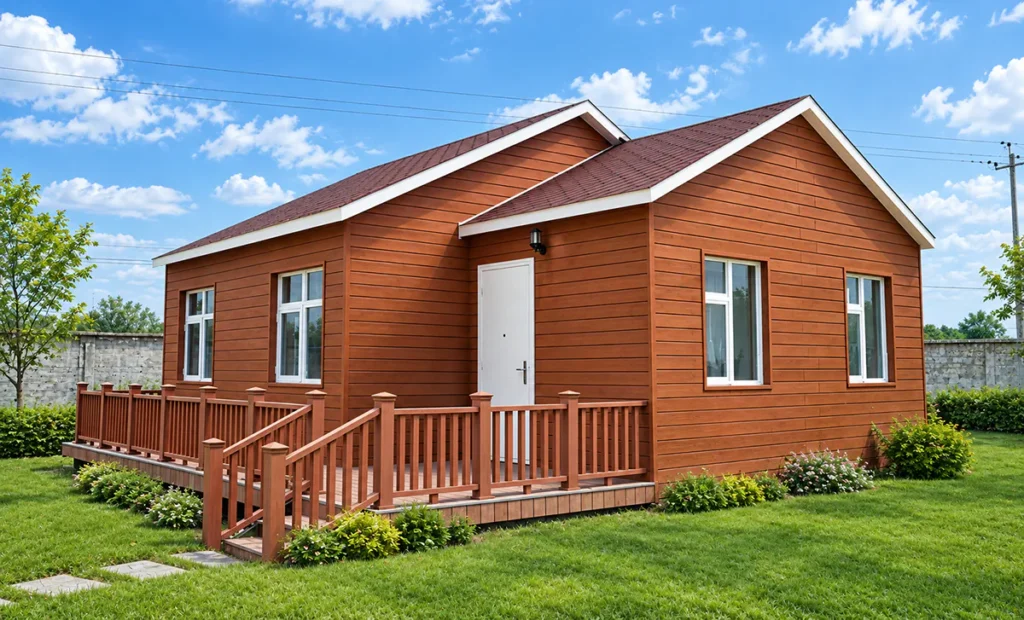

6.1. Outdoor Wood-Plastic Composite (WPC) Wall Cladding

• Material Composition: Wood flour/bamboo flour + PE (polyethylene) resin + calcium carbonate + UV absorbers/light stabilizers.
• Core Technology:
  • First-generation standard WPC: Uncapped (no protective shell layer); offers high cost-performance, though the surface wood flour carries a slight risk of fading after years of exposure to sunlight and rain.
  • Second-generation Co-extrusion WPC: Features a fully encapsulated (360°) protective layer of ASA or high-density modified PE, offering exceptional UV, scratch, and stain resistance.
• Applications: Exterior wall cladding, landscape walls, villa facades, and louvered walls for commercial districts.

6.2. Metal & Metal Composite Panels

• Main Types:
  • Aluminum Veneer / Fluorocarbon-Coated Aluminum Panels: Finished with a baked-on PVDF (fluorocarbon) coating; the high bond energy of the C-F (carbon-fluorine) bond ensures resistance to fading from intense UV exposure for 15–20 years.
  • Aluminum Honeycomb Panels: Lightweight yet high-strength with excellent flatness; commonly used for high-end architectural curtain walls.
  • Metal-Faced Insulated Panels: Feature an embossed Al-Zn alloy or aluminum sheet surface, a polyurethane insulation core, and an aluminum foil backing; combines decorative and thermal insulation functions.
• Applications: Office building facades, commercial complexes, airports and transport hubs, and exterior insulation renovation projects.

6.3. Fiber Cement & GRC Panels

• Material Composition: Cement, siliceous materials, plant fibers/glass fibers, and mineral fillers; cured via high-temperature, high-pressure steam.
• Key Advantages: Purely inorganic materials achieving the national A1 fire-safety rating (non-combustible); offers superior weather resistance, freeze-thaw durability, and an exceptionally long service life. Surfaces can be finished with an exposed concrete look, faux wood grain, or 3D relief textures.
• Applications: Public building facades, high-rise curtain walls, and facades featuring industrial or modernist styles.

6.4. Inorganic Board Cladding (Magnesium Oxide/Calcium Silicate Based)

• Material Composition: High-density magnesium oxide or calcium silicate substrate, surfaced with an outdoor-grade PVDF film or a weather-resistant thermal transfer coating.
• Key Advantages: Exceptional fire resistance (Class A), high hardness, resistance to mold and rot, and superior flatness; an excellent alternative to traditional dry-hung stone cladding.
• Applications: Exterior walls of hospitals, schools, and hotels; facades of public buildings with strict fire safety requirements (Class A fire rating).

6.5. Outdoor ASA/PVC Siding

• Material Composition: High-impact PVC substrate with a co-extruded ASA (Acrylonitrile Styrene Acrylate) weather-resistant surface layer.
• Key Advantages: Lightweight, rapid installation (interlocking structure), and cost-effective; the ASA layer provides outstanding weather and UV resistance, preventing embrittlement.
• Applications: Exterior walls of light-gauge steel villas, mobile cabins, vacation camps, and container housing facades.

6.6. Comparison of Outdoor Wall Panel Options

Outdoor wall cladding (Exterior Wall Cladding / Outdoor Wall Panels) is typically selected based on several factors, including material, weather resistance, fire performance, weight, installation method, cost, and architectural style. The following table summarizes some of the most common types available on the market.

Material-Based Classification
