DC System Insulation Monitor for Online Ground Fault Detection
Purchasing DC System Insulation Monitor safety devices is a crucial decision. Product quality and performance are paramount.
As a supplier, Instrava will help you select the most suitable product from your perspective.
In China’s vast market, we select suitable manufacturers to provide you with in-stock products or customized solutions to meet your project needs.
Our products are sold globally and comply with relevant national certification standards such as CE, IEC, EAC, UL, TUV, and EMC.
Quote delivery time depends on your product requirements. For in-stock products, we will provide a quote within 1-2 days. Special requirements will need to be discussed in detail before a quote is provided.
In-stock products will ship within 3-5 days. Customized products or large volume orders require separate negotiation.
Power Monitoring & Control Description

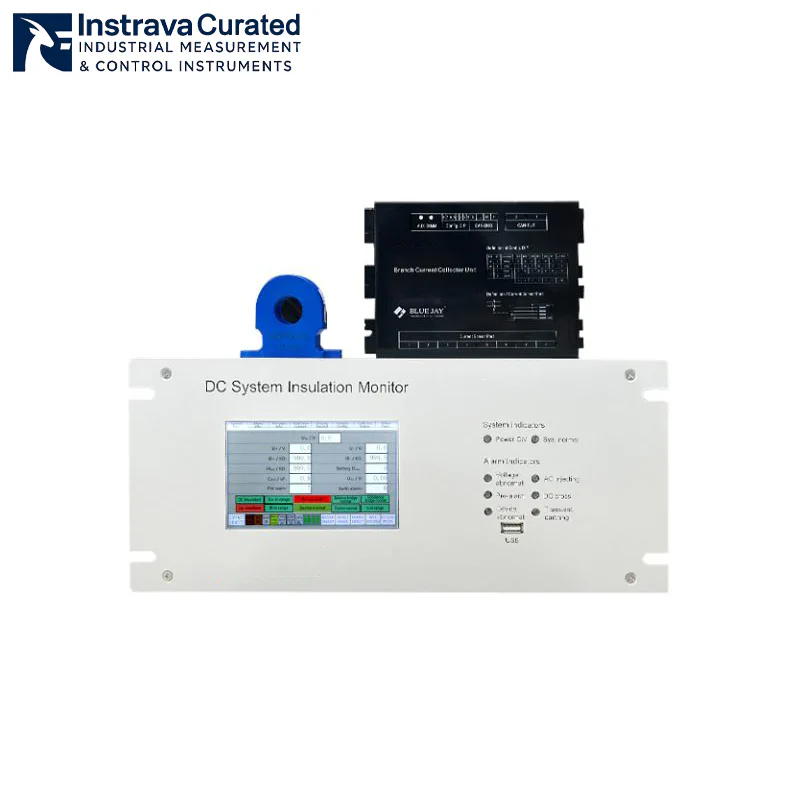

DC System Insulation Monitor is a comprehensive insulation monitoring device for the entire DC distribution network, DC bus system, or a complete energy storage/generation system.

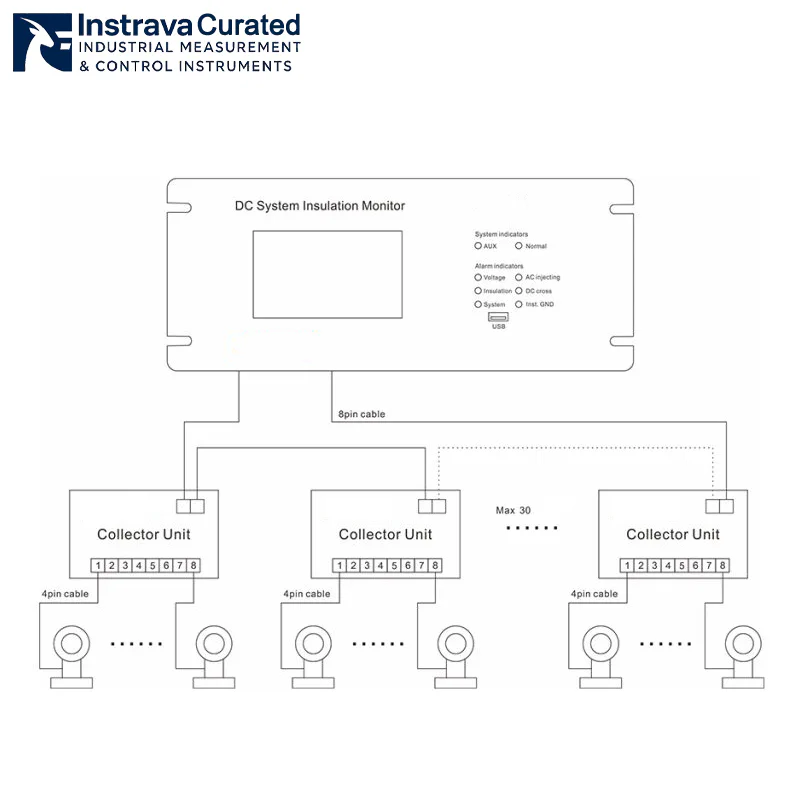

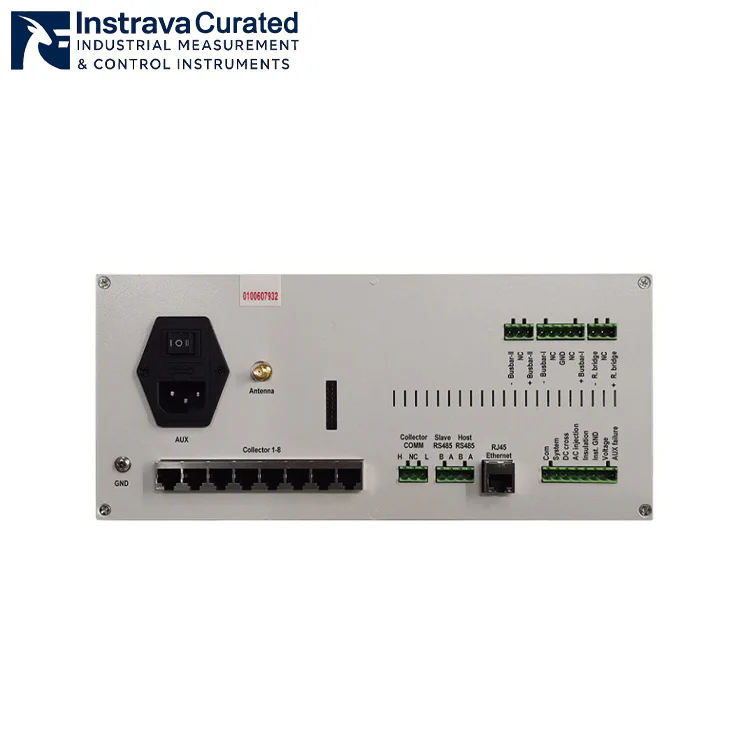

The online insulation monitoring system consists of three major components:
Main Controller (Host)
Current Collector Units
Dedicated DC Leakage Current Sensors
The host serves as the intelligent monitoring center, displaying system status, alarm information, and insulation parameters in real time. Current collectors provide scalable distributed acquisition architecture, while high-precision leakage current sensors continuously monitor each DC branch circuit independently.
This architecture enables highly accurate branch-level insulation fault localization while simplifying installation and communication wiring for large DC systems.
Core monitoring capabilities include:
Real-time DC insulation resistance monitoring
Branch leakage current monitoring and diagnosis
Positive and negative bus-to-ground voltage monitoring
AC/DC voltage abnormality detection
Instantaneous grounding waveform capture
Battery grounding fault positioning
Distributed capacitance detection
Voltage balancing compensation
Multi-loop fault location analysis
Communication status diagnostics
Alarm event recording and historical analysis
The system automatically stores grounding and leakage fault records in EEPROM memory with detailed timestamps, insulation resistance values, leakage voltages, and branch fault information, enabling comprehensive fault traceability and maintenance analysis.
With configurable instantaneous ground sampling frequencies up to 1KHz, operators can capture dynamic transient grounding events that are often missed by traditional insulation monitoring devices.
Smart Architecture for Energy Storage, Substations, and Digital DC Power Systems
As modern DC power systems become increasingly distributed and intelligent, advanced insulation monitoring plays a critical role in ensuring power continuity, electrical safety, and predictive maintenance capability.
This DC insulation monitoring system integrates high-performance industrial-grade hardware and intelligent software architecture to support demanding industrial environments.
Key intelligent system advantages include:
- 32-bit industrial control CPU architecture
- Multi-CPU parallel processing capability
- Independent 16-bit high-speed AD conversion per channel
- Conversion speed exceeding 1000 samples per second
- High-resolution leakage current monitoring down to 0.01mA
- Large-scale branch monitoring capability up to 240 loops
- RS485 and Ethernet communication support
- Remote monitoring and data upload functionality
- Smart alarm output and fault classification
- Humanized HMI and interface design
Typical applications include:
- DC power distribution systems
- Substation DC auxiliary systems
- Battery energy storage systems (BESS)
- Industrial automation systems
- Rail transit DC systems
- Renewable energy DC networks
- UPS and backup power systems
- Critical infrastructure monitoring
- Intelligent battery monitoring systems
For modern AI-driven energy infrastructure and digital substations, real-time insulation monitoring data provides valuable operational intelligence that supports predictive diagnostics, asset management optimization, and reduced maintenance risk.
