Differential Pressure Transmitter
The intelligent differential pressure transmitter adopts a high-precision capacitive sensor chip, using the most mature technology widely applied in international industrial markets. By integrating advanced production processes and modular design with all-patch-packaging components, this differential pressure transmitter achieves a compact, robust, and highly reliable structure.
Our intelligent differential pressure transmitters are available in three models: the normal analog model, the conventional smart model, and the standard smart model. The smart series differential pressure transmitters feature on-site adjustable settings via spot buttons, providing maximum flexibility for process monitoring. The devices are equipped with an LCD backlight, allowing easy reading even in low-light conditions. With a maximum measuring range ratio of 50:1, these differential pressure transmitters ensure accurate and stable measurement for liquids, gases, and steam in various industrial applications.
This diff pressure transmitter is ideal for process control, flow measurement, and pressure monitoring in chemical, petroleum, water treatment, HVAC, and power industries. The combination of intelligent technology and proven capacitive sensing makes it a reliable choice among differential pressure flow transmitters and other transmitter pressure differential devices.
Transmitters & Sensors Description
Differential Pressure Transmitter Features
-
High-Precision Measurement: The intelligent differential pressure transmitter delivers highly accurate and stable readings with a two-wire system, ensuring reliable performance for industrial process control. This makes it ideal for differential pressure measurement in liquids, gases, and steam.
-
Maintenance-Free Design: With no mechanical moving parts, the differential pressure transmitter offers low maintenance and long-term durability. The capacitive sensor technology enhances stability, making it one of the most trusted differential pressure transmitters in the market.
-
Compact and Lightweight: The transmitter pressure differential features a compact, lightweight design, making installation simple and suitable for limited-space applications. Its modular construction ensures easy integration into pipelines, tanks, and process systems.
-
Smart Operation: Available in normal analog, conventional smart, and standard smart models, the intelligent differential pressure transmitter allows on-site adjustments via spot buttons. The LCD backlight enables convenient reading in low-light conditions, increasing operational efficiency.
-
Wide Measuring Range and Flexibility: With a maximum measuring range ratio of 50:1, the differential pressure flow transmitter can handle a wide variety of process conditions, providing precise and reliable flow, level, or pressure monitoring.
-
Robust Industrial Design: Constructed with advanced modular components and all-patch-packaging technology, the differential pressure transmitters are durable, compact, and resistant to harsh industrial environments, ensuring consistent transmitter pressure differential performance over time.
Pressure Transmitters Applications
The intelligent differential pressure transmitter is widely used across multiple industrial sectors due to its high accuracy, reliability, and compact design. Key applications include:
-
Flow Measurement: Differential pressure flow transmitters are ideal for monitoring liquid, gas, and steam flow in pipelines, ensuring precise process control in chemical, petroleum, and water treatment plants.
-
Level Monitoring: Differential pressure transmitters provide accurate liquid level measurement in pressurized tanks, vessels, and reservoirs, making them suitable for storage, processing, and chemical reaction monitoring.
-
Pressure Control: The transmitter pressure differential is used for continuous pressure monitoring in HVAC systems, boilers, and steam systems, helping maintain safe and efficient operations.
-
Industrial Process Automation: Intelligent differential pressure transmitters integrate seamlessly with control systems, enabling real-time monitoring, HART/Modbus communication, and process optimization in automated production lines.
-
Harsh Environment Applications: Designed with robust materials and modular construction, differential pressure transmitters can withstand corrosive, high-temperature, and high-pressure environments, making them suitable for petrochemical, power generation, and heavy industrial plants.
-
Energy Management and Efficiency: Differential pressure flow transmitters help monitor energy consumption in pipelines and fluid systems, supporting efficiency optimization and cost reduction initiatives.
Transmitters & Sensors Parameter
| Measuring Range | 50Pa-10MPa |
| Accuracy | 1. Digital Signal: ± 0.05; |
| 2. Analog signal: ± 0.075, ± 0.2, ± 0.5 | |
| 3. Micro range (≤ 1.5kPa): ± 0.2 | |
| Output Signal | 4-20mADC |
| Load Resistance | 0-600Ω (24VDC power) |
| Transmitting | > 1000m |
| Stability | ± 0.2% FS / Year ( t = 28 °C, the maximum static pressure 6.9 MPa, range 1:1 condition) |
| Power Influence | <0.005% / V |
| Power Supply | 12-45VDC |
| Operating Temperature | -20-85 °C |
| Environment Temperature | -40 – +50 °C |
| Relative Humidity | 0-100% |
| Cable Perforation Lines | M20 × 1.5M or NPT1 / 2 ” |
| Sensor Fill Fluid: | Silicone oil, fluorine oil |
| Protection Class | IP67 |
| Explosion-proof Grade | 1. Intrinsically safe (i) Exia ii CT6 Ga |
| 2. Flameproof (d) Exd ii CT6 Gb |
Instrava OEM/ODM
Tailored Sourcing & Customization: Getting You the Exact Product You Need
As your trusted supplier and sourcing partner, we bridge the gap between your custom requirements and China’s vast manufacturing capabilities.
Finding the right product in a massive supply chain can be challenging. That is where we step in.
As a curated industrial supplier, our core value is simple: we stand in your shoes to help you procure the most optimal products. Whether you are an EPC contractor needing specialized technical compliance, an OEM equipment manufacturer looking for custom branding, or an industrial distributor/trader seeking competitive edge, we customize and tailor products to fit your exact procurement needs.
How We Customize to Fit Your Procurement Needs
For EPC Contractors & Engineers: We custom-configure instruments and devices to match your precise datasheets—tailoring process connections, exotic materials, signal protocols, and managing third-party calibration and testing so you get project-ready solutions.
For OEM Equipment Manufacturers: We provide comprehensive OEM/ODM customization, including custom housing, labeling, branding (private labeling), and tailored technical specifications to seamlessly integrate with your machinery.
For Industrial Distributors & Traders: We offer flexible customization in packaging, product ranges, and technical parameters, helping you differentiate your portfolio and win more local bids.
Why Partner with Us for Custom Sourcing?
One-Stop Engineering Alignment: You don’t have to deal with multiple factories. We translate your technical requirements into precise manufacturer blueprints.
Strict Quality & Compliance Safeguard: We oversee the entire customization and production process in China, ensuring the final customized product meets your local standards and certifications.
Our Ultimate Value: We don’t just sell what’s on the shelf. We find, customize, and deliver the most suitable and cost-effective product for your unique application.
What is a differential pressure transmitter and how does it work?

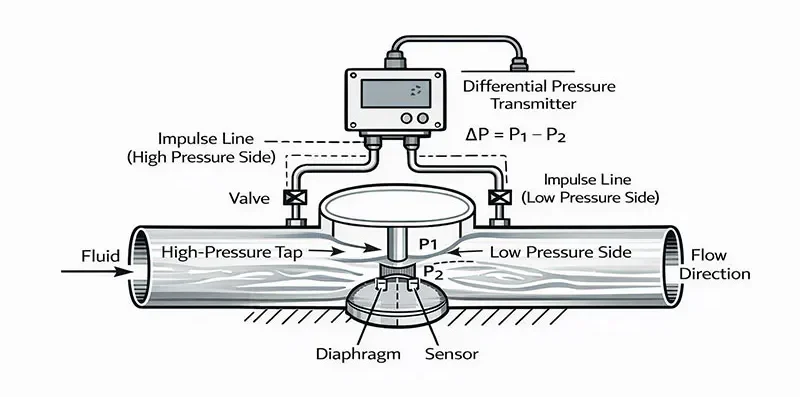

A differential pressure transmitter measures the pressure difference between two points in a process system. It uses a capacitive sensor to convert the pressure differential into an electrical signal, which can be read locally or transmitted to a control system. Differential pressure transmitters are widely used for flow measurement, level monitoring, and pressure control in liquids, gases, and steam.
What are the types of intelligent differential pressure transmitters available?
Intelligent differential pressure transmitters typically come in three models: normal analog, conventional smart, and standard smart. The smart series features on-site adjustable settings via spot buttons and LCD backlight for easy reading. These diff pressure transmitters can handle a maximum measuring range ratio of 50:1, making them suitable for diverse industrial applications.
What industries commonly use differential pressure flow transmitters?
Differential pressure flow transmitters and transmitter pressure differential devices are used in chemical, petrochemical, HVAC, water treatment, power generation, and food processing industries. They are ideal for accurate flow, level, and pressure monitoring in pipelines, tanks, and vessels, providing real-time data for process automation and control.
How accurate and reliable are these differential pressure transmitters?
Intelligent differential pressure transmitters offer high precision with accuracy levels of ±0.1% to ±0.5% FS. The capacitive sensor design, combined with robust modular construction, ensures stable long-term performance and low maintenance. These diff pressure transmitters are reliable even in harsh industrial environments.
Can differential pressure transmitters be customized for specific applications?
Yes, OEM/ODM customization is available for differential pressure transmitters. Customers can request customized measuring ranges, process connections, materials for corrosive environments, digital communication protocols (HART, Modbus, Profibus), and smart series features such as LCD display and on-site adjustment.
What are the advantages of using intelligent differential pressure transmitters over traditional models?
Intelligent differential pressure transmitters offer several advantages: no mechanical moving parts for low maintenance, compact and lightweight design for easy installation, high-precision capacitive sensors for accurate readings, and smart series functionality for on-site adjustment and monitoring. They provide superior performance in flow, level, and pressure measurement compared to conventional transmitter pressure differential devices.
