Isolation Monitoring Device for DC Floating Power Systems
Reliable Isolation Monitoring for High-Voltage DC Floating Systems

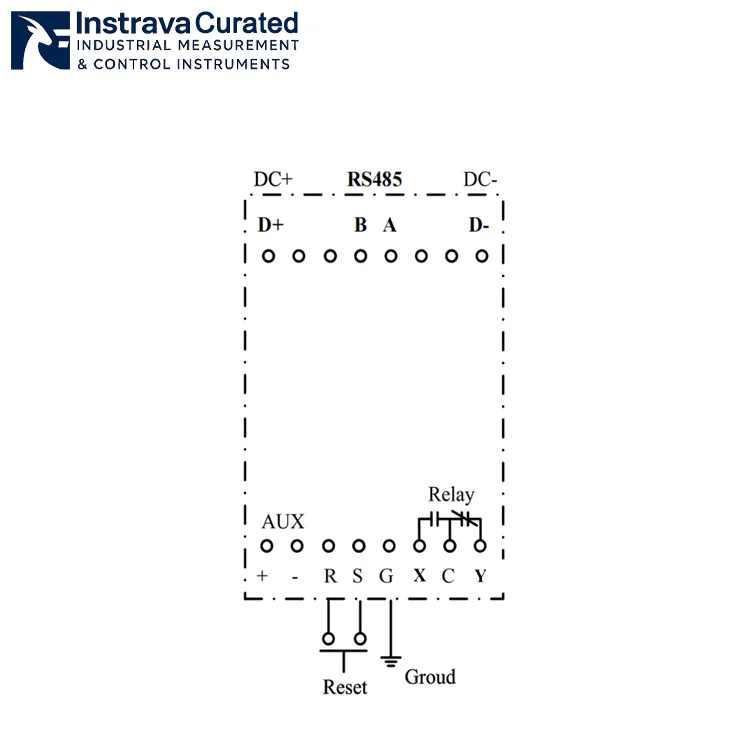

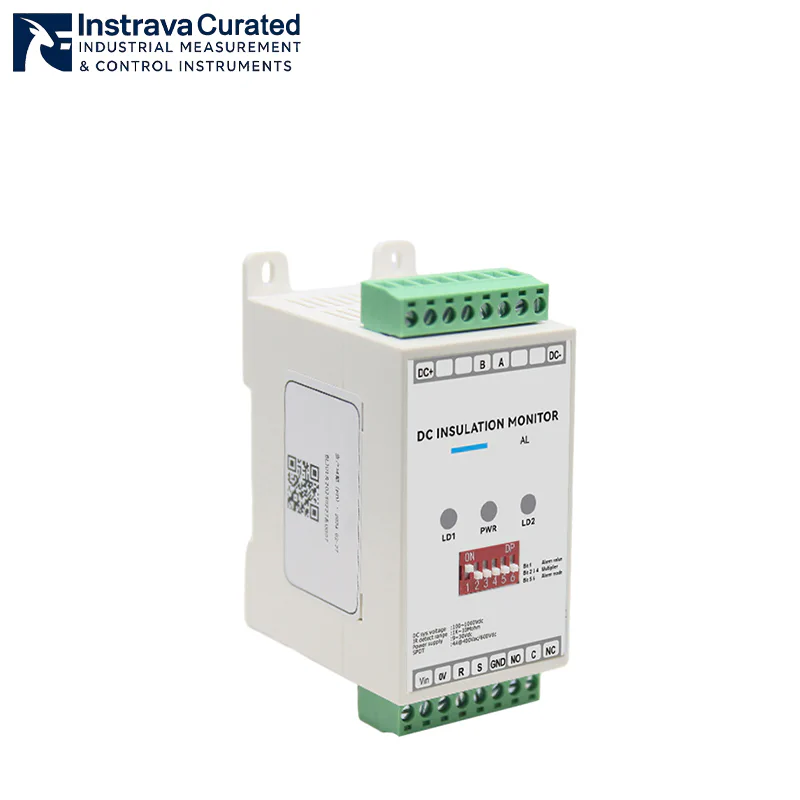

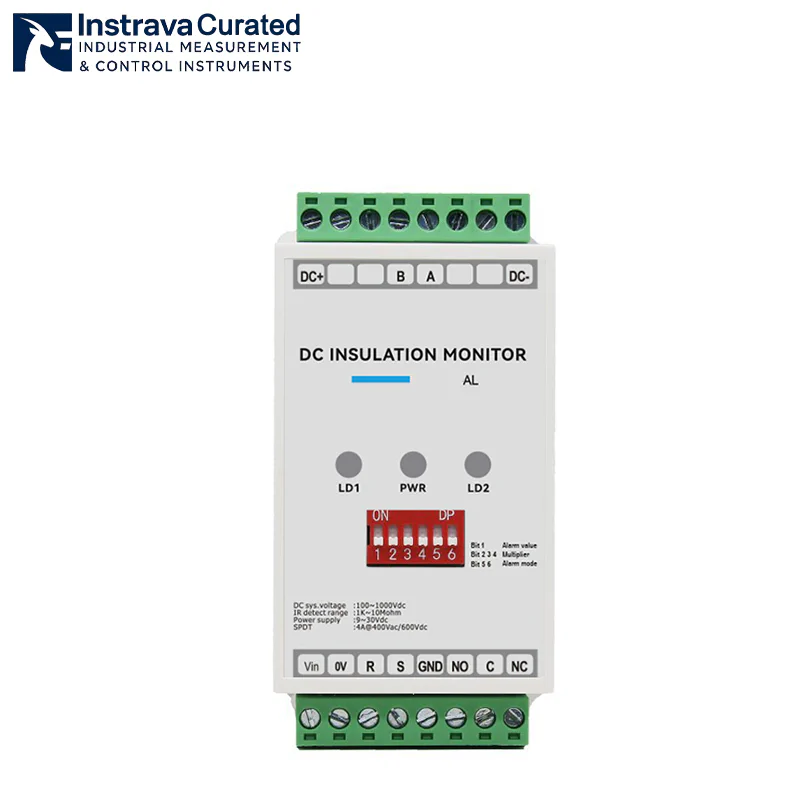

Instrava curated instruments provide advanced isolation monitoring technologies designed to ensure electrical safety, operational continuity, and intelligent fault detection in modern DC floating systems. This Isolation Monitoring Device is engineered based on the non-balanced bridge principle, integrating both insulation monitoring and protection functions into a compact and highly reliable solution.
Designed for DC floating systems from 100V to 1000VDC, the device continuously monitors insulation resistance between the positive and negative poles and ground, helping operators detect insulation degradation and grounding faults before they result in system failures, equipment damage, or safety hazards.
With a wide insulation resistance monitoring range from 1KΩ to 10MΩ, adaptive capacitance-to-ground capability, and optional high-voltage grounding switch functionality, this intelligent isolation monitor is ideal for demanding industrial environments such as EV charging systems, battery energy storage systems, industrial DC distribution networks, and renewable energy infrastructures.
The device also supports RS485 communication for remote monitoring and configuration, enabling seamless integration into SCADA systems, industrial automation platforms, and intelligent energy management systems.
Power Monitoring & Control Description
Advanced DC Isolation Fault Monitoring and Protection
Modern DC systems require continuous insulation supervision to maintain operational safety and ensure stable power delivery. This DC isolation monitoring device combines precision monitoring, flexible protection logic, and high-voltage isolation performance to deliver dependable monitoring for critical power applications.
Core monitoring and protection advantages include:
- Continuous insulation monitoring for DC floating systems
- DC voltage monitoring from 100V to 1000VDC
- Positive and negative pole-to-ground insulation detection
- Wide insulation resistance measurement range from 1KΩ to 10MΩ
- Adaptive leakage capacitance compensation
- Optional online high-voltage grounding switch
- Self-test function for monitoring reliability
- Remote alarm threshold configuration through DIP switches
- Manual or automatic reset selection
- RS485 communication for remote monitoring and management
- High dielectric withstand capability up to 4200VDC
Unlike conventional insulation relays, this smart isolation monitoring device supports online switching functionality and stable operation under complex high-voltage DC environments. The integrated self-diagnostic capability also improves long-term system reliability and maintenance efficiency.
Its adaptive grounding capacitance technology enables accurate insulation monitoring even in distributed DC systems with varying leakage characteristics, helping reduce false alarms and improve fault detection precision.
Intelligent Monitoring for EV Charging, Energy Storage, and Digital Power Systems
As industrial DC systems become increasingly intelligent and interconnected, isolation monitoring devices are evolving into essential components of smart electrical infrastructures.
This RS485 isolation monitoring device enables seamless integration with:
- SCADA systems
- Energy Management Systems (EMS)
- Battery Management Systems (BMS)
- EV charging infrastructure
- Remote monitoring platforms
- Industrial automation systems
- Smart DC distribution systems
The device is particularly suitable for applications requiring continuous high-voltage insulation supervision and reliable grounding fault protection.
Typical applications include:
- EV DC charging systems
- Battery energy storage systems (BESS)
- Renewable energy DC systems
- Industrial DC power distribution
- Rail transportation electrical systems
- UPS and backup DC power systems
- High-voltage DC floating networks
- Intelligent power monitoring platforms
For modern AI-driven industrial operations and digital energy systems, continuous insulation monitoring data supports predictive maintenance strategies, faster fault diagnostics, and improved system uptime.
By combining high-voltage isolation capability, intelligent communication, and precision monitoring technology, this isolation monitoring device helps operators achieve safer, smarter, and more reliable DC power system management.
Power Monitoring & Control Parameter
| Parameter | Specification |
|---|---|
| Product Type | Isolation Monitoring Device |
| Monitoring Principle | Non-balanced Bridge Principle |
| System Type | DC Floating Systems |
| DC Voltage Range | 100V ~ 1000VDC |
| Power Supply | 9–30VDC |
| Power Consumption | 3W |
| Insulation Resistance Range | 1KΩ ~ 10MΩ |
| Monitoring Function | Positive & Negative Pole to Ground |
| DC Voltage Accuracy | 100–200VDC: ≤2V |
| 200–1000VDC: ≤0.5% | |
| Adaptive Capacitance | Supported |
| Self-test Function | Supported |
| Reset Mode | Manual / Automatic |
| Communication Interface | RS485 |
| Remote Monitoring | Supported |
| Relay Switching Capacity | 4A@400VAC / 600VDC |
| Relay Contact Resistance | <100mΩ |
| Relay Insulation Resistance | 1000MΩ |
| Off-line Withstand Test | <2mA |
| Optional Function | High Voltage Grounding Switch |
| Operating Temperature | –40°C ~ 75°C |
| Storage Temperature | –55°C ~ 90°C |
| Humidity | ≤90%RH |
| Altitude | ≤3500m |
| Standard | IEC 61851-23:2014 |
High Voltage Isolation Test
| Voltage Test Point | Maximum Voltage Rating | Time |
|---|---|---|
| DC+/DC- to GND | 4200VDC / 3000VAC | ≤1min |
| Power Supply +/- to GND | 3500VDC / 2500VAC | ≤1min |
| RS485 A/B to GND | 3500VDC / 2500VAC | ≤1min |
| DC+/DC- to Power Supply +/- | 4200VDC / 3000VAC | ≤1min |
| DC+/DC- to RS485 A/B | 4200VDC / 3000VAC | ≤1min |
Instrava OEM/ODM
Reliable Instruments. Solutions That Fit Your Application.
Instrava is focused on delivering reliable industrial solutions through carefully curated products, application-driven optimization, and flexible customization. We select proven instruments from trusted manufacturers to ensure consistent quality, optimize solutions based on real working conditions to solve practical challenges, and provide tailored configurations to meet specific application needs.
By combining selection expertise with application understanding, Instrava helps customers reduce risk, improve efficiency, and achieve dependable results in complex industrial environments.
Instrava design the right path to digitalize your operations — from legacy instruments to connected, data-driven systems.
What is an Isolation Monitoring Device and how does it work in DC floating systems?
An Isolation Monitoring Device (IMD) continuously monitors the insulation resistance between a floating DC system and ground to detect leakage currents and insulation faults before they become critical.
Using the non-balanced bridge measurement principle, the device measures insulation resistance in real time across DC systems from 100V to 1000V, helping ensure electrical safety, operational reliability, and uninterrupted system operation.
Why is insulation monitoring important in high-voltage DC systems?
High-voltage DC systems used in EV charging, battery energy storage, renewable energy, and industrial automation are highly sensitive to insulation degradation and ground faults.
An isolation monitoring device provides early warning of insulation failure, helping prevent equipment damage, electric shock risks, unexpected downtime, and fire hazards while maintaining continuous operation of critical infrastructure.
What are the advantages of monitoring both positive and negative poles to ground?
Monitoring both DC+ and DC− poles independently allows the device to identify asymmetrical insulation faults and accurately determine fault conditions within the system.
This improves fault diagnostics, speeds up troubleshooting, and enhances overall system reliability, especially in complex DC distribution systems with multiple loads and power sources.
How does adaptive capacitance-to-ground improve insulation monitoring accuracy?
Large DC systems naturally generate leakage capacitance due to long cables, filters, and connected equipment. The adaptive capacitance-to-ground function automatically compensates for these effects, ensuring stable and accurate insulation measurements without manual adjustment.
This feature is especially important in energy storage systems, EV charging infrastructure, and industrial DC networks where system capacitance may vary significantly.
What communication and remote management features does the Isolation Monitoring Device support?
The device supports RS485 communication for remote monitoring, data acquisition, and alarm management through SCADA, EMS, PLC, or centralized control systems.
Users can remotely access insulation resistance values, configure alarm thresholds, and manage reset functions, enabling intelligent and centralized monitoring of distributed DC power systems.
What should be considered when selecting an Isolation Monitoring Device for industrial or energy applications?
Important selection criteria include:
- Supported DC voltage range (100V–1000VDC)
- Insulation resistance monitoring range (1KΩ–10MΩ)
- Measurement accuracy under different leakage capacitance conditions
- Communication interface support (RS485)
- Relay switching capacity and alarm functions
- Compliance with IEC 61851-23 and high-voltage withstand capability
Choosing the correct IMD ensures reliable insulation monitoring, enhanced electrical safety, and long-term operational stability in demanding environments.
