Liquid Analyzers and Transmitters
Instrava Liquid Analyzers and Transmitters are intelligent, multi-function analytical instruments designed for continuous monitoring and control of liquid process parameters.
With support for multiple sensor types and flexible output configurations, the system provides reliable, real-time analytical data for industrial processes where product quality, safety, and environmental compliance are critical.
The platform supports a wide range of analytical functions, including dissolved oxygen, sludge concentration, turbidity, residual chlorine, pH/ORP, and conductivity measurement—making it suitable for diverse industries and complex applications.
Transmitters & Sensors Description

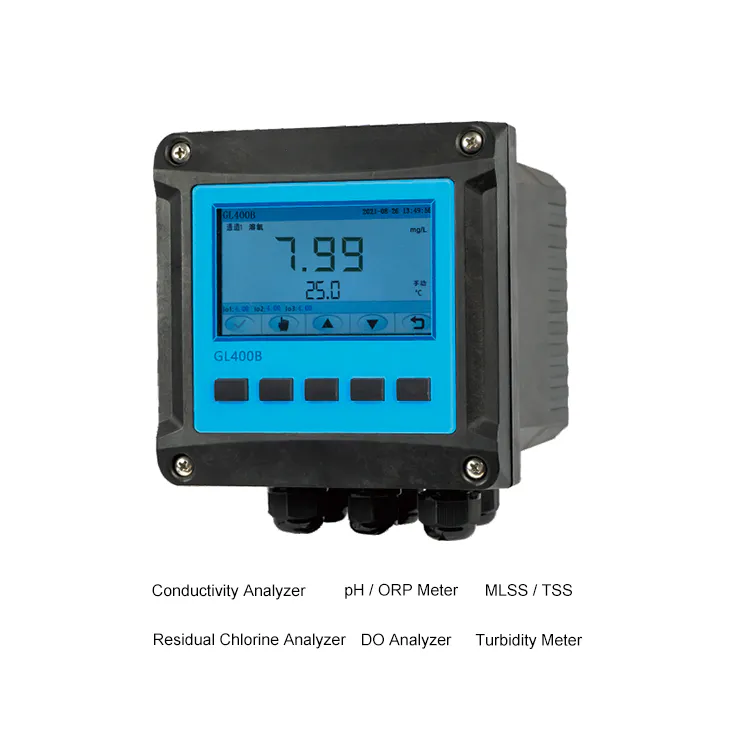

Liquid Analyzers and Transmitters Supported Measurement Functions
The analyzer platform can be configured for different analytical measurements by selecting the appropriate sensor:
-
Dissolved Oxygen (DO) Analyzer
-
Sludge Concentration Meter
-
Turbidity Analyzer
-
Residual Chlorine Analyzer
-
pH / ORP Analyzer
-
Conductivity Analyzer
Each function operates independently while sharing a unified display, output, and diagnostic architecture.
Transmitter & Analyzer Typical Industries & Applications
Liquid analyzers and transmitters are widely used in:
-

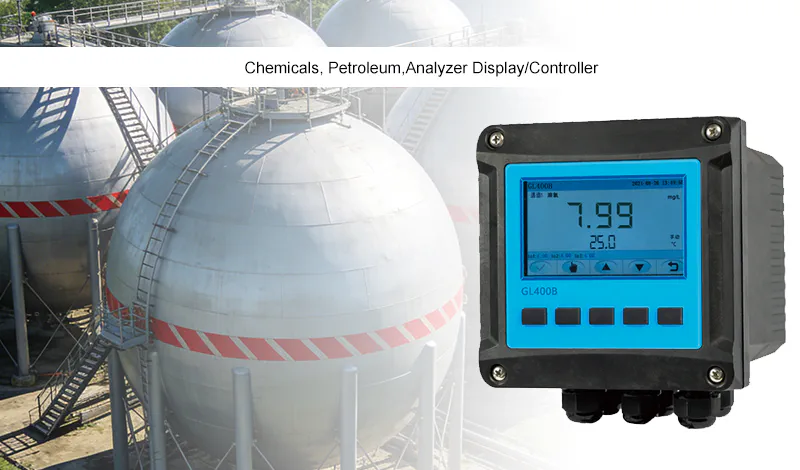

Oil & Gas and Petrochemical processing
-
Chemical and specialty chemical plants
-
Thermal power generation and new energy facilities
-
Food and beverage processing
-
Pharmaceutical manufacturing
-

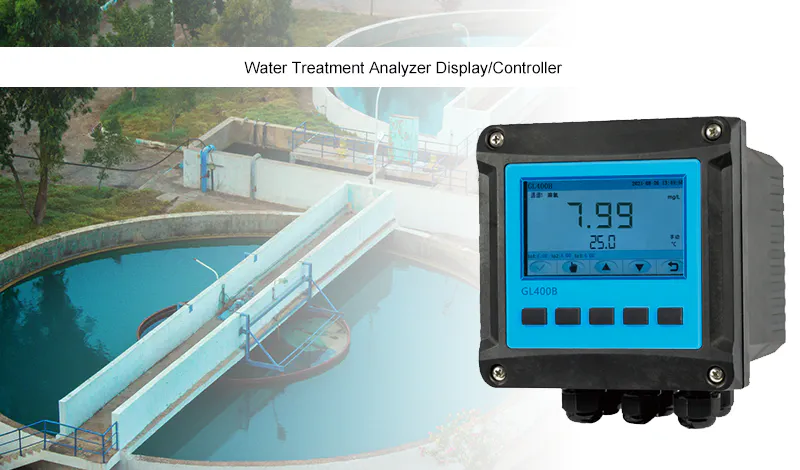

Water and wastewater treatment
-
Environmental monitoring and protection systems
These instruments support both process control and regulatory compliance requirements.
Transmitters & Sensors Parameter
Output & Communication
-
Analog output: Isolated 4–20 mA, up to 4 programmable channels (load ≤ 750 Ω)
-
Switch output: 4 programmable relay outputs (220 VAC, 3 A, normally open)
-
Digital communication: RS485
Power & Electrical
-
Power supply: 220 ±22 VAC, 50 ±0.5 Hz or 18–36 VDC
-
Power consumption: ≤ 10 W
Mechanical & Environmental
-
Enclosure material: PA66-GF25, flame-retardant
-
Protection class: IP65
-
Dimensions (W × D × H): 150 × 170 × 150 mm
-
Installation options: Panel mount / cut-out (138 × 138 mm) / wall mount / pipe mount
-
Electrical interface: 4 × M20×1.5 + 2 × M18×1.5
Operating Conditions
-
Ambient temperature: 0 ~ 60 °C
-
Relative humidity: < 90% RH (non-condensing)
Optional Accessories
-
304 stainless steel instrument enclosure GA0350 / GA0201
-
201 stainless steel instrument enclosure GA0340
-
Instrument enclosure mounting pole GA0311
These accessories enhance protection and installation flexibility for harsh industrial environments.
Instrava OEM/ODM
Tailored Sourcing & Customization: Getting You the Exact Product You Need
As your trusted supplier and sourcing partner, we bridge the gap between your custom requirements and China’s vast manufacturing capabilities.
Finding the right product in a massive supply chain can be challenging. That is where we step in.
As a curated industrial supplier, our core value is simple: we stand in your shoes to help you procure the most optimal products. Whether you are an EPC contractor needing specialized technical compliance, an OEM equipment manufacturer looking for custom branding, or an industrial distributor/trader seeking competitive edge, we customize and tailor products to fit your exact procurement needs.
How We Customize to Fit Your Procurement Needs
For EPC Contractors & Engineers: We custom-configure instruments and devices to match your precise datasheets—tailoring process connections, exotic materials, signal protocols, and managing third-party calibration and testing so you get project-ready solutions.
For OEM Equipment Manufacturers: We provide comprehensive OEM/ODM customization, including custom housing, labeling, branding (private labeling), and tailored technical specifications to seamlessly integrate with your machinery.
For Industrial Distributors & Traders: We offer flexible customization in packaging, product ranges, and technical parameters, helping you differentiate your portfolio and win more local bids.
Why Partner with Us for Custom Sourcing?
One-Stop Engineering Alignment: You don’t have to deal with multiple factories. We translate your technical requirements into precise manufacturer blueprints.
Strict Quality & Compliance Safeguard: We oversee the entire customization and production process in China, ensuring the final customized product meets your local standards and certifications.
Our Ultimate Value: We don’t just sell what’s on the shelf. We find, customize, and deliver the most suitable and cost-effective product for your unique application.
Can one analyzer support multiple liquid parameters at the same time?
Yes. The Instrava liquid analyzer platform is designed as a multi-function analytical transmitter. By selecting the corresponding sensor, the same transmitter can be configured for pH/ORP, conductivity, turbidity, dissolved oxygen, residual chlorine, or sludge concentration measurement.
Each parameter is displayed, transmitted, and diagnosed independently.
Is the analyzer suitable for continuous operation in water treatment plants?
Yes. The analyzer is specifically designed for 24/7 continuous monitoring in water and wastewater treatment applications.
Its IP65 enclosure, isolated 4–20 mA outputs, and stable power design ensure reliable long-term operation in pump rooms, control panels, and outdoor cabinets.
How does the analyzer integrate with PLC or DCS systems?
The analyzer supports isolated 4–20 mA analog outputs and RS485 digital communication, making it compatible with most PLC, DCS, and SCADA systems used in water and chemical plants.
Relay outputs can also be used for alarm triggering, dosing control, or cleaning system activation.
Can the output current be calibrated on site?
Yes. Output calibration can be performed directly on site through the analyzer interface.
This allows engineers to verify and adjust the 4–20 mA signal without removing the instrument or using external calibration modules, significantly reducing commissioning time.
How does the analyzer help with troubleshooting and maintenance?
The system includes built-in diagnostic functions that scan connected sensors and indicate whether parameters are operating within normal ranges.
Output testing functions allow engineers to verify current outputs and relay actions, helping quickly locate issues during commissioning or maintenance.
Is the analyzer suitable for harsh chemical process environments?
Yes. The analyzer is widely used in chemical and petrochemical applications.
Its flame-retardant PA66-GF25 enclosure, wide power supply options, programmable alarms, and stable signal isolation make it suitable for environments with electrical noise, temperature variation, and long cable runs.
