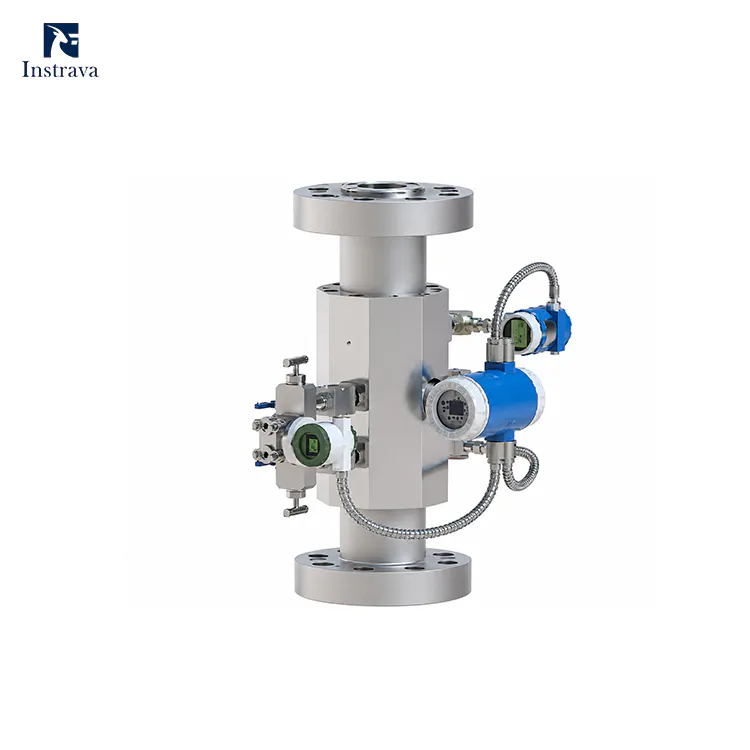

Photonic Quantum Oil-Gas-Water Three-Phase Metering Flow Meter for oil and gas extraction.
Procuring Multiphase Flow Meters (MPFMs) for oil and gas field development is a critical step.
Although Instrava is not a manufacturer, we act as a supplier that prioritizes your interests, helping you select the most suitable products.
Leveraging China’s extensive market resources, we carefully select high-quality manufacturers to provide you with either off-the-shelf products or solutions tailored to your specific project requirements.
Our products are marketed globally and comply with relevant international certification standards, such as CE, IECEx, UL, TÜV, and NEL.
Quotation timelines depend on your specific product requirements. Quotes for off-the-shelf products are typically provided within 1–2 days, whereas special requirements necessitate detailed consultation prior to quoting.
Off-the-shelf products can be shipped within 3–5 days, while delivery times for customized products or large-volume orders are determined through separate negotiation.
Flow Meter Description
Overview
The flow measurement methodology based on multi-energy spectrum optical quantum phase fraction technology integrates the principles of primary flow elements (such as Venturi tubes and slot restrictors) with advanced optical quantum detectors to measure the individual flow rates of oil, gas, and water within multiphase flows.
Working Principle: The primary flow element first determines the total mass flow rate of the medium. Simultaneously, the optical quantum detector measures the combined density of the oil-gas-water mixture alongside the distinct phase fractions of each component. By multiplying the total mass flow rate by the respective phase fraction of oil, gas, and water, the system precisely derives the mass flow rate for each phase. Concurrently, the system monitors the temperature and pressure of the medium, utilizing PVT (Pressure-Volume-Temperature) equations to accurately calculate the corresponding volumetric flow rates.
Key Advantages & Applications: Featuring a proprietary optical quantum detection system, this method exhibits superior adaptability to extreme temperature fluctuations and environmental interference in harsh operating conditions, significantly boosting measurement accuracy and stability. By synergistically integrating multiple cutting-edge technologies, the system achieves highly accurate metering of diverse components within multiphase flows. It is perfectly suited for applications involving oil-gas-water mixtures as well as complex multiphase flows in chemical processing. This advanced flow measurement method delivers effective monitoring and control over oil, gas, and water phase flow rates, providing rock-solid data support to optimize industrial production.
Features
Proprietary Analytical Algorithms: Accurately derives the mass flow rate of each individual phase within multiphase flows, providing true, real-time insights into wellhead conditions.
Advanced Embedded Architecture: Computes, analyzes, and stores flow rates across diverse flow regimes in real time via a high-performance embedded system.
Versatile Connectivity Matrix: Equipped with a comprehensive suite of data transmission options—including RJ45, RS485, and 4G—to seamlessly adapt to varied on-site infrastructure requirements.
Powerful Processing Software: Features a robust software suite that enables remote, automated, and streamlined system operations alongside real-time data analytics.
Production Optimization & Cost Reduction: Monitors and optimizes oilfield production, effectively lowering overall field development costs (OPEX).
Automated Single-Well Diagnostics: Supports unmanned, remote operations to deliver continuous, real-time flow data stream for precise well diagnostics.
Tailored Bore Sizes for Diverse Well Lifecycles:
DN25 Configuration: Engineered to satisfy the precise metering demands of low-yield wells and low-flow-rate applications.
DN80+ Configuration: Designed to easily handle high-yield wells and high-flow-rate operations.
Independent Wet Gas Metering: Utilizes a breakthrough design combining a Venturi tube with photon attenuation technology to achieve independent, in-line wet gas measurement without separation.
Innovative Self-Calibration Technology: Features a cutting-edge self-calibration mechanism that guarantees exceptional measurement accuracy and long-term repeatability.
Compact & Resilient Design: Boasts a small footprint, lightweight structure, high pressure-rating, and low power consumption, while ensuring effortless installation and inherently safe operation.
Flow Meter Parameter
| Product Description | Applicable to process metering of oil/gas wells and long-distance pipelines | Communication methods | RS485, RJ45, 4G IoT SIM card (customizable upon request) |
| Specifications and dimensions | DN25~DN150 | Power supply method | DC24V/AC220V (customizable according to customer requirements) |
| Design pressure | ≤ 42MPa | Rated power | ＜10W |
| medium temperature | -40℃~100℃ | Explosion-proof rating | Ex db IIB T6 Gb |
| Ambient temperature | -40℃~+85℃ | Protection level | IP66 |
| Throttling device | Venturi type, channel type (spindle-like) | Installation method | Vertical installation |
| Scope of application | LVF: (0~100)%; WC:(0~100)% | Mass flow rate (oil, gas, water) | ±3.5% |
| Equipment weight | (20~180)kg | Flow range | Referring to the “Multiphase Flow Meter Flow Range Comparison Table”: (26,000~320,000) Nm³/d (gas volume), (1,900~220,000) kg/d (gas volume), (312~8,000) m³/d (liquid volume) |
| Flange Standard | HG20592-20615/ASMEB16.5/API 6A/Gost 33259 (Customized according to customer requirements) | Material | Stainless steel, 304, 316, 316L, Hastelloy, nickel-based alloys (customizable according to customer requirements) |
| Comply with national explosion-proof electrical standards | GB3836.1 Explosive Atmospheres – Part 1: Equipment – General Requirements; GB3836.2 Explosive Atmospheres – Part 2: Equipment Protected by Flameproof Enclosures “d”; Ambient Humidity: (0-95)%RH |
