Uncompromising Safety: Advanced DC Insulation Monitoring Device for High-Voltage IT Systems
Purchasing an Insulation Monitoring Device (IMD) is a critical decision. Product quality and performance are paramount.
As a supplier, Instrava will help you select the most suitable product from your perspective.
In China’s vast market, we select suitable manufacturers to provide you with in-stock products or customized solutions to meet your project needs.
Our products are sold globally and comply with relevant national certification standards such as CE, IEC, EAC, UL, TUV, and EMC.
Quote delivery time depends on your product requirements. For in-stock products, we will provide a quote within 1-2 days. Special requirements will need to be discussed in detail before a quote is provided.
In-stock products will ship within 3-5 days. Customized products or large volume orders require separate negotiation.
Power Monitoring & Control Description

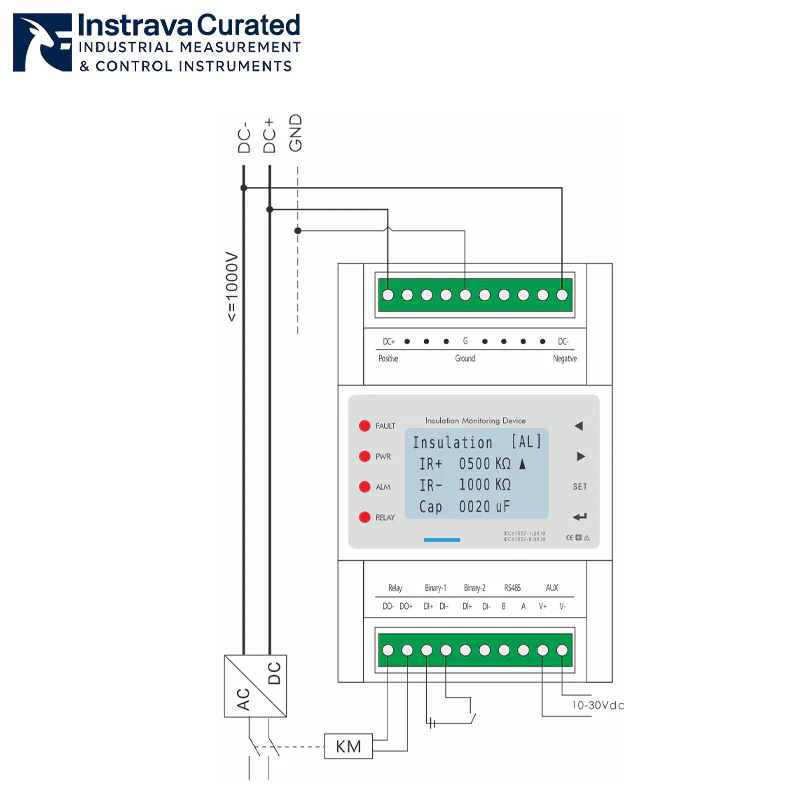

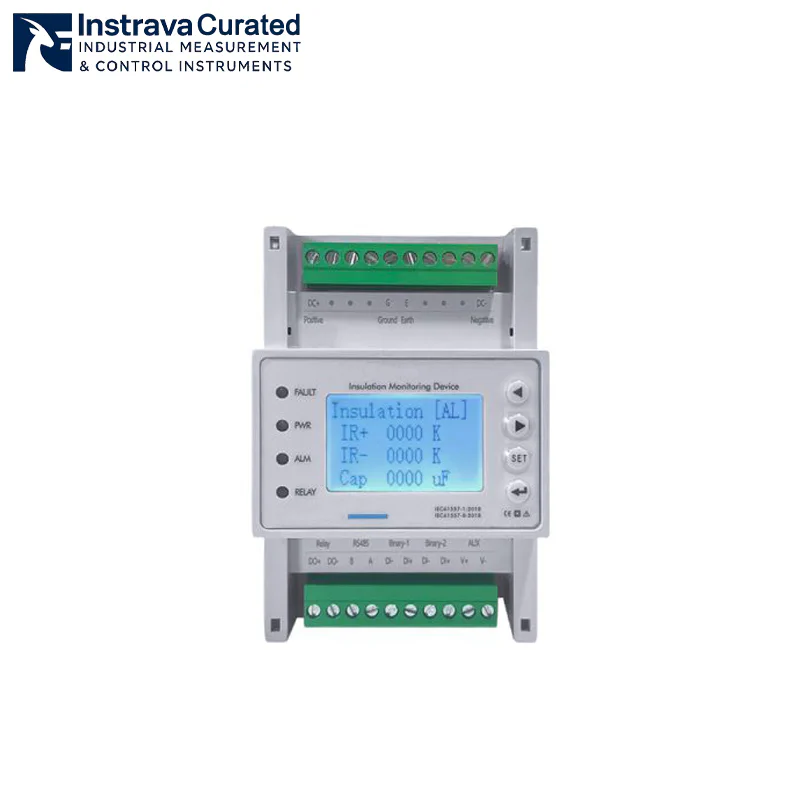

Insulation Monitoring Device is a device for seamless remote monitoring of the status of ungrounded DC (IT) systems.
The presents an advanced solution for continuous insulation monitoring in unearthed (IT) DC systems, engineered to meet the rigorous demands of modern electrical infrastructure.
Supporting a wide voltage range from DC 100V to 1000V, this device serves as a critical safety barrier for high-voltage environments. By selecting only proven, high-performance technology, Instrava ensures your operations are protected by a device that offers real-time measurement of both positive and negative pole insulation resistance.
Whether in EV charging or industrial power distribution, this curated instrument provides the reliability and confidence required for mission-critical applications.
Intelligent Fault Detection in Complex DC Environments
This DC insulation monitoring device is specifically designed to maintain absolute accuracy despite the inherent challenges of high-voltage networks. It provides a comprehensive view of system health, ensuring that even the slightest insulation degradation is captured before it escalates.
Adaptive Capacitance Technology: The device features automatic adaptation to system leakage capacitance up to 5μF. This ensures stable measurements in large-scale systems where capacitive interference often compromises standard monitoring equipment.
Symmetrical & Asymmetrical Monitoring: It delivers precise real-time data for both poles, maintaining accuracy regardless of DC voltage fluctuations or asymmetry. This makes it an ideal choice for EV/HEV DC charging systems and rail transit networks.
Rapid Fault Response: With a first-reading update time as fast as 0.7s, the system allows for near-instantaneous detection of ground faults, significantly reducing the risk of equipment damage or hazardous leakage currents.
Power Monitoring & Control Parameter
| Parameter | Value | ||
| Power supply | 10-30VDC, Power 3W | ||
| DC voltage range | 100V~1000V | ||
| DC voltage
measurement accuracy |
≤2V+0.3% | ||
| Insulation resistance
measurement range |
1KΩ~10MΩ
(DC system voltage:100V~1000V) |
||
| Max system leakage capacitance | 0-5μF | ||
| Insulation monitoring accuracy
((When: DC voltage:100V-1000V) |
CY range | Resistance range | Accuracy |
| 0~0.8μF | ≤60kΩ | ≤3kΩ | |
| 60kΩ<R<1MΩ | ≤5% | ||
| 0.8μF ~3μF | ≤60kΩ | ≤6kΩ | |
| 60kΩ<R<1MΩ | ≤20% | ||
| Insulation resistance value
update time after turning on |
After insulation monitoring is turned on, the time until the effective resistance value can be read for the first time | 0.7s~2s | |
| Insulation resistance value
update time |
Switch the insulation resistance until the module can read the switched insulation resistance value. | 0.5s~3s | |
| Insulation monitoring
function switching times |
50*105 times | ||
| Off-line withstand voltage test | <2mA | ||
| Digital output (DO) | 1*DO, passive dry contact, SPST
Load capacity: 4A@250Vac, 4A@30Vdc |
||
| Digital input (DI) | 2*DI, 0.25mA@short circuit | ||
| Communication | RS485/ Modbus RTU | ||
| Standard | IEC 61557-1: 2018; IEC 61557-8: 2018 | ||
| Dimension | Standard 35 mm DIN rail mounting
Dimensions (W × H × D): 72 × 110 × 66 mm |
||
| Storage temperature | -55°C~90°C; ≤90%RH (non-condensing, non-corrosive), Altitude: ≤3500 m | ||
| Operating temperature | -40°C~75°C; ≤90%RH (non-condensing, non-corrosive), Altitude: ≤3500 m | ||
Withstand voltage test
| Voltage injection point | Maximum voltage rating | Time |
| DC+/DC- to GND | 4200VDC/3000VAC | ≤1min |
| Power supply +/- to GND | 3500VDC/2500VAC | ≤1min |
| RS485 A/B to GND | 3500VDC/2500VAC | ≤1min |
| DC+/DC- to Power supply +/- | 4200VDC/3000VAC | ≤1min |
| DC+/DC- to A/B | 4200VDC/3000VAC | ≤1min |
