Differential Pressure Transmitters | Selection Guide & Industrial Applications
Differential pressure (DP) transmitters are essential instruments in modern industrial processes, providing precise measurement of pressure differences across systems. They play a critical role in applications such as flow measurement, level monitoring in pressurized tanks, and process control in oil & gas, chemical, and water treatment industries. This guide provides an in-depth look at differential pressure transmitters, their types, working principles, key selection criteria, and practical industrial applications.
What Is a Differential Pressure Transmitter?
A differential pressure transmitter measures the difference between two pressure points and converts it into a standardized electrical output, such as 4–20 mA or digital communication protocols like HART or Modbus. Unlike a standard pressure transmitter that measures absolute or gauge pressure at a single point, a DP transmitter can provide critical information about flow, level, and process conditions.
Características principales:
-
Measures pressure difference (ΔP) between two points
-
Outputs standardized signal for integration with control systems
-
Supports hazardous area certification for industrial safety
Differential pressure transmitters are widely used where accurate process monitoring and control are required, making them indispensable in automated industrial environments.
How Differential Pressure Transmitters Work
A DP transmitter consists of three main components:
-
Elemento sensor
Detects pressure on high- and low-pressure ports. Common sensor types include strain gauges, capacitive sensors, and piezoresistive sensors. -
Signal Conditioning
The transmitter electronics amplify, linearize, and compensate for temperature changes, ensuring accurate and stable readings. -
Output Module
Converts the conditioned signal to standard industrial outputs (4–20 mA, HART, Modbus) suitable for PLC, DCS, or SCADA systems.
Typical DP Measurement Applications:
-
Flow measurement using orifice plates, venturi tubes, or flow nozzles
-
Liquid level measurement in pressurized tanks
-
Filter monitoring to detect clogging or differential pressure changes
Types of Differential Pressure Transmitters
Differential pressure transmitters come in multiple types depending on features and applications:
| Tipo | Precisión | Salida | Aplicaciones típicas | Ventajas |
|---|---|---|---|---|
| Standard DP Transmitter | ±0.1–0.25% | 4-20 mA | Flow measurement, basic process control | Cost-effective, reliable for general use |
| Smart DP Transmitter | ±0.05–0.1% | HART / Modbus | Flow, level, filter monitoring | Advanced diagnostics, remote configuration |
| High-Range / High-Accuracy DP Transmitter | ±0.025–0.05% | 4–20 mA or digital | Critical process control, chemical reactors | High precision, stable in harsh environments |
Applications of Differential Pressure Transmitters
DP transmitters are versatile and essential for many industrial processes:
Medición del caudal
Differential pressure transmitters calculate flow using the pressure drop across an orifice plate, venturi, or turbine. This method is widely used in oil & gas pipelines, water distribution systems, and chemical process lines.
Level Measurement in Pressurized Tanks
By measuring the difference between the bottom and top of a tank, DP transmitters can provide continuous level measurement, particularly in LPG, LNG, and chemical storage tanks.
Filter Monitoring
DP transmitters monitor the pressure drop across filters to detect clogging or maintenance needs, ensuring uninterrupted operation in water treatment and chemical plants.
Typical DP Transmitter Applications
| Industria | Aplicación | Measurement Target |
|---|---|---|

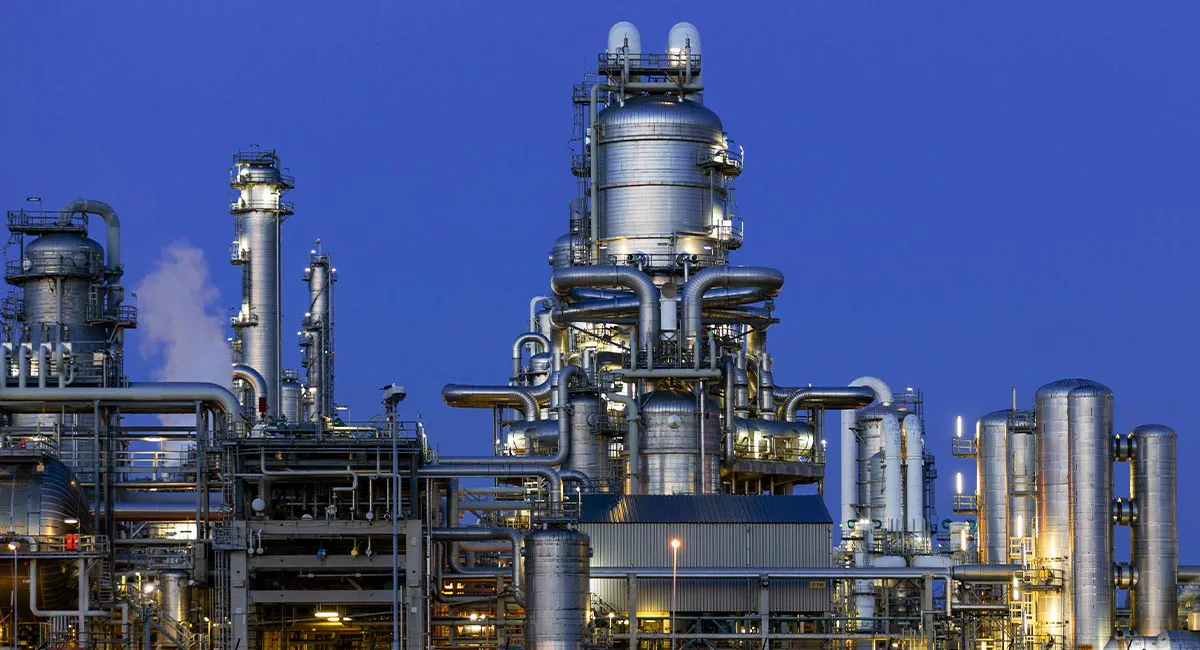

| Petróleo y gas | Pipelines & separators | Flow rate, pressure drop |
| Procesado químico | Reactors & process lines | Flow, level, filter health |
| Agua y aguas residuales | Pump stations, filtration | System efficiency, maintenance alerts |
| Generación de energía | Steam and fuel lines | Flow, pressure control |
Key Selection Criteria for DP Transmitters
Selecting the right differential pressure transmitter requires evaluating several technical factors:
-
Process Pressure Range & Overpressure Limit
Ensure the transmitter covers normal operating pressure with margin for spikes. -
Compatibilidad de soportes
Wetted materials must resist corrosion or abrasion from the process fluid. -
Condiciones medioambientales
Temperature extremes, vibration, humidity, and hazardous areas dictate housing and certification requirements. -
Signal Output & Integration
Confirm compatibility with PLCs, DCS, or SCADA; choose 4–20 mA for analog systems or HART/Modbus for smart devices. -
Accuracy & Stability
Critical for precise flow and level measurement; consider long-term drift and temperature compensation.
DP Transmitter Selection Checklist
| Factor | Consideración |
|---|---|
| Rango de presión | Normal and maximum process pressure |
| Precisión | Required measurement precision |
| Media | Chemical compatibility, corrosive fluids |
| Medio ambiente | Temperature, vibration, hazardous area |
| Salida | 4-20 mA, HART, Modbus |
| Mantenimiento | Calibration frequency, diagnostics |
Differential Pressure Transmitters vs Other Pressure Instruments
| Instrumento | Measurement | Uso típico | Ventajas |
|---|---|---|---|
| Transmisor de presión diferencial | ΔP between two points | Flow, level, filter monitoring | High accuracy, suitable for automation |
| Standard Pressure Transmitter | Single point (gauge/absolute) | Tank pressure, pipeline monitoring | Simpler, cost-effective |
| Pressure Sensor | Voltage/resistance signal | Lab, test, low-scale measurement | Low cost, simple setup |
Perspicacia: For industrial automation, DP transmitters are preferred due to standardized outputs, diagnostics, and integration capabilities.
Consejos de instalación y mantenimiento
-
Mounting: Install at locations that minimize vibration and pulsation
-
Impulse Lines: Keep short, clean, and correctly oriented for differential measurement
-
Calibration: Periodically check zero/span; smart DP transmitters often provide self-diagnostics
-
Hazardous Areas: Use ATEX or IECEx certified transmitters in flammable environments
Preguntas frecuentes
What is a differential pressure transmitter?
A device that measures the pressure difference between two points and outputs a standardized signal for industrial control systems.
How is DP transmitter used for flow measurement?
By measuring the pressure drop across an orifice plate, venturi, or turbine, flow rate can be calculated using standard equations.
Can DP transmitters measure liquid level?
Yes, by using the pressure difference between the bottom and top of a pressurized tank.
What industries benefit most from DP transmitters?
Oil & gas, chemical processing, water & wastewater treatment, and power generation facilities.
How do I select the right DP transmitter?
Consider process pressure, media compatibility, environmental conditions, output signal, accuracy, and hazardous area certifications.
Conclusión
Differential pressure transmitters are critical instruments for industrial process measurement, providing accurate data for flow, level, and filter monitoring. Selecting the right DP transmitter involves understanding process conditions, installation requirements, and signal integration. Proper selection and maintenance ensure safe, efficient, and automated operation across industries such as oil & gas, chemical, and water treatment.
