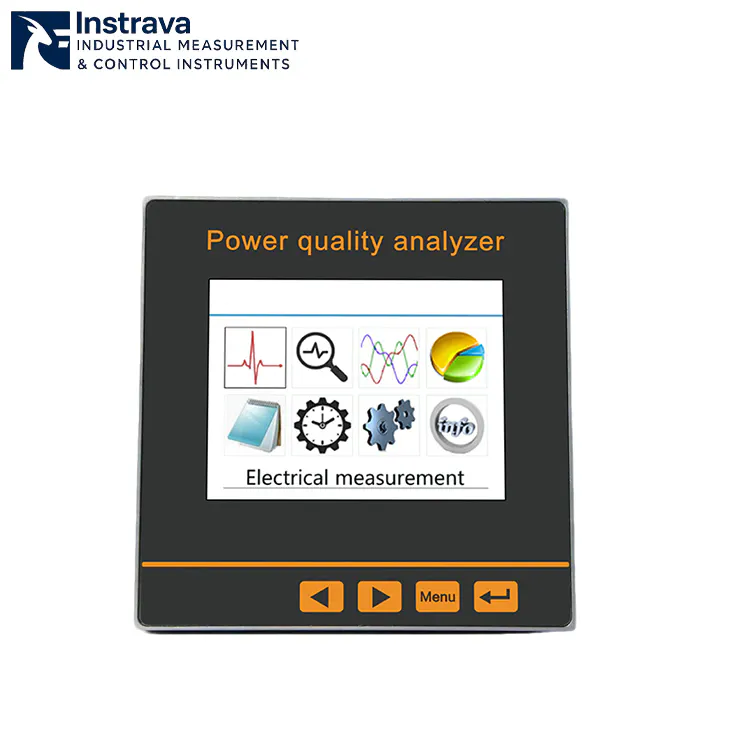

Analizador de potencia inteligente 0,2S, analizador multifunción de calidad eléctrica, dispositivo de monitorización de potencia industrial montado en panel

Analizador de calidad de la energía 0,2S para la supervisión de la red de clase A

Q: What is a 0.2S Power Quality Analyzer?

A 0.2S Power Quality Analyzer is a high-precision device that measures electrical parameters and power quality with Class 0.2S energy accuracy, making it suitable for billing, compliance, and advanced system analysis.

Q: What is the difference between Class A and standard power quality analyzers?

Class A analyzers follow strict IEC standards, ensuring consistent and highly accurate measurements for compliance verification, while standard analyzers are typically used for general monitoring.

Q: Why is 1024 sampling points per cycle important?

High sampling resolution allows the analyzer to capture detailed waveform data and detect fast transient events, improving fault detection accuracy.

Q: How does this analyzer help locate power quality issues?

It can identify the source of disturbances such as voltage sags, harmonics, and flicker, enabling engineers to pinpoint and resolve issues quickly.

Q: Is this analyzer suitable for AI data centers?

Yes. It ensures stable power by monitoring harmonics, voltage fluctuations, and transient disturbances, which are critical for AI servers and high-performance computing systems.

Q: What communication protocols does it support?

It supports RS485 with Modbus RTU and Ethernet with Modbus TCP or optional IEC 61850, enabling integration into smart grid and industrial systems.

In the era of AI infrastructure and mission-critical power systems, precision and reliability are non-negotiable.

Instrava Curated Instruments present a next-generation 0.2S Power Quality Analyzer designed for Class A power quality monitoring, high-resolution fault analysis, and intelligent diagnostics.

This advanced analyzer delivers real-time insights, accurate energy measurement, and precise fault location, ensuring the stability and efficiency of modern power systems.

Why this 0.2S Power Quality Analyzer stands out:

Class A power quality measurement (IEC compliance)
0.2S high-precision energy metering
1024 points/cycle high-speed sampling
20μs transient disturbance capture
Advanced fault diagnosis and source location

Aplicaciones:
AI Data Centers | Smart Grid | Utilities | Industrial Power Systems | Renewable Energy

Power Monitoring & Control Description

Class A 0.2S Power Quality Analyzer for Ultimate Measurement Accuracy

Este 0.2S Power Quality Analyzer combines Class A power quality monitoring with ultra-high accuracy:

Voltage/Current Accuracy: ±0,1%
Active Energy: Class 0.2S
Frequency Accuracy: ±0.005Hz
Harmonic measurement including inter-harmonics & sub-harmonics

Ensures compliance-level monitoring and precise energy analysis

Full-Spectrum Power Quality Monitoring & EN50160 Compliance

This advanced 0.2S Power Quality Analyzer supports comprehensive monitoring of all power quality parameters:

Harmonics & inter-harmonics analysis
Voltage deviation & frequency deviation
Voltage/current unbalance
Flicker and voltage fluctuation
Transient disturbances and waveform capture
EN50160 statistical reporting

Ideal para grid-level monitoring and data center power quality compliance

Power Quality Analyzer For Technical Highlights

High-Speed Sampling & Transient Capture

1024 sampling points per cycle
Minimum 20μs transient disturbance recording
High-resolution waveform logging

Enables accurate detection of fast and complex electrical disturbances

Advanced Fault Diagnosis & Source Location

Este 0.2S Power Quality Analyzer provides intelligent diagnostics:

Voltage sag source identification
Harmonic source detection
Flicker source localization
Unbalance source analysis
Power supply fault type identification

Admite rapid fault analysis and system reliability improvement

Real-Time Monitoring with Massive Data Recording

Continuous real-time measurement
Event recording and waveform storage
Time-based recording & TOU billing support

Enables predictive maintenance and long-term system optimization

Industrial Communication & Smart Grid Integration

Dual RS485 ports (Modbus-RTU)
Ethernet (Modbus TCP / optional IEC 61850)
Compatible with SCADA, EMS, and grid systems

Perfect for smart grid and AI-driven energy platforms

Robust Industrial Design & Reliability

Wide voltage supply: 85–275VAC / 100–300VDC
Strong EMC immunity (IEC61000 Level IV)
High insulation & surge resistance

Ensures stable operation in harsh and critical environments

Power Monitoring & Control Parameter

Potencia Supply					Comunicación
Tensión nominal	85~275VAC,100~300VDC,45~65Hz				RS485 port		2 Port,2400-38400bps, Modbus-RTU protocol
Power loss	＜10W				Ethernet Port		1 port, Modbus TCP/IEC61850 (optional) support Ethernet gateway
AC Input
Input Voltage	Rated voltage	0~400V(400V L/N/ 690V L/L)			Electrical insulation performance
	Overload	1.2Un, Continuous; 4Un, accept 1s			Dielectric strength		2kV voltage,1 minute (GB/T 14598)
	Power loss	＜0.1VA/Phase			Insulation resistance		No less than 100MQ (GB/T 14598)
Corriente de entrada	Rated voltage	5A, 1A			Impulse voltage		6kV,1.2/50μs (GB/T 14599)
	Overload	4In, Continuous; 10In, accept 1s			Medio ambiente
	Power loss	＜0.5VA/Phase@5A, ＜0.1VA@1A			Temperatura	-10C~+55C		Humedad	5%~95%
					Storage	-40C~+85C		Presión	70kPa-110kPa
D/DO					IP Index	Front:IP52 Side&Back:IP30		Measure mode	3 phase 4 wire 3 phase 3 wire
DI	8 Channel,time resolution 1ms
RO1-RO4	Relay,action /return time:<10ms				Electromagnético compatibility
DO1-DO2	Breaking Capacity:250VA/30VDC,0.2A L/R=20ms Max.voltage 30VDC Max.current 50mA				Electrostatic discharge immunity IEC6100-4-2 Class IV
					Radio frequency electromagnetic radiation immunity IEC6100-4-3 Class IV
Precisión					Power loss IEC6100-4-4 Class IV
Voltage/Current	±0,1%		Harmonic	Class A	Rated voltage IEC6100-4-5 Class IV
Active/Reactive / Apparent power	±0,2%		Voltage Unbalance Rate	±0,1%	Overload EC6100-4-8 Class IV
					Mechanical Character
Active energy	Class 0.2s		Current Unbalance Rate	±0.5%	Vibration response		Class I (GB/T 11287)
Reactive energy	Class 2		Voltage Deviation	±0,1%	Vibration durable		Class l (GB/T11287)
Power factor	±0.5%		Frequency Deviation	±0.005Hz	Impact response		Class I (GB/T 14537)
Frecuencia	±0.005Hz		Fliker	±5%	Collision response		Class I (GB/T 14537)

Instrava OEM/ODM

Instrumentos fiables. Soluciones que se adaptan a su aplicación.

Instrava se centra en ofrecer soluciones industriales fiables a través de productos cuidadosamente seleccionados, optimización basada en aplicaciones y personalización flexible. Seleccionamos instrumentos probados de fabricantes de confianza para garantizar una calidad constante, optimizamos soluciones basadas en condiciones de trabajo reales para resolver retos prácticos y ofrecemos configuraciones a medida para satisfacer las necesidades de aplicaciones específicas.

Combinando la experiencia en selección con la comprensión de las aplicaciones, Instrava ayuda a sus clientes a reducir riesgos, mejorar la eficacia y obtener resultados fiables en entornos industriales complejos.

Recomendaciones de productos relacionados

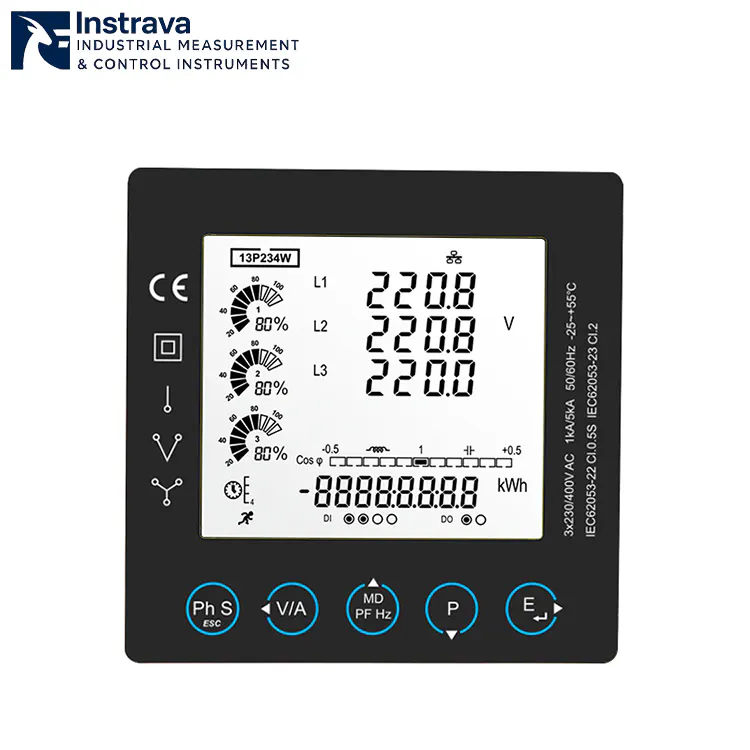

Multi-function power analyzer with LCD display, three-phase energy meter for industrial electrical parameter monitoring
