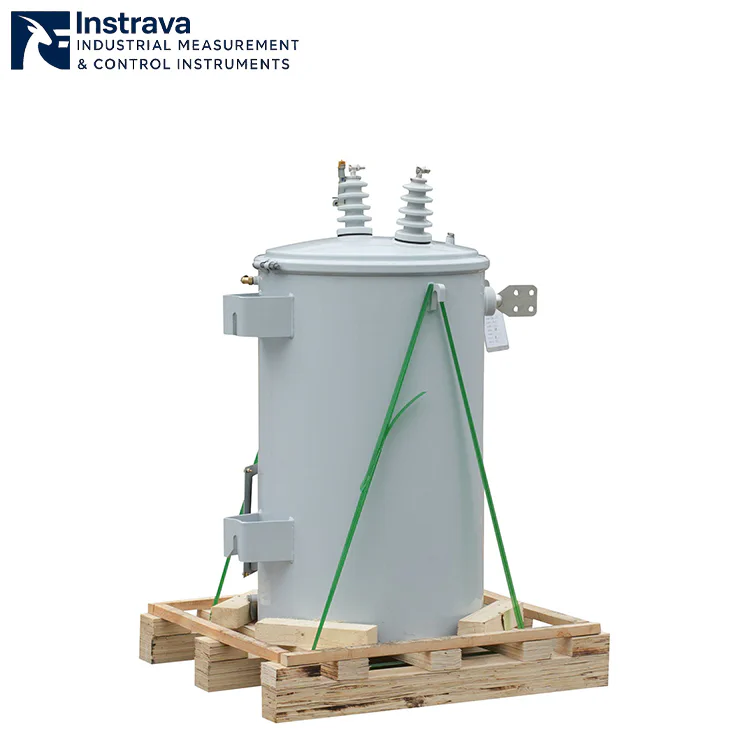

100kva Single Phase Power Pole-Mounted Transformer
Instrava Curated brings uncompromised reliability and high-efficiency voltage conversion to decentralized overhead distribution networks. As an application-driven global supplier rather than a single-track manufacturer, our core value lies in isolating exceptional engineering from standard factory supply paths. Our curated 100kva Single-Phase Pole-Mounted Transformer reflects this strategic filtration process.
Precision-engineered to step down high-voltage utility lines to localized endpoints, this series provides a weather-hardened, resilient framework that minimizes line losses. It is an ideal choice for remote rural electrification, decentralized commercial pockets, and peripheral industrial facilities demanding dedicated voltage stability.
Transformer Description
Advanced Core Topography & Material Selection
When sourcing overhead infrastructure for our elite portfolio, Instrava prioritizes products built on physical durability and optimized magnetic pathways:
Advanced Toroidal Coil Structure: Unlike traditional square-core geometries that suffer from localized flux crowding, the integrated toroidal coil structure establishes a smooth, continuous magnetic path. This design eliminates sharp corners, drastically reducing core idling losses and maximizing total energy transmission efficiency under continuous load.
Flexible Winding Customization: Available in both high-conductivity pure copper and weight-optimized aluminum winding matrices. This gives utility managers the flexibility to balance initial capital expenditure (CAPEX) against strict pole-loading weight limits or long-term conductivity requirements.
Extended Structural Warranty: Reflecting our rigorous manufacturer quality audits and commitment to lowering operational risk, every selected unit is backed by an extended 2-year operational warranty for complete peace of mind.
Environmental Sustainability & Thermal Resilience
Overhead transformers are completely exposed to climate extremes and public visibility, making fluid safety and thermal endurance critical parameters:
Eco-Friendly FR3 Insulating Fluid: To protect localized ecosystems beneath overhead lines, this transformer series utilizes FR3 insulating oil instead of conventional petroleum-based mineral oil. Derived entirely from renewable vegetable oils, FR3 is highly biodegradable, non-toxic, and possesses a significantly higher flash point, drastically minimizing fire hazards and environmental liabilities.
Passive ONAN Thermal Management: Relying on standard ONAN (Oil Natural Air Natural) cooling, the fluid naturally circulates heat away from the core and windings via internal convection. With no mechanical moving parts or cooling fans to fail, the unit operates entirely maintenance-free over long field life cycles.
Extensive Operating Spectrum: The physical seals, internal components, and dielectric fluid are heavily stabilized to maintain structural and electrical integrity across an exceptional ambient temperature spectrum, ranging from minus 40°C to plus 180°C.
Transformer Parameter
| Feature / Technical Parameter | Engineered Specifications |
| Product Classification | Single-Phase Overhead Pole-Mounted Transformer |
| Rated Power Capacity | 100 KVA |
| Primary Input Voltage | 24.94 KV |
| Secondary Output Voltage | 0.6 KV (600V Terminal Distribution) |
| Internal Core Geometry | Robust Low-Loss Toroidal Coil Structure |
| Winding Matrix Options | High-Purity Copper / Premium Grade Aluminum |
| Insulation & Dielectric Medium | Environmentally Friendly, Biodegradable FR3 Natural Ester Fluid |
| Cooling Profile | ONAN (Oil Natural Air Natural) Passive Dissipation |
| Operating Temperature Range | Minus 40°C to Plus 180°C Thermal Rating |
| Standard Quality Assurance | Fully Vetted for Industrial, Commercial, and Utility Upgrades |
| Warranty Baseline | 2-Year Comprehensive Operational Warranty |
ated capacity(KVA) | Voltage ratio | Vector group | No-load losses(kw) | Impedance |
10kva | 110v/220v/400v/3kv | Dyn11/Yd11/Yyno | 0.08 | 4% |
50kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.13 | 4% |
100kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.2 | 4% |
200kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.34 | 4% |
500kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 0.68 | 4% |
1000kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 1.15 | 4.50% |
2500kva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 2.31 | 4.50% |
3.5mva | 380v/3kv/6kv/11kv/33kv | Dyn11/Yd11/Yyno | 2.73 | 4.50% |
24mva | 11kv/35kv/69kv/110kv/220kv/400kv | Dyn11/Yd11/Yyno | ||
100mva | 11kv/35kv/69kv/110kv/220kv/400kv | Dyn11/Yd11/Yyno |
Instrava OEM/ODM
Reliable Instruments & Power Infrastructure. Solutions That Fit Your Application.
Instrava is focused on delivering reliable industrial solutions through carefully curated products, application-driven optimization, and flexible customization. We select proven measurement instruments and heavy-duty power transformers from trusted China manufacturers to ensure consistent quality. By thoroughly evaluating engineering topologies against real working conditions, we solve practical grid and process challenges, providing tailored configurations to meet specific application needs.
By combining selection expertise with deep application understanding, Instrava helps customers reduce operational risk, improve energy efficiency, and achieve dependable results across complex industrial and power distribution environments.
Why is a single-phase pole-mounted transformer rated at 100kva ideal for remote commercial or rural power distribution?
It is ideal because it combines a high-capacity 100KVA output with a compact, pole-mounted footprint that eliminates the need for ground-level real estate. Remote or rural grids frequently feature long medium-voltage lines where installing concrete pads is logistically challenging. A pole-mounted single-phase configuration provides immediate, point-of-use step-down conversion from a 24.94KV line right at the customer boundary, optimizing voltage stability while minimizing distribution line losses.
What are the primary advantages of using a toroidal coil structure in an overhead pole transformer?
The primary advantage is a significant reduction in magnetic core losses and background acoustic hum. A toroidal coil features a continuous, rounded magnetic pathway without the sharp corner joints found in standard stacked-plate cores. This seamless loop optimizes magnetic flux distribution, keeps core excitation current extremely low, and ensures highly efficient energy transmission with minimal heat dissipation under full continuous loading.
How does FR3 insulating oil improve the safety and environmental profile of a 24.94KV pole transformer?
FR3 insulating oil improves safety by utilizing a natural vegetable-ester base that is fully biodegradable and non-toxic, preventing soil and water contamination in the event of an overhead leak. Furthermore, FR3 possesses a flash point twice as high as traditional mineral oils. This elevated thermal threshold drastically reduces fire or explosion risks during high-voltage line surges, ensuring excellent personnel and property safety.
What are the operational benefits of the passive ONAN cooling method for pole-mounted utility assets?
The main benefit is completely maintenance-free operation and ultimate mechanical reliability. The ONAN (Oil Natural Air Natural) method utilizes the natural convection of the internal insulating oil to pull heat away from the windings and transfer it to the external tank wall, where it is dissipated by ambient air currents. Because there are no mechanical fans or automated pumps to wear out or short circuit, the transformer functions reliably over decades of harsh outdoor exposure.
How does a temperature tolerance of minus 40°C to plus 180°C affect the lifespan of a 100kva single-phase transformer?
This wide temperature tolerance prevents the accelerated degradation of internal insulation materials under extreme seasonal shifts or heavy overload conditions. Overhead transformers experience punishing external climates and internal thermal spikes. By utilizing a high-thermal-stability winding matrix and FR3 fluid rated for this extensive range, the internal dielectric materials retain full tensile and electrical strength, preventing early breakdown and ensuring a long service life.
When should utility procurement managers select copper windings over aluminum for a 100kva overhead line step-down application?
Copper windings should be specified when the installation demands maximum thermal surge resilience, high short-circuit strength, and the smallest possible structural footprint. Copper features superior electrical and thermal conductivity compared to aluminum, allowing it to handle sudden commercial motor start-up overcurrents easily. However, if pole-loading weight constraints are tight and upfront capital expenditure must be minimized, aluminum windings offer an excellent, lightweight, and cost-effective alternative.
