Custom Three-Phase Oil-Type Distribution Transformer Supplier
As a global B2B supplier, rather than a single manufacturer, Instrava’s core value lies in its professional product sourcing.
For distribution transformers, we can customize capacity, voltage, and form factor to suit your project.
As a supplier, all product certifications are met, including CE, UL, and TUV.
Quotation time: 1-3 work days for standard voltage and functional projects; 3-7 work days for special projects (high voltage, customized functions).
Delivery time: 60-90 days (depending on quantity and project requirements).
Transformer Description
Structure of Main Distribution Transformers
Core: The core assembly process—from handling silicon steel to the finished core—is fully automated. Materials used include silicon steel, as well as amorphous alloys, Permalloy, nanocrystalline alloys, soft magnetic ferrites, and iron-aluminum alloys.
Windings: Winding fabrication involves a combination of manual and machine-based processes. Options include copper, aluminum, or copper-aluminum composite materials.
Oil Tank: A critical component for heat dissipation.
Gas Relay: Serves as the primary protection device against internal transformer faults; it is installed in the connecting pipe between the oil tank and the conservator. In the event of a severe internal fault, the relay triggers the circuit breaker trip circuit; for minor internal faults, it activates the fault signal circuit.

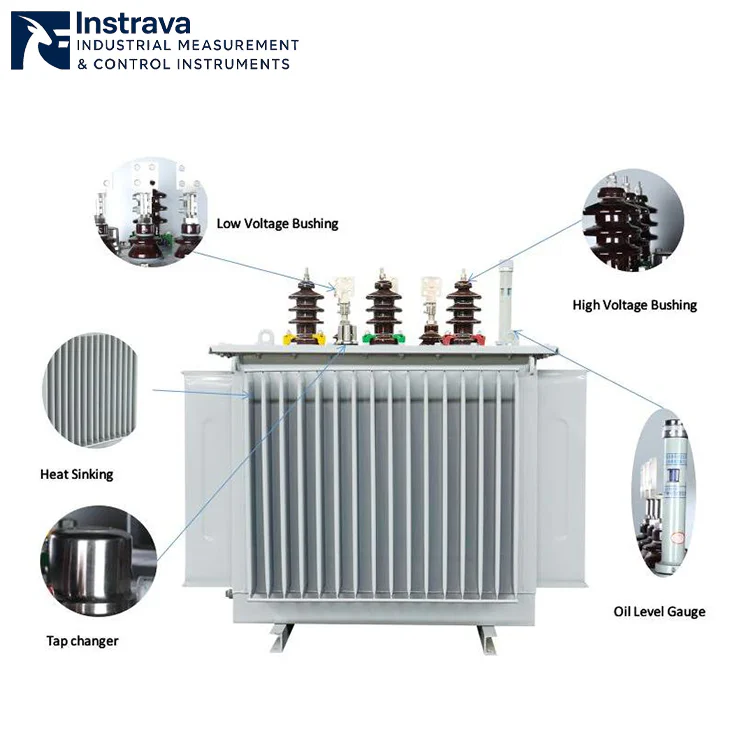

Insulating Bushings: High- and low-voltage bushings are located on the top cover of the transformer tank; oil-immersed transformers typically utilize porcelain bushings. These bushings ensure effective insulation between the high- and low-voltage winding leads and the tank, while also securing the leads in place.
Application Classification of Oil-Immersed Transformers
| Application Category | Typical Product Types | Main Applications |
|---|---|---|
| Power Transmission & Distribution | Distribution Transformers, Step-up Transformers, Step-down Transformers | Power grids, substations, utility power systems, urban power distribution |
| Industrial Power Supply | Industrial Oil-immersed Transformers, Medium Voltage Transformers | Manufacturing plants, mining, steel, cement, chemical, and heavy industries |
| Renewable Energy Applications | Solar Transformers, Wind Power Transformers, Energy Storage Transformers | Solar power plants, wind farms, battery energy storage systems (BESS) |
| Infrastructure Applications | Power Transformers, Distribution Transformers | Airports, railways, ports, urban infrastructure projects |
| Commercial & Building Power Supply | Compact Oil-immersed Distribution Transformers | Commercial buildings, shopping centers, large facilities, building power systems |
| Data Center Power Applications | Medium Voltage Oil-immersed Transformers, Dedicated Distribution Transformers | Data centers, cloud computing facilities, AI computing infrastructure |
| Mining Applications | Mining Transformers, Mobile Transformers | Coal mines, metal mines, open-pit mining operations |
| Oil & Gas Applications | Industrial Transformers, Hazardous Area Transformers | Refineries, oil fields, gas processing plants, offshore platforms |
| Rail Transit Applications | Traction Transformers, Auxiliary Transformers | High-speed rail, metro systems, electrified railway networks |
| Marine & Offshore Applications | Marine Oil-immersed Transformers | Ships, offshore platforms, marine power systems |
| Special Industrial Applications | Rectifier Transformers, Furnace Transformers, Arc Furnace Transformers | Electrolysis plants, electric furnaces, metallurgical industries |
Transformer Parameter
|
Model Number
|
oil immersed transformer
|
|
Phase
|
Three
|
|
Coil Number
|
3
|
|
Usage
|
power
|
|
Coil Structure
|
layer coil
|
|
Rated Primary Voltage
|
11
|
|
Rated Secondary Voltage
|
0.415
|
|
Power
|
100kva
|
|
Rated capacity
|
30-3000kva
|
|
Frequency
|
50/60Hz
|
|
Material
|
Copper/aluminum
|
|
Input Voltage
|
10kv-35kv
|
|
Output Voltage
|
200v/220/240/380v/400v/415v/440v
|
|
Color
|
Grey
|
|
Certification
|
ISO9001
|
|
Winding material
|
100%Copper
|
|
Cooling Method
|
ONAN
|
|
Vector Group
|
Dyn11/Yyn0/Yd11/YNd11
|
| 10kv-35kv Distribution Transformer | ||||||
| Rated Power(kva) | High Voltage(kv) | Low Voltage(kv) | Connection symbol | No-load loss(w) | On-load loss(w) | No load current(%) |
| 400kva | 10kv 11kv 20kv 35kv |
0.4 | Ydn11 Yyn0 |
570 | 4300 | 0.45 |
| 500kva | 680 | 5410 | 0.45 | |||
| 630kva | 810 | 30800 | 0.4 | |||
| 800kva | 980 | 7500 | 0.4 | |||
| 1000kva | 1150 | 10300 | 0.35 | |||
| 1250kva | 1360 | 12000 | 0.3 | |||
| 1600kva | 1640 | 145000 | 0.6 | |||
| 2000kva | 1950 | 19140 | 0.6 | |||
| 2500kva | 2340 | 22220 | 0.5 | |||
