Custom Cast Resin Transformers Manufacturer & Supplier
Purchasing power transformers is a crucial decision, and choosing the right transformer is even more important.
Instrava, a Chinese supplier of power transformers, offers core value by matching manufacturers to your project needs and enabling comparison of products from multiple manufacturers.
Transformer certifications include: IEC, IEEE, CE, UL, GOST, Intertek, ETL, and TÜV Rheinland. The Chinese manufacturing market can meet these certification requirements.
Similarly, customized capacities, voltage levels, and functions can also be accommodated.
Quotation time: 1-3 work days for standard voltage and functional projects; 3-7 work days for special projects (high voltage, customized functions).
Delivery time: 60-90 days (depending on quantity and project requirements).
Transformer Description

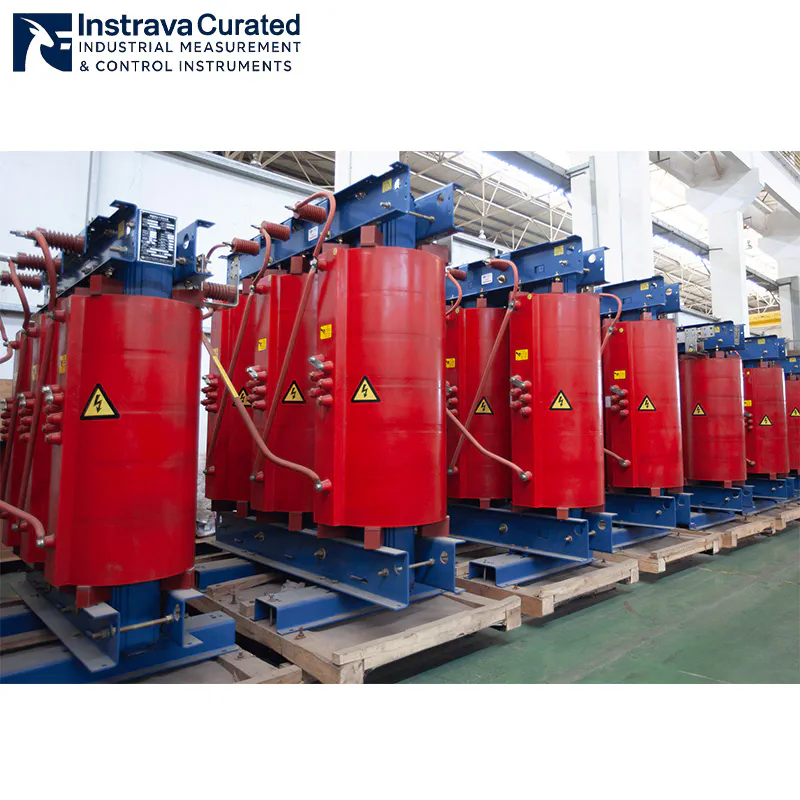

Summary of the structure and characteristics of cast resin dry-type transformers.

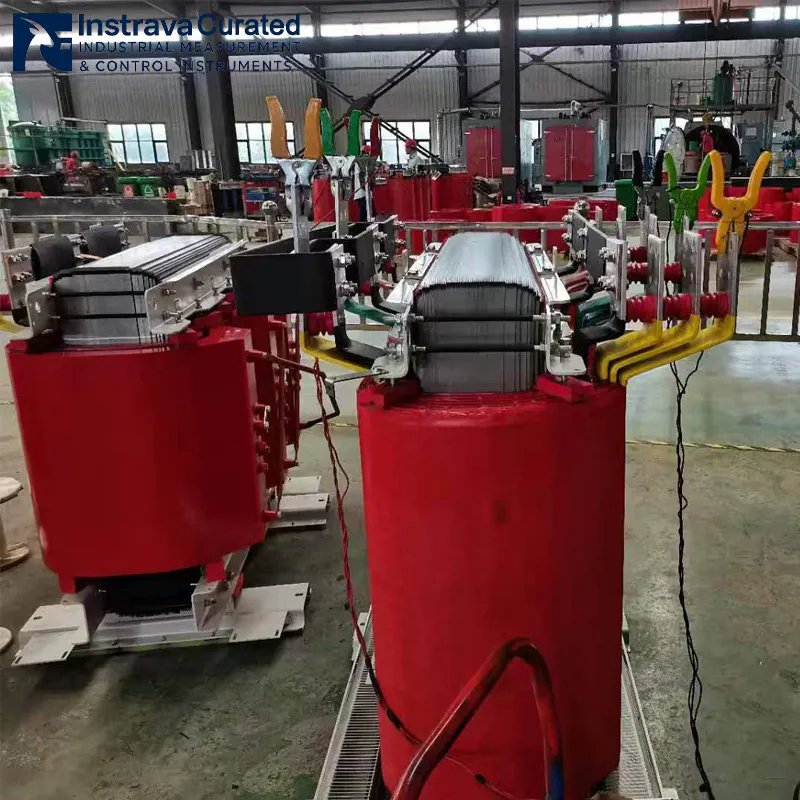

Materials for the top outgoing terminals (HV/LV terminal) of dry-type transformers: The core depends on the current rating, temperature rise requirements, connection method (cable/busbar), cost, and corrosion resistance. Common materials include: copper, aluminum, and copper-aluminum composites (surface treatments: zinc plating, silver plating, nickel plating).
Core: A laminated silicon steel sheet structure (completed using a fully automated lamination machine). Silicon steel sheets come in three types: ordinary cold-rolled grain-oriented silicon steel sheets, high-permeability silicon steel sheets (or high-magnetic-induction silicon steel sheets), and laser-marked silicon steel sheets (different manufacturers have different advantages).
High-voltage windings: commonly cast with epoxy resin (to prevent solid insulation cracking, casting defects, and partial discharge).
Low-voltage windings: typically copper/aluminum foil windings or wire windings.
Insulation system: epoxy resin cured structure (F/H class insulation).
Cooling system: forced air cooling fan (AF).
Dry-type transformer series available
Special dry-type transformer products:
Railway energy feedback transformers
Railway traction rectifier transformers
Railway bidirectional converter transformers
Polycrystalline silicon special transformers
Photovoltaic power generation dry-type transformers
Wind power generation dry-type transformers
Offshore platform dedicated dry-type transformers
Three-phase/single-phase excitation rectifier transformers
Gas-fired power generation starting isolation transformers
Pumped storage input/output transformers
Multi-pulse phase-shifting rectifier transformers
Standard dry-type transformer products:
Dry-type distribution transformers
North American standard series dry-type transformers
Amorphous alloy dry-type transformers
Railway power transformers
Transformer Parameter
| Engineering Parameter | Curated Performance Baselines |
| Product Classification | Solid Epoxy Cast Resin Transformer |
| Rated Power Capacity Range | 300 kVA – 45 MVA |
| Primary Voltage Rating | Up to 72.5 kV |
| Secondary Voltage Rating | Up to 15 kV |
| Basic Impulse Level (BIL) | Up to 350 kV |
| Partial Discharge Performance | $\le 10\text{ pC}$ (Pico-Coulombs) |
| Insulation Core Matrix | Vacuum-Impregnated Self-Extinguishing Epoxy Resin Shell |
| Maintenance Protocol | Low to Zero Preventative Maintenance |
| Thermal Cooling Topographies | Air Natural (AN) with Optional Forced Air (AF) Fan Systems |
| Environmental Adaptability | Moisture-Proof, Anti-Fouling, and Resistant to Corrosive Atmospheres |
Instrava OEM/ODM
Tailored Sourcing & Customization: Getting You the Exact Product You Need
As your trusted supplier and sourcing partner, we bridge the gap between your custom requirements and China’s vast manufacturing capabilities.
Finding the right product in a massive supply chain can be challenging. That is where we step in.
As a curated industrial supplier, our core value is simple: we stand in your shoes to help you procure the most optimal products. Whether you are an EPC contractor needing specialized technical compliance, an OEM equipment manufacturer looking for custom branding, or an industrial distributor/trader seeking competitive edge, we customize and tailor products to fit your exact procurement needs.
How We Customize to Fit Your Procurement Needs
For EPC Contractors & Engineers: We custom-configure instruments and devices to match your precise datasheets—tailoring process connections, exotic materials, signal protocols, and managing third-party calibration and testing so you get project-ready solutions.
For OEM Equipment Manufacturers: We provide comprehensive OEM/ODM customization, including custom housing, labeling, branding (private labeling), and tailored technical specifications to seamlessly integrate with your machinery.
For Industrial Distributors & Traders: We offer flexible customization in packaging, product ranges, and technical parameters, helping you differentiate your portfolio and win more local bids.
Why Partner with Us for Custom Sourcing?
One-Stop Engineering Alignment: You don’t have to deal with multiple factories. We translate your technical requirements into precise manufacturer blueprints.
Strict Quality & Compliance Safeguard: We oversee the entire customization and production process in China, ensuring the final customized product meets your local standards and certifications.
Our Ultimate Value: We don’t just sell what’s on the shelf. We find, customize, and deliver the most suitable and cost-effective product for your unique application.
What is the process for purchasing dry-type transformers from Instrava?
1. Inquiry (We will respond to your inquiry within 24 hours to confirm specifications and initiate the process.)
2. Quotation (Quotation timelines vary based on the project type and your specific requirements. Standard stock items are quoted within one day, while special orders require three days or a mutually agreed-upon timeframe.)
3. Product Selection (We will present 3–5 product options and pricing for your approval. During this stage, we verify the manufacturer’s production capabilities and relevant national certifications.)
4. Contract, Prepayment, and Production (A 40% prepayment is required to initiate production at a qualified facility. For stock items, we promptly arrange for product testing and packaging.)
5. Interim Payment (Upon successful completion of production and quality inspection, the next 50% of the total amount is due. For stock items, this payment is made after packaging is complete.If the transaction amount does not exceed $50,000, the remaining 60% is paid.)
6. Shipment (You may designate a freight forwarder, or we can arrange shipping for you.)
7. Receipt of Goods (Our Quality Guarantee: When your cumulative order value reaches $50,000, you pay the remaining 10% only after receiving and verifying the product quality. We let our quality do the talking.)
8. After-Sales Service (We actively address and resolve issues through both online and offline channels. We place great importance on after-sales support, as it reflects our responsibility and reputation—the foundation of Instrava’s long-term growth.)
What are the advantages of buying dry-type transformers from Instrava suppliers?
Compared to factories, we offer a more objective and impartial assessment of the advantages and disadvantages of our products compared to those from different manufacturers. We provide you with a wider selection of types, ensuring the best cost-effectiveness for your project. Our 3-5% service fee saves you significant time in finding and comparing products.
What types of transformers can I buy from Instrava?
Dry-type transformers, low-voltage small oil-immersed distribution transformers below 35KV, high-voltage transformers above 66KV-220KV (if higher voltage such as 500KV is required, detailed communication is needed), pole-mounted transformers, pad-mounted transformers, box-type transformers, UPS transformers, rectifier transformers, frequency converter transformers and other multi-purpose transformers.
In which scenarios can dry-type transformers be used?
1. High-Density Commercial and Public Buildings
Because they are self-extinguishing and pose zero fire hazard, dry-type transformers can be safely installed indoors and on upper floors of buildings without the need for expensive fireproof vaults or oil-catch basins.
-
Skyscrapers & Office Towers: Placed in basement or mid-floor substations to deliver stable voltage closer to the load centers.
-
Shopping Malls & Exhibition Centers: High-foot-traffic areas requiring maximum fire safety.
-
Hospitals & Medical Centers: Where oil fumes, leaks, or fire hazards cannot be tolerated.
-
Airports, Subways, & Railway Stations: Underground and enclosed transit hubs rely entirely on dry-type systems to ensure passenger safety in case of an electrical fault.
2. Industrial Plants with High Safety & Process Standards
In heavy industry, unexpected downtime or contamination can cost millions. Dry-type transformers thrive in harsh but fire-sensitive environments.
-
Data Centers: Modern AI and cloud infrastructure require massive power densities. Dry-type transformers are placed directly on the server floors to reduce low-voltage cable losses.
-
Automotive & Electronics Factories: Cleanrooms and precision manufacturing lines utilize dry-type transformers to avoid any risk of oil mist contamination.
-
Chemical & Petrochemical Plants: Used in non-hazardous control zones where mitigating fire risk is crucial.
-
Mining & Tunnels: Enclosed spaces where ventilation is limited and smoke from a potential oil fire would be catastrophic.
3. Renewable Energy and Grid Infrastructure
As the world shifts toward green energy, infrastructure components must match the environmental benefits of the source.
-
Wind Power Turbines: Compact cast resin transformers are installed directly inside the tower base or the nacelle because they can withstand vibration and climatic fluctuations without leaking fluid.
-
Solar (PV) Power Plants: Stepping up inverter voltage for grid connection in arid, high-temperature solar farms.
-
Urban Substations: Replacing older oil-filled units in residential areas to eliminate soil and groundwater contamination risks.
4. Marine and Offshore Applications
Salt spray, high humidity, and constant movement create a highly corrosive and stressful environment for electrical gear.
-
Offshore Drilling Platforms & Oil Rigs: Space is premium, and fire at sea is a worst-case scenario. Dry-type units with special anti-corrosion coatings are mandatory here.
-
Commercial Vessels & Cruise Ships: Providing safe power distribution across propulsion and luxury hospitality decks.
How do I choose the right dry-type transformer?
Choosing the right dry-type transformer requires balancing your facility’s electrical load requirements with its environmental conditions. Because dry-type transformers rely on ambient air for cooling rather than oil, matching the transformer specifications to the exact installation environment is critical to preventing premature insulation breakdown.
Here is a step-by-step engineering and procurement guide to selecting the right unit:
1. Determine Key Electrical Specifications
Before looking at environmental features, you must establish the baseline electrical parameters required by your system.
-
KVA Rating (Capacity): Calculate your total connected load and add a safety margin (typically 20-30%) to accommodate future expansion and inrush currents from motors or heavy machinery.
-
Primary and Secondary Voltage: Identify your source voltage (e.g., 11kV, 22kV, 33kV) and the required output voltage for your equipment (e.g., 400V, 415V, 480V).
-
Frequency: Standard frequency is either 50 Hz (common in Europe, Asia, Africa) or 60 Hz (Americas).
-
Phase: Determine if your application requires a Single-Phase or Three-Phase transformer.
2. Choose the Insulation Class and Temperature Rise
Dry-type transformers are rated by their insulation system’s ability to withstand heat. Operating a transformer beyond its thermal limits will rapidly degrade its lifespan.
The industry standards (such as IEC or IEEE) categorize insulation by maximum allowable temperatures:
-
Class F (155°C): Allows for a temperature rise of 100°C over a 40°C ambient atmosphere. This is a highly cost-effective standard for general industrial and commercial indoor applications.
-
Class H (180°C): Allows for a 125°C or 150°C temperature rise. This is the gold standard for heavy-duty industrial environments, data centers, and areas with fluctuating or high ambient temperatures because it offers a larger thermal safety buffer.
3. Select the Manufacturing Technology: Cast Resin vs. VPI
There are two primary ways dry-type transformers are manufactured. Your environmental conditions dictate which one you need.
Cast Resin (Crushed Quartz/Epoxy Encapsulated)
The windings are completely encapsulated in epoxy resin under a vacuum.
-
Best For: Harsh, humid, or highly polluted environments. It prevents moisture absorption entirely.
-
Key Advantages: Heavy-duty short-circuit resistance, self-extinguishing in fire, and near-zero maintenance.
-
Typical Scenarios: High-rise buildings, subways, offshore platforms, chemical plants, and tropical climates.
VPI (Vacuum Pressure Impregnated)
The windings are made with high-temperature insulation tape/sheets and dipped in a polyester varnish under vacuum pressure.
-
Best For: Clean, dry indoor environments with strict budget constraints.
-
Key Advantages: Lower initial cost, lighter weight, and slightly easier to repair in some configurations.
-
Typical Scenarios: Standard indoor commercial electrical rooms, clean manufacturing facilities, and schools.
4. Evaluate the Enclosure Protection Rating (IP Code)
Because dry-type transformers require airflow to cool down, the enclosure must protect the live components from dust and water without choking the ventilation.
-
IP00 (No Enclosure): Suitable only if the transformer is being installed inside an existing, locked, and well-ventilated switchgear cabinet or a dedicated, secure electrical vault.
-
IP20 / IP21: Standard indoor enclosure. Protects against solid objects larger than 12mm (like fingers) but offers no protection against liquid ingress. Ideal for typical commercial building basements.
-
IP23: Offers the same protection as IP20 but adds protection against spraying water (up to 60° from vertical). Used in environments where condensation or occasional dripping might occur.
-
IP31 to IP44: Higher protection levels for dusty or damp indoor industrial spaces. Anything higher usually requires a specialized air-to-air heat exchanger.
5. Factor in Cooling Requirements: AN vs. AF
-
AN (Air Natural): The transformer relies solely on natural air convection. It operates at its baseline 100% rated capacity.
-
AF (Air Forced): The enclosure is fitted with cooling fans. Turning on the fans can increase the continuous power output capability of a cast resin transformer by 25% to 40%.
-
Procurement Tip: Always buy a unit with an AN/AF rating. This allows the transformer to run silently under normal loads (AN) while giving you emergency reserve capacity (AF) during peak demand spikes or summer heatwaves.
What makes the insulation system of a cast resin transformer self-extinguishing during a facility fire?
The insulation system is self-extinguishing because the chemical composition of the premium epoxy resin includes fire-retardant properties that prevent it from acting as a fuel source. If an external arc or building fire compromises the substation, the cast resin shell will resist ignition and will not propagate open flames. Once the external flame source is removed, the epoxy matrix naturally extinguishes itself, eliminating toxic smoke emissions and securing critical safety zones.
