Ethernet-APL Switch Description
Ethernet-APL Universal Media Converter Structure
This Ethernet-APL Universal Media Converter is designed to seamlessly bridge standard Ethernet networks with Single Pair Ethernet (SPE) and Ethernet-APL infrastructure, enabling long-distance industrial communication with transparent protocol transmission.

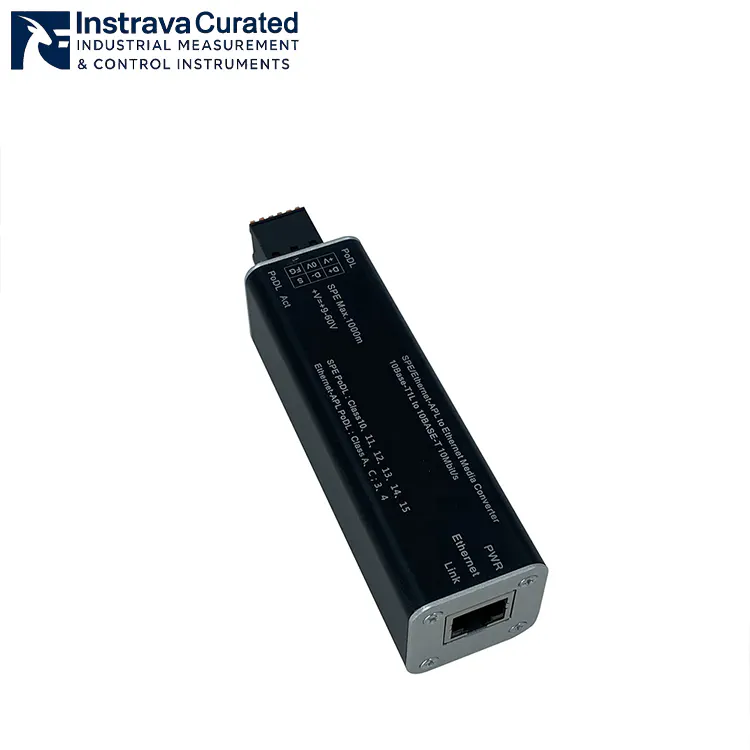

The device integrates one standard RJ45 Ethernet port and one IEEE802.3cg-2019 compliant 10BASE-T1L Ethernet-APL interface, allowing bidirectional transparent conversion between conventional Ethernet and SPE/Ethernet-APL networks. It supports both industrial data transmission and PoDL (Power over Data Line) power delivery over a single twisted pair cable with transmission distances up to 1000 meters.
Unlike conventional industrial media converters, this Ethernet-APL Universal Media Converter is specifically optimized for industrial process automation, Ethernet-APL deployment, and Industry 4.0 migration projects. It supports major industrial Ethernet protocols including PROFINET, MODBUS TCP/IP, EtherNet/IP, EtherCAT, CC-Link IE, and POWERLINK without requiring IP configuration or network topology participation.
Its transparent physical-layer design allows users to treat the converter as a simple cable extension device during network configuration, greatly simplifying engineering deployment and reducing integration complexity.
For further specifications, please refer to the table below.
Various Use Cases for the Ethernet-APL Universal Media Converter

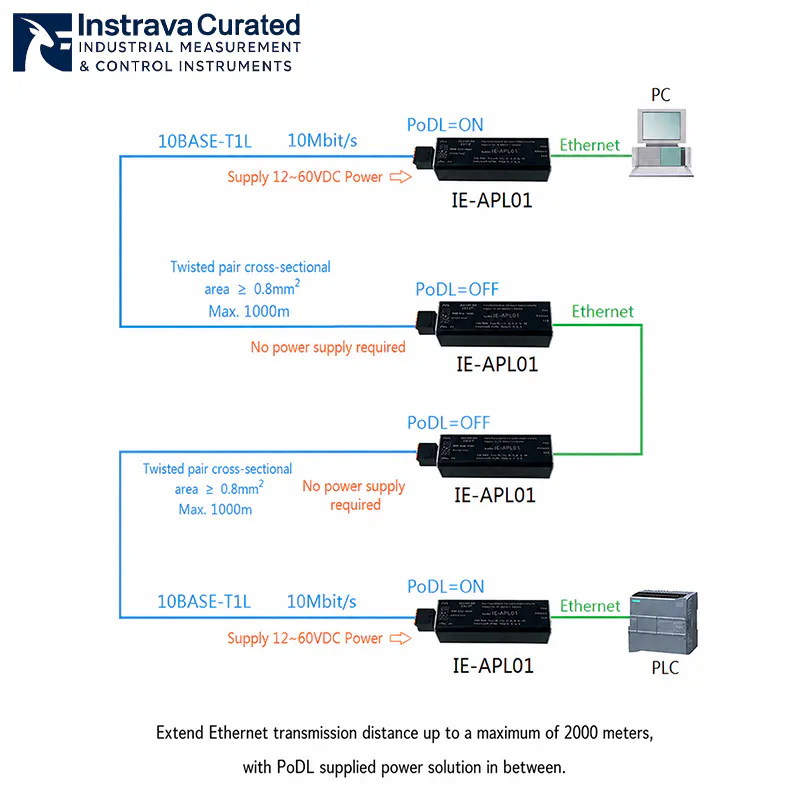

1. As a Single-Pair Ethernet to Standard Ethernet Media Converter: This functions as a physical-layer media converter, enabling transparent, bidirectional data conversion between Single-Pair Ethernet and standard Ethernet. It supports all industrial Ethernet upper-layer protocols—such as PROFINET, MODBUS TCP/IP, Ethernet/IP, EtherCAT, CC-Link IE, and POWERLINK. During network software topology configuration, the device does not need to be included as a communication node; it can simply be treated as a cable, and as a transparent-mode switch, it requires no IP address.

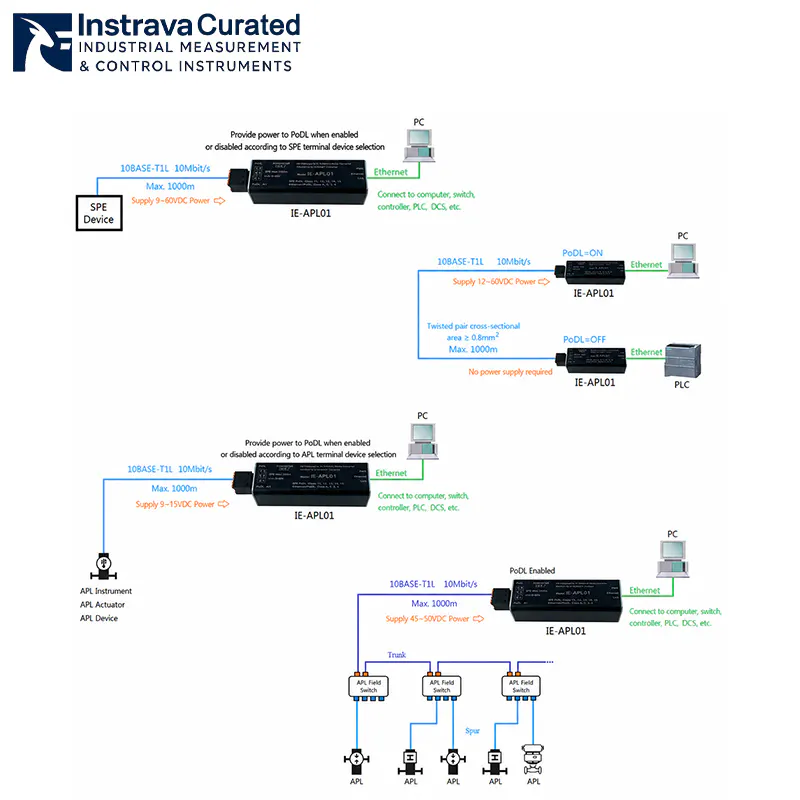

2. As an Ethernet-APL to Standard Ethernet Media Converter (Functioning as a Single-Port APL Field Switch): This acts as a single-port APL field switch with auxiliary power supply. Its APL port serves as a “Spur” interface, providing point-to-point connectivity for field APL devices (instruments, sensors, actuators, etc.). In this mode, the device operates on 12 VDC (range: 9–15 VDC), supports PoDL power classes A and C, and delivers a PoDL output power of ≥1.1 W at the APL interface. The standard uplink Ethernet port connects to various controllers, switches, PLCs, DCS units, computers, and more. It is highly convenient for commissioning APL devices.
For further product information, please refer to the manual below.
Ethernet-APL Switch Parameter
| Parameter Category | Item | Specification |
|---|---|---|
| Standard Ethernet Port | Interface Type | 1 × RJ45 Ethernet port |
| Ethernet Standard | IEEE802.3, 10BASE-T | |
| Transmission Speed | 10Mbit/s | |
| Auto MDI/MDI-X | Supported | |
| Max Distance | 100m via Cat.5 cable | |
| SPE / Ethernet-APL Port | Interface Type | 5.08-3Pin pluggable spring terminal |
| Ethernet Standard | IEEE802.3cg-2019, 10BASE-T1L | |
| Communication Mode | 10Mbit/s full duplex | |
| Transmission Medium | Single pair twisted cable | |
| Cable Size | 26AWG–14AWG | |
| Max Transmission Distance | Up to 1000m | |
| Signal Voltage | Default Vpp = 1.0V | |
| PoDL Support | Supported | |
| SPE PoDL Classes | Class 10–15 | |
| Ethernet-APL Power Classes | A, C, 3, 4 | |
| Supported Protocols | PROFINET, MODBUS TCP/IP, EtherNet/IP, EtherCAT, CC-Link IE, POWERLINK | |
| Protection | Surge Protection | IEC61000-4-5 |
| ESD Protection | IEC61000-4-2 | |
| EFT Protection | IEC61000-4-4 | |
| Isolation Voltage | 1500VDC | |
| Power Supply | Input Voltage | 9–60VDC |
| Reverse Polarity Protection | Supported | |
| Power Consumption | Without PoDL | ≤1W |
| Environment | Protection Rating | IP20 |
| Operating Temperature | -20°C to +75°C | |
| Mechanical | Dimensions | 120 × 32 × 32 mm |
| Weight | 100g | |
| Installation | DIN35mm rail mounting |
