Hall Current Transmitter AC 0–20A to 4–20mA RS485
Instrava Curated Instruments — Precision Hall-Effect Current Measurement for Modern Industry
At Instrava, we go beyond simply supplying instruments. Through our Curated Instruments approach, every Hall current transmitter is carefully selected from trusted manufacturers to ensure exceptional accuracy, electrical isolation, and long-term reliability.
Designed for demanding industrial environments, this Hall effect AC current transmitter converts direct AC current signals into standardized analog or digital outputs for seamless integration with automation, energy management, and smart monitoring systems.
With our Optimized Solutions philosophy, we help customers select and deploy the right current sensing technology for real-world operating conditions—improving measurement accuracy, system safety, and operational efficiency.
Power Monitoring & Control Description
High-Accuracy Hall Current Transmitter for AC Current Measurement
This Hall current transmitter AC 0–20A 4–20mA RS485 uses advanced Hall-effect sensing technology to directly measure AC current without requiring a traditional current transformer.
Key Features & Benefits
- Hall-Effect Non-Contact Measurement
Provides safe, accurate current sensing with excellent electrical isolation. - Wide Input Range
Supports AC current measurement from 0–20A up to 0–1000A, suitable for diverse industrial applications. - High Precision Performance
Delivers ±0.1% full-scale accuracy with outstanding linearity of 0.1%. - Multiple Output Options
Available outputs include:- 4–20mA
- 0–10V
- 20–4mA
- RS485 Modbus (optional)
- Fast Dynamic Response
Response time of ≤10ms for real-time monitoring and control.
Typical Applications
- Motor current monitoring
- Industrial automation systems
- Power distribution panels
- Renewable energy systems
- Battery energy storage systems (BESS)
- Data centers and intelligent buildings
Reliable Isolation, Flexible Installation, and Smart System Integration
This Hall effect current transducer with RS485 output is designed for harsh industrial environments where safety, reliability, and communication are critical.
Advanced Performance Highlights
- Excellent Isolation Protection
Isolation withstand voltage up to 3kV/50Hz for 1 minute, ensuring safe signal transmission. - Transformer-Free Design
Direct measurement eliminates the need for external current transformers, reducing installation complexity and cost. - Flexible Mounting Options

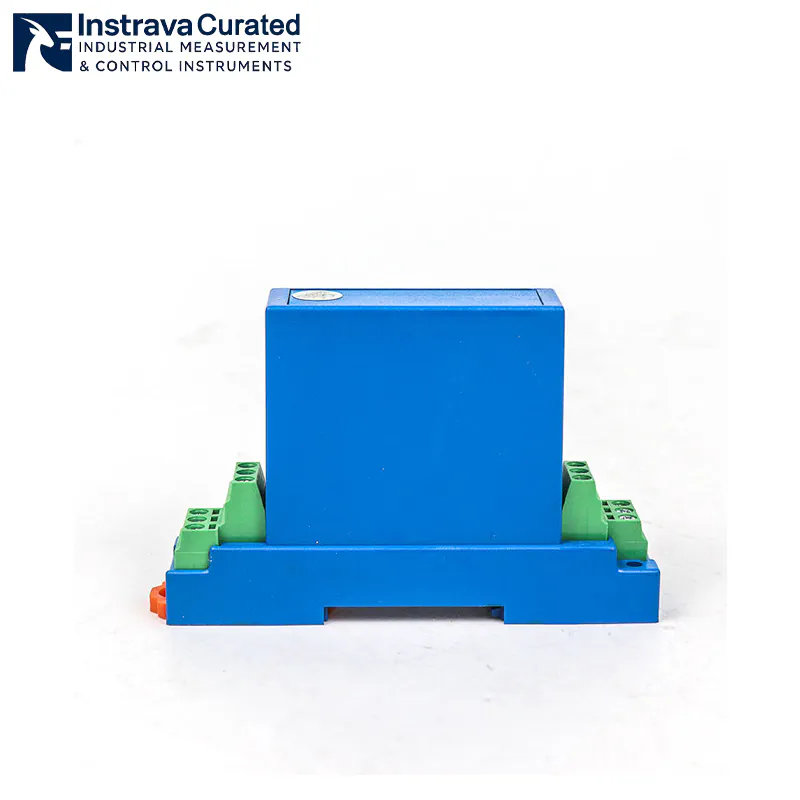

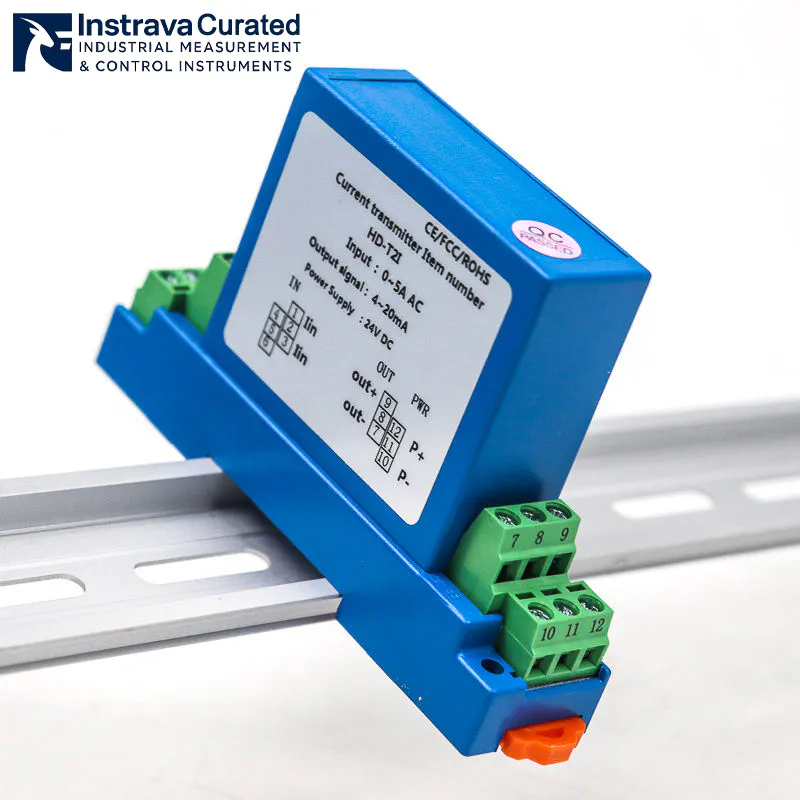

Supports both:- 35mm DIN rail mounting
- Flat screw installation
- Compact and Lightweight
Net weight of only 66g, ideal for compact control panels. - Wide Operating Temperature Range
Reliable operation from -10°C to +70°C.
Smart Integration Capabilities
- Compatible with PLC, SCADA, DCS, and IoT platforms
- Optional RS485 Modbus RTU communication
- Supports AI-driven predictive maintenance and energy analytics
Power Monitoring & Control Parameter
| Parameter | Specification |
|---|---|
| Input Current Range | 0–20A to 0–1000A AC |
| Output Signal | 4–20mA, 0–10V, 20–4mA, RS485 (optional) |
| Accuracy | ±0.1% F.S. (25°C ±2°C) |
| Linearity | 0.1% |
| Response Time | ≤10ms |
| Output Load Capacity | ≤500Ω |
| Hole Size | 35mm |
| Power Supply | DC 12V, DC 24V, AC 220V |
| Isolation Voltage | 3kV / 50Hz / 1min |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -20°C to +60°C |
| Installation | 35mm DIN Rail or Screw Mount |
| Net Weight | 66g |
Instrava OEM/ODM
Tailored Sourcing & Customization: Getting You the Exact Product You Need
As your trusted supplier and sourcing partner, we bridge the gap between your custom requirements and China’s vast manufacturing capabilities.
Finding the right product in a massive supply chain can be challenging. That is where we step in.
As a curated industrial supplier, our core value is simple: we stand in your shoes to help you procure the most optimal products. Whether you are an EPC contractor needing specialized technical compliance, an OEM equipment manufacturer looking for custom branding, or an industrial distributor/trader seeking competitive edge, we customize and tailor products to fit your exact procurement needs.
How We Customize to Fit Your Procurement Needs
For EPC Contractors & Engineers: We custom-configure instruments and devices to match your precise datasheets—tailoring process connections, exotic materials, signal protocols, and managing third-party calibration and testing so you get project-ready solutions.
For OEM Equipment Manufacturers: We provide comprehensive OEM/ODM customization, including custom housing, labeling, branding (private labeling), and tailored technical specifications to seamlessly integrate with your machinery.
For Industrial Distributors & Traders: We offer flexible customization in packaging, product ranges, and technical parameters, helping you differentiate your portfolio and win more local bids.
Why Partner with Us for Custom Sourcing?
One-Stop Engineering Alignment: You don’t have to deal with multiple factories. We translate your technical requirements into precise manufacturer blueprints.
Strict Quality & Compliance Safeguard: We oversee the entire customization and production process in China, ensuring the final customized product meets your local standards and certifications.
Our Ultimate Value: We don’t just sell what’s on the shelf. We find, customize, and deliver the most suitable and cost-effective product for your unique application.
What is a Hall current transmitter AC 0–20A to 4–20mA RS485?
A Hall current transmitter is a device that uses Hall effect sensing technology to measure AC current in the range of 0–20A and convert it into standardized output signals such as 4–20mA and RS485 (Modbus).
It provides electrically isolated, real-time current data for monitoring and control systems, making it suitable for industrial automation and data center power monitoring applications.
How does a Hall effect current transmitter work?
A Hall current transmitter detects the magnetic field generated by the AC current flowing through a conductor. The Hall sensor converts this magnetic field into a proportional electrical signal, which is then conditioned and output as 4–20mA or digital communication data via RS485.
This non-contact measurement method ensures high safety, isolation, and reliability.
What are the advantages of using a Hall current transmitter over traditional CT-based solutions?
Hall current transmitters offer several advantages:
- Direct signal output (4–20mA and RS485), no need for additional conversion
- Better electrical isolation and safety
- Compact design and easier installation
- Capability to measure low currents with high accuracy
- Support for digital communication and remote monitoring
These features make them ideal for modern, data-driven monitoring systems.
Where are Hall current transmitters commonly used?
Typical applications include:
- Data center power distribution and rack-level monitoring
- Industrial automation systems
- Building energy management systems (BMS)
- Renewable energy systems and electrical panels
They are particularly useful in environments requiring real-time monitoring and system integration.
What is the benefit of having both 4–20mA and RS485 outputs?
Dual output provides flexibility for different systems:
- 4–20mA: Reliable, noise-resistant signal for PLC/DCS systems
- RS485 (Modbus): Digital communication for SCADA, DCIM, and cloud platforms
This allows the transmitter to support both traditional control systems and modern data-driven monitoring infrastructures.
How do Hall current transmitters improve power monitoring in AI data centers?
In AI data centers, Hall current transmitters provide accurate, real-time current data at multiple points in the power distribution system. This enables:
- Load monitoring and balancing across GPU clusters
- Early detection of abnormal current conditions
- Energy usage analysis and optimization
- Integration with DCIM and AI-based energy management systems
These capabilities help improve reliability, efficiency, and overall infrastructure performance.
