Power Monitoring & Control Description
Smart Insulation Monitoring for Critical AC/DC Power Networks
This IMD Insulation Monitoring Device is engineered for continuous insulation monitoring in ungrounded AC/DC IT systems up to 1000Vac/dc, delivering highly reliable fault detection for modern industrial and energy infrastructures.
By injecting a safe ±15V pulsed measurement signal into the system, the device continuously evaluates insulation resistance and rapidly identifies system-to-ground insulation faults before they escalate into equipment failure, electrical hazards, or costly downtime.
Designed for mission-critical environments including battery energy storage systems (BESS), EV charging stations, renewable energy systems, industrial automation, and transportation electrification, this intelligent insulation monitoring relay combines real-time fault detection, programmable alarm logic, RS485 Modbus communication, and optional CANbus connectivity for seamless integration into smart monitoring platforms and digital energy systems.
Its dual independently configurable alarm thresholds, programmable DI/DO interfaces, and advanced DC offset monitoring capability make it an ideal insulation monitoring solution for next-generation intelligent power infrastructures.
Key features
Supports insulation monitoring for unearthed (IT) systems up to 1000V AC/DC
Detects single-pole insulation faults in DC systems
Monitors insulation-to-ground in AC systems
Automatically adapts to system-to-ground capacitance up to 20μF
Features two independently configurable alarm thresholds
Provides real-time alarm notifications via LED indicators and relay outputs
Includes programmable alarms for voltage limit violations
Supports up to 8 configurable alarm strategies
Incorporates DC bias monitoring to enhance system diagnostics
Supports manual or automatic alarm reset functions
Compared to traditional insulation relays, this intelligent insulation monitoring device (IMD) offers greater flexibility and more intuitive diagnostic data for distributed power architectures.
Utilizing adaptive pulse measurement technology, it ensures accurate insulation resistance measurement even amidst the fluctuating system-to-ground capacitance often encountered in electric vehicle (EV) charging systems, energy storage systems, and renewable energy applications.

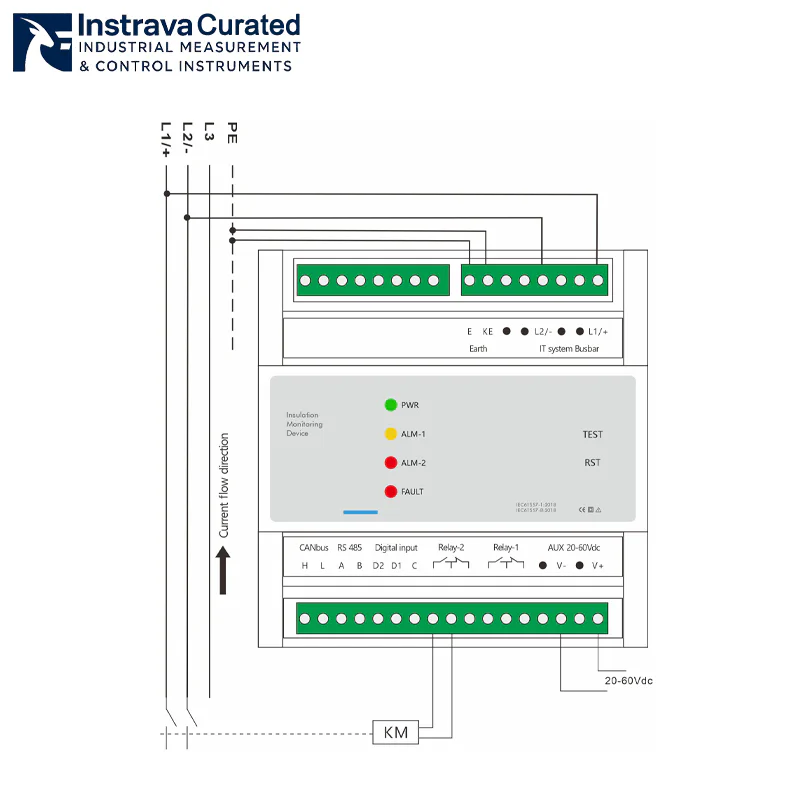

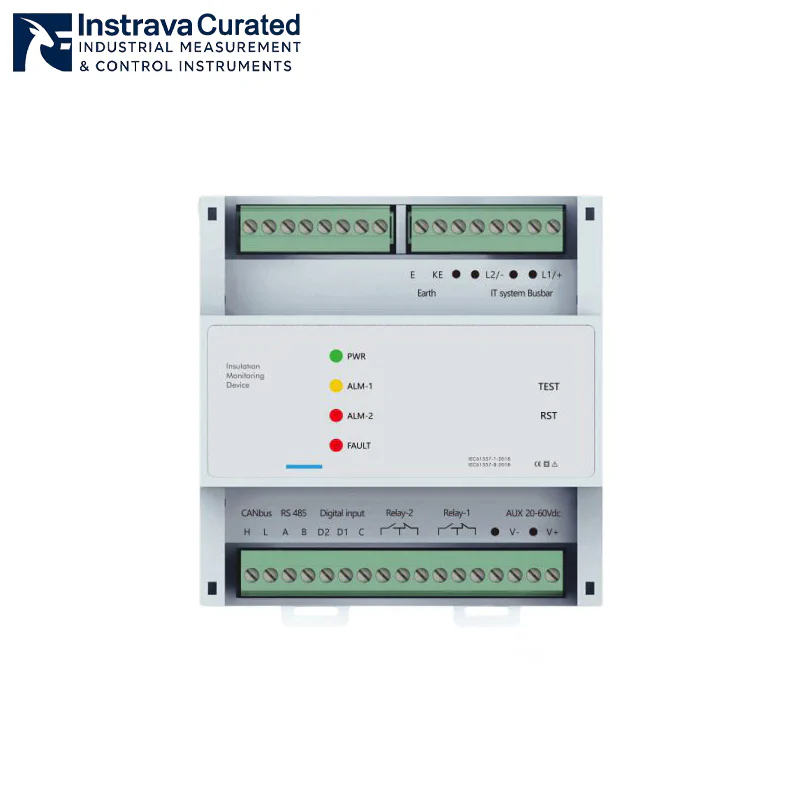

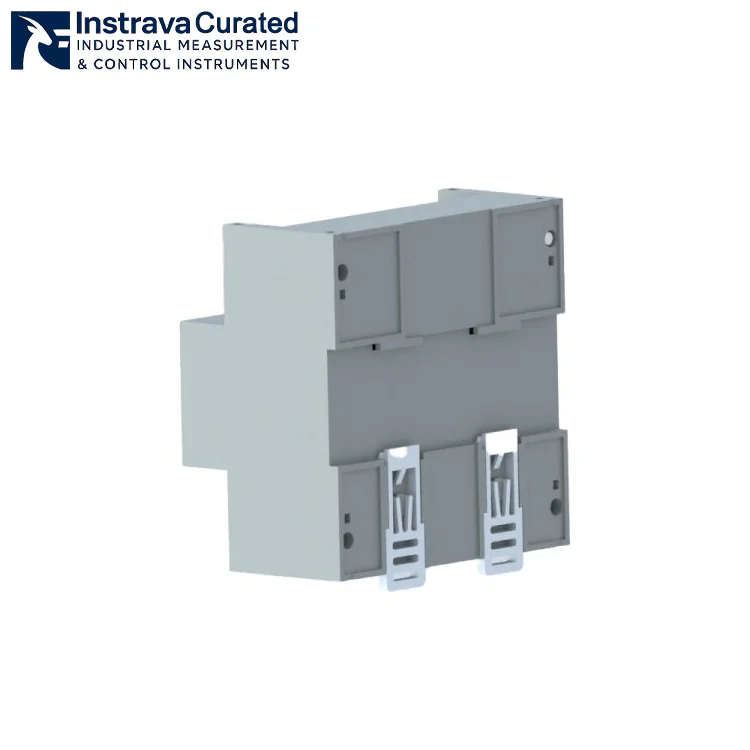

The device features a compact DIN-rail mount design, facilitating rapid integration into switchgear, industrial control cabinets, and smart energy management systems.
Power Monitoring & Control Parameter
| Parameter | Specification |
|---|---|
| Product Type | IMD Insulation Monitoring Device |
| System Type | Unearthed AC/DC IT Systems |
| Nominal System Voltage | 0…1000Vac/dc |
| Supply Voltage | 20–60VDC |
| Power Consumption | ≤5W |
| Frequency Range | 40–65Hz |
| Insulation Resistance Measurement Range | 0–30MΩ |
| Injection Measuring Voltage | ±15V |
| Injection Measuring Current | <100µA |
| Permissible Leakage Capacitance | ≤20μF |
| Alarm Thresholds | Two Independently Configurable |
| Alarm Outputs | 2 × SPDT Relay |
| Relay Load Capacity | 5A@250VAC |
| Digital Inputs | 2 × DI for Reset/Test |
| Voltage Alarm Function | Supported |
| DC Offset Monitoring | Supported |
| Alarm Functions | Up to 8 Configurable Modes |
| Reset Mode | Manual / Automatic |
| Communication Interface | RS485 |
| Communication Protocol | Modbus RTU |
| Optional Communication | CANbus |
| Installation Method | 35mm DIN Rail Mounting |
| Operating Temperature | –40°C ~ 85°C |
| Storage Temperature | –40°C ~ 85°C |
| Humidity | 5–95%RH |
| Dimensions | 108 × 110 × 66 mm |
| Standards | IEC 61557-1:2018 / IEC 61557-8:2018 |
