IDC / AI Data Center Monitoring System

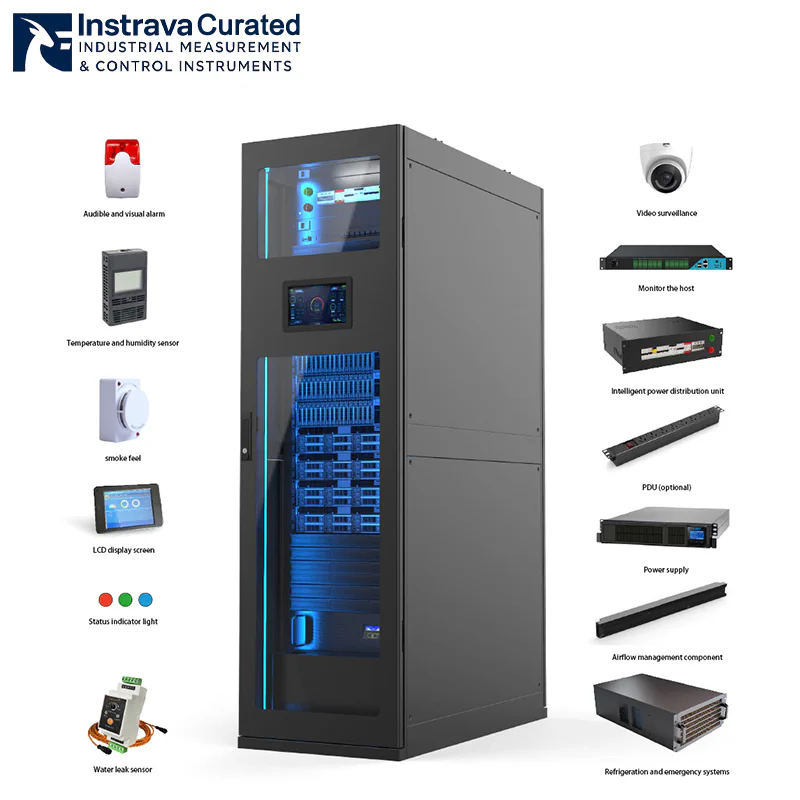

Instrava curated instruments deliver a new generation IDC / AI Data Center Monitoring System designed for modern intelligent infrastructure, edge computing environments, and high-density AI server deployments. Combining smart environmental monitoring, intelligent security management, energy-efficient cooling architecture, and real-time remote operation capabilities, this integrated solution helps operators improve uptime, reduce operational risks, and optimize data center energy consumption.
Built with an all-in-one modular architecture, the system supports rapid deployment through factory prefabrication, pre-assembly, and pre-commissioning, significantly reducing onsite engineering time and installation complexity. The closed hot and cold aisle containment design improves cooling efficiency while achieving low PUE performance ≤1.3, making it ideal for AI data centers, modular IDC facilities, edge computing cabinets, telecom rooms, and intelligent server infrastructure.
The intelligent touch screen interface enables operators to monitor equipment operating parameters in real time, while smart electronic locks support remote access control through fingerprint, password, card, and remote authorization methods. Combined with intelligent ambient lighting and instant alarm notifications, the system creates a highly visualized, secure, and energy-efficient AI data center monitoring environment.
Power Monitoring & Control Description
Intelligent Environmental Control & Energy-Efficient AI Data Center Operation
The IDC / AI Data Center Monitoring System is engineered to provide comprehensive monitoring and efficient thermal management for modern AI computing environments. Through enclosed hot and cold aisle technology, the system effectively isolates airflow, reduces cooling loss, and improves overall thermal efficiency for high-density server cabinets.
Integrated intelligent lighting management dynamically changes ambient light colors according to internal temperature, humidity, or safety conditions, allowing maintenance teams to quickly identify abnormal operating conditions visually. Emergency front and rear cooling fans automatically assist heat dissipation during high-temperature events, helping delay overheating risks and improve system reliability.
Key operational advantages include:
- Real-time AI data center environmental monitoring
- Closed aisle containment for optimized cooling efficiency
- Low PUE design for energy-saving operation
- Intelligent temperature and humidity visualization
- Emergency heat dissipation protection
- Reduced maintenance workload and faster fault identification
- Improved uptime for critical AI computing infrastructure
This smart AI infrastructure monitoring solution is particularly suitable for hyperscale data centers, modular micro data centers, telecom edge cabinets, cloud computing facilities, and industrial AI server rooms.
Smart Security Management & Rapid Modular Deployment

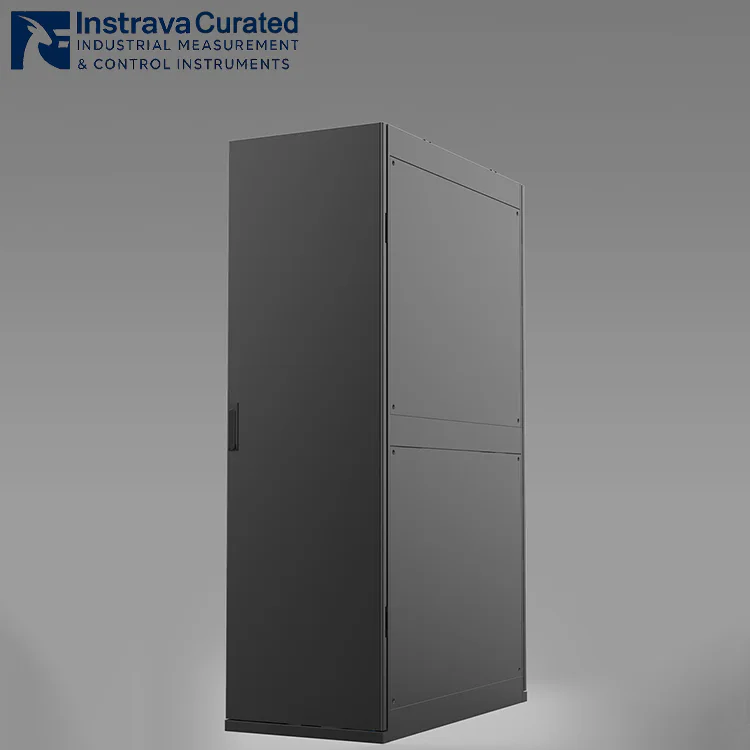

Designed for fast deployment and simplified operation, the system adopts an integrated modular cabinet architecture where each cabinet functions as an independent complete monitoring system. Multiple cabinets can be flexibly expanded side by side, supporting scalable AI data center growth and distributed edge computing applications.
The factory-integrated delivery model includes prefabrication, pre-installation, and pre-commissioning, greatly shortening project deployment cycles while minimizing onsite construction requirements. This overall system delivery approach helps avoid compatibility issues between different subsystems and ensures stable long-term operation.
The smart electronic lock system enhances data center physical security through multiple access methods including:
- Remote authorization access
- RFID card authentication
- Fingerprint recognition
- Password protection
- Multi-level intelligent access management

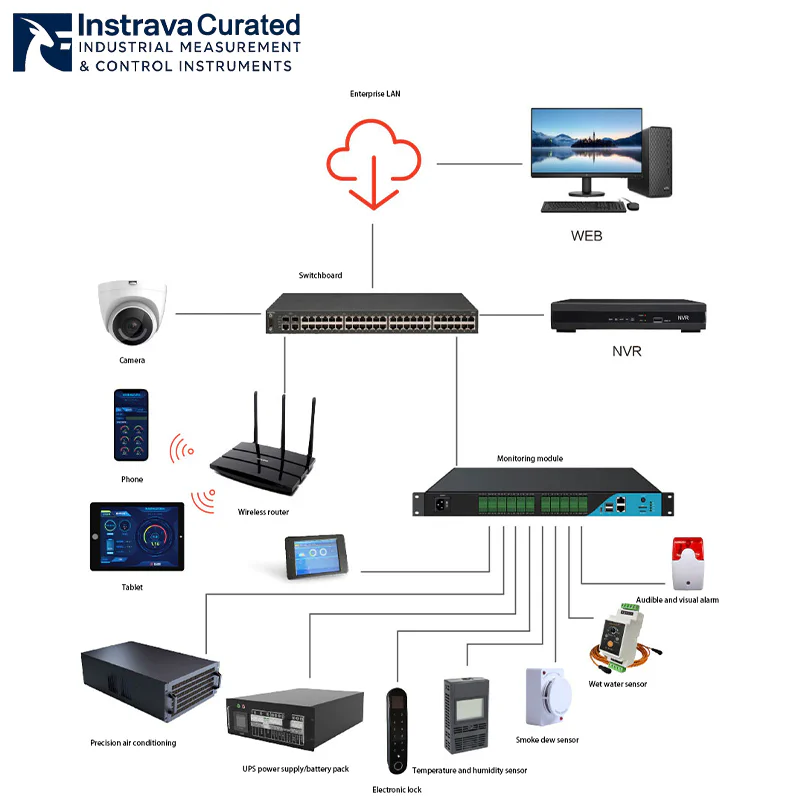

With remote monitoring functionality, operation and maintenance personnel can view cabinet status, environmental data, alarms, and equipment operating conditions in real time from centralized management platforms, enabling faster troubleshooting and predictive maintenance.
The highly customizable architecture also allows flexible configuration according to specific AI server loads, cabinet layouts, power distribution requirements, and cooling demands.
Power Monitoring & Control Parameter
| Specification | Integrated Rack X1 | Integrated Rack X1 IT Rack X1 | Integrated Rack X1 IT Rack X2 | Integrated Rack X1 IT Rack X3 | ||||
| Item No. | INDCA/B-16220-10403 | INDCA/B-26220-10403 | INDCA/B-26220-10406 | INDCA/B-36220-10406 | INDCA/B-26220-20810 | INDCA/B-46220-20810 | INDCA/B-46220-21215 | |
| Rack System | Rack Quantity | 1 | 2 | 2 | 3 | 3 | 4 | 4 |
| Expansion Method | All racks can be installed side by side, and the racks at both ends are equipped with side panels | |||||||
| Configurable Power | 2.4KW | 2.4KW | 4.8KW | 4.8KW | 8KW | 8KW | 12KW | |
| Rack System Size | 600*1200*2000mm | 1200*1200*2000mm | 1800*1200*2000mm | 2400*1200*2000mm | ||||
| Rack Front Door | DCA: A single piece of steel is cut out for installation of monitoring screens and tempered glass; DCB: A whole piece of tempered glass with openings for the installation of the monitoring screen, with metal plate decoration on both sides | |||||||
| Rear Door | Standard configuration: Steel plate door; dual-open steel door or dual-open mesh door for optional | |||||||
| Rack Lock | Standard configuration: mechanical lock; Electrical lock and smart lock for optional | |||||||
| Rack wheel&feet | No configuration; Rack wheel&feet for optional | |||||||
| LED Light | There are three primary colors of red, green and blue RGB variable atmosphere lights on both sides of the front of the rack, and the top lighting of the rack is automatically switched after the door is opened. | |||||||
| Powe Distribution System | Input | AC220V | AC380V | |||||
| Input Master Switch | 63A/2P | 63A/2P | 63A/2P | 63A/2P | 63A/2P | 63A/2P | 40A/4P | |
| Lightning protection level | 20KA/2P | 20KA/2P | 20KA/2P | 20KA/2P | 20KA/2P | 20KA/2P | 20KA/4P | |
| PDU | Input current: 32A; output: 10-digit GB 10A+4-digit GB 16A; with junction box (For optional) | |||||||
| Air Conditioning System | Cooling Capacity | 3.5KW | 7KW | 12.5KW | ||||
| Emergency Settings | Front and rear top emergency ventilation system, (automatic pop-up door device can be selected with access control) | |||||||
| Wind Circulation | The wind comes first; the return wind comes after | |||||||
| UPS | UPS Capacity | 3KVA | 6KVA | 10KVA | 15KVA | |||
| Input Voltage | AC220V | AC380V | ||||||
| Input Wiring | Single in and single out | 3P+N wire + ground wire | ||||||
| Battery Capacity | 72V*9AH | 192V*7AH | 192V*9AH | External battery, for optional | ||||
| Backup time | 5-10 minutes for full load | |||||||
| Battery Installation | UPS built-in battery | |||||||
| Dynamic Environmental Monitoring System | Monitor Host | 5*485 ports, 2*232 ports, 2*network ports, 128M memory, 4G storage, 12*DI, 4*DO | ||||||
| Monitoring Screens | Android tablet, 10.1″ touch screen, 1280*800 | |||||||
| Web Access | Web remote monitoring access function avaliable | |||||||
| Temperature&Humidity Sensor | Same as number of racks | |||||||
| Smoke Sensor | Same as number of racks | |||||||
| Water Immersion Sensor | Same as number of Air Condition | |||||||
| Video Surveillance | No configuration; Video surveillance for optional | |||||||
| SMS Alarm | No configuration; SMS Alarm for optional | |||||||
| APP | No configuration; APP for optional | |||||||
| Fire Fighting System | Aerosol Fire Extinguishing Device | No configuration; Aerosol fire extinguishing device for optional | ||||||
Instrava OEM/ODM
Reliable Instruments. Solutions That Fit Your Application.
Instrava is focused on delivering reliable industrial solutions through carefully curated products, application-driven optimization, and flexible customization. We select proven instruments from trusted manufacturers to ensure consistent quality, optimize solutions based on real working conditions to solve practical challenges, and provide tailored configurations to meet specific application needs.
By combining selection expertise with application understanding, Instrava helps customers reduce risk, improve efficiency, and achieve dependable results in complex industrial environments.
Instrava design the right path to digitalize your operations — from legacy instruments to connected, data-driven systems.
What is an IDC / AI Data Center Monitoring System?
An IDC / AI Data Center Monitoring System is an integrated infrastructure management solution that combines power monitoring, environmental sensing, cooling control, and security access into a unified platform. It enables real-time visibility of IT equipment, racks, and environmental conditions such as temperature, humidity, airflow, and power usage. The system is designed for modern AI and edge computing environments where uptime, efficiency, and automation are critical. Through centralized monitoring and intelligent alerts, operators can quickly detect anomalies, reduce manual intervention, and ensure stable data center performance.
How does the system improve energy efficiency and reduce PUE?
The system is engineered with closed hot and cold aisle containment and intelligent cooling coordination to significantly improve airflow efficiency. By isolating hot and cold air streams, cooling waste is minimized and thermal balance is optimized. Combined with real-time environmental monitoring and adaptive fan control, the infrastructure can dynamically adjust cooling output based on load conditions. This design helps data centers achieve ultra-low energy consumption levels with PUE values as low as ≤1.3, making it suitable for high-density AI computing environments.
What intelligent monitoring and alarm functions are included?
The platform provides all-round monitoring of key operational parameters including power distribution, temperature, humidity, smoke detection, and device status. It features real-time data visualization through a built-in touch screen interface and remote dashboard access. When abnormal conditions occur, the system triggers immediate visual, audible, and remote alarms. Smart lighting indicators also change color based on environmental risk levels, allowing operators to identify issues instantly without checking complex dashboards, improving response speed and operational safety.
How does the smart security and access control system work?
The IDC system integrates a smart electronic lock with multiple authentication methods including password entry, RFID card access, fingerprint recognition, and remote authorization. This ensures secure and flexible access management for different operational roles. Administrators can monitor and control access permissions remotely, reducing the risk of unauthorized entry. Combined with real-time activity logs, the system provides full traceability of cabinet access events, enhancing both physical security and compliance management in critical data center environments.
What makes this system easy to deploy and maintain?
The solution adopts an all-in-one prefabricated and pre-tested design, integrating infrastructure components before delivery. This eliminates complex on-site engineering and significantly reduces installation time. Each cabinet functions as a self-contained system that can be quickly deployed and expanded side by side as demand grows. Remote monitoring capabilities allow operators to check system status, diagnose issues, and perform maintenance without physical presence, greatly reducing operational costs and improving maintenance efficiency.
Can the system be customized for different data center requirements?
Yes, the system supports full customization based on project requirements, including cabinet size, monitoring modules, cooling configuration, and access control options. It is designed for scalability, making it suitable for AI computing clusters, edge data centers, and modular IDC deployments. Additional features such as smart ambient lighting, emergency heat dissipation fans, and advanced sensor integration can be tailored to specific operational environments. This flexibility ensures compatibility with diverse infrastructure strategies and future expansion needs.
