Intelligent DC Insulation Monitoring for Critical Power Safety

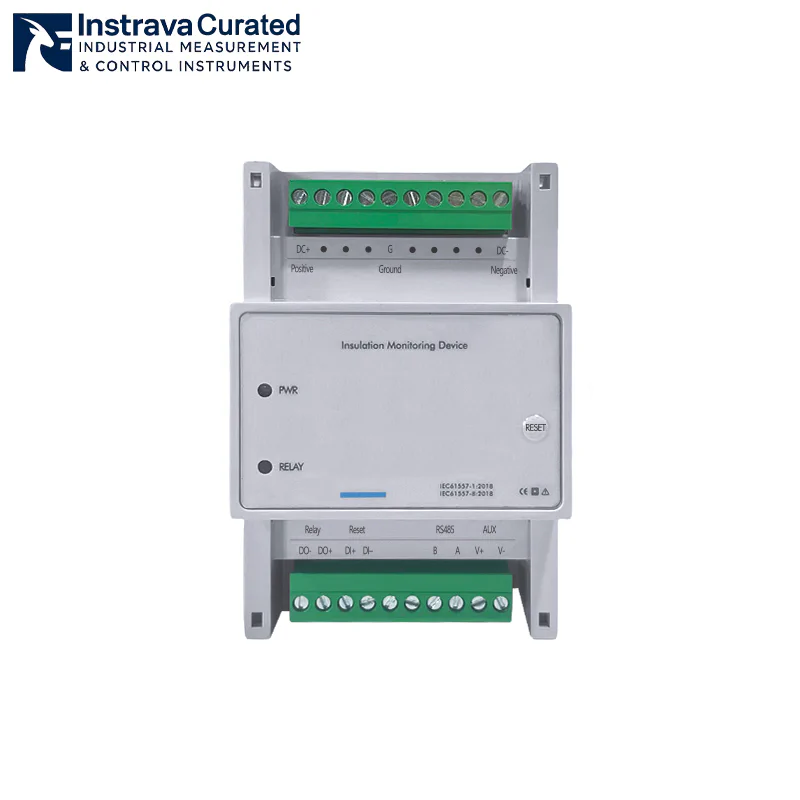

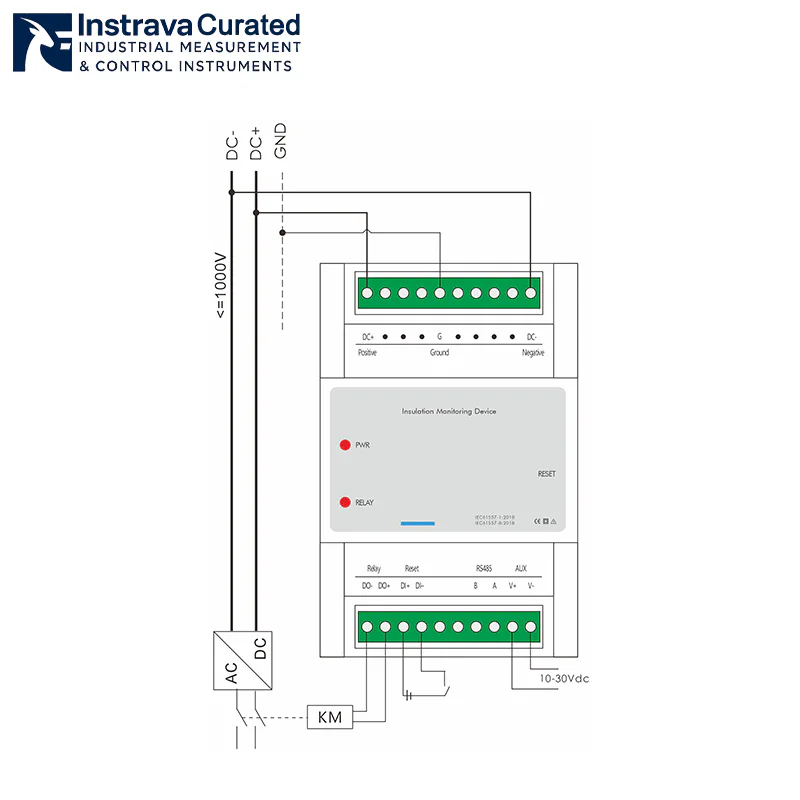

This Insulation Monitoring Device is specifically designed for continuous insulation monitoring in unearthed (IT) DC systems from 100V to 1000VDC, helping operators detect insulation degradation before it develops into dangerous ground faults, equipment damage, or unexpected downtime.
Built for demanding industrial and energy applications, the device provides real-time monitoring of positive and negative pole insulation resistance to ground, ensuring fast fault detection and enhanced electrical safety across EV charging systems, energy storage systems, rail transit, substations, and medical isolated power networks.
With automatic adaptation to system leakage capacitance up to 5μF, configurable alarm logic, and integrated RS485 Modbus RTU communication, this DIN rail insulation monitoring relay enables seamless integration into smart power monitoring systems, SCADA platforms, and remote industrial automation architectures.
Whether deployed in battery energy storage systems (BESS), EV/HEV charging stations, or mission-critical DC distribution systems, the device helps engineers achieve higher operational reliability, predictive maintenance capability, and safer digitalized power management.
Advantages
Continuous insulation monitoring for 100V–1000V unearthed DC systems
Real-time positive and negative pole-to-ground insulation measurement
Adjustable insulation alarm thresholds from 1kΩ to 10MΩ
Automatic adaptation to distributed system leakage capacity
Fast insulation response and update time for dynamic DC networks
Configurable NO/NC relay outputs for flexible alarm integration
Manual or automatic reset configuration
Stable operation under harsh industrial environments
IEC 61557-1 and IEC 61557-8 compliant design
Unlike conventional insulation relays, this smart insulation monitoring solution is optimized for complex distributed DC applications where electrical continuity and operational safety are critical. The device improves preventive maintenance efficiency by identifying insulation degradation trends before catastrophic failure occurs.

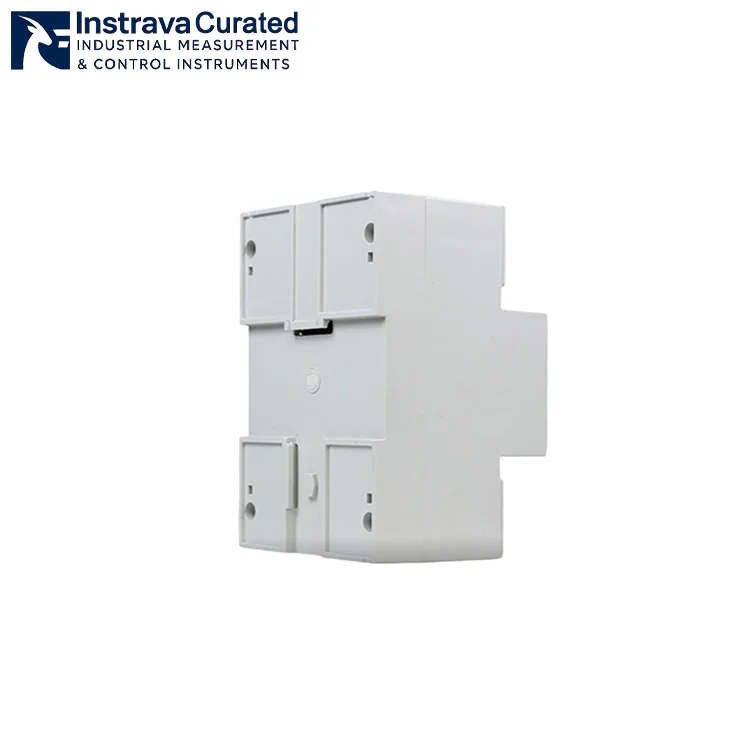

Its compact 35mm DIN rail installation design also simplifies panel integration for switchgear manufacturers, EV charging equipment builders, and industrial system integrators.
Power Monitoring & Control Parameter
| Power supply | 10-30VDC, Power 3W | |||
| DC voltage range | 100V~1000V | |||
| DC voltage
measurement accuracy |
≤2V+0.3% | |||
| Insulation resistance
measurement range |
1KΩ~10MΩ
(DC system voltage:100V~1000V) |
|||
| Max system leakage
capacitance |
0-5μF | |||
| Insulation monitoring accuracy
((When: DC voltage:100V-1000V) |
CY range | Resistance range | Accuracy | |
| 0~0.8μF | ≤60kΩ | ≤3kΩ | ||
| 60kΩ<R<1MΩ | ≤5% | |||
| 0.8μF ~3μF | ≤60kΩ | ≤6kΩ | ||
| 60kΩ<R<1MΩ | ≤20% | |||
| Insulation resistance value
update time after turning on |
After insulation monitoring is turned on, the time until the effective resistance value can be read for the first time | 0.7s~2s | ||
| Insulation resistance value
update time |
Switch the insulation resistance until the module can read the switched insulation resistance value. | 0.5s~3s | ||
| Insulation monitoring function switching times | 50*105 times | |||
| Off-line withstand voltage test | <2mA | |||
| Digital output (DO) | 1*DO, passive dry contact, SPST
Load capacity: 4A@250Vac, 4A@30Vdc |
|||
| Digital input (DI) | 1*DI, 0.25mA@short circuit | |||
| Communication | RS485/ Modbus RTU | |||
| Standard | IEC 61557-1: 2018
IEC 61557-8: 2018 |
|||
| Dimension | Standard 35 mm DIN rail mounting
Dimensions (W × H × D): 72 × 110 × 66 mm |
|||
| Storage temperature | – 55°C ~90°C; ≤90%RH (non-condensing, non-corrosive), Altitude: ≤3500 m | |||
| Operating temperature | – 40°C ~75°C; ≤90%RH (non-condensing, non-corrosive),
Altitude: ≤3500 m |
|||
Withstand voltage test
| Voltage injection point | Maximum voltage rating | Time |
| DC+/DC- to GND | 4200VDC/3000VAC | ≤1min |
| Power supply +/- to GND | 3500VDC/2500VAC | ≤1min |
| RS485 A/B to GND | 3500VDC/2500VAC | ≤1min |
| DC+/DC- to Power supply +/- | 4200VDC/3000VAC | ≤1min |
| DC+/DC- to A/B | 4200VDC/3000VAC | ≤1min |
