Optical-Quantum Gas Liquid Two-Phase Metering Flow meter for Petroleum Gas Well Production
Procuring an Optical-Quantum Gas-Liquid Two-Phase Metering Flowmeter for your production operations is a decision that requires careful consideration.
Although Instrava is not the manufacturer, we prioritize your interests as your supplier and assist you in selecting the most suitable product.
Leveraging China’s vast market resources, we carefully select high-quality manufacturers to provide you with either off-the-shelf products or solutions tailored to your specific project requirements.
Our products are marketed globally and comply with relevant international certification standards, such as CE, IECEx, UL, TÜV, and NEL.
Quotation timelines depend on your specific product requirements. Quotes for off-the-shelf products are typically provided within 1–2 days, whereas special requirements necessitate detailed consultation prior to quoting.
Off-the-shelf products can be shipped within 3–5 days, while lead times for customized products or large-volume orders are determined through separate negotiation.
Flow Meter Description

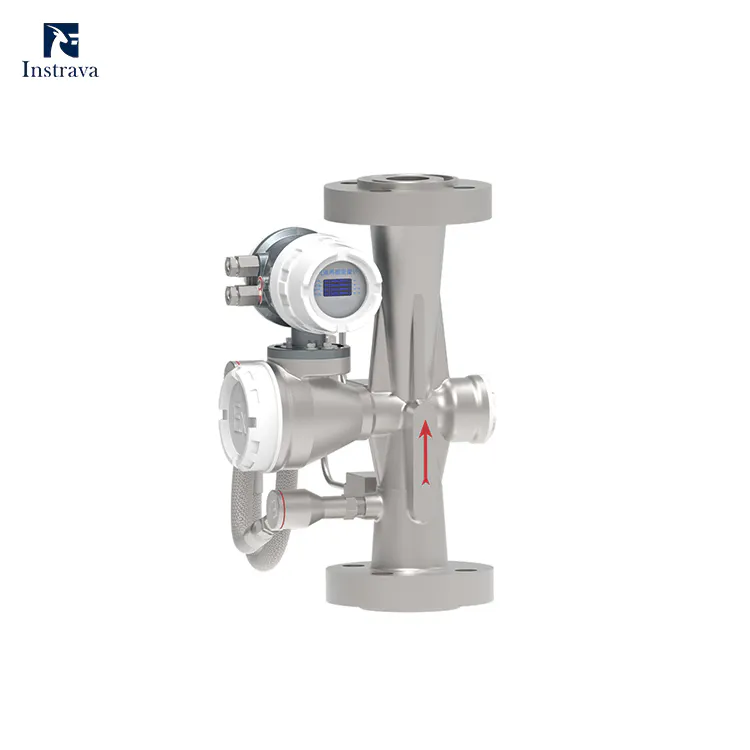

Overview of Optical Quantum Gas-Liquid Two-Phase Metering Flowmeter
By leveraging the Venturi throttling principle alongside high-precision optical quantum phase measurement, this system ensures accurate total flow determination. It utilizes multi-energy spectrum detection to simultaneously and precisely monitor both gas and liquid flow rates, enabling an advanced analysis of individual fluid components within the mixture.
Engineered for high accuracy, efficiency, and versatility, this product is perfectly suited for real-time monitoring and control of gas-liquid two-phase flows in diverse operating environments.
Product Features
-
In-Line, Non-Separation Metering: Leverages an integrated design combining optical quantum phase fraction measurement with a Venturi tube to independently achieve real-time, in-line metering of oil-gas multiphase flows without requiring separation.
-
Extended Operating Range: Offers a significantly broader application envelope than conventional wet gas flowmeters, excelling in high gas volume fractions (LVF > 95%).
-
Versatile Connectivity: Equipped with comprehensive data transmission options—including RJ45, RS485, and 4G—to seamlessly adapt to diverse on-site infrastructure requirements.
-
Powerful System Software: Features advanced processing software that enables remote, automated, and streamlined system operations alongside real-time data analytics.
-
Compact & Efficient: Boasts a small footprint, low power consumption, effortless installation, and inherently safe operation.
-
Flow-Regime Independent Accuracy: Delivers precise mass flow rate measurements for both gas and liquid phases across all flow regimes.
-
OPEX Reduction: Maximizes oilfield development cost efficiency by providing continuous, real-time data acquisition and transmission from early-stage production through to water breakthrough.
-
Tailored Bore Sizes for Diverse Yields:
-
DN25 Configuration: Engineered to satisfy the precise metering demands of low-yield wells and low-flow-rate applications.
-
DN80+ Configuration: Designed to easily handle high-yield wells and high-flow-rate operations.
-
Flow Meter Parameter
| Product Description | Applicable to production metering at oil/gas wellhead | Communication methods | RS485, RJ45, 4G IoT SIM card (customizable upon request) |
| Specifications and dimensions | DN25~DN50 | Power supply method | DC24V/AC220V (customizable according to customer requirements) |
| Design pressure | ≤32MPa | Rated power | ＜10W |
| medium temperature | -40℃/100℃ | Explosion-proof rating | Ex db IIB T4 Gb |
| Ambient temperature | -40℃~+85℃ | Protection level | IP66 |
| Ambient humidity | (0~95)%RH | Installation method | Vertical installation |
| Scope of application | LVF:(0~100)% | Mass flow rate (gas, liquid) | ±3.5% |
| Equipment weight | (30~125)kg | Flow range | Refer to the “Multiphase Flowmeter Flow Range Comparison Table” |
| Throttling device | Venturi | Material | 304、316、316L |
| Flange Standard | HG20592-20615/ASME B16.5/API 6A/GOST 33259 |
