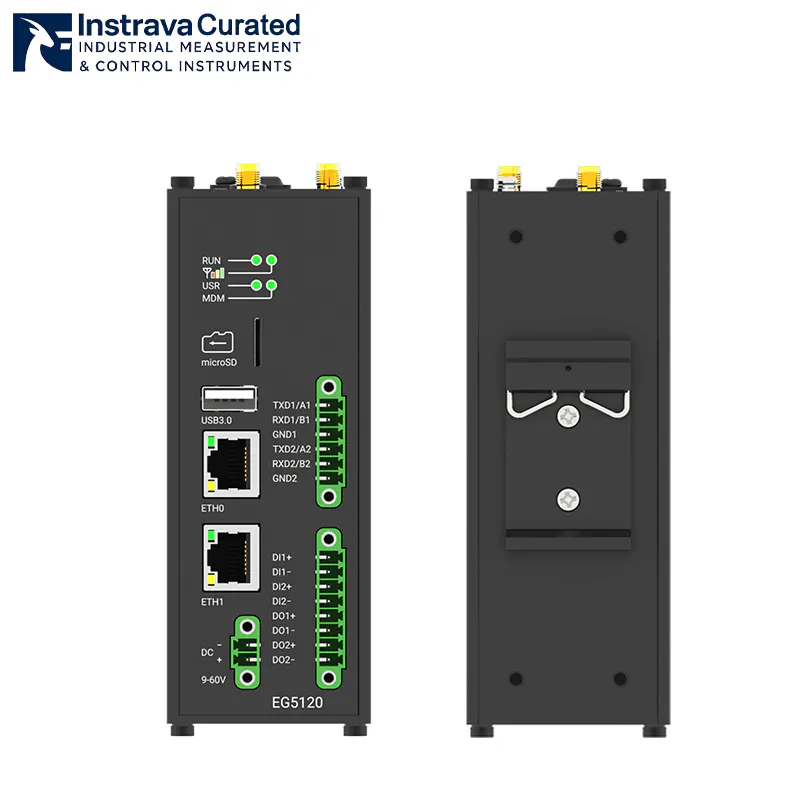

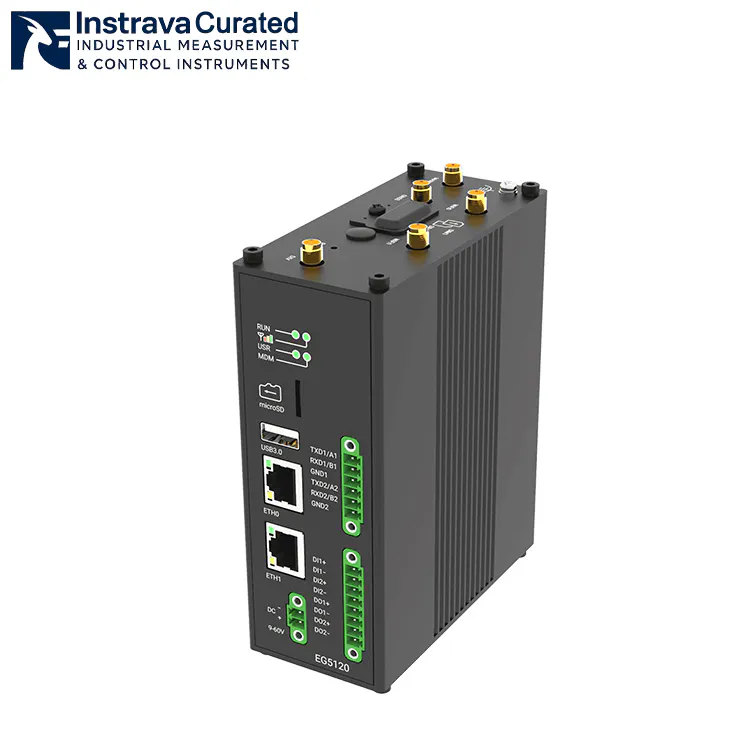

Edge Computing Gateway 5G High-Performance – Industrial Edge AI Gateway
Instrava Curated Instruments presents a next-generation Edge Computing Gateway (5G High-Performance) engineered to redefine industrial connectivity, edge intelligence, and real-time automation.
Built for modern industrial IoT ecosystems, this 5G edge computing gateway delivers ultra-reliable wireless communication, powerful edge AI processing, and seamless multi-protocol integration in a single rugged platform.
Supporting 5G Release 16, 4G LTE, Wi-Fi, Ethernet, and multi-interface industrial expansion, it enables real-time data acquisition, intelligent processing, and secure cloud transmission for smart factories, energy systems, logistics automation, and mission-critical infrastructure.
With integrated support for OPC UA edge gateway communication, Modbus gateway conversion, MQTT industrial connectivity, and Debian-based edge computing development, it transforms traditional industrial assets into intelligent, cloud-ready systems.
This is not just a gateway—it is a high-performance industrial edge computing hub designed for AI-driven automation and digital transformation.
Edge Gateway Description
High-Performance 5G Edge Computing Gateway with Edge AI Intelligence
This 5G high-performance edge computing gateway is designed for deterministic industrial environments requiring low latency, high reliability, and continuous operation.
Ultra-Fast 5G Industrial Connectivity
- Supports 5G Release 16 SA/NSA architecture
- Full compatibility with 2G / 3G / 4G fallback networks
- Global LTE-A and multi-band industrial communication support
- High-bandwidth, low-latency data transmission for real-time control systems
Edge AI Computing for Industrial Automation
- Integrated 2.3 TOPS NPU edge AI acceleration
- Supports lightweight AI applications at the edge
- Enables predictive maintenance, anomaly detection, and smart decision-making
- Reduces cloud dependency through local real-time processing
Industrial Reliability Design
- Dual SIM redundancy for uninterrupted connectivity
- Hardware watchdog for automatic system recovery
- EMI-resistant industrial-grade architecture
- Designed for 24/7 continuous operation in harsh environments
This makes it ideal for industrial edge AI gateway applications, smart manufacturing systems, energy monitoring, and autonomous industrial equipment control.
Open Debian-Based Edge Platform with Full Industrial Integration
The gateway runs RobustOS Pro (Debian 11-based system), providing a fully open and developer-friendly industrial edge computing environment.
Developer-Oriented Edge Computing Platform
- Supports Python, C, C++, Java, Node.js
- Native Docker container deployment for modular applications
- Open SDK for secondary development and customization
- Debian ecosystem compatibility for flexible software expansion
Integrated Industrial Edge Software Stack
- Node-RED for visual workflow automation and no-code logic design
- NeuronEX-Lite supporting 100+ industrial protocols (Modbus, OPC UA, Siemens, MQTT, etc.)
- FUXA SCADA for real-time browser-based visualization and control
- Built-in MQTT, HTTP, OPC UA, and industrial gateway services
Multi-Interface Industrial Connectivity
- Dual Gigabit Ethernet ports (WAN/LAN configurable)
- RS232 / RS485 software-selectable serial interfaces
- DI/DO industrial I/O with optical isolation
- USB 3.0, SIM dual-slot, and microSD expansion support
This enables seamless integration as a Modbus gateway, OPC UA edge gateway, and industrial protocol conversion platform for IIoT systems.
Edge Gateway Parameter
| CPU | Quad core Cortex-A53, 1.6 GHz |
| RAM | 2 GB DDR4 |
| Flash | 16 GB eMMC |
| NPU | 2.3 TOPS |
Cellular
| Supported Technologies | 5G, 4G/LTE, 3G, 2G |
| Antennas | 5G: 4 LTE: 2 |
| Connector | SMA-K |
| SIM | 2 x Mini SIM (2FF) |
Ethernet
| Ethernet Ports | 2 x 10/100Mbps – 1 x WAN + 1 x LAN or 2 x LAN (Default) |
| Magnet Isolation Protection | 1 KV |
Serial Port
| Serial Ports | 2 x RS-232/RS-485 (software configurable) |
| Connector | 6-pin 3.5 mm terminal block with lock |
| ESD Protection | 8 KV air, 4 KV contact |
| Baud Rate | 300 bps to 115200 bps |
| Signal Definition | RS-232: TXD, RXD, GND RS-485: Data+ (A), Data- (B), Ground (GND) |
Digital Input/Output
| DI/DO Ports | 2 x DI + 2 x DO, wet contact |
| Connector | 8-pin 3.5 mm terminal block with lock (DI/DO) |
| Absolute Maximum VDC | +30 V DC |
| Absolute Maximum ADC | 100 mA |
| Signal Definition | DI1+, DI1-, DI2+, DI2-, DO1+, DO1-, DO2+, DO2- |
Wi-Fi (Optional)
| Wi-Fi Antennas | 2 (Wi-Fi 0 + Wi-Fi 1) |
| Connector | RP-SMA-K |
| Standards | 802.11 a/b/g/n/ac, 2 x 2 MIMO, supporting AP and Client modes |
| Frequency Bands | 2.412 ~ 2.472 GHz (2.4 GHz ISM band) 5.15 ~ 5.825 GHz (5 GHz ISM band) |
| Security | WPA, WPA2, WEP, WPA3 |
| Encryption | AES, TKIP, WEP64 |
Bluetooth (Optional)
| Bluetooth Antennas | 1 (Multiplexing Wi-Fi antenna) |
| Connector | RP-SMA-K |
| Standards | Bluetooth 2.1 and 3.0 + Enhanced Data Rate (EDR) + Bluetooth 5.2 |
GNSS/GPS (Optional)

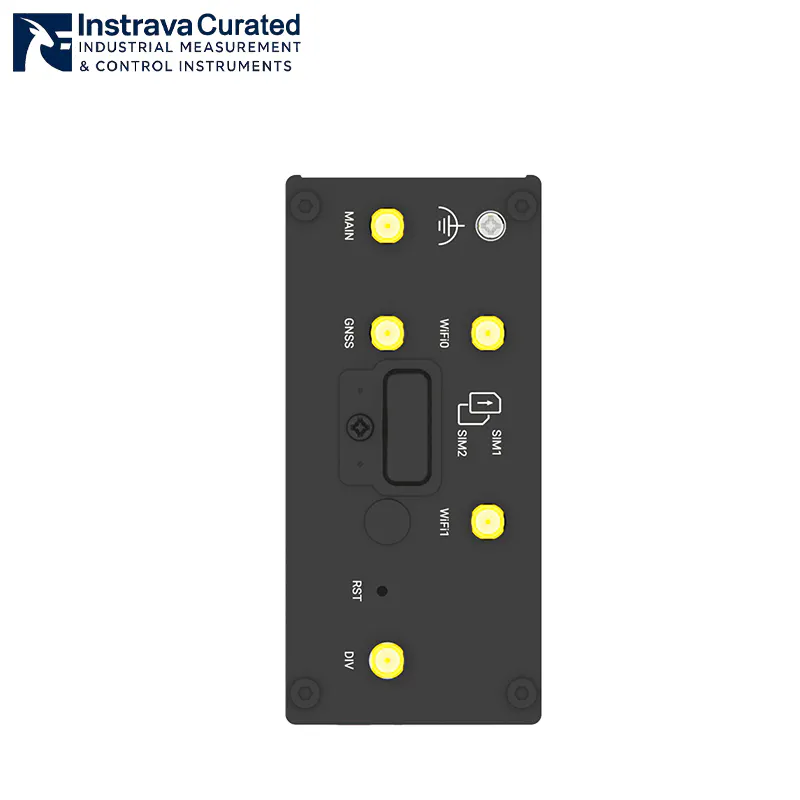

| GNSS Antennas | 5G: Optional, requires a 4-in-1 Combo Antenna 4G: 1 |
| Connector | SMA-K |
| Technology | GPS |
Other Interfaces
| Reset Button | 1 x RST |
| LED Indicators | 1 x RUN, 1 x Signal, 1 x USR, 1 x MDM |
| Watchdog | External |
| USB | 1 x USB 2.0 (host), Type A, 5 V, 500 mA |
| SD-Card | 1x MicroSD |
Power Supply & Consumption
| PSU Connector | 2-pin 3.5 mm terminal block with lock |
| Input Voltage | 12/24/48 V DC, 9 ~ 60 V DC, reverse polarity protection, surge protection |
| Power Consumption | Idle: 5 W@12 V Max: 20 W@12 V |
| Recommended Power Supply | 12 V DC/1.5 A power adapter |
Physical Characteristics
| Ingress Protection | IP30 |
| Housing & Weight | Metal, 567 g |
| Dimensions | 49 x 105 x 128 mm |
| Installation Options | Desktop, Wall Mount and 35mm DIN Rail |
| Operating Temperature | -40 – +70 °C |
| Storage Temperature | -40 – +85 °C |
| Relative Humidity | 5 – 95% RH (non-condensing) |
Software Features
| Network Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP, SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc. |
| VPN Tunnels | IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
| Firewalls | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management | RCMS, Web, CLI, SMS |
| Serial Port Protocols | Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| SIM Management | Smart Roaming |
| Optional Apps | L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc. |
Software Development Kit (SDK)
| Supported Programming Languages | C, C++, Python, Java, Node.js, etc. (for users to develop own applications) |
| Flash available for SDK | 14GB |
| RAM available for SDK | 1.5GB |
Regulatory and Type Approvals
| Environmental | RoHS 2.0 |
| EMI | EN 55032 Conducted Emission Class B EN 55032 Radiated Emission Class B |
| EMS | EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 2 EN 61000-4-8 (PFM) Level 4 EN 61000-4-11 (Dips) |
Instrava OEM/ODM
Reliable Instruments. Solutions That Fit Your Application.
Instrava is focused on delivering reliable industrial solutions through carefully curated products, application-driven optimization, and flexible customization. We select proven instruments from trusted manufacturers to ensure consistent quality, optimize solutions based on real working conditions to solve practical challenges, and provide tailored configurations to meet specific application needs.
By combining selection expertise with application understanding, Instrava helps customers reduce risk, improve efficiency, and achieve dependable results in complex industrial environments.
Instrava design the right path to digitalize your operations — from legacy instruments to connected, data-driven systems.
What is a 5G Edge Computing Gateway and why is it critical for industrial applications?
A 5G Edge Computing Gateway is an industrial device that combines high-speed 5G connectivity with local data processing and AI capabilities. It enables real-time communication between field devices and cloud systems while processing data at the edge. This reduces latency, improves reliability, and supports mission-critical applications such as smart manufacturing and predictive maintenance.
What are the key advantages of using a 5G industrial edge gateway over traditional gateways?
A 5G industrial edge gateway offers significant performance improvements:
| Feature | Traditional Gateway | 5G Edge Gateway |
|---|---|---|
| Connectivity | 4G / Ethernet | 5G (SA/NSA) + LTE fallback |
| Latency | متوسط | Ultra-low latency |
| Bandwidth | Limited | High bandwidth (real-time data) |
| Processing | Basic forwarding | Edge computing + AI inference |
This makes 5G gateways ideal for data-intensive and time-sensitive industrial environments.
What AI capabilities does this edge computing gateway support?
This gateway integrates a 2.3 TOPS NPU and a quad-core ARM Cortex-A53 processor, enabling lightweight edge AI applications such as:
- Anomaly detection in equipment data
- Predictive maintenance modeling
- Real-time data filtering and decision-making
- Smart coordination between connected devices
These AI functions run locally, reducing dependency on cloud processing and improving response time.
How does the gateway ensure reliable connectivity in industrial environments?
The gateway supports full network compatibility, including 5G (Release 16, SA/NSA), 4G LTE-A, and fallback to 3G/2G networks. This ensures continuous operation even in areas with unstable connectivity. Combined with industrial-grade design, it provides stable communication for remote monitoring and critical infrastructure.
What are the typical use cases for a 5G edge computing gateway?
Common industrial applications include:
- Smart manufacturing: real-time machine monitoring and optimization
- Energy management: high-speed data acquisition and analysis
- Remote equipment monitoring: low-latency diagnostics via 5G
- Predictive maintenance: AI-driven fault detection
- Industrial IoT integration: connecting legacy and modern systems
These use cases benefit from both high-speed connectivity and local intelligence.
What hardware specifications should be considered when selecting a 5G edge gateway?
Key hardware parameters directly impact performance:
| Component | Specification |
|---|---|
| CPU | Quad-core ARM Cortex-A53 @ 1.6GHz |
| AI Processor | 2.3 TOPS NPU |
| Memory | 2GB DDR4 |
| Storage | 16GB eMMC |
| Connectivity | 5G / 4G / 3G / 2G fallback |
These specifications ensure the gateway can handle real-time data processing, AI workloads, and stable industrial communication.
