Industrial Edge Computing Gateway – Smart Edge Intelligence for Connected Industry
Instrava Curated Instruments introduces a high-performance Industrial Edge Computing Gateway engineered to bridge industrial equipment, field devices, and cloud platforms. Designed for modern Industry 4.0 environments, this intelligent gateway combines robust connectivity, real-time edge analytics, and secure remote management in one compact industrial platform.

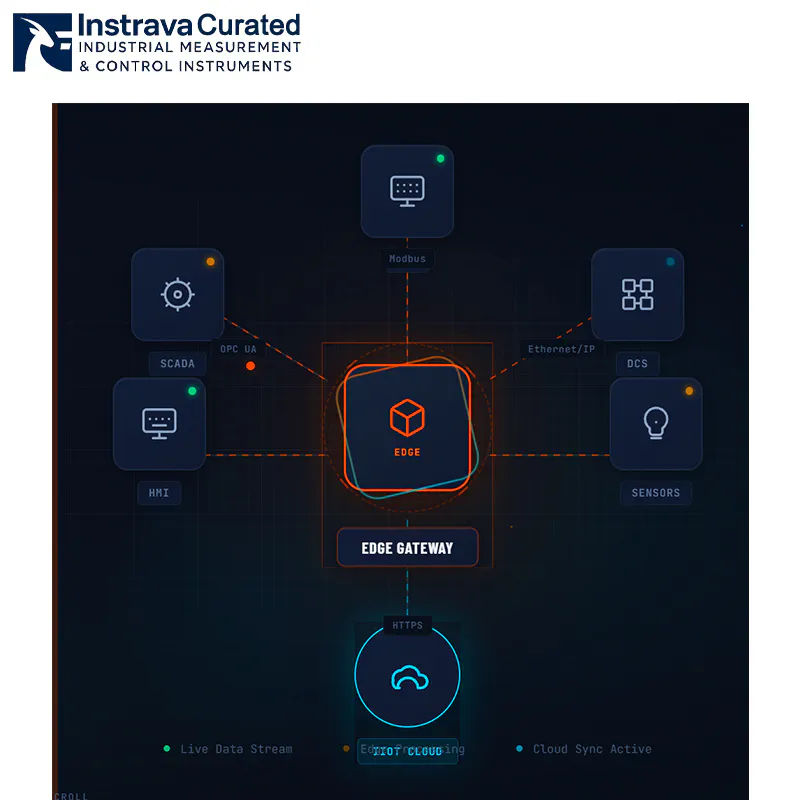

Powered by an industrial-grade ARM processor, it seamlessly connects PLCs, sensors, HMIs, and legacy equipment through Ethernet, RS232, and RS485 interfaces. With support for 4G, 2G, Wi-Fi, and wired Ethernet, this industrial edge gateway ensures uninterrupted data transmission across factories, utilities, energy systems, and remote installations. From data acquisition and protocol conversion to edge analytics and cloud integration, it empowers enterprises to transform operational data into actionable intelligence.
As a critical enabler of digital transformation, this industrial edge computing gateway supports real-time monitoring, predictive maintenance, alarm management, and secure cloud-edge collaboration—making it the ideal solution for smart manufacturing, energy automation, water treatment, and industrial IoT deployments.
Edge Gateway Description
Built for Reliable Industrial Data Acquisition and Edge Intelligence

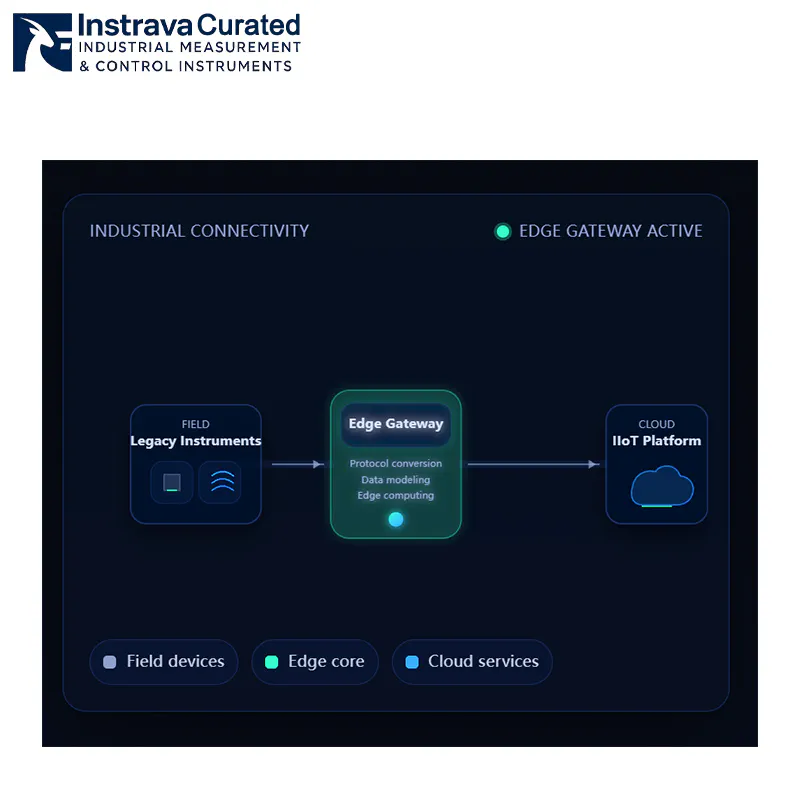

The industrial edge computing gateway is designed to collect, process, and transmit critical operational data directly at the source. By performing analytics at the network edge, it reduces latency, minimizes bandwidth consumption, and improves response times for mission-critical applications.
Key edge computing advantages include:
- Millisecond-level data acquisition for real-time process visibility
- Local data preprocessing, filtering, and cleansing before cloud transmission
- Intelligent alarm triggering and event-based reporting
- Breakpoint resume for uninterrupted data logging during network interruptions
- Historical data storage and scheduled report generation
- Edge-side decision-making for faster operational response
With a minimum collection interval of 500 ms, the gateway captures fast-changing process variables with exceptional accuracy. This makes it particularly valuable for industrial automation, machine monitoring, predictive maintenance, and remote asset management applications.
Secure Remote Access and Broad Industrial Protocol Compatibility
Designed for seamless integration into existing industrial environments, this industrial edge computing gateway supports most mainstream PLCs and industrial communication protocols without requiring modifications to existing PLC programs. Deployment is fast, simple, and highly scalable.
Core connectivity and integration benefits include:
- Supports Modbus RTU, Modbus TCP, and a wide range of PLC protocol drivers
- Compatible with serial and Ethernet PLCs, HMIs, and industrial controllers
- Remote PLC programming, diagnostics, and firmware updates
- Cross-border remote debugging and online monitoring capabilities
- Supports up to 16 connected devices simultaneously
- Cloud-edge collaboration through the EMCP IoT platform
Engineers can remotely access, configure, troubleshoot, and update field devices from anywhere, significantly reducing maintenance costs, minimizing downtime, and accelerating service response. This capability is especially valuable for distributed industrial assets, remote stations, and global operations.
Edge Gateway Parameter
| Parameter | Specification |
|---|---|
| Processor | Industrial-grade ARM Processor |
| Power Supply | DC 24V (Operating Range: DC 9–28V) |
| Power Protection | Surge, Overcurrent, Reverse Polarity Protection |
| Average Power Consumption | ≤ 5W |
| Networking | 2G / 4G / Ethernet / Wi-Fi |
| Ethernet Ports | 2 × 10/100 Mbps Ethernet Ports |
| Serial Interfaces | RS232 / RS485 (Isolated) |
| Collection Interval | ≥ 500 ms |
| Connected Devices | Up to 16 Devices |
| Supported Protocols | Modbus RTU/TCP, Mainstream PLC Protocols |
| Remote PLC Download | Supported via Serial and Ethernet |
| Data Functions | Collection, Analysis, Cleaning, Storage, Resume |
| Alarm Functions | Real-Time Alarm Detection and Notification |
| Script Functionality | Supported |
| Statistical Reporting | Supported |
| Anti-Tamper Protection | Supported |
| Cloud Platform | EMCP IoT Cloud Platform |
| Cloud Device Capacity | 500–100,000 Devices |
| 4G Frequency Bands | LTE-FDD: B1/B3/B5/B8; LTE-TDD: B34/B38/B39/B40/B41 |
| 2G Frequency Bands | GSM 900/1800 MHz |
| Wi-Fi Standard | 802.11 b/g/n (2.412–2.484 GHz) |
| EMC Protection | Level 3 Surge / EFT / ESD |
| Environmental Protection | Conformal Coating, Moisture & Corrosion Resistant |
| Operating Temperature | -35°C to +75°C |
| Humidity | 10–90% RH (Non-Condensing) |
| Dimensions | 114 × 85 × 35 mm |
| Installation | DIN Rail / Panel Mount |
| Wireless parameters | Transmission power | Class 4 (33 dBm±2dB) for EGSM900 | |
| Class 1 (30 dBm土2dB) for DCS1800 | |||
| Class E2 (27 dBm士3dB) for EGSM900 8-PSK | |||
| Class E2 (26 dBm土3dB) for DCS1800 8-PSK | |||
| Class 3 (23 dBm士2dB) for LTE-FDD bands | |||
| Class 3 (23 dBm土2dB) for LTE-FDD bands | |||
| Maximum support for Cat 1 FDD and TDD | |||
| LTE characteristics | LTE features support 1.4/3/5/10/15/20 MHz RF bandwidth | ||
| LTE-FDD: Maximum downlink rate 10Mbps, maximum uplink rate 5Mbps | |||
| LTE-FDD: Maximum downlink rate 7.5Mbps, maximum uplink rate 1Mbps | |||
| GSM features | GPRS | Supports GPRS multi slot level 12 | |
| Encoding format: CS-1/cS-2/cS-3/CS-4 | |||
| Maximum downlink speed 85.6kbps, maximum uplink speed 85.6kbps supports EDGE multi slot level 12 | |||
| Support modulation and coding methods for GMSK and 8-PSK | |||
|
EDGE
|
Downlink encoding formats: CS1-4 and MCS 1-9 | ||
| Uplink encoding formats: CS1-4 and MCS 1-9 | |||
| Maximum downlink speed 236.8kbps, maximum uplink speed 236.8kbps | |||
| antenna interface | SMA female interface | ||
| Hardware parameters | data interface | RS232 | 1200bps – 115200bps |
| RS485 | 1200bps – 115200bps | ||
| LAN port | 10/100M adaptive Ethernet port, supports HP Auto-MDIX automatic flipping, meets IEEE802.3-2005 standard | ||
| WAN port | 10/100M adaptive Ethernet port, supports HP Auto-MDIX automatic flipping, meets IEEE802.3-2005 standard | ||
| working voltage | DC 9-28V, anti reverse connection, anti surge, overcurrent protection | ||
| Maximum power consumption | 2.4w | ||
| Basic power consumption | 1.6W | ||
| operation temperature | -40°℃~65°℃ | ||
| storage temperature | -40°C~85°℃ | ||
| Working humidity | 5%~85% (without frost) | ||
| EMC characteristics | Static electricity: EN61000-4-2, level 3 | ||
| radiating electric field: EN61000-4-3,level 3 | |||
| Pulse electric field:EN61000-4-4,level 3 | |||
| surge:EN61000-4-5, level 3 | |||
| Conducted Disturbance:EN61000-4-6,level 3 | |||
| Power Frequency Magnetic Field:EN61000-4-8,水平方向/垂直方向400A/m (>level 3) | |||
| Vibration wave immunity:EN61000-4-12, level 3 | |||
| RESET | Pin hole reset button | ||
| SM card holder | 1.8V/3V, drawer type card holder | ||

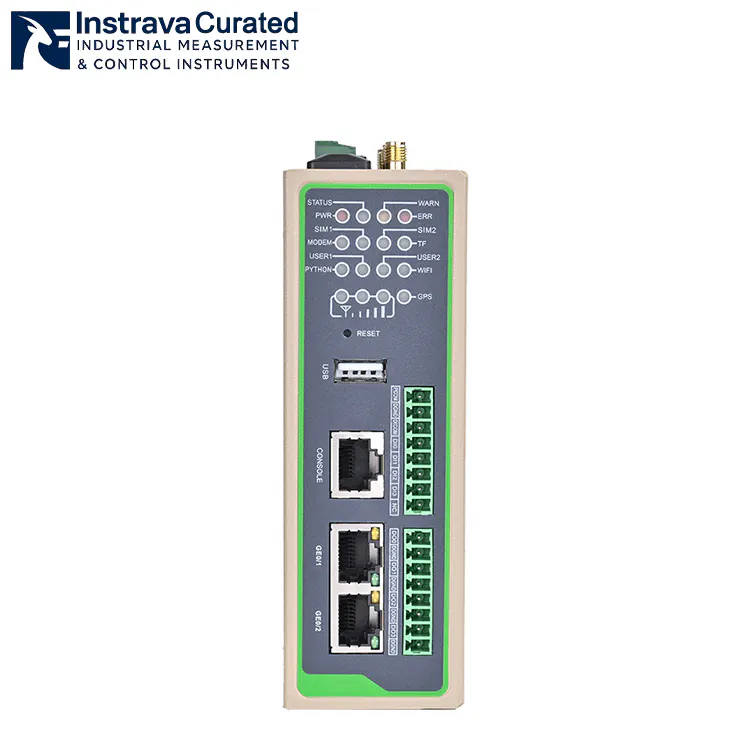

| pilot lamp | Equipped with PWR, LINK, RSSl, 2G, 4G, WAN, 232, 485, and LAN indicator lights | ||
| SD card | Support storage of large amounts of data | ||
| Cooling method | Natural air cooling | ||
| FUNCTION | resume | support | |
| Data Distribution | Supports MQTT and HJ-212 protocols* | ||
| Power outage alarm | support | ||
| telephone alarm | support | ||
| Communication protocol | Serial port | Siemens, Mitsubishi FX series, Hostlink-Fins, Delta, Yonghong, etc | |
| Network interface | Siemens, Mitsubishi Q-series, Fins-Ethernet, Delta, Yonghong, etc | ||
| Frequency division upload | Real time upload, change upload, and scheduled upload | ||
| Data report | Periodic storage, conditional storage, and variable storage | ||
| Remote Upgrade | support | ||
| PLC remote debugging | support | ||
| Edge Computing | Support script development* | ||
| Cloud platform features that can be used | |||
| Cloud platform features | Cloud configuration | support | |
| Data center | support | ||
| Data Storage | support | ||
| Mobile monitoring | support | ||
| organizational structure | support | ||
| Role-Permission | support | ||
| SMS alarm | support | ||
| IoT card management | support | ||
| Style customization | support | ||
| openAPl | support | ||
Instrava OEM/ODM
Tailored Sourcing & Customization: Getting You the Exact Product You Need
As your trusted supplier and sourcing partner, we bridge the gap between your custom requirements and China’s vast manufacturing capabilities.
Finding the right product in a massive supply chain can be challenging. That is where we step in.
As a curated industrial supplier, our core value is simple: we stand in your shoes to help you procure the most optimal products. Whether you are an EPC contractor needing specialized technical compliance, an OEM equipment manufacturer looking for custom branding, or an industrial distributor/trader seeking competitive edge, we customize and tailor products to fit your exact procurement needs.
How We Customize to Fit Your Procurement Needs
For EPC Contractors & Engineers: We custom-configure instruments and devices to match your precise datasheets—tailoring process connections, exotic materials, signal protocols, and managing third-party calibration and testing so you get project-ready solutions.
For OEM Equipment Manufacturers: We provide comprehensive OEM/ODM customization, including custom housing, labeling, branding (private labeling), and tailored technical specifications to seamlessly integrate with your machinery.
For Industrial Distributors & Traders: We offer flexible customization in packaging, product ranges, and technical parameters, helping you differentiate your portfolio and win more local bids.
Why Partner with Us for Custom Sourcing?
One-Stop Engineering Alignment: You don’t have to deal with multiple factories. We translate your technical requirements into precise manufacturer blueprints.
Strict Quality & Compliance Safeguard: We oversee the entire customization and production process in China, ensuring the final customized product meets your local standards and certifications.
Our Ultimate Value: We don’t just sell what’s on the shelf. We find, customize, and deliver the most suitable and cost-effective product for your unique application.
What is an industrial edge computing gateway?
An industrial edge computing gateway is a compact device that connects PLCs and field equipment to cloud platforms while processing data locally. It supports protocol conversion, real-time data acquisition, and remote monitoring, making it essential for industrial IoT and smart factory applications.
What are the key specifications of this industrial edge computing gateway?
This industrial edge computing gateway is designed for low-power and high-reliability applications:
- Power supply: DC24V (range DC9–28V) with surge and reverse protection
- Power consumption: ≤5W
- Size: 114 × 85 × 35 mm (compact design)
- Operating temperature: -35°C to +75°C
- Humidity: 10–90% RH (non-condensing)
These specifications ensure stable operation in harsh industrial environments.
What connectivity options does this industrial edge computing gateway support?
The gateway supports multiple industrial networking methods:
- Cellular: 2G / 4G LTE (global bands)
- Ethernet: 2 × Ethernet ports
- Wireless: Wi-Fi 802.11 b/g/n
This ensures flexible deployment for both wired and remote industrial applications.
How many devices can the industrial edge computing gateway connect?
This industrial edge computing gateway supports up to 16 connected devices simultaneously. It supports both serial (RS232/RS485 isolated) and Ethernet communication, making it suitable for PLCs, HMIs, and other industrial equipment in small to mid-sized deployments.
Which protocols are supported by this industrial edge computing gateway?
The gateway supports widely used industrial protocols:
- Modbus (RTU/TCP)
- Multiple PLC protocols (serial and Ethernet)
- Industrial device communication drivers
This enables seamless integration with legacy systems and modern automation platforms.
What advanced functions does this industrial edge computing gateway provide?
In addition to connectivity, the gateway includes built-in edge capabilities:
- Data collection interval ≥ 500 ms
- Remote PLC download and maintenance
- Script programming for automation logic
- Report statistics and data logging
- Anti-disassembly protection and system recovery
These features make it suitable for remote monitoring, predictive maintenance, and industrial IoT projects.
