Edge Computing Gateway – Multi-Interface Edge Computing Platform
Instrava Curated Instruments: Edge Computing Gateway Designed for Smarter Industrial Connectivity
Instrava Curated Instruments introduces a powerful Edge Computing Gateway engineered for modern industrial automation, edge computing, and intelligent data acquisition. Built around the high-efficiency Rockchip RK3562J processor, this multi-interface ARM industrial computer combines robust computing performance, flexible connectivity, and industrial-grade reliability in a compact fanless platform.
Designed for demanding edge applications, it seamlessly integrates data acquisition, protocol conversion, visual programming, SCADA visualization, and lightweight AI processing. With support for 5G industrial connectivity, OPC UA edge computing, Modbus gateway integration, and Node-RED industrial automation, it serves as the ideal foundation for Industry 4.0 deployments, smart manufacturing, energy management, and remote equipment monitoring.
Whether deployed as an industrial edge controller, ARM-based SCADA computer, or IIoT protocol gateway, this platform delivers the scalability, openness, and reliability required for digital transformation.
Edge Gateway Description
Why Choose This Multi-Interface Edge Computing Gateway?
This industrial computer is purpose-built to unify edge control, protocol integration, and visualization in one streamlined platform.
- High-Performance ARM Processing – Powered by the Rockchip RK3562J quad-core processor at 1.8GHz, delivering reliable real-time performance for industrial workloads.
- Integrated AI Edge Capability – Equipped with a 1 TOPS NPU and Mali-G52 GPU for lightweight AI vision, intelligent analytics, and 4K multimedia processing.

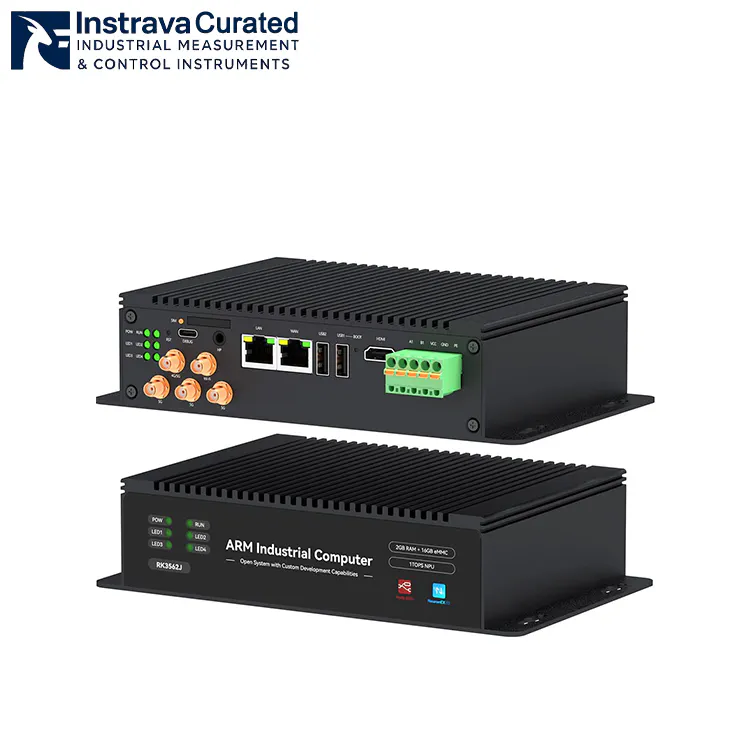

- Comprehensive Industrial Interfaces – Supports Gigabit Ethernet, RS485, RS232, CAN, DI/DO, USB, HDMI, Type-C, and audio output for maximum deployment flexibility.
- Industrial Protocol Hub – Preloaded with NeuronEX-Lite（*NeuronEX is an industrial protocol gateway software developed by EMQ companyand requires authorization for use. Please consult customer service for details.）, enabling support for over 100 industrial protocols including Modbus, OPC UA, EtherNet/IP, Siemens, Omron, MQTT, and HTTP.
- Visual Logic Development – Node-RED enables rapid drag-and-drop workflow programming without complex coding.
- Zero-Code SCADA Visualization – FUXA provides browser-based real-time dashboards, alarms, and data visualization without expensive licensing.
This combination makes it an ideal ARM edge computer for industrial automation, protocol conversion, and machine connectivity.
Built for Edge Computing, SCADA, and Industrial AI Applications
The platform is optimized for industrial environments where reliability, connectivity, and real-time intelligence are essential.
Edge Intelligence and Data Processing
- Local data acquisition and preprocessing reduce cloud bandwidth usage.
- Real-time decision-making improves response speed and operational efficiency.
- Supports intelligent edge applications with low latency and high reliability.

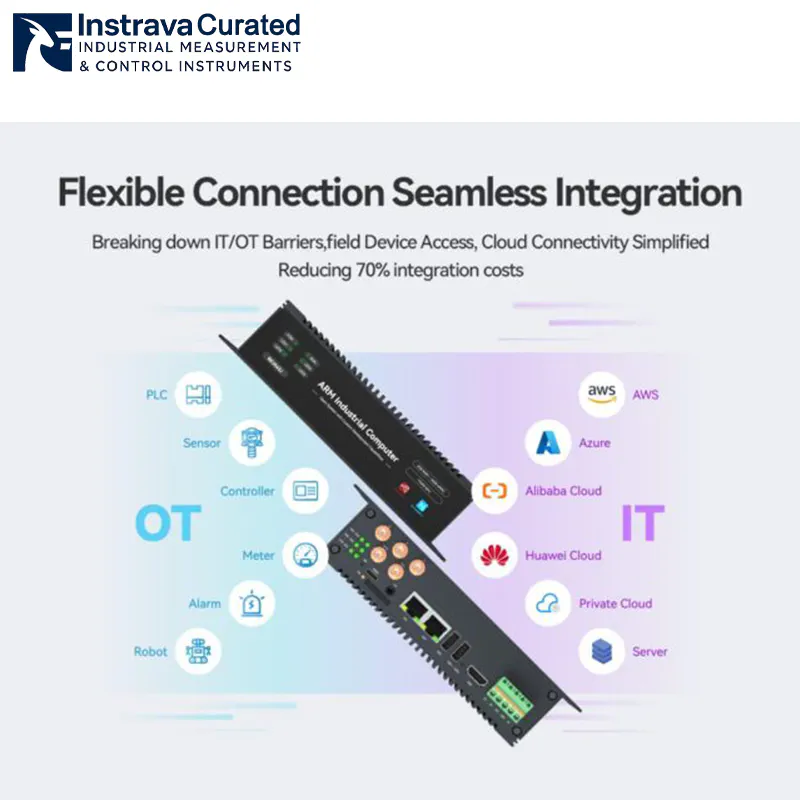

Advanced Connectivity and Protocol Integration
- Connect legacy PLCs, CNCs, sensors, and field devices to modern IIoT platforms.
- Enables seamless interoperability between OT and IT systems.
- Acts as a powerful OPC UA gateway, Modbus edge gateway, and industrial protocol translator.
Visual Monitoring and Control

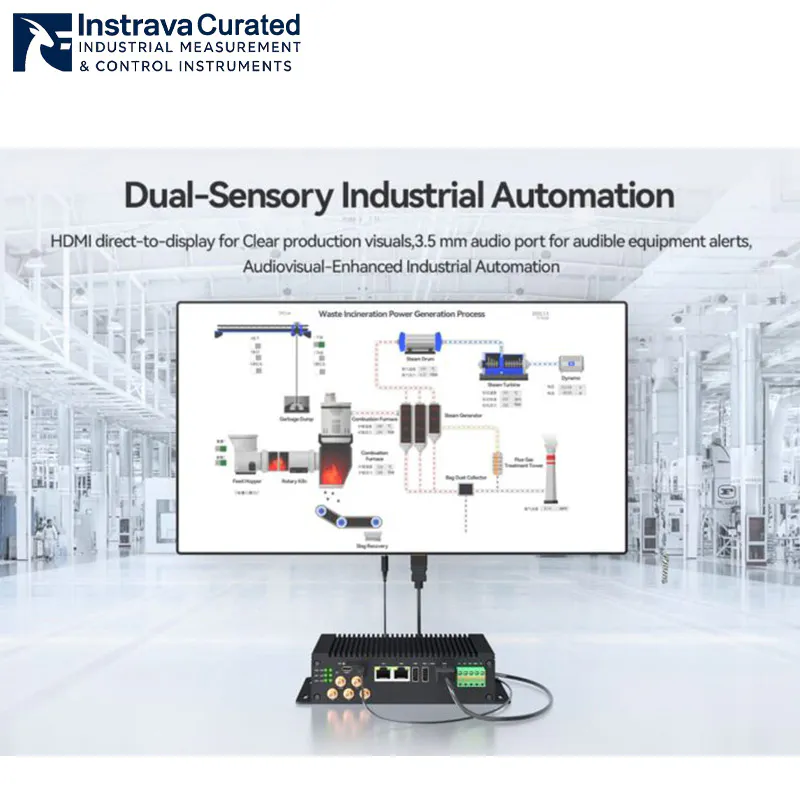

- HDMI output supports direct connection to HMI panels or large displays.
- 3.5mm audio output enables audible alarms and local notifications.
- Browser-based SCADA dashboards allow instant visualization across devices.
Industrial-Grade Reliability
- Fanless passive cooling with aluminum alloy enclosure ensures silent, maintenance-free operation.
- Wide operating temperature range from –40°C to +85°C.
- Isolated interfaces with ESD and surge protection enhance system safety.
- Hardware watchdog automatically recovers from unexpected system events.
This makes it ideal for applications such as:
- Smart manufacturing
- Energy monitoring systems
- Industrial equipment monitoring
- Remote machine diagnostics
- Building automation
- Water and wastewater systems
- Transportation and infrastructure control
Edge Gateway Parameter
| Category | Specification |
|---|---|
| CPU | RK3562J (4× Cortex-A53 @ 1.8GHz) |
| GPU | Mali G52 2EE |
| NPU | 1 TOPS |
| RAM | 2GB |
| Storage | 16GB eMMC |
| Operating System | Embedded Linux |
| Storage Expansion | Micro SD Card Slot |
| SSD Support | M.2 NVMe SSD Slot |
| Cellular Network | 4G/5G (Optional) |
| Wireless LAN | Wi-Fi |
| Ethernet Ports | 1 × Gigabit Ethernet + 1 × Fast Ethernet |
| USB Ports | 2 × USB 2.0 |
| Debug Port | 1 × USB Type-C |
| Status LEDs | 6 × LEDs (4 User-Programmable) |
| RS485 | 2 × RS485 |
| RS232 | 1 × RS232 |
| CAN Bus | 2 × CAN |
| DI | 2 × DI |
| DO | 2 × DO |
| Video Output | 1 × HDMI |
| Audio Output | 1 × 3.5mm Audio Jack |
| Operating Voltage | 9–36V DC |
| Operating Current | 300mA @ 12V |
| Operating Temperature | -40°C to +85°C |
| Certifications | CE |
| Chassis Dimensions | 200 × 122 × 47 mm |
Instrava OEM/ODM
Tailored Sourcing & Customization: Getting You the Exact Product You Need
As your trusted supplier and sourcing partner, we bridge the gap between your custom requirements and China’s vast manufacturing capabilities.
Finding the right product in a massive supply chain can be challenging. That is where we step in.
As a curated industrial supplier, our core value is simple: we stand in your shoes to help you procure the most optimal products. Whether you are an EPC contractor needing specialized technical compliance, an OEM equipment manufacturer looking for custom branding, or an industrial distributor/trader seeking competitive edge, we customize and tailor products to fit your exact procurement needs.
How We Customize to Fit Your Procurement Needs
For EPC Contractors & Engineers: We custom-configure instruments and devices to match your precise datasheets—tailoring process connections, exotic materials, signal protocols, and managing third-party calibration and testing so you get project-ready solutions.
For OEM Equipment Manufacturers: We provide comprehensive OEM/ODM customization, including custom housing, labeling, branding (private labeling), and tailored technical specifications to seamlessly integrate with your machinery.
For Industrial Distributors & Traders: We offer flexible customization in packaging, product ranges, and technical parameters, helping you differentiate your portfolio and win more local bids.
Why Partner with Us for Custom Sourcing?
One-Stop Engineering Alignment: You don’t have to deal with multiple factories. We translate your technical requirements into precise manufacturer blueprints.
Strict Quality & Compliance Safeguard: We oversee the entire customization and production process in China, ensuring the final customized product meets your local standards and certifications.
Our Ultimate Value: We don’t just sell what’s on the shelf. We find, customize, and deliver the most suitable and cost-effective product for your unique application.
What is an ARM Industrial Edge Gateway and how is it used in Industry 4.0?
An ARM Industrial Edge Gateway is a compact computing device that connects field equipment to cloud or SCADA systems while performing local data processing. Based on processors like Rockchip RK3562J, it enables real-time data acquisition, protocol conversion, and edge analytics. In Industry 4.0, it acts as a bridge between legacy devices and modern digital platforms, supporting smarter and more efficient operations.
What are the key capabilities of an Edge Gateway built on RK3562J?
An RK3562J-based Edge Gateway combines computing performance with industrial reliability. Its core capabilities typically include:
- Multi-protocol support (Modbus, OPC UA, MQTT)
- Local data processing and edge analytics
- SCADA visualization and Node-RED programming
- AI edge inference (lightweight workloads)
- 5G / Ethernet connectivity
This makes it suitable for real-time control, monitoring, and industrial automation scenarios.
Can this Edge Gateway replace a PLC or SCADA system?
Not exactly. An Edge Gateway complements rather than replaces PLCs and SCADA systems.
- PLC: Handles real-time control logic
- SCADA: Provides centralized monitoring
- Edge Gateway: Enables data integration, preprocessing, and cloud connectivity
However, in lightweight applications, it can function as an ARM-based SCADA computer or edge controller with visualization and logic capabilities.
Which industrial protocols does the Edge Gateway support?
A modern industrial Edge Gateway supports both southbound and northbound protocols:
| Direction | Protocols |
|---|---|
| Southbound (Device Layer) | Modbus RTU/TCP, HART, Serial devices |
| Northbound (Cloud/Platform) | MQTT, OPC UA, HTTP/HTTPS, REST API |
This dual-layer protocol support ensures seamless integration between field instruments and cloud platforms without major system changes.
How does an Edge Gateway enable legacy equipment to connect to the cloud?
The Edge Gateway acts as a protocol converter and data bridge. It collects signals from legacy devices (e.g., Modbus RTU, 4–20mA via IO modules), converts them into standardized formats like MQTT or OPC UA, and securely transmits them to cloud platforms. This approach allows brownfield digitalization without replacing existing infrastructure.
What are the typical use cases for an ARM-based industrial Edge Gateway?
This type of Edge Gateway is widely used across industrial scenarios:
- Smart manufacturing: machine monitoring and OEE analysis
- Energy management: power data acquisition and optimization
- Remote equipment monitoring: cloud-based diagnostics
- Industrial automation: Node-RED workflows and control logic
- SCADA edge deployment: local visualization and control
Its fanless design, industrial-grade stability, and flexible interfaces make it ideal for harsh environments and continuous operation.
