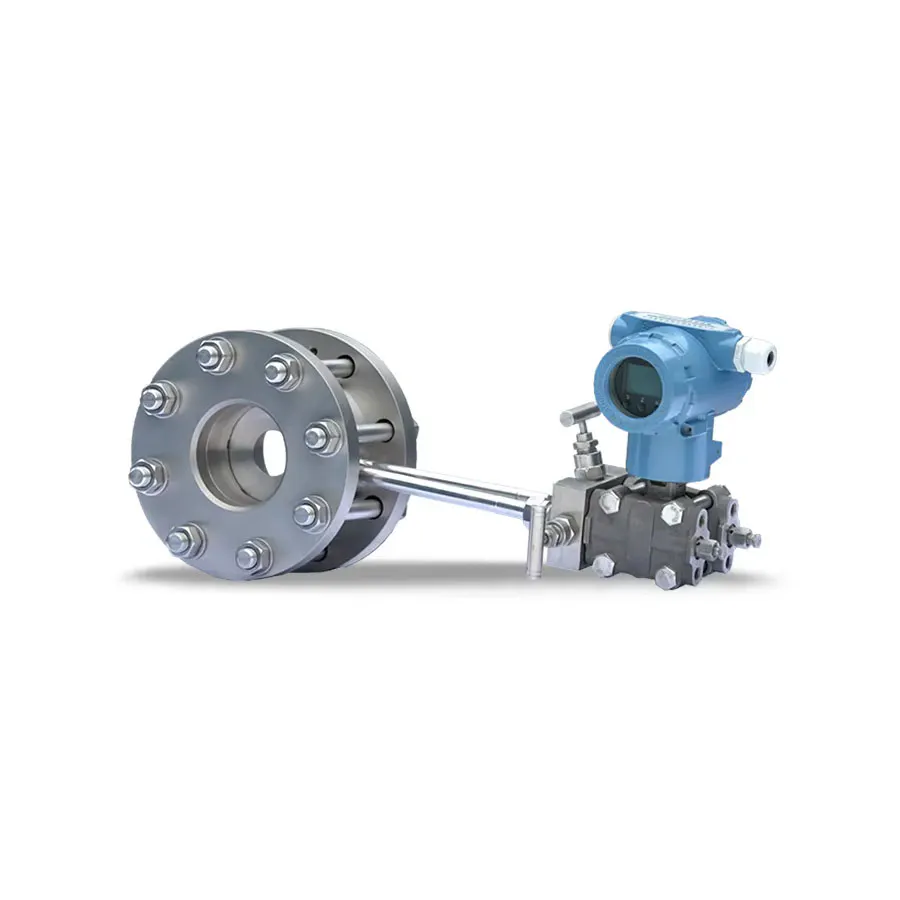

Orifice Flow Meter

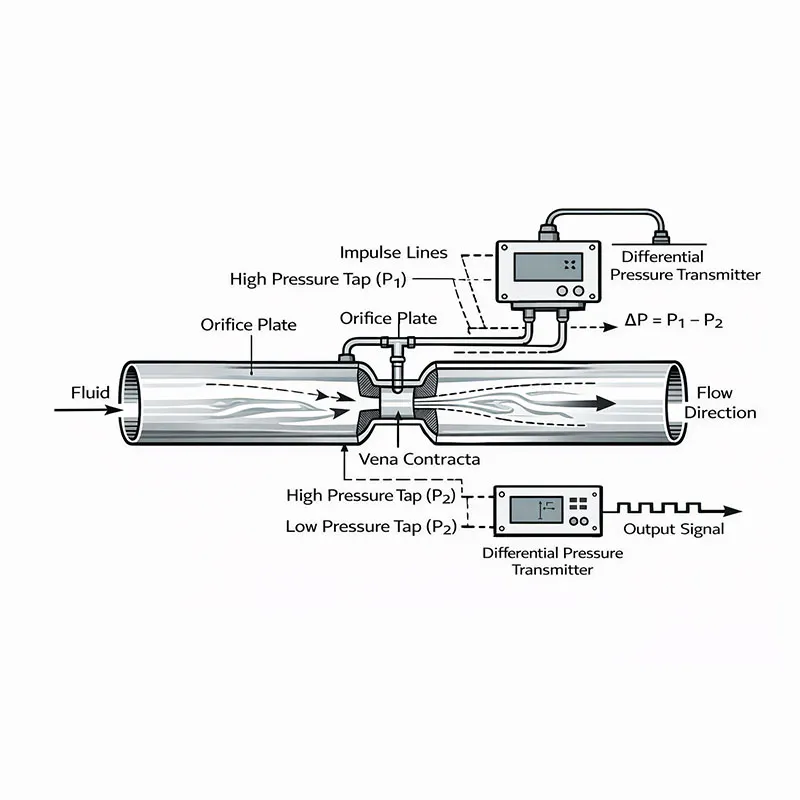

In petroleum, chemical, metallurgy, electric power, textile, and military manufacturing industries, throttling devices are widely used for fluid flow measurement and process control. Among them, the orifice flow meter remains one of the most mature and commonly adopted differential pressure flow measurement solutions.
Standard orifice plate flow meters operate based on well-established international measurement principles, providing stable performance for liquid, gas, and steam flow measurement under various operating conditions.
Standard-Compliant Throttling Devices
Our company manufactures a full range of throttling devices strictly in accordance with international standard ISO 5167:2003 and national standard GB/T 2624-2006. These standards ensure the accuracy, repeatability, and interchangeability of each orifice plate flow meter supplied.

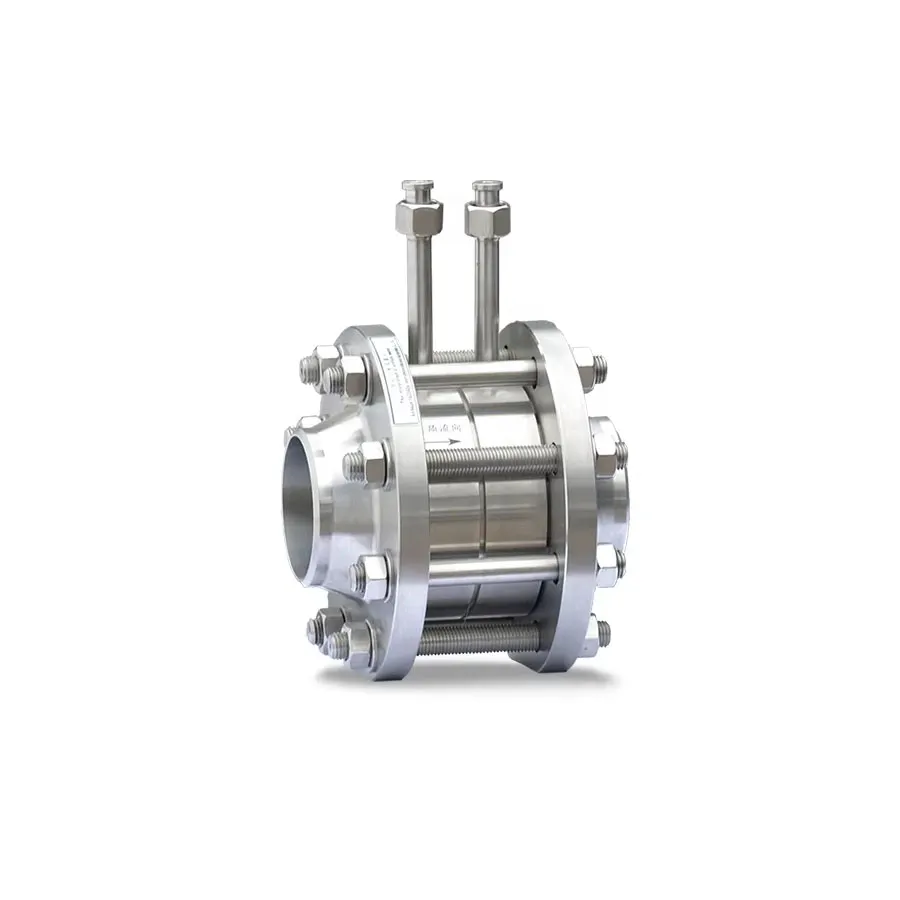

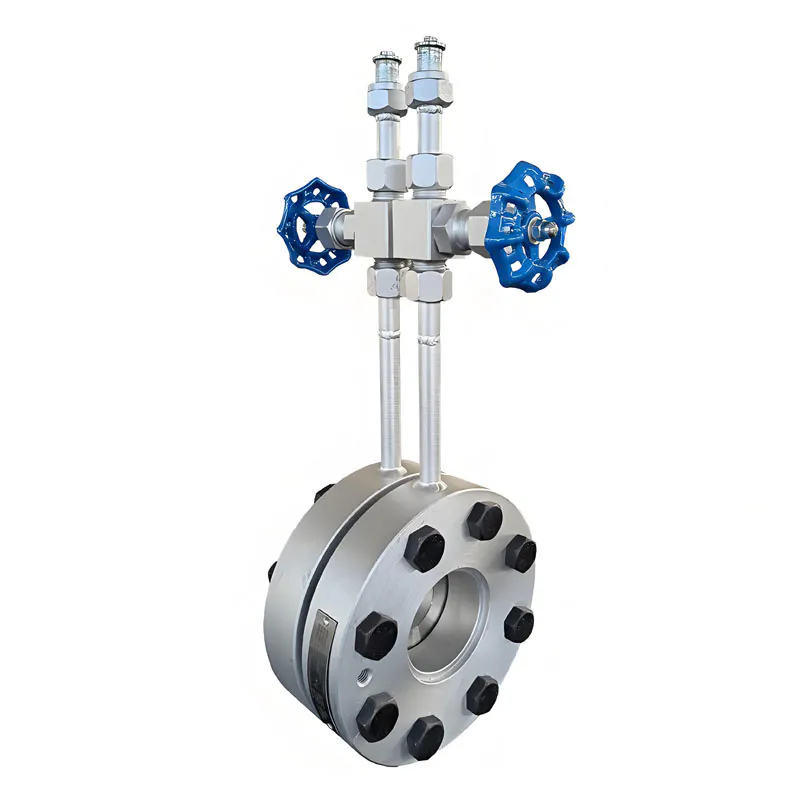

Standard products include concentric orifice plates designed for differential pressure flow measurement in high-pressure, high-temperature, and continuous industrial processes.
Flow Meter Description
Orifice Flow Meter-Features
-

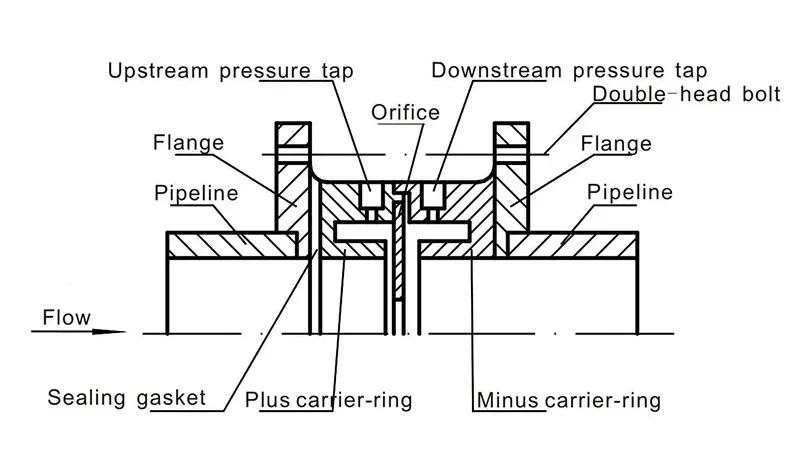

The throttling device features a simple and standardized structure, ensuring stable, reliable performance and a long service life under continuous industrial operation.
-
Orifice plate flow meter design and bore calculation are carried out strictly according to international standards, allowing the device to be installed and commissioned without on-site flow calibration.
-
The orifice flow meter offers wide applicability and is suitable for measuring single-phase fluids such as liquids, gases, and steam, as well as certain mixed-phase flow conditions.
-
The measuring range is wide, with a turndown ratio exceeding 10:1, enabling stable flow measurement across varying process loads.
-
Installation is simple and flexible. The orifice plate flow meter can be directly connected to a differential pressure transmitter or pressure transmitter, eliminating the need for long impulse lines.
-
Multiple communication interfaces are available, supporting common industrial protocols for easy integration into DCS and PLC control systems.
-
The intelligent orifice plate flow meter supports self-diagnosis functions and flexible range configuration, improving operational reliability and reducing maintenance requirements.
Orifice Plate Flow Meter Applications

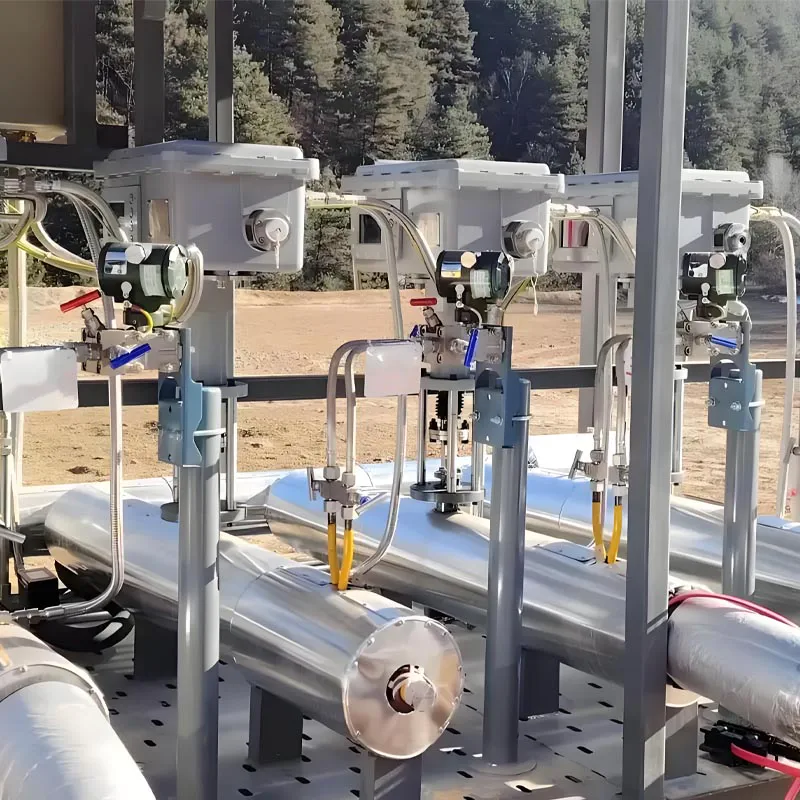

The orifice flow meter is widely used for steam, natural gas, and high-pressure pipeline flow measurement in industrial process systems.
For steam applications, the orifice plate flow meter provides stable and repeatable measurement for saturated and superheated steam in boilers, power plants, and thermal energy systems, supporting mass flow calculation with temperature and pressure compensation.
In natural gas pipelines, the orifice flow meter is commonly applied in transmission lines, metering stations, and industrial fuel gas systems, offering standardized differential pressure flow measurement in accordance with ISO 5167.
For high-pressure liquid and gas pipelines, the orifice plate flow meter features a robust structure with no moving parts, making it suitable for long-term operation in petrochemical, chemical, and energy industries.
Flow Meter Parameter
| Parameter | Specification |
|---|---|
| Nominal diameter | DN10 – DN1200 |
| Measuring accuracy | ±0.5%, ±1.0%, ±1.5% |
| Flow range (turndown ratio) | ≥ 1:15 |
| Nominal pressure | 0.6 MPa, 1.0 MPa, 1.6 MPa, 2.5 MPa, 4.0 MPa, 6.4 MPa, 10 MPa |
| Measured medium | Saturated steam, superheated steam, water, air, natural gas, other mixed media |
| Medium temperature | -10°C to +450°C |
| Power supply | Intelligent flow totalizer: 220 VAC; Flow transmitter: 24 VDC (powered by the totalizer) |
| Output signal | 4–20 mA DC or RS485 communication |
| Explosion-proof rating | Intrinsically safe Ex ib IIC T5 |
Instrava OEM/ODM
Tailored Sourcing & Customization: Getting You the Exact Product You Need
As your trusted supplier and sourcing partner, we bridge the gap between your custom requirements and China’s vast manufacturing capabilities.
Finding the right product in a massive supply chain can be challenging. That is where we step in.
As a curated industrial supplier, our core value is simple: we stand in your shoes to help you procure the most optimal products. Whether you are an EPC contractor needing specialized technical compliance, an OEM equipment manufacturer looking for custom branding, or an industrial distributor/trader seeking competitive edge, we customize and tailor products to fit your exact procurement needs.
How We Customize to Fit Your Procurement Needs
For EPC Contractors & Engineers: We custom-configure instruments and devices to match your precise datasheets—tailoring process connections, exotic materials, signal protocols, and managing third-party calibration and testing so you get project-ready solutions.
For OEM Equipment Manufacturers: We provide comprehensive OEM/ODM customization, including custom housing, labeling, branding (private labeling), and tailored technical specifications to seamlessly integrate with your machinery.
For Industrial Distributors & Traders: We offer flexible customization in packaging, product ranges, and technical parameters, helping you differentiate your portfolio and win more local bids.
Why Partner with Us for Custom Sourcing?
One-Stop Engineering Alignment: You don’t have to deal with multiple factories. We translate your technical requirements into precise manufacturer blueprints.
Strict Quality & Compliance Safeguard: We oversee the entire customization and production process in China, ensuring the final customized product meets your local standards and certifications.
Our Ultimate Value: We don’t just sell what’s on the shelf. We find, customize, and deliver the most suitable and cost-effective product for your unique application.
Related Product Recommendations
What are the main advantages of an orifice flow meter compared with other flow meters?
The orifice flow meter is one of the most widely used differential pressure flow meters due to its standardized design and long-term stability. Compared with turbine, vortex, or ultrasonic flow meters, the orifice plate flow meter offers superior performance in high-temperature, high-pressure, and large-diameter pipeline applications.
Its simple structure with no moving parts ensures high reliability and minimal maintenance requirements. In addition, orifice flow meters comply with international standards such as ISO 5167, making them suitable for standardized projects and long-term industrial operation.
Can an orifice plate flow meter be used for steam flow measurement?
Yes, the orifice plate flow meter is particularly suitable for saturated steam and superheated steam flow measurement. It is widely applied in boilers, power plants, and thermal energy systems.
When combined with pressure and temperature compensation, the orifice flow meter can accurately calculate steam mass flow. This makes it ideal for energy management, steam distribution monitoring, and process control in high-temperature environments.
| Steam type | Application advantage |
|---|---|
| Saturated steam | Stable measurement under constant pressure and temperature |
| Superheated steam | Accurate mass flow calculation with compensation |
| High-pressure steam | Strong mechanical strength and pressure resistance |
Is an orifice flow meter suitable for natural gas measurement?
The orifice flow meter is one of the most recognized solutions for natural gas flow measurement, especially in transmission pipelines and industrial gas systems. Its measurement principle is well-defined and traceable, making it suitable for process monitoring and custody transfer applications.
With proper straight pipe length and installation in accordance with ISO 5167, the orifice plate flow meter provides stable and repeatable flow measurement across a wide operating range.
What is the difference between standard and non-standard throttling devices?
Standard throttling devices refer to orifice flow meters designed and manufactured according to ISO 5167 or GB/T 2624. These devices have fixed calculation formulas and coefficients, ensuring consistent measurement accuracy.
Non-standard throttling devices are used when process conditions deviate from standard requirements, such as low Reynolds numbers, limited straight pipe lengths, or fluids containing impurities.
| Type | Typical use case |
|---|---|
| Standard orifice plate | Clean fluids, stable flow, standardized pipelines |
| Segmental orifice plate | Fluids with impurities or solids |
| Double orifice plate | Low Reynolds number applications |
| Conical entrance orifice | Short straight pipe conditions |
Does an orifice flow meter require on-site calibration?
In most cases, an orifice flow meter does not require on-site flow calibration. The orifice plate bore is calculated and manufactured according to international standards, allowing the device to be installed and commissioned directly.
However, correct installation, proper straight pipe lengths, and accurate pressure and temperature measurement are critical factors affecting overall system accuracy. For custody transfer or high-accuracy applications, system verification may be recommended.
Can orifice flow meters be customized for high-pressure or special applications?
Yes, orifice flow meters can be fully customized to meet specific operating conditions. As an OEM / ODM orifice flow meter manufacturer, throttling devices can be designed based on customer drawings or process data.
Customization options include special materials, high-pressure flange ratings, special tapping configurations, and integration with intelligent differential pressure transmitters. This ensures the orifice plate flow meter performs reliably even in harsh industrial environments.
