Radar Level Transmitter for Stable Measurement in Complex Process Conditions
In many industrial processes, level measurement is affected by high temperature, pressure fluctuations, vapor, dust, foam, and complex tank structures. Conventional contact or ultrasonic sensors may experience unstable signals or frequent maintenance under these conditions.
The INRLT115 radar level transmitter is developed to address these challenges by using non-contact microwave technology, ensuring stable and accurate level measurement even in harsh and variable process environments.
Transmitters & Sensors Description
Core Measurement Advantage of FMCW Radar Technology
In the INRLT115 radar level transmitter, the measurement core is not based on directly resolving time-of-flight, but on detecting the frequency difference (δf) between the transmitted and received radar signals.
The FMCW measurement logic follows this process:
Frequency difference → Distance → Level
Instead of relying on extremely fine time resolution, the transmitter analyzes the frequency offset generated by the propagation delay of the radar wave. This approach avoids the physical limitations associated with time-based resolution and enables more stable and precise distance calculation.
As a result, FMCW radar technology provides significant advantages in high-accuracy level measurement applications, especially in environments involving long measuring distances, high temperature, pressure fluctuations, vapor, dust, or foam.
This is the fundamental reason why FMCW radar level transmitters are widely adopted for demanding industrial level measurement tasks.
Where Radar Level Measurement Is the Right Choice
The INRLT115 radar level transmitter is particularly suitable for applications where other level technologies reach their limits:
-
High-temperature or high-pressure vessels
-
Tanks with strong vapor or dust formation
-
Foam-covered liquid surfaces
-
Large storage tanks or tall silos
-
Processes requiring continuous, non-contact measurement
Transmitters & Sensors Parameter
Model: INRLT115
| Item | Specification |
|---|---|
| Measuring Medium | Liquid |
| Measuring Range | 0.2 m ~ 30 m ；0.3 m ~ 150 m (depending on antenna and application) |

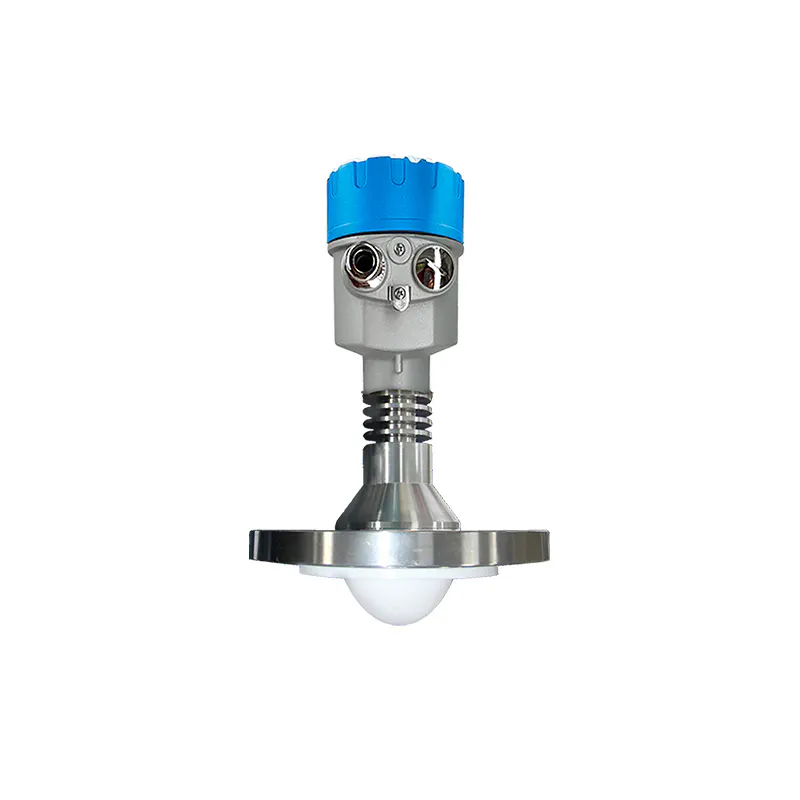

| Process Connection | Flange ≥ DN80 ；Thread G3 A |
| Process Temperature | -40 ~ 120 °C (flange connection) -40 ~ 110 °C (thread connection) |
| Process Pressure | -0.1 ~ 1.0 MPa |
| Antenna Type | 76 mm lens antenna |
| Antenna Material | PTFE |
| Measurement Accuracy | ±2 mm |
| Launch Angle | 3° |
| Protection Class | IP67 |
| Power Supply | Two-wire system: DC 24 V Four-wire system: AC 220 V Six-wire system: DC 12–24 V |
| Signal Output | Two-wire system: 4–20 mA + HART Four-wire system: 4–20 mA + HART Six-wire system: 4–20 mA + HART |
| Housing Material | Aluminum / Plastic / Stainless Steel |
Instrava OEM/ODM
Tailored Sourcing & Customization: Getting You the Exact Product You Need
As your trusted supplier and sourcing partner, we bridge the gap between your custom requirements and China’s vast manufacturing capabilities.
Finding the right product in a massive supply chain can be challenging. That is where we step in.
As a curated industrial supplier, our core value is simple: we stand in your shoes to help you procure the most optimal products. Whether you are an EPC contractor needing specialized technical compliance, an OEM equipment manufacturer looking for custom branding, or an industrial distributor/trader seeking competitive edge, we customize and tailor products to fit your exact procurement needs.
How We Customize to Fit Your Procurement Needs
For EPC Contractors & Engineers: We custom-configure instruments and devices to match your precise datasheets—tailoring process connections, exotic materials, signal protocols, and managing third-party calibration and testing so you get project-ready solutions.
For OEM Equipment Manufacturers: We provide comprehensive OEM/ODM customization, including custom housing, labeling, branding (private labeling), and tailored technical specifications to seamlessly integrate with your machinery.
For Industrial Distributors & Traders: We offer flexible customization in packaging, product ranges, and technical parameters, helping you differentiate your portfolio and win more local bids.
Why Partner with Us for Custom Sourcing?
One-Stop Engineering Alignment: You don’t have to deal with multiple factories. We translate your technical requirements into precise manufacturer blueprints.
Strict Quality & Compliance Safeguard: We oversee the entire customization and production process in China, ensuring the final customized product meets your local standards and certifications.
Our Ultimate Value: We don’t just sell what’s on the shelf. We find, customize, and deliver the most suitable and cost-effective product for your unique application.
Why is the INRLT115 radar level transmitter suitable for high-temperature and high-pressure applications?
The INRLT115 radar level transmitter uses microwave radar technology, which is minimally affected by temperature and pressure changes. Unlike contact or ultrasonic sensors, radar signals remain stable in high-temperature and high-pressure environments, ensuring reliable level measurement.
Can the INRLT115 measure level accurately in tanks with heavy vapor or dust?
Yes. Radar signals are largely unaffected by vapor, dust, or condensation. The INRLT115 radar level transmitter is designed to maintain stable echo detection even in environments with strong vapor formation or dust clouds.
How does the INRLT115 handle foam on the liquid surface?
Foam can absorb or scatter acoustic signals, causing ultrasonic measurement errors. Radar signals, however, penetrate foam more effectively. This allows the INRLT115 to accurately detect the actual liquid surface beneath foam layers in many applications.
Is the INRLT115 suitable for tanks with internal structures or agitators?
Yes. The INRLT115 features advanced signal processing algorithms that filter out false echoes caused by internal structures such as agitators, ladders, or heating coils, allowing accurate level measurement in complex tank geometries.
When should radar level transmitters be preferred over ultrasonic level transmitters?
Radar level transmitters like the INRLT115 should be preferred when applications involve high temperature, high pressure, vapor, foam, dust, or when measurement reliability is critical under changing process conditions.
Can the INRLT115 be used for bulk solid level measurement?
Yes. The INRLT115 radar level transmitter is suitable for both liquid and bulk solid level measurement, especially in silos or bins where dust and uneven material surfaces are present.
